Subaru Legacy III (2000-2003 year). Manual - part 255

ME(H6DO)-8

MECHANICAL

GENERAL DESCRIPTION

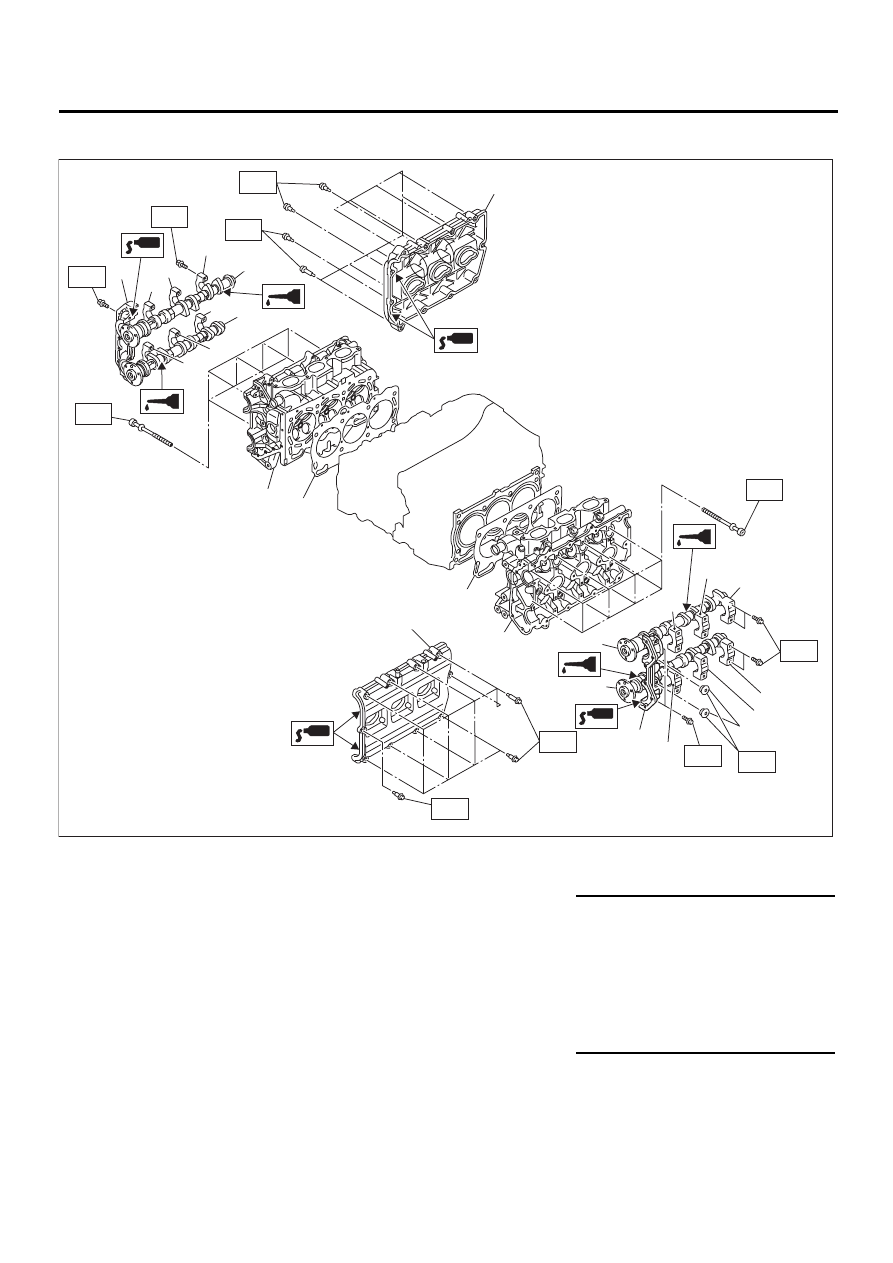

4. CYLINDER HEAD AND CAMSHAFT

(1) Rocker cover (RH)

(13) Cylinder head gasket (LH)

(25) Rocker cover (LH)

(2) Intake camshaft (RH)

(14) Cylinder head (LH)

(3) Exhaust camshaft (RH)

(15) Intake camshaft (LH)

Tightening torque: N·m (kgf-m, ft-lb)

(4) Front camshaft cap (RH)

(16) Exhaust camshaft (LH)

T1: <Ref. to ME(H6DO)-54, Cylinder

Head Assembly.>

(5) Intake camshaft cap (Front RH)

(17) Front camshaft cap (LH)

(6) Intake camshaft cap (Center RH)

(18) Intake camshaft cap (Front LH)

T2: <Ref. to ME(H6DO)-50,

Camshaft.>

(7) Intake camshaft cap (Rear RH)

(19) Intake camshaft cap (Center LH)

(8) Exhaust camshaft cap (Front RH)

(20) Intake camshaft cap (Rear LH)

T3: 9.8 (1.0, 7.2)

(9) Exhaust camshaft cap (Center

RH)

(21) Exhaust camshaft cap (Front LH)

T4: 16 (1.6, 12)

(22) Exhaust camshaft cap (Center

LH)

T5: 59 (6.0, 43)

(10) Exhaust camshaft cap (Rear RH)

(11) Cylinder head (RH)

(23) Exhaust camshaft cap (Rear LH)

(12) Cylinder head gasket (RH)

(24) Plug

ME-00441

( 8 )

( 9 )

( 3 )

( 2 )

( 1 )

( 7 )

( 6 )

( 5 )

( 4 )

(10)

(20)

(19)

(18)

(23)

(22)

(24)

(15)

(16)

(21)

(17)

(14)

(25)

(13)

(12)

(11)

T2

T3

T1

T1

T3

T4

T2

T2

T5

T4

T2

ME(H6DO)-9

MECHANICAL

GENERAL DESCRIPTION

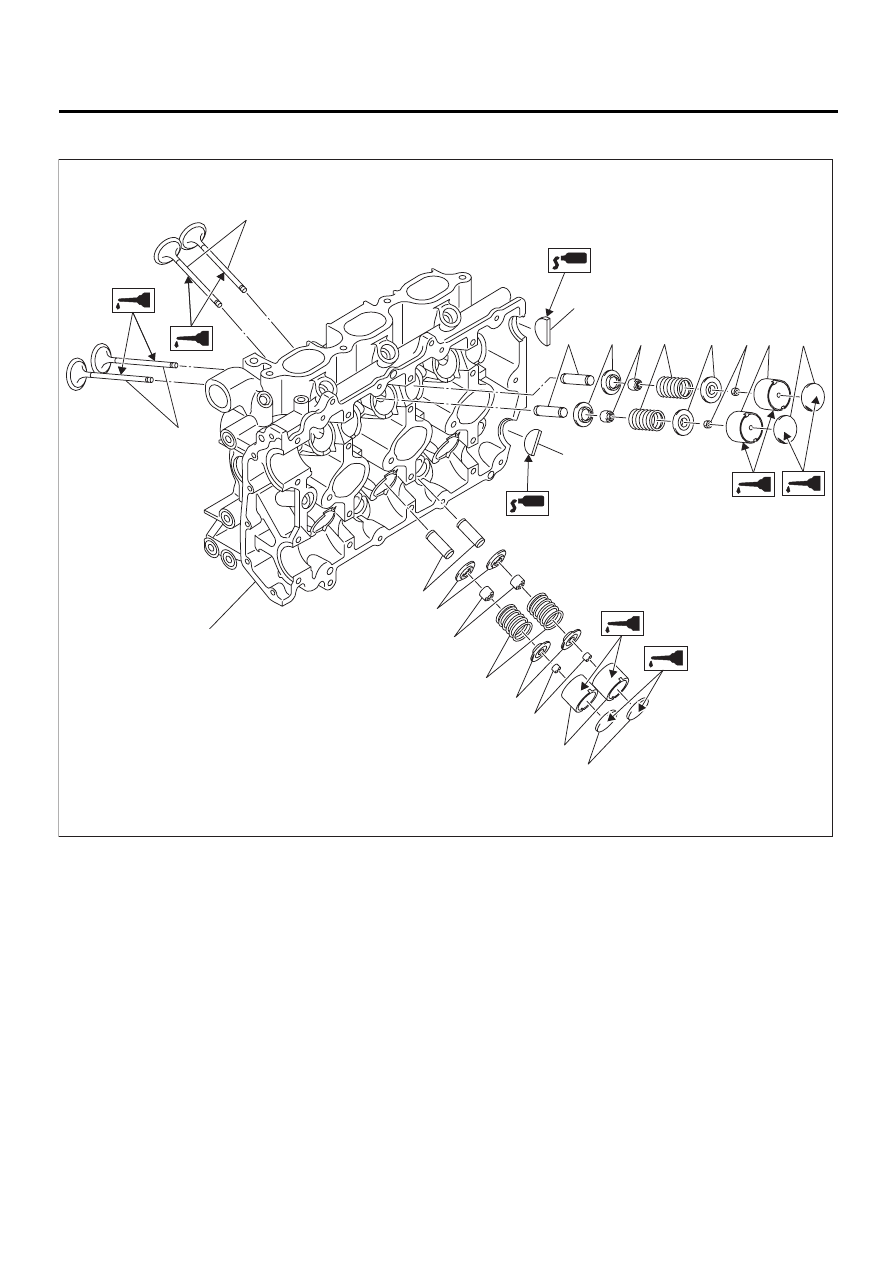

5. CYLINDER HEAD AND VALVE ASSEMBLY

(1) Exhaust valve

(6) Valve spring

(11) Exhaust valve guide

(2) Intake valve

(7) Retainer

(12) Exhaust valve stem seal

(3) Intake valve guide

(8) Retainer key

(13) Cylinder head plug

(4) Valve spring seat

(9) Valve lifter

(14) Cylinder head

(5) Intake valve stem seal

(10) Shim

ME-00442

( 7 )

( 8 ) ( 9 )

( 6 )

( 5 )

( 4 )

( 3 )

( 2 )

( 1 )

(13)

(13)

(10)

( 9 )

( 8 )

( 7 )

( 6 )

( 4 )

(14)

(12)

(11)

(10)

ME(H6DO)-10

MECHANICAL

GENERAL DESCRIPTION

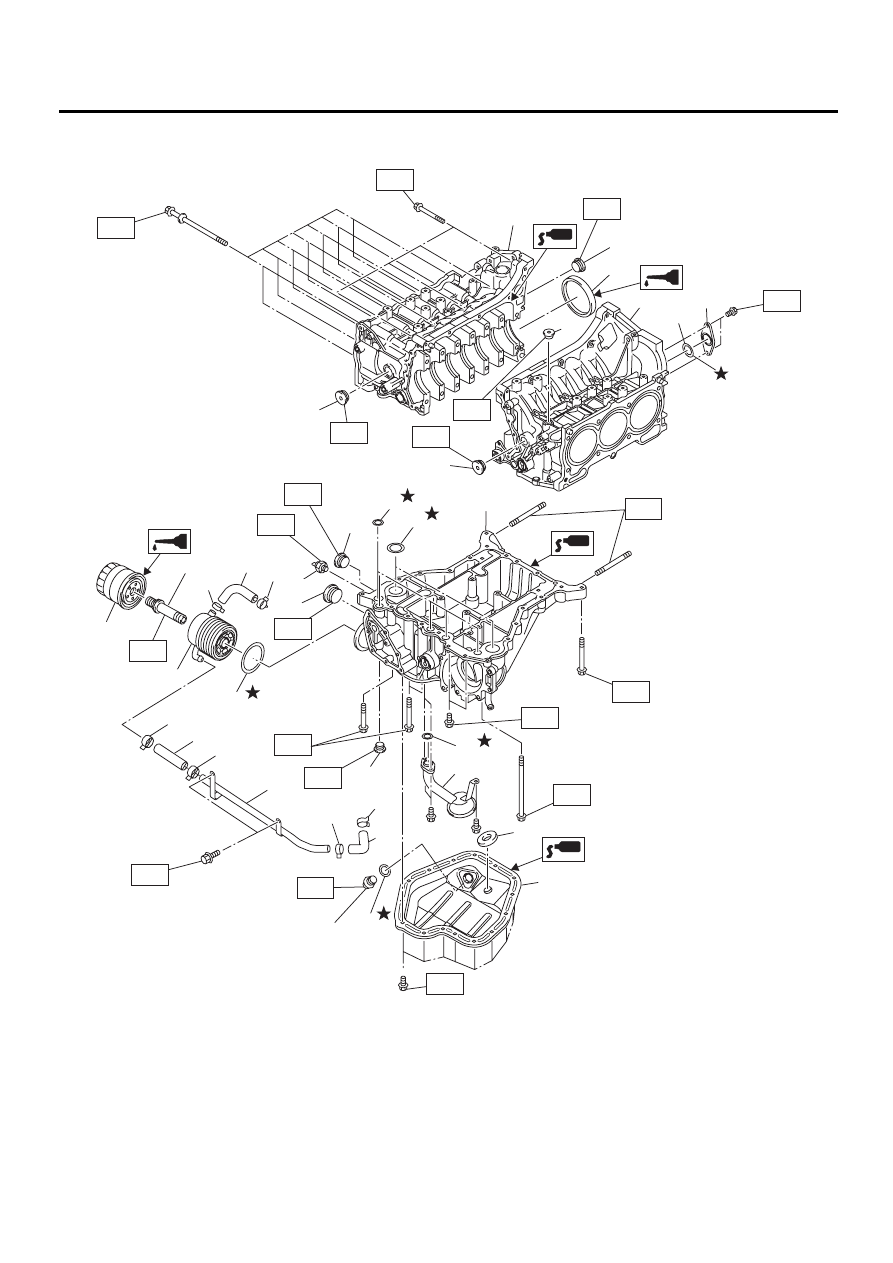

6. CYLINDER BLOCK

ME-00693

( 1 )

( 3 )

( 4 )

( 5 )

( 2 )

(19)

( 6 )

( 5 )

( 5 )

( 7 )

( 9 )

( 5 )

( 8 )

( 5 )

(19)

(19)

(19)

(19)

(18)

(17)

(13)

(14)

(13)

(19)

(10)

(16)

(13)

(14)

(13)

(15)

(19)

(13)

(13)

(11)

(12)

(14)

T1

T6

T1

T1

T8

T3

T9

T2

T2

T2

T2

T3

T8

T8

T5

T3

T10

T7

T2

T4

ME(H6DO)-11

MECHANICAL

GENERAL DESCRIPTION

(1) Cylinder block (RH)

(11) Metal gasket

Tightening torque: N·m (kgf-m, ft-lb)

(2) Cylinder block (LH)

(12) Drain plug

T1: 6.4 (0.65, 4.7)

(3) Rear oil seal

(13) Clamp

T2: 18 (1.8, 13.0)

(4) Service hole cover

(14) Hose

T3: 25 (2.5, 18)

(5) O-ring

(15) Oil cooler pipe

T4: 34 (3.5, 25)

(6) Oil pan upper

(16) Oil cooler

T5: 37 (3.8, 27)

(7) Oil pressure switch

(17) Connector

T6: 44 (4.5, 33)

(8) Oil strainer

(18) Oil filter

T7: 54 (5.5, 40)

(9) Magnet

(19) Plug

T8: 69 (7.0, 51)

(10) Oil pan

T9: <Ref. to ME(H6DO)-60, Cylinder

Block.>

T10: 90 (9.2, 67)
