Subaru Legacy III (2000-2003 year). Manual - part 1096
WI-338
WIRING SYSTEM
BULKHEAD WIRING HARNESS (IN ENGINE ROOM)
51.Bulkhead Wiring Harness (In Engine Room)

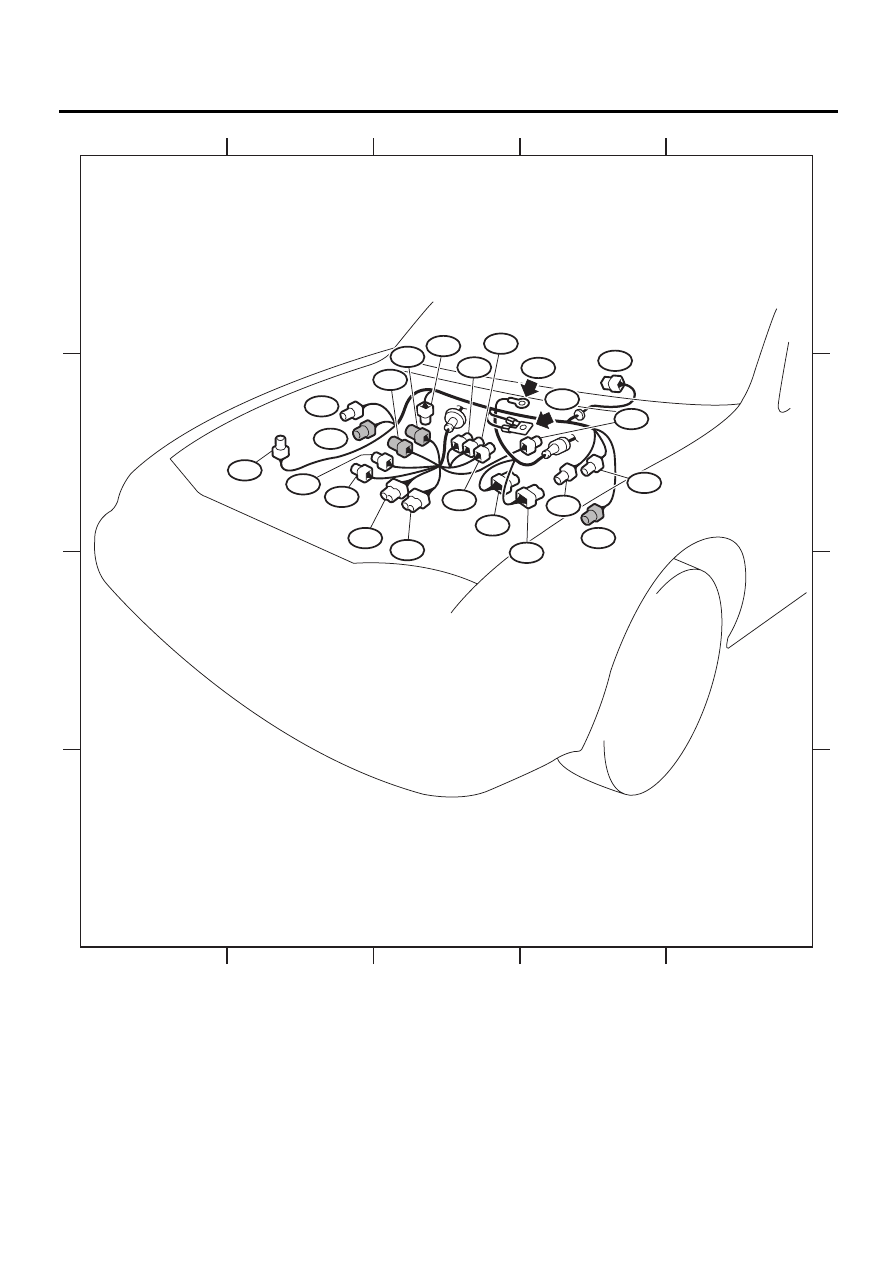

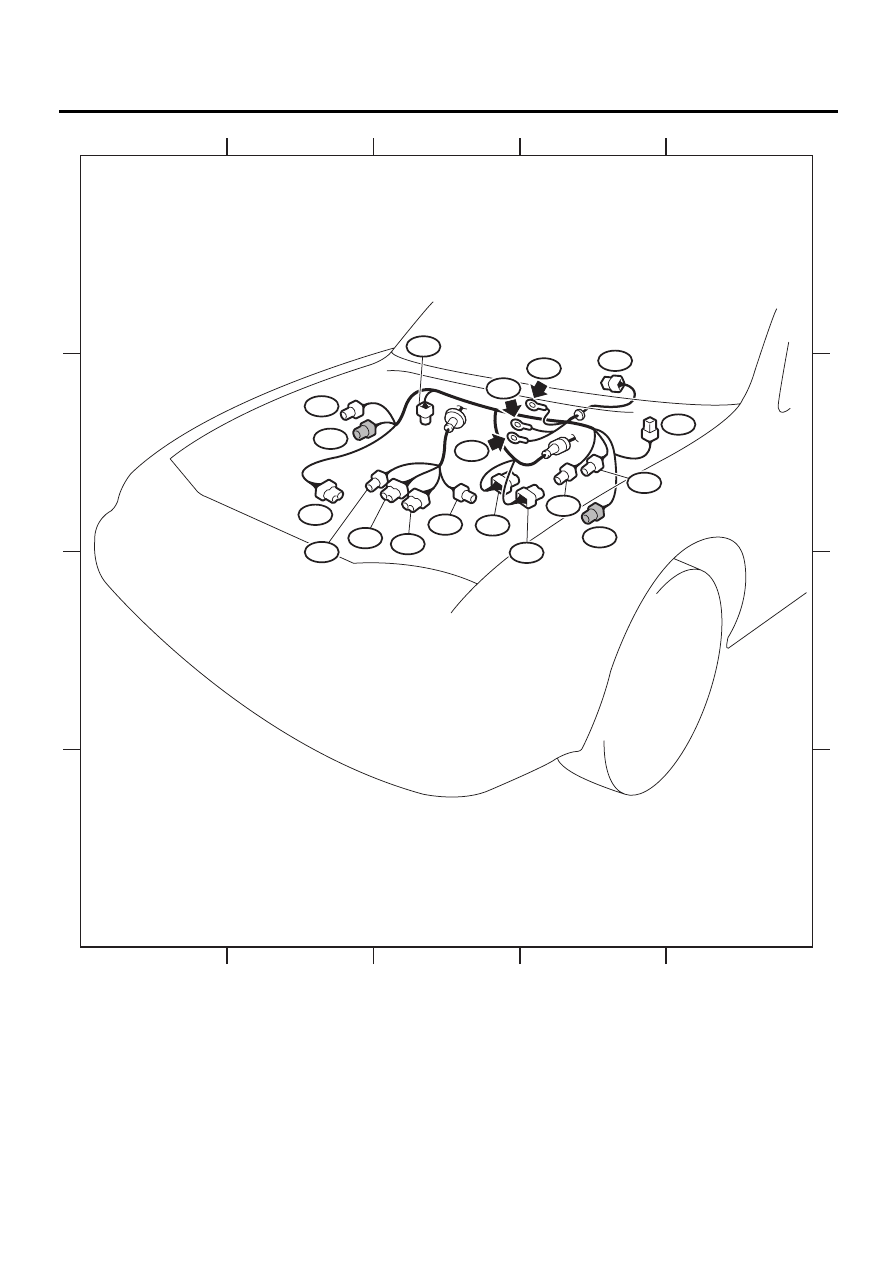

A: LOCATION
1. LHD 4-CYLINDER ENGINE MODEL
Connector
Connecting to
No.
Pole
Color
Area
No.
Name
B6
2
Brown
B-2
ABS front sensor RH (Outback model)
2
★
B-2
ABS front sensor RH (Other models)
B7
6
Black
B-2
Cruise control actuator
B8
5
★
B-3
Front wiper motor
B10
2
★
B-2
A/C pressure switch
B11
20
Black
B-3
T4
Transmission (AT)
B12
12
★
B-3
T3
B14
1
Black
B-3
Starter (Magnet)
B15
2
Brown
B-3
Front ABS sensor LH (Outback model)
2
★
B-3
Front ABS sensor LH (Other models)
B16
2
Gray
B-3
Brake fluid level switch
B17
3
★
B-2
Vehicle speed sensor (MT)
B18
4
★
B-2
Oxygen sensor (Without OBD model)
4
★
B-2
Front oxygen (A/F) sensor (With OBD model)
B19
4
★
B-2
T5
Rear oxygen sensor cord (With OBD model)
B21
20
★
B-2
E2
Engine wiring harness
B22
16
Brown
B-2
E3
B24
2
Gray
B-3
T1
Back-up light switch (MT)
B25
2
Brown
B-3
T2
Neutral position switch (MT)
B29
2
Black
B-3
T8
Lo (AWD) indicator light switch (MT)
B155
3
★
B-2
CO resistor (Without OBD model)
B328
6
Black
B-2
E58
Engine wiring harness
★
: Non-colored
