Subaru Legacy III (2000-2003 year). Manual - part 1094
WI-330
WIRING SYSTEM
HARNESS COMPONENTS LOCATION
49.Harness components location
A: LOCATION

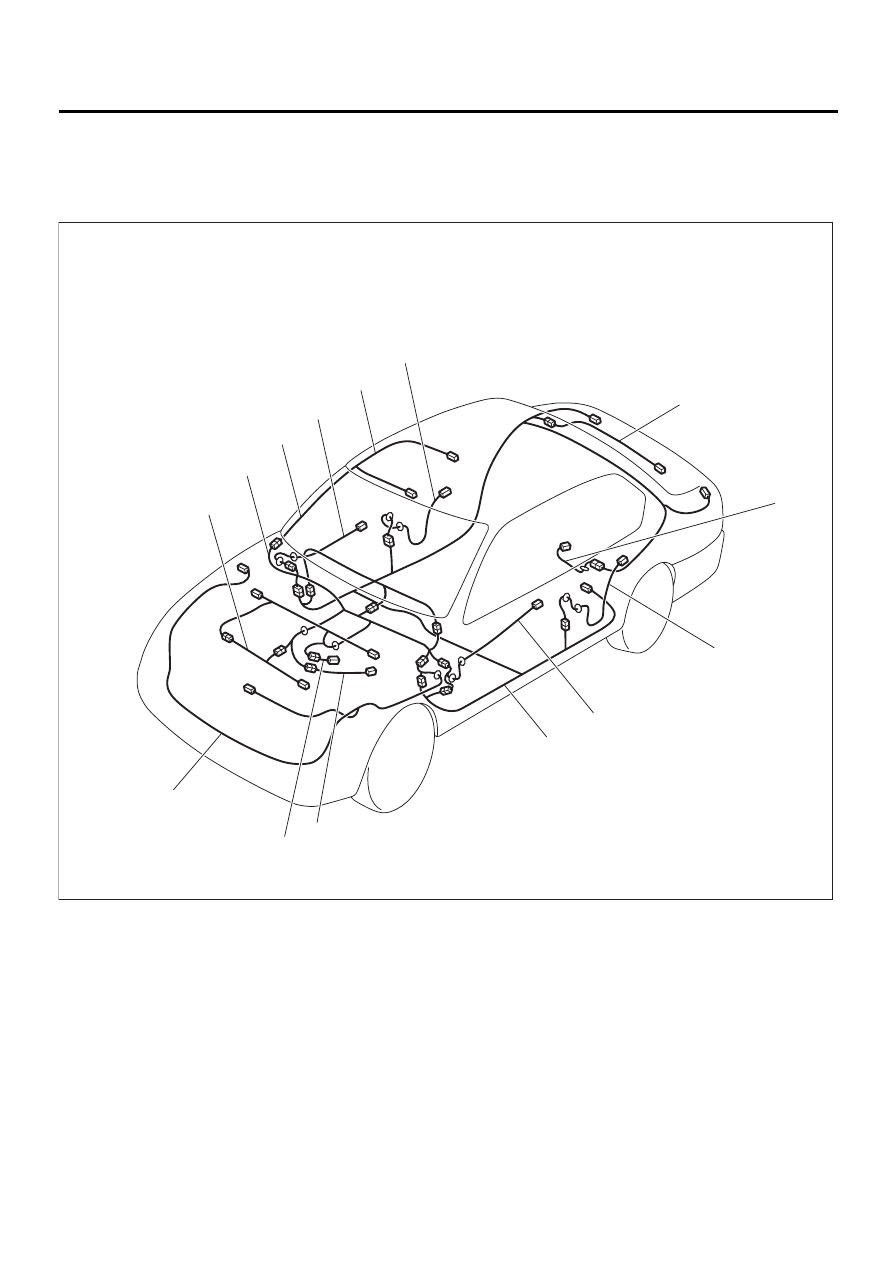

1. LHD SEDAN MODEL
(1) Front wiring harness
(6) Rear door cord RH
(11) Rear door cord LH
(2) Engine wiring harness
(7) Rear wiring harness
(12) Front door cord LH
(3) Bulkhead wiring harness
(8) Roof cord
(13) Transmission cord
(4) Instrument panel wiring harness
(9) Fuel tank cord
(14) Rear oxygen sensor cord
(5) Front door cord RH
(10) Trunk lid cord

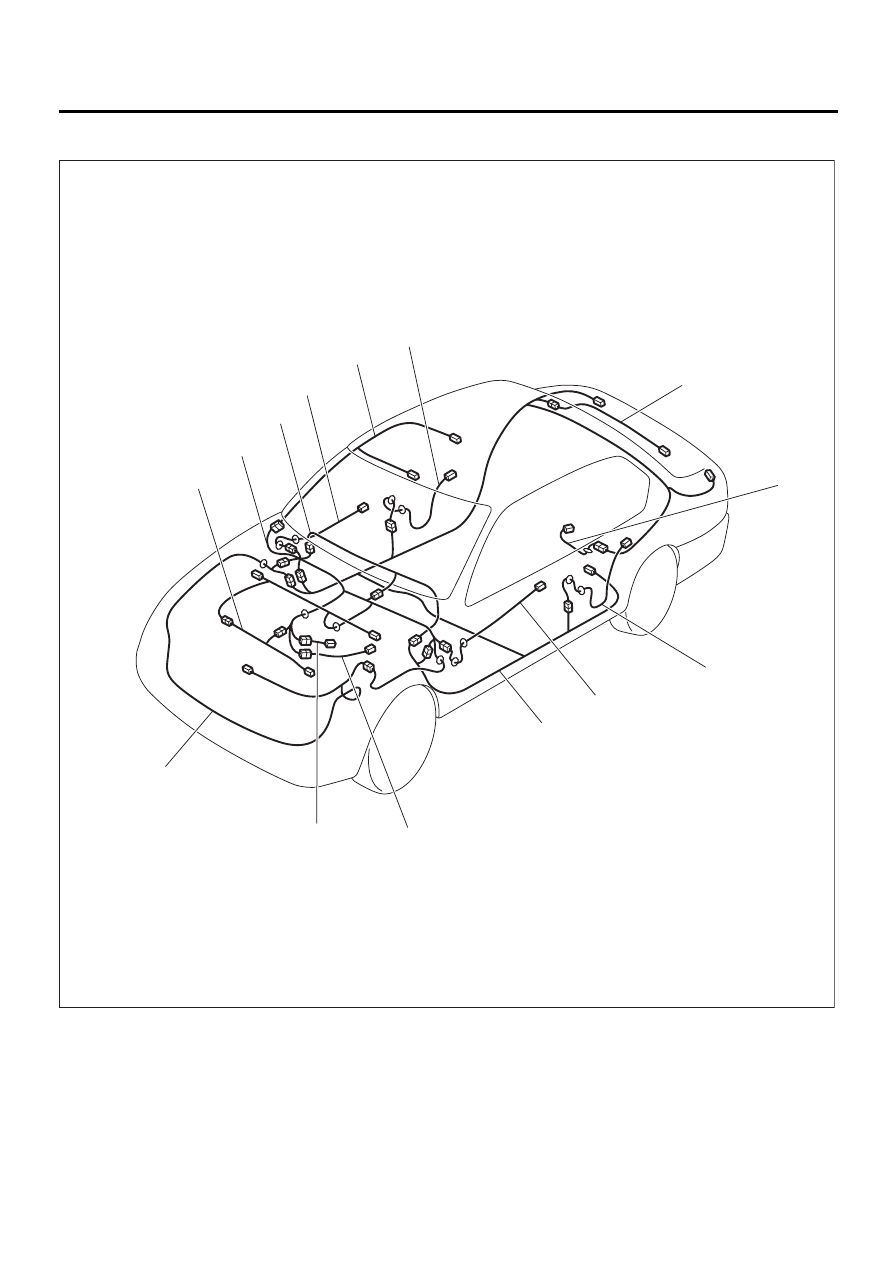

WI-01026
(1)
(13)
(14)
(7)
(12)
(11)
(9)
(10)
(6)
(8)
(5)
(4)
(3)
(2)
