Subaru Impreza 3 / Impreza WRX / Impreza WRX STI. Manual - part 724





SL-45

Impact Sensor

SECURITY AND LOCKS

19.Impact Sensor

A: REMOVAL

1) Remove the key from ignition switch.

2) Close all the doors, trunk lid and rear gate.

3) Press the UNLOCK button of the keyless trans-

mitter.

4) Disconnect the ground cable from battery.

5) Remove the impact sensor.

6) Change the setting of impact sensor using Sub-

aru Select Monitor.

B: INSTALLATION

1) Remove the key from ignition switch.

2) Close all the doors, trunk lid and rear gate.

3) Press the UNLOCK button of the keyless trans-

mitter.

4) Disconnect the ground cable from battery.

5) Install the impact sensor.

6) Change the setting of impact sensor using Sub-

aru Select Monitor.

C: OPERATION

1. IMPACT SENSOR SETTING USING SUB-

ARU SELECT MONITOR

1) Connect the Subaru Select Monitor to the data

link connector.

2) Turn the ignition switch to ON.

3) On the “System Selection Menu”, select {Integ.

unit mode}.

4) Select {ECM customizing}.

5) Make a impact monitor setting.

• When installing: ON

• When removing: OFF

6) Make a impact monitor ON/OFF setting.

• When installing: ON

• When removing: OFF

7) Turn the ignition switch to OFF, and then remove

the Subaru Select Monitor.

D: ADJUSTMENT

1. CHECK IMPACT SENSOR

1) Remove the key from ignition switch.

2) Close all the windows.

3) Close  all  the  doors  and  the  rear  gate.  Leave

open the front hood.

4) Press the LOCK button of the keyless transmit-

ter from outside of vehicle.

5) Check  that  the  security  indicator  light  blinks

twice within 0.5 seconds in 2 second cycles after 30

seconds.

6) Hit all windows with the palm with force repeat-

edly, to check for whether the security alarm oper-

ates. Lift up the front hood approx. 12 cm (4.7 in) or

more, and then drop it off to check the operation of

security alarm.

7) If NG, adjust the impact sensitivity.

2. IMPACT SENSITIVITY ADJUSTMENT

1) Connect the Subaru Select Monitor to the data

link connector.

2) Turn the ignition switch to ON.

3) On the “System Selection Menu”, select {Impact

Sensor}.

4) Make a {Sensitivity Adjustment Mode}.

• Sensitivity can be adjusted in 11 levels (0 to 10).

• Initial setting is 5.

• Smaller number means more sensitive.

• Larger number means less sensitive.

5) Turn the ignition switch to OFF, and then remove

the Subaru Select Monitor.
NOTE:

• Set the sensor so as not to let the alarm on nor-

mal vibration (reclining to the door, hit the ball and

etc.).

• Set the sensor to operate the alarm with hitting

the door or window glass, etc. continuously like a

mayhem by robbery.

• Even if there is no burglary attempt, if there is vi-

bration  (road  construction,  elevated  parking  lots,

passage of trains or boarding of ferries), the alarm

can be triggered. Because of this, ask the customer

about their parking conditions, and set an appropri-

ate sensitivity level after discussion.

• The  impact  sensitivity  can  also  be  adjusted  on

the manufacturer’s optional display, and it can be

set in 11 levels from 0 to 10. The sensitivity is set to

5 by default. (Unlike the specification of the Subaru

Select Monitor, the setting becomes duller as the

setting value becomes smaller, and more sensitive

as the number becomes larger.)

• If the sensitivity setting was not performed prop-

erly,  a  buzzer  will  sound  four  times.  In  this  case,

check the following:

• Is there an error in CAN communication?

• Is there an open circuit in the harness between

the body integrated unit and the impact sensor?

• Is there a malfunction in the display, body inte-

grated unit or impact sensor?

SL-46

Keyless Entry Control Module

SECURITY AND LOCKS

20.Keyless Entry Control Mod-

ule

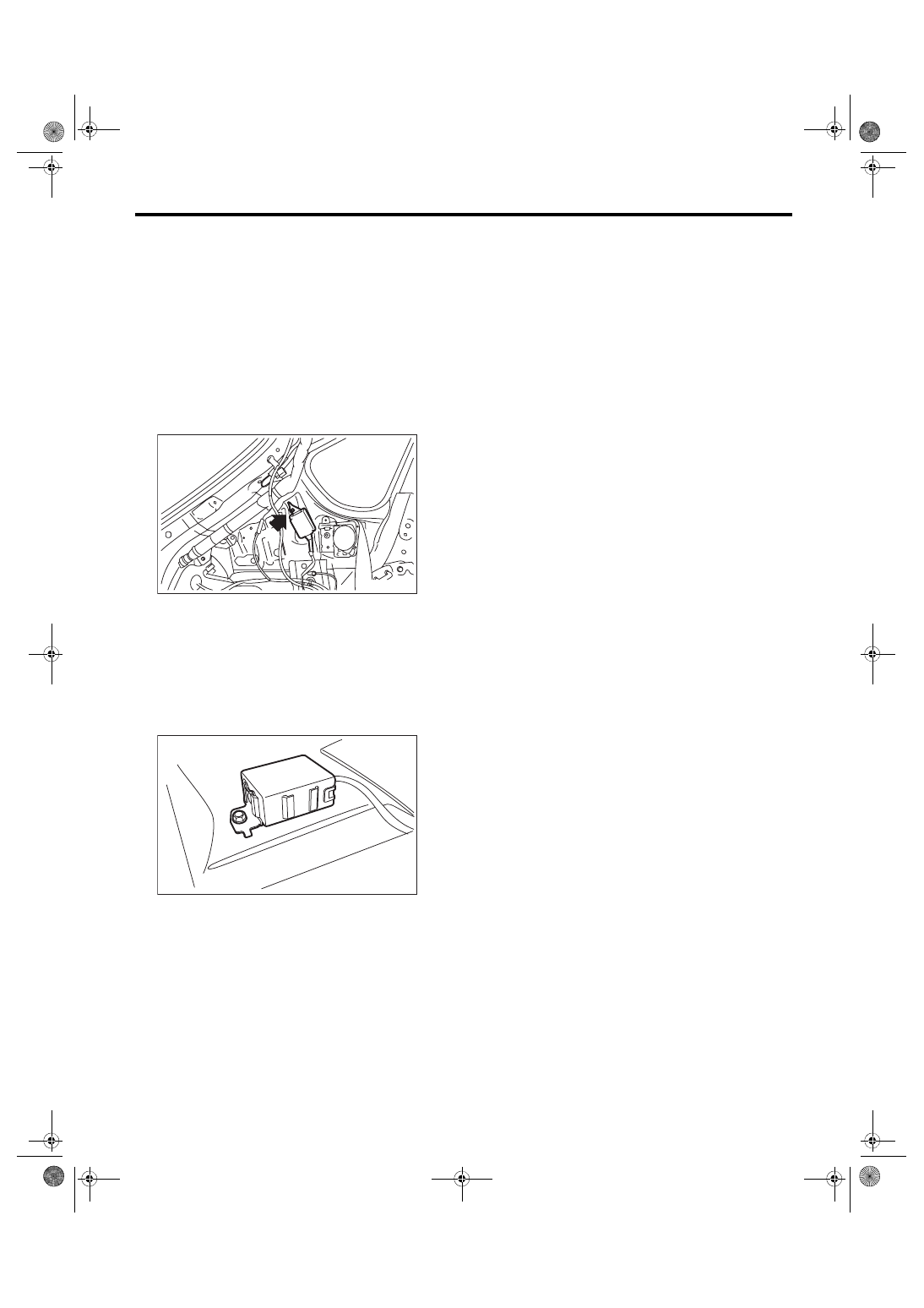

A: REMOVAL

1. 5 DOOR MODEL

1) Disconnect the ground cable from battery.

2) Remove the left rear quarter trim. <Ref. to EI-60,

REMOVAL, Rear Quarter Trim.>

3) Disconnect  the  keyless  entry  control  module

connector.

4) Remove  the  bolt  and  then  remove  the  keyless

entry control module.

2. 4 DOOR MODEL

1) Disconnect the ground cable from battery.

2) Remove the rear shelf trim. <Ref. to EI-62, RE-

MOVAL, Rear Shelf Trim.>

3) Disconnect  the  keyless  entry  control  module

connector.

4) Remove  the  bolt  and  then  remove  the  keyless

entry control module.

B: INSTALLATION

Install each part in the reverse order of removal.
Tightening torque:

Keyless entry control module: 13 N·m (1.33

kgf-m, 9.6 ft-lb)

SL-00747

SL-00800

SL-47

Keyless Buzzer

SECURITY AND LOCKS

21.Keyless Buzzer

A: REMOVAL

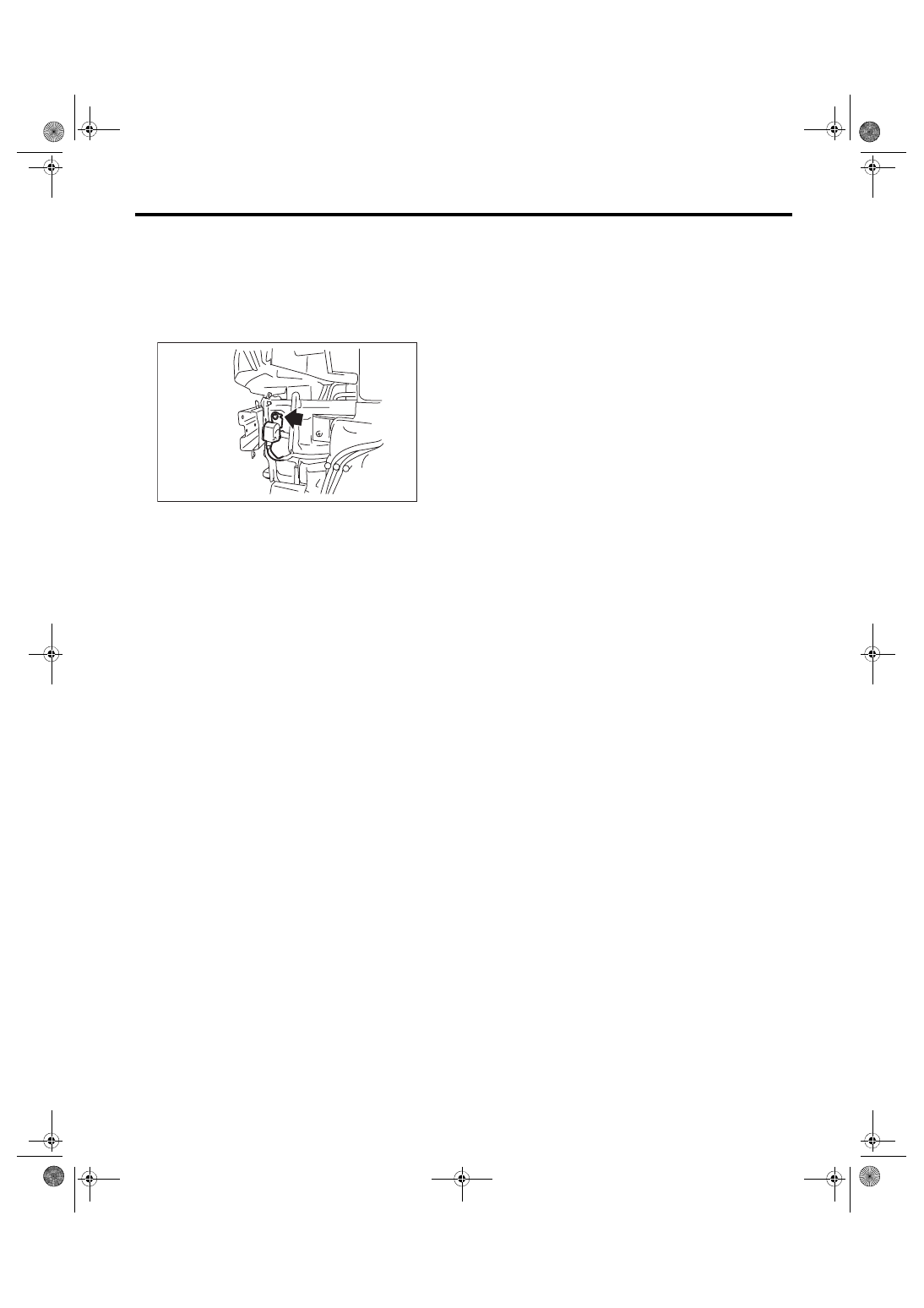

1) Disconnect the ground cable from the battery.

2) Turn over the left front mud guard.

3) Remove the bolt, and then remove the keyless

buzzer.

B: INSTALLATION

Install each part in the reverse order of removal.
Tightening torque:

Keyless buzzer: 7.5 N·m (0.76 kgf-m, 5.5 ft-lb)

C: INSPECTION

Using  the  Subaru  Select  Monitor,  perform  forced

operation of the keyless buzzer. <Ref. to LAN(di-

ag)-24, FUNCTION CHECK, OPERATION, Suba-

ru Select Monitor.>
NOTE:

If it does not sound, replace the buzzer.

SL-00773

SL-48

Body Integrated Unit

SECURITY AND LOCKS

22.Body Integrated Unit

A: NOTE

1. WHEN REPLACING THE BODY INTE-

GRATED UNIT

1) Check  and  record  the  current  setting.  <Ref.  to

LAN(diag)-19,  CONFIRM  CURRENT  SETTING,

OPERATION, Subaru Select Monitor.>

2) Prepare the following.

• Security ID plate

• Required number of registered immobilizer keys

or new (not registered) immobilizer keys.

2. AFTER REPLACING THE BODY INTE-

GRATED UNIT

1) Register the immobilizer. For detailed operation

procedures, refer to “PC application help for Suba-

ru Select Monitor”.

2) Set the current settings as recorded.

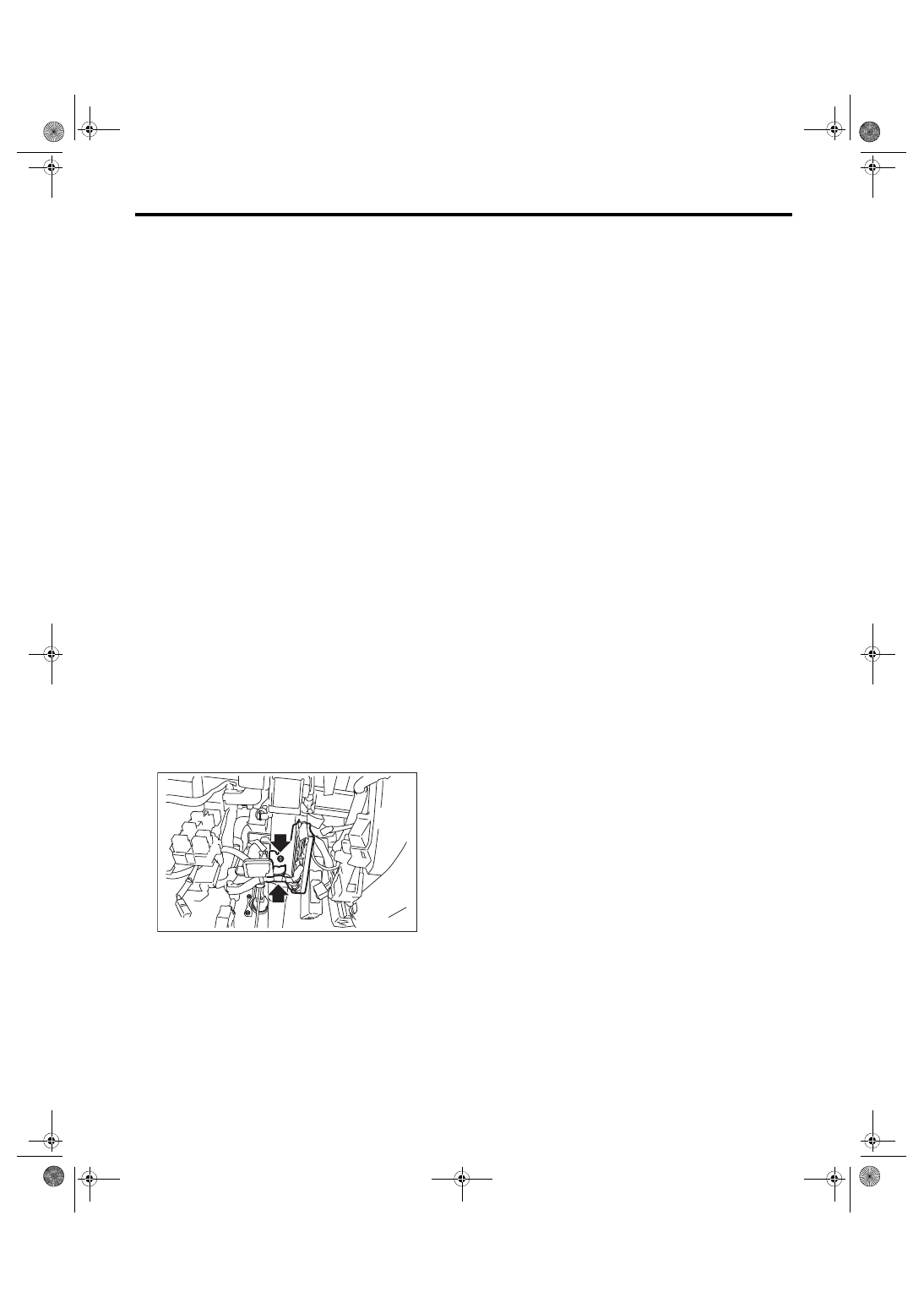

B: REMOVAL

1) Disconnect the ground cable from battery.

2) Remove the driver’s side instrument panel lower

cover. <Ref. to EI-55, REMOVAL, Instrument Pan-

el Assembly.>

3) Remove the knee guard panel.

4) Disconnect  the  connector  of  body  integrated

unit.
CAUTION:

Be careful to keep water and other foreign ma-

terials away from body integrated unit.

5) Remove the mounting bolt for the body integrat-

ed  unit  bracket,  and  remove  the  body  integrated

unit.

C: INSTALLATION

Install each part in the reverse order of removal.
Tightening torque:

Body integrated unit: 7.5 N·m (0.76 kgf-m, 5.5

ft-lb)

NOTE:

Make sure  that there  are no differences  from  the

contents  of  the  current  settings  after  installation.

<Ref.  to  LAN(diag)-19,  CONFIRM  CURRENT

SETTING, OPERATION, Subaru Select Monitor.>

SL-00834
