GLASS/WINDOWS/MIRRORS

GW

Page

1.

General Description  ...................................................................................2

2.

Power Window System  ..............................................................................8

3.

Power Window Control Switch  ...................................................................9

4.

Front Door Glass ......................................................................................12

5.

Front Regulator and Motor Assembly  ......................................................13

6.

Remote Control Mirror System .................................................................14

7.

Scalp Cap .................................................................................................15

8.

Outer Mirror Assembly  .............................................................................16

9.

Outer Mirror ..............................................................................................19

10.

Remote Control Mirror Switch  ..................................................................20

11.

Rear Door Glass  ......................................................................................21

12.

Rear Regulator and Motor Assembly  .......................................................22

13.

Windshield Glass  .....................................................................................23

14.

Rear Gate Glass  ......................................................................................28

15.

Rear Window Glass  .................................................................................31

16.

Rear Window Defogger System ...............................................................33

17.

Rear Quarter Glass  ..................................................................................35

18.

Rearview Mirror ........................................................................................38

19.

Wiper Deicer System  ...............................................................................39

GW-2

General Description

GLASS/WINDOWS/MIRRORS

1. General Description

A: COMPONENT

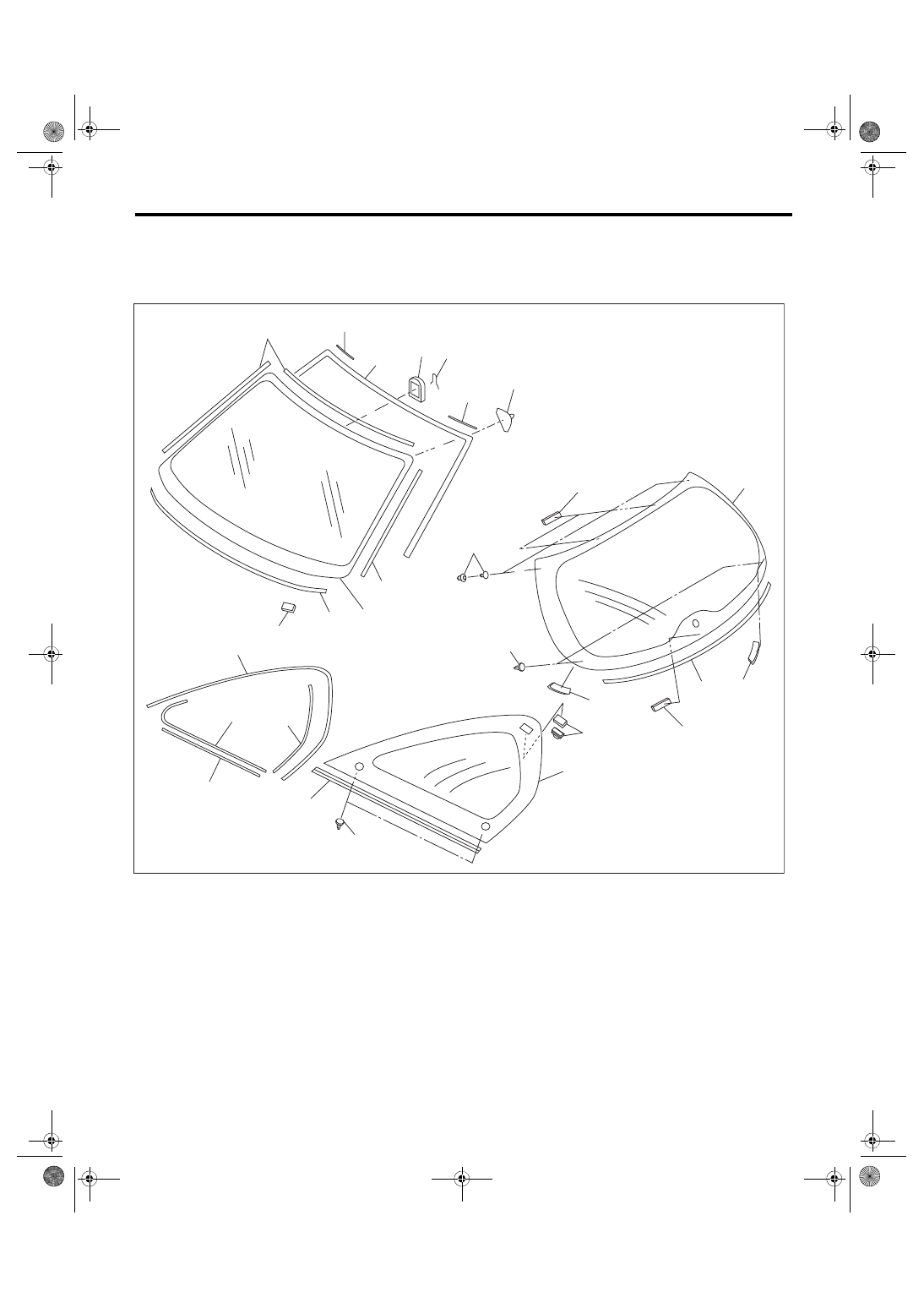

1. FIXED GLASS (5 DOOR MODEL)

(1)

Windshield glass

(5)

Spring

(9)

Fastener

(2)

Dam rubber

(6)

Locating pin

(10) Locating pin

(3)

Molding

(7)

Seal

(11) Spacer

(4)

Rearview mirror mount

(8)

Rear quarter glass

(12) Rear gate glass

(1)

(2)

(3)

(4)

(6)

(7)

(5)

(12)

(10)

(10)

(3)

(11)

(2)

(2)

(8)

(10)

(9)

(2)

(3)

(7)

(7)

(2)

(2)

(7)

(11)

(7)

(2)

GW-01070

GW-3

General Description

GLASS/WINDOWS/MIRRORS

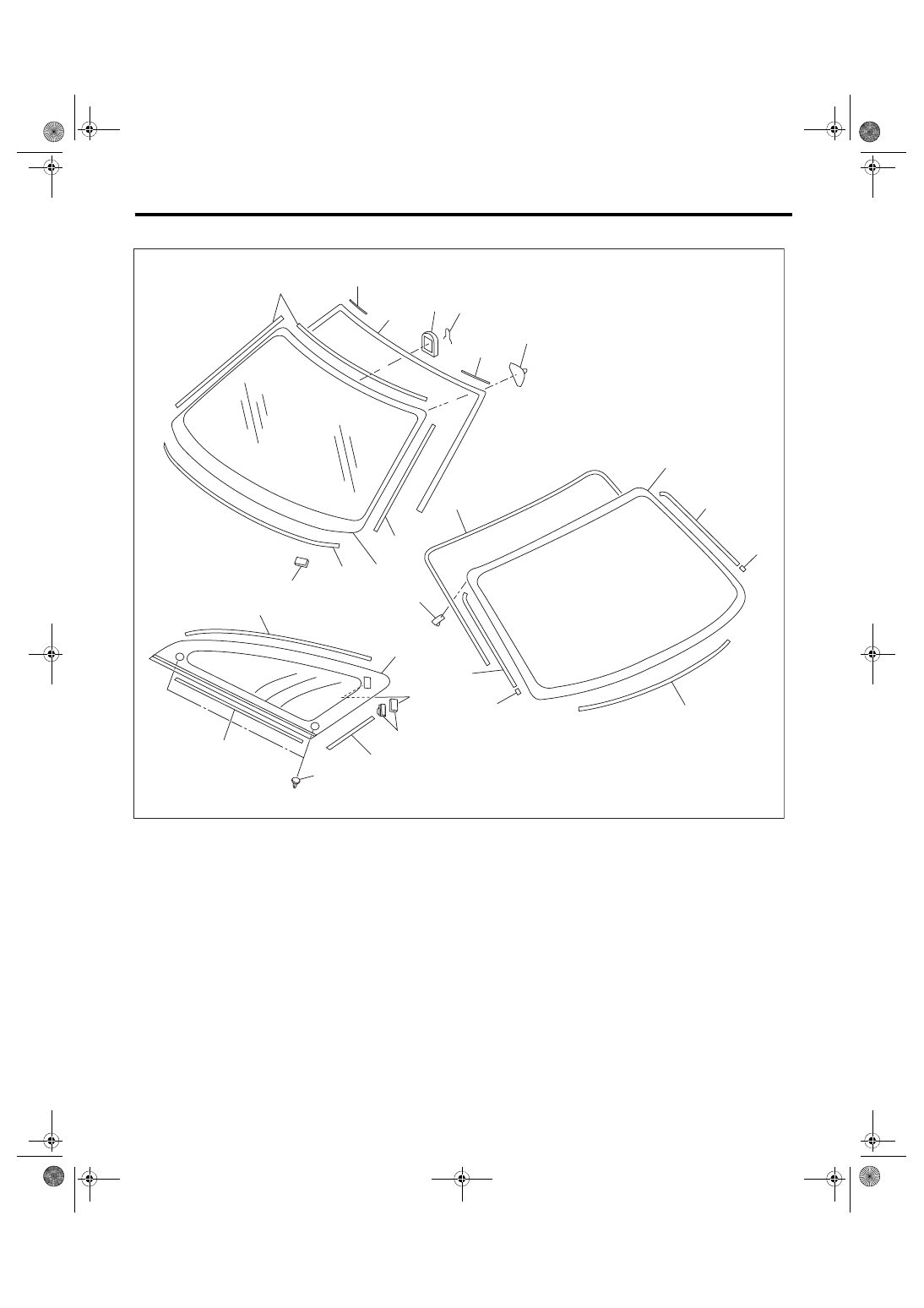

2. FIXED GLASS (4 DOOR MODEL)

(1)

Windshield glass

(5)

Spring

(9)

Fastener

(2)

Dam rubber

(6)

Locating pin

(10) Locating pin

(3)

Molding

(7)

Seal

(11) Rear window glass

(4)

Rearview mirror mount

(8)

Rear quarter glass

(12) Spacer

(9)

(10)

(2)

(2)

(8)

(2)

GW-00820

(2)

(6)

(3)

(11)

(2)

(12)

(2)

(12)

(1)

(2)

(3)

(4)

(6)

(7)

(5)

(2)

(2)

(7)

(7)

GW-4

General Description

GLASS/WINDOWS/MIRRORS

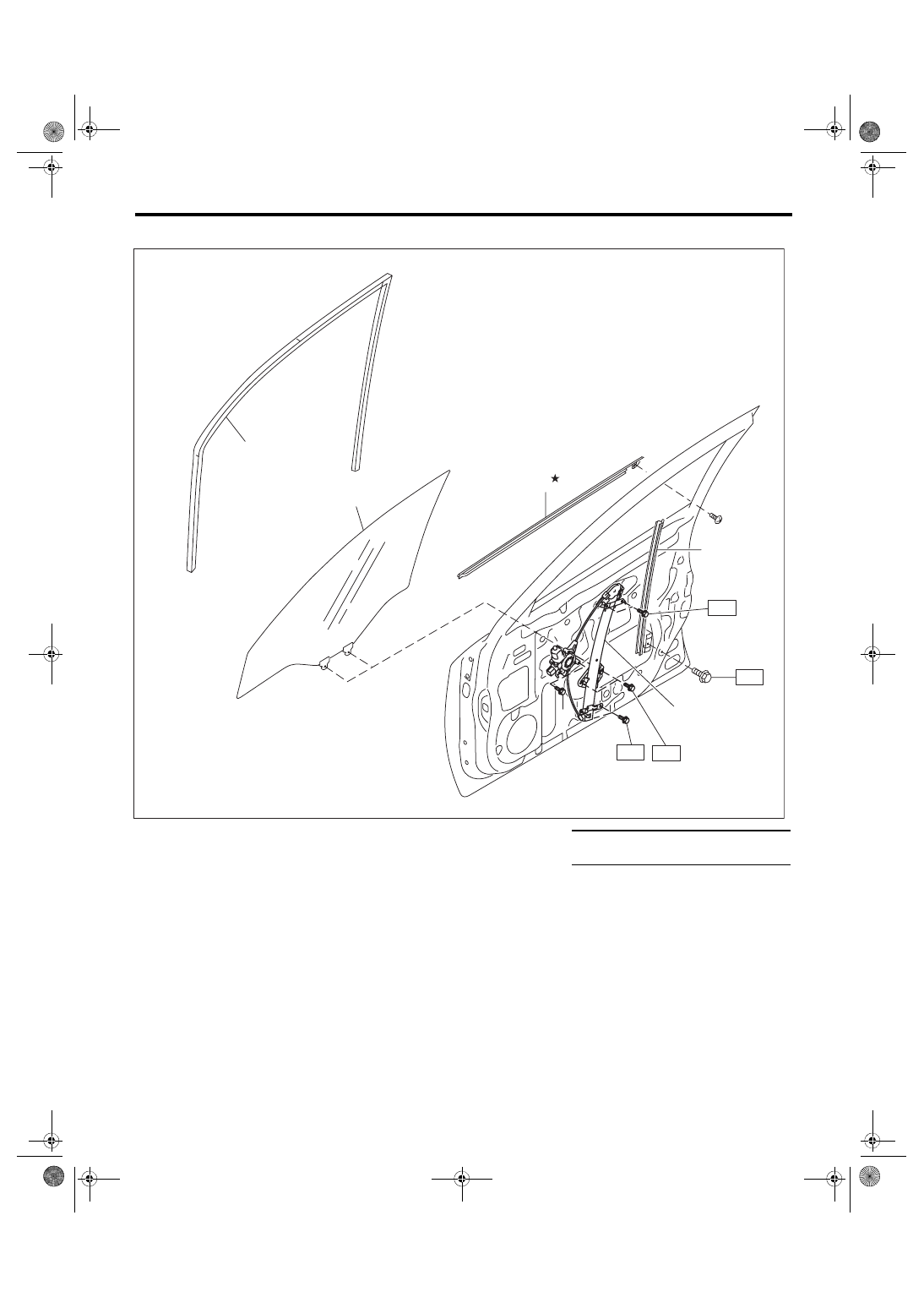

3. FRONT DOOR GLASS

(1)

Glass run rubber

(4)

Door sash

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Glass

(5)

Regulator & motor ASSY

T: 7.5 (0.76, 5.5)

(3)

Weather strip outer









GW-00745

(1)

(2)

(3)

(4)

(5)

T

T

T

T
