ET-19

Microphone

ENTERTAINMENT

16.Microphone

A: PROCEDURE

Refer to “Spot Map Light” for removal and installa-

tion procedures of microphone. <Ref. to LI-33, Spot

Map Light.>

B: INSPECTION

1) Check the connection status of the microphone.

2) Replace the spot map light assembly if the mi-

crophone  is  found  defective.  <Ref.  to  LI-33,  RE-

MOVAL, Spot Map Light.>

ET-20

Microphone

ENTERTAINMENT

COMMUNICATION SYSTEM

COM

Page

1.

General Description  ...................................................................................2

2.

Horn System  ..............................................................................................3

3.

Horn  ...........................................................................................................4

4.

Horn Switch ................................................................................................5

COM-2

General Description

COMMUNICATION SYSTEM

1. General Description

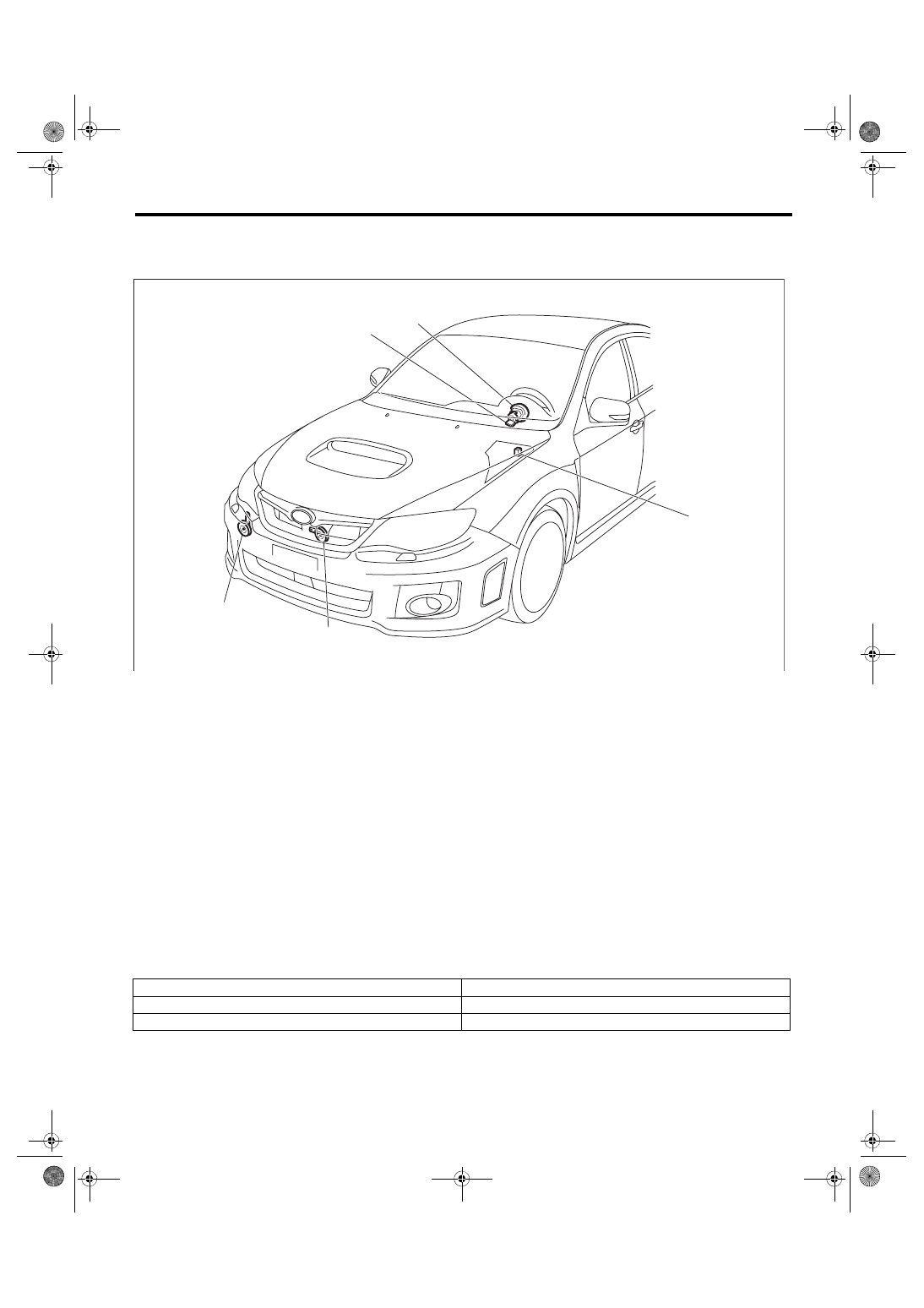

A: COMPONENT

B: CAUTION

• Before disassembling or reassembling parts, always disconnect the battery ground cable from battery.

When replacing the audio, control module and other parts provided with memory functions, record the mem-

ory contents before disconnecting the battery ground cable. Otherwise, the memory is cleared.

• Reassemble the parts in the reverse order of disassembly procedure unless otherwise indicated.

• Connect the connectors securely during reassembly.

• After reassembly, make sure that the functional parts operate normally.

• Yellow connectors and harnesses with yellow tapes around them are the connectors and harnesses for the

airbag system. Using a tester above such circuits may cause malfunction of airbag system. Follow the cau-

tions for the airbag system in this case. <Ref. to AB-5, CAUTION, General Description.>

• Be careful not to damage the airbag system wiring harness when servicing electrical parts and switches.

C: PREPARATION TOOL

1. GENERAL TOOL

(1)

Lo side horn

(3)

Roll connector

(5)

Horn relay

(2)

Hi side horn

(4)

Horn switch (driver’s airbag mod-
ule ASSY)





TOOL NAME

REMARKS

Circuit tester

Used for measuring resistance and voltage.

TORX

®

 T30

Used for removal/installation of drivers airbag module

COM00091

(1)

(2)

(5)

(3)

(4)
