ET-15

GPS Antenna

ENTERTAINMENT

12.GPS Antenna

A: REMOVAL

1) Disconnect the ground cable from the battery.

2) Remove the center panel. <Ref. to EI-52, CEN-

TER PANEL, REMOVAL, Center Console.>

3) Remove  the  navigation  unit.  <Ref.  to  ET-14,

PROCEDURE, Navigation Body.>

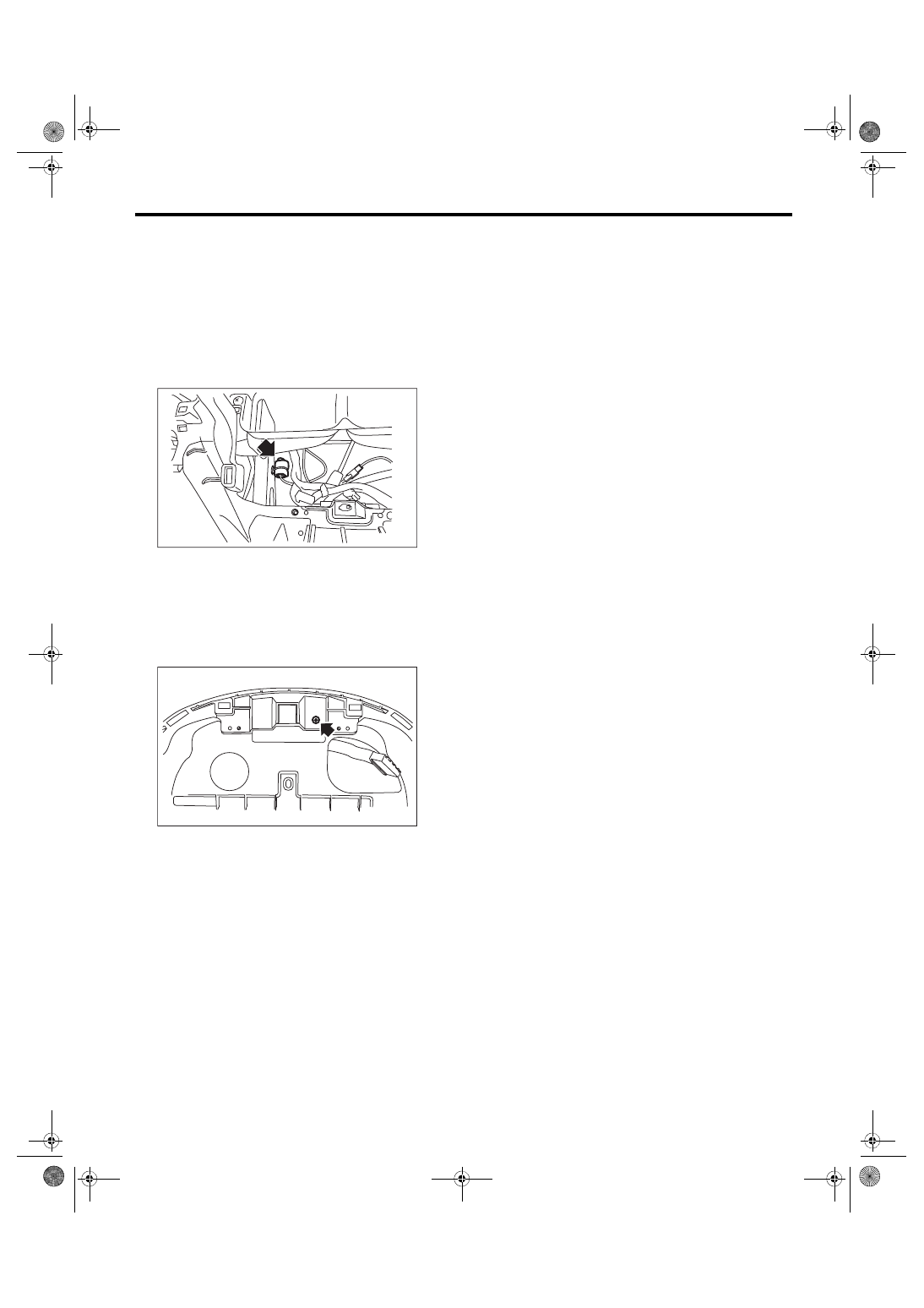

4) Disconnect the connector (green) of GPS anten-

na.

NOTE:

Attach a string of about 50 cm in length, etc. to the

GPS antenna for easy installation work.

5) Remove the combination meter assembly. <Ref.

to IDI-16, REMOVAL, Combination Meter.>

6) Remove  the  screw  and  harness  clamp  to  re-

move the GPS antenna.

NOTE:

When  the  GPS  antenna  harness  connector  is

pulled out, remove the string attached to the con-

nector in step 4).

B: INSTALLATION

Install each part in the reverse order of removal.

ET-00296

ET-00297

ET-16

Front Accessory Power Supply Socket

ENTERTAINMENT

13.Front Accessory Power Sup-

ply Socket

A: WIRING DIAGRAM

Refer  to  “Front  Accessory  Power  Supply  Socket

System”  in  the  wiring  diagram.  <Ref.  to  WI-121,

WIRING DIAGRAM, Front Accessory Power Sup-

ply Socket System.>

B: REMOVAL

1) Disconnect the ground cable from battery.

2) Remove the instrument panel lower. <Ref. to EI-

54,  INSTRUMENT  PANEL  LOWER,  REMOVAL,

Center Console.>

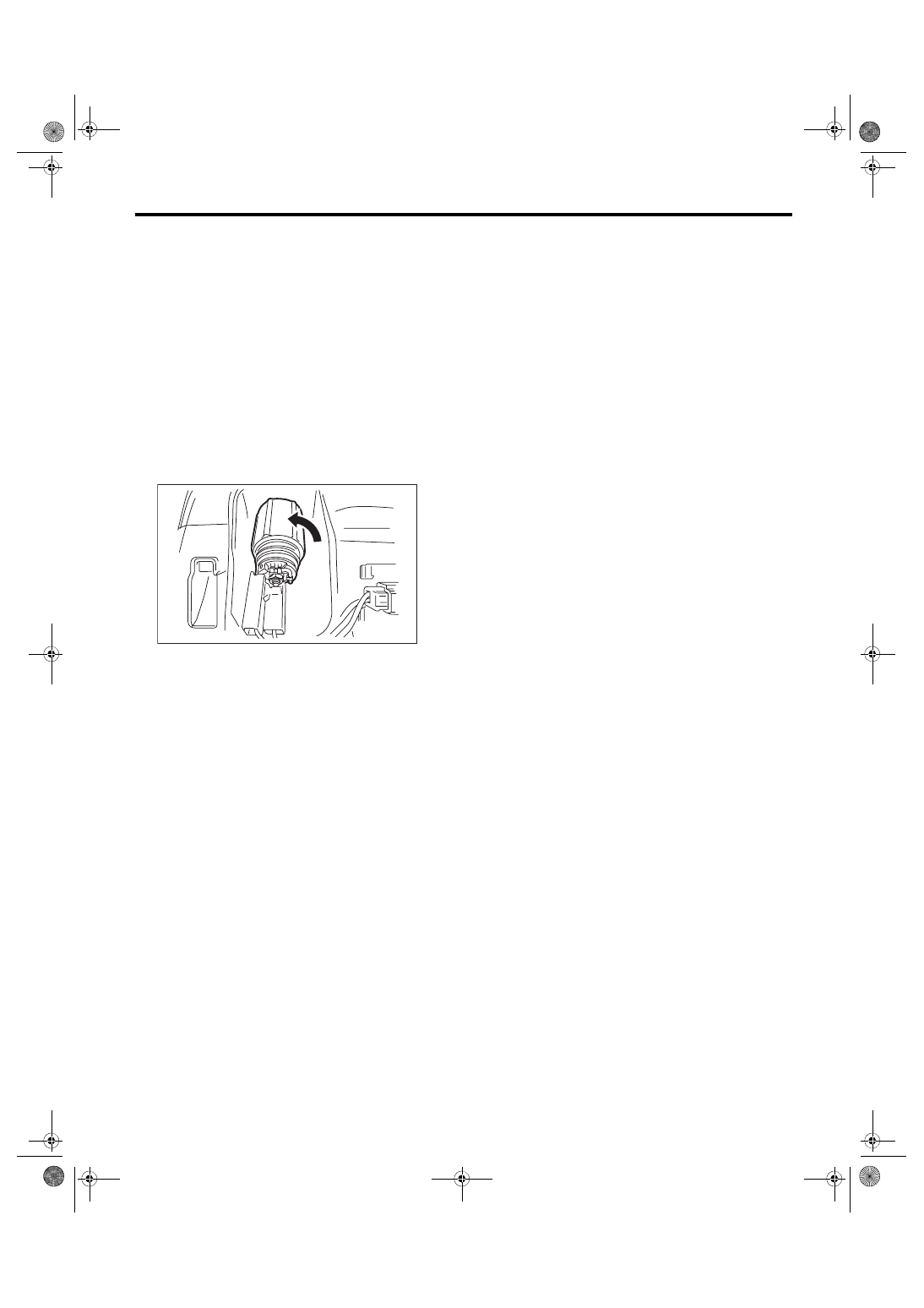

3) Disconnect the harness connectors and remove

the front accessory power supply socket.

C: INSTALLATION

Install each part in the reverse order of removal.

ET-00291

ET-17

Rear Accessory Power Supply Socket

ENTERTAINMENT

14.Rear Accessory Power Sup-

ply Socket

A: WIRING DIAGRAM

Refer  to  “Rear  Accessory  Power  Supply  Socket

System”  in  the  wiring  diagram.  <Ref.  to  WI-122,

WIRING DIAGRAM, Rear Accessory Power Sup-

ply Socket System.>

B: REMOVAL

1) Disconnect the ground cable from battery.

2) Remove  the  console  box.  <Ref.  to  EI-51,  RE-

MOVAL, Console Box.>

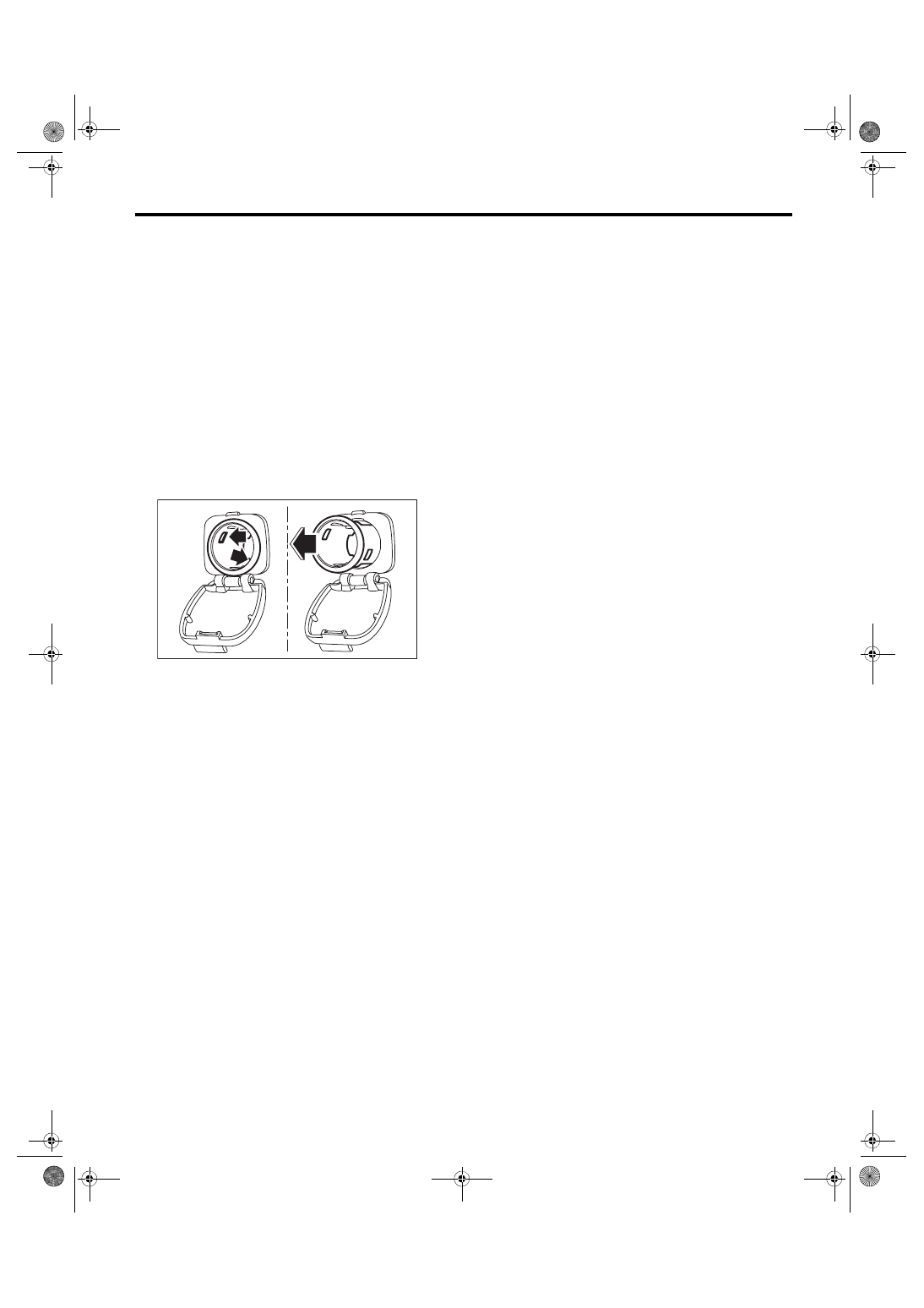

3) Disconnect the harness connector, and remove

the claws (two) in accessory power supply socket.

4) Pull  the  accessory  power  supply  socket  out  to

remove.

C: INSTALLATION

Install each part in the reverse order of removal.

ET-00377

ET-18

AUX Input Terminal

ENTERTAINMENT

15.AUX Input Terminal

A: REMOVAL

1) Disconnect the ground cable from battery.

2) Remove  the  console  box.  <Ref.  to  EI-51,  RE-

MOVAL, Console Box.>

3) Disconnect the harness connector.

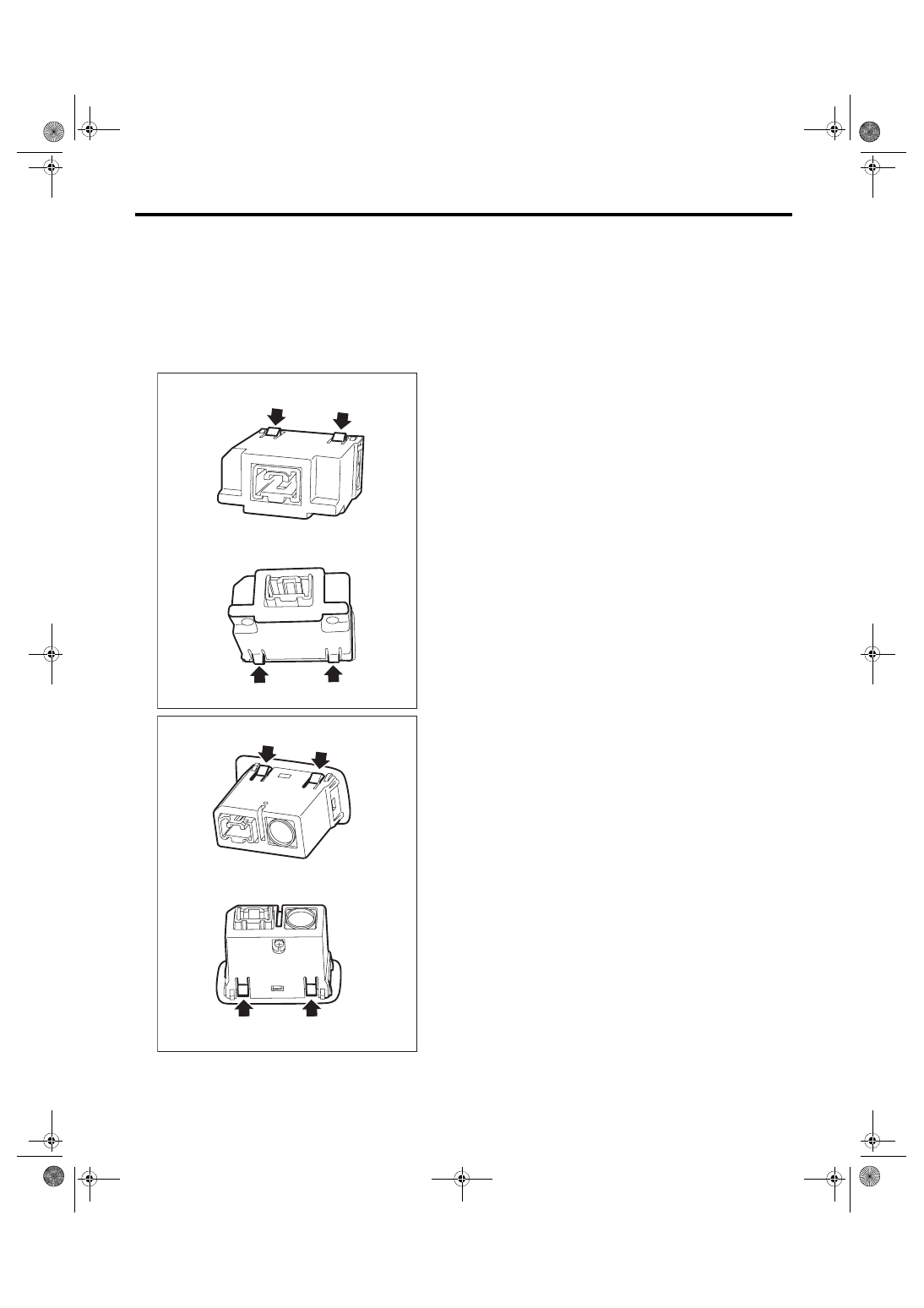

4) Disengage four claws, and remove the AUX in-

put terminal by pushing it into the console box.

B: INSTALLATION

Install each part in the reverse order of removal.

ET-00477

ET-00476
