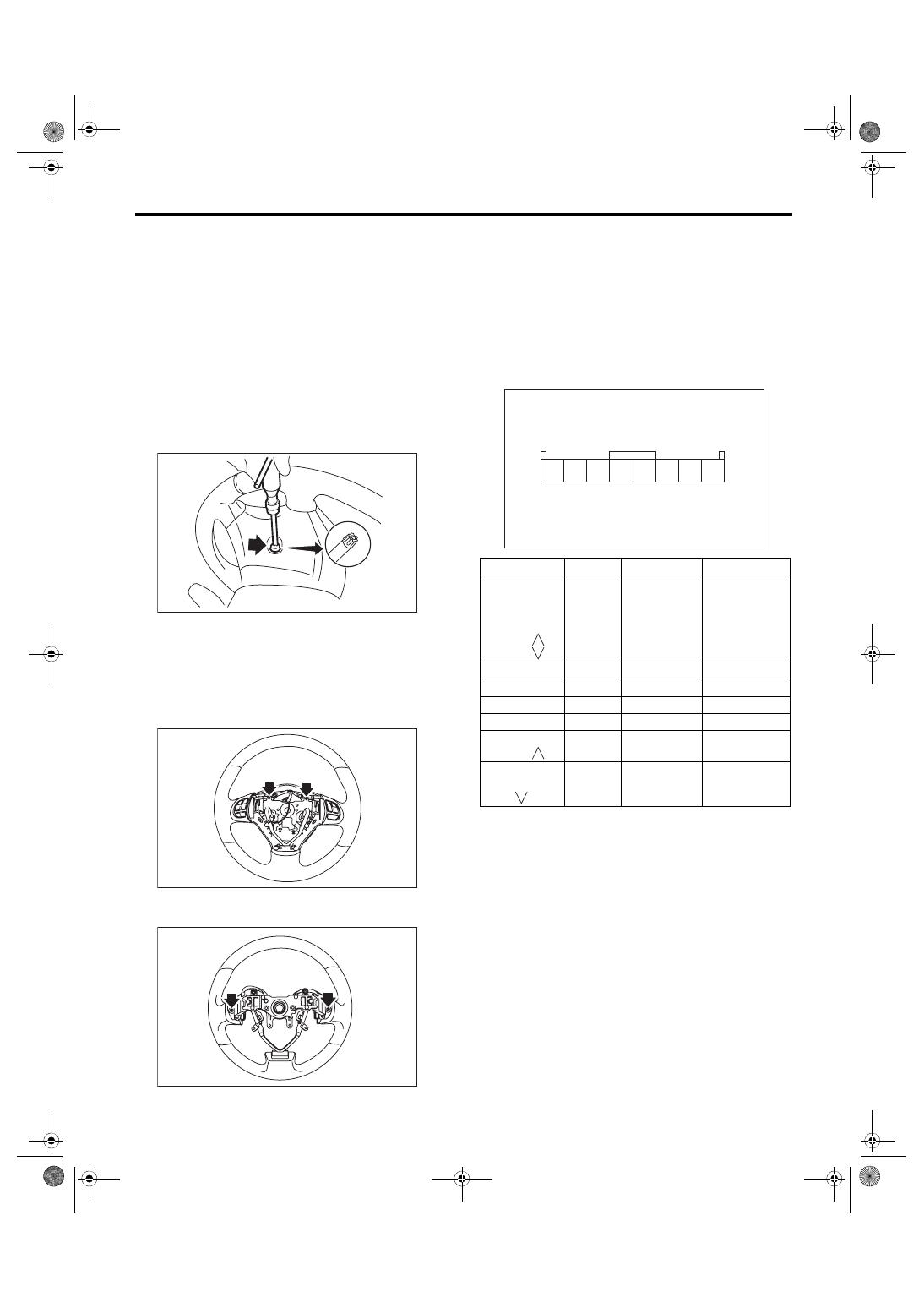

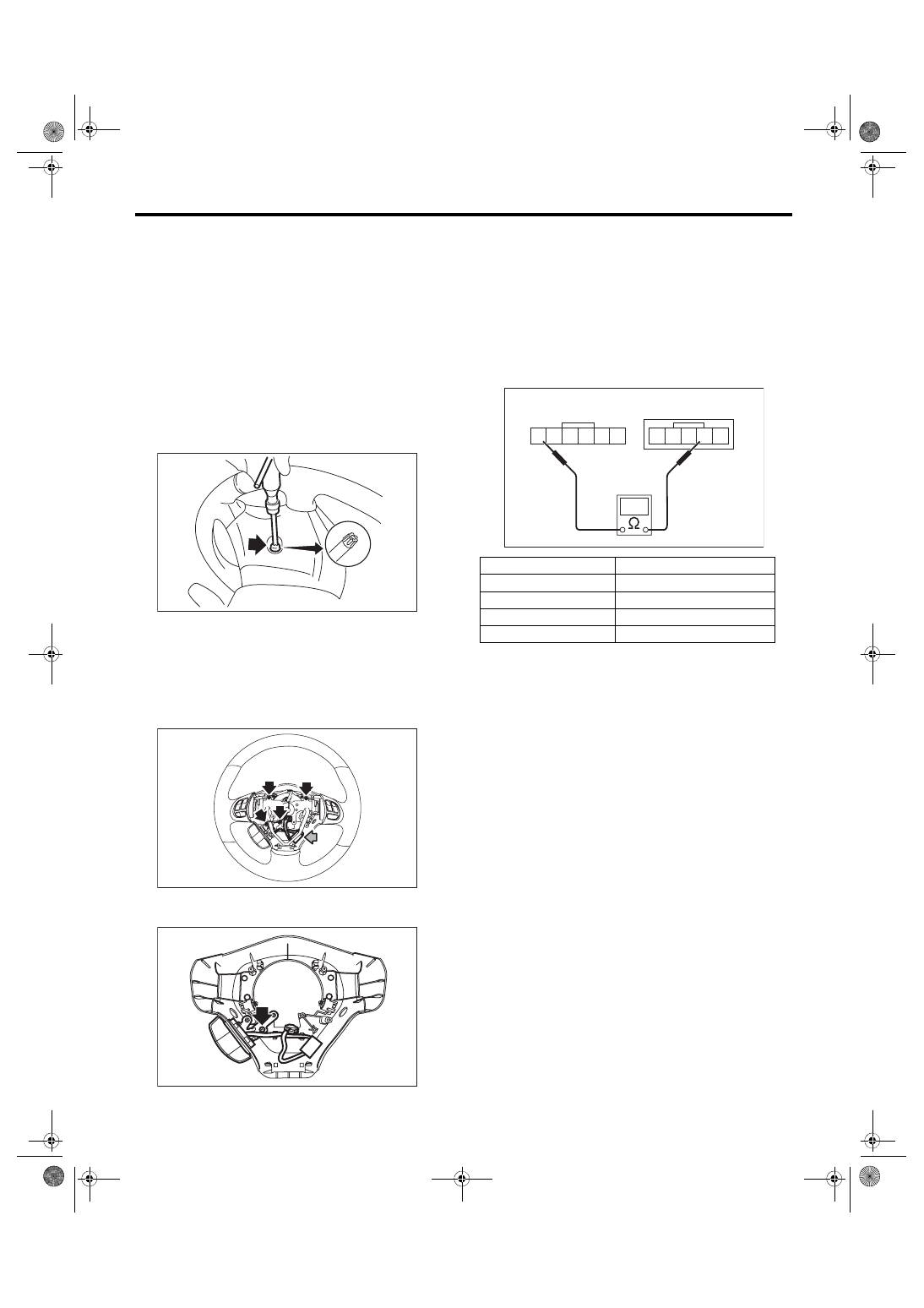

ET-11 Steering Satellite Switch ENTERTAINMENT 9. Steering Satellite Switch A: REMOVAL WARNING: Before servicing, be sure to read the notes in the “AB” section for proper handling of the driver’s airbag module. <Ref. to AB-5, CAU- 1) Set the front wheels in straight ahead position. 2) Turn the ignition switch to OFF. 3) Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. 4) Using TORX ® bit T30 (1), loosen two TORX ® bolts which secure the driver’s airbag module. 5) Disconnect the airbag module connector on back of the airbag module. <Ref. to AB-8, PROCE- 6) Remove the steering wheel. <Ref. to PS-13, RE- 7) Remove the screws to remove the lower cover from steering wheel. 8) Loosen the screws on the backside of the steer- ing wheel and remove the satellite switch. B: INSTALLATION Install each part in the reverse order of removal. C: INSPECTION 1) Remove the airbag module from the steering wheel. <Ref. to AB-15, REMOVAL, Driver’s Airbag 2) Check the resistance between satellite switch connector terminals. • Model with normal audio and navigation CC-00018 (1) CC-00650 CC-00516 Switch Position Terminal No. Standard Mute Volume (+) Mode SEEK ( ) SEEK ( ) All OFF 4 and 5 Approx. 4.7 kΩ Mute ON 4 and 5 Approx. 22 Ω Volume (+) ON 4 and 5 Approx. 90 Ω Volume (–) ON 4 and 5 Approx. 200 Ω Mode ON 4 and 5 Approx. 360 Ω Preset CH UP/ SEEK ( ) ON 4 and 5 Approx. 690 Ω Preset CH DOWN/SEEK ( ) ON 4 and 5 Approx. 1.5 kΩ CC-00487 2 3 1 4 5 6 7 8 |
