ET-7

Front Speaker

ENTERTAINMENT

5. Front Speaker

A: REMOVAL

1) Disconnect the ground cable from battery.

2) Remove  the  front  door  trim.  <Ref.  to  EI-45,

FRONT DOOR, REMOVAL, Door Trim.>

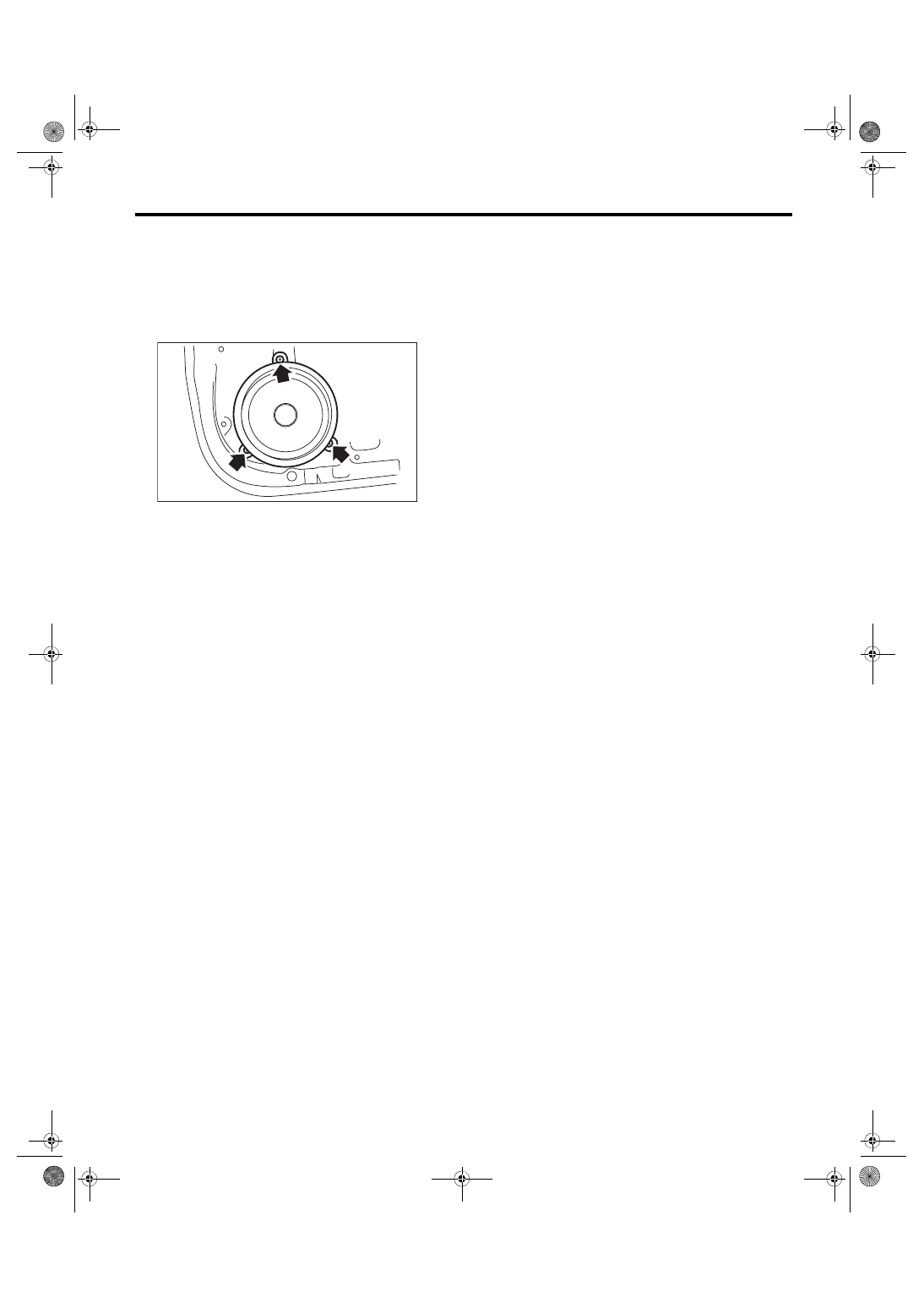

3) Remove the mounting screw of the front speak-

er.

4) Disconnect the harness connector and remove

the front speaker.

B: INSTALLATION

Install each part in the reverse order of removal.

ET-00281

ET-8

Tweeter

ENTERTAINMENT

6. Tweeter

A: REMOVAL

1) Disconnect the ground cable from battery.

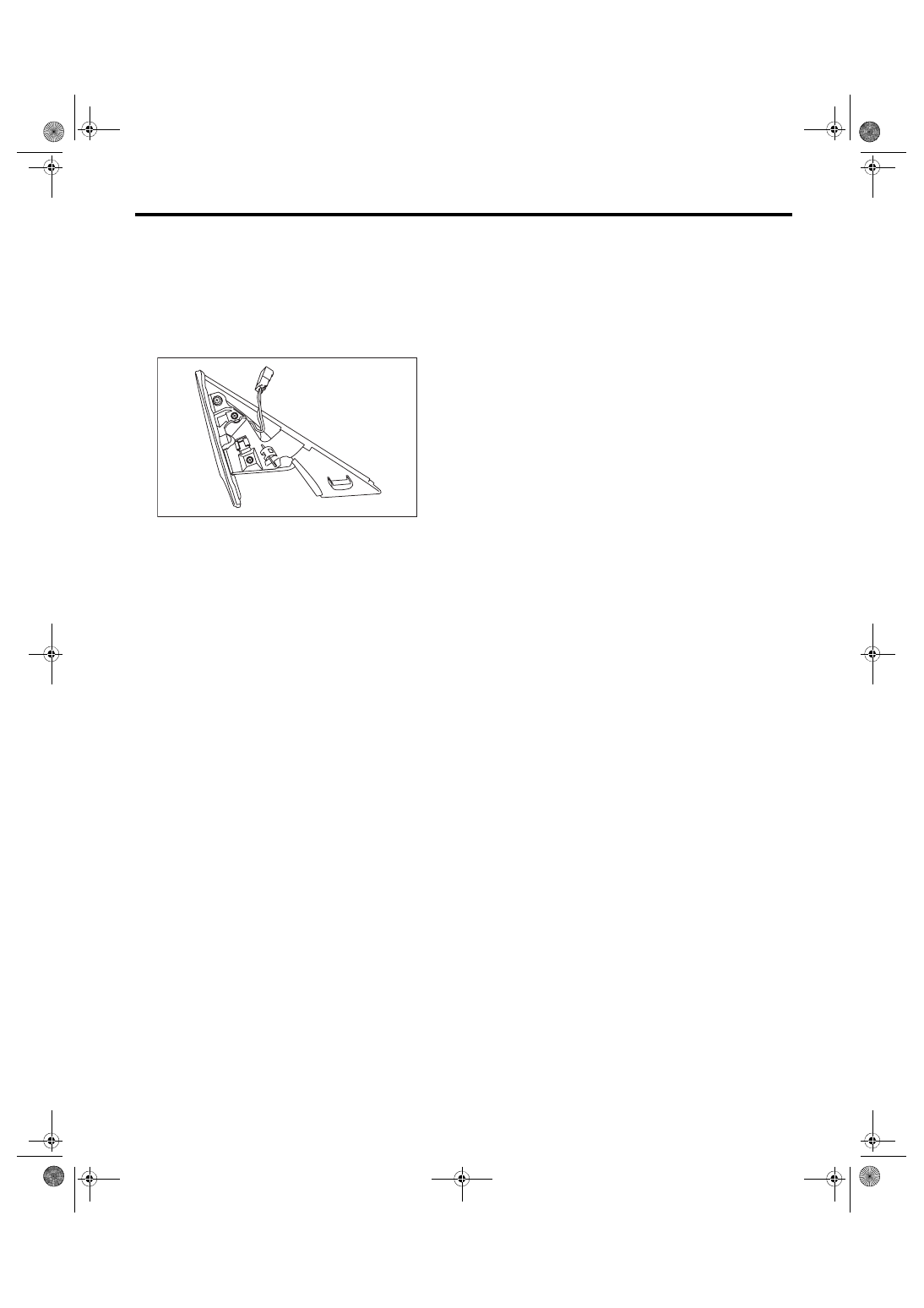

2) Remove the front door gusset cover. <Ref. to EI-

45, FRONT DOOR, REMOVAL, Door Trim.>

3) Disconnect the harness connector.

4) Remove the screws and detach the tweeter.

B: INSTALLATION

Install each part in the reverse order of removal.

ET-00282

ET-9

Rear Speaker

ENTERTAINMENT

7. Rear Speaker

A: REMOVAL

1) Disconnect the ground cable from battery.

2) Remove  the  rear  door  trim.  <Ref.  to  EI-46,

REAR DOOR, REMOVAL, Door Trim.>

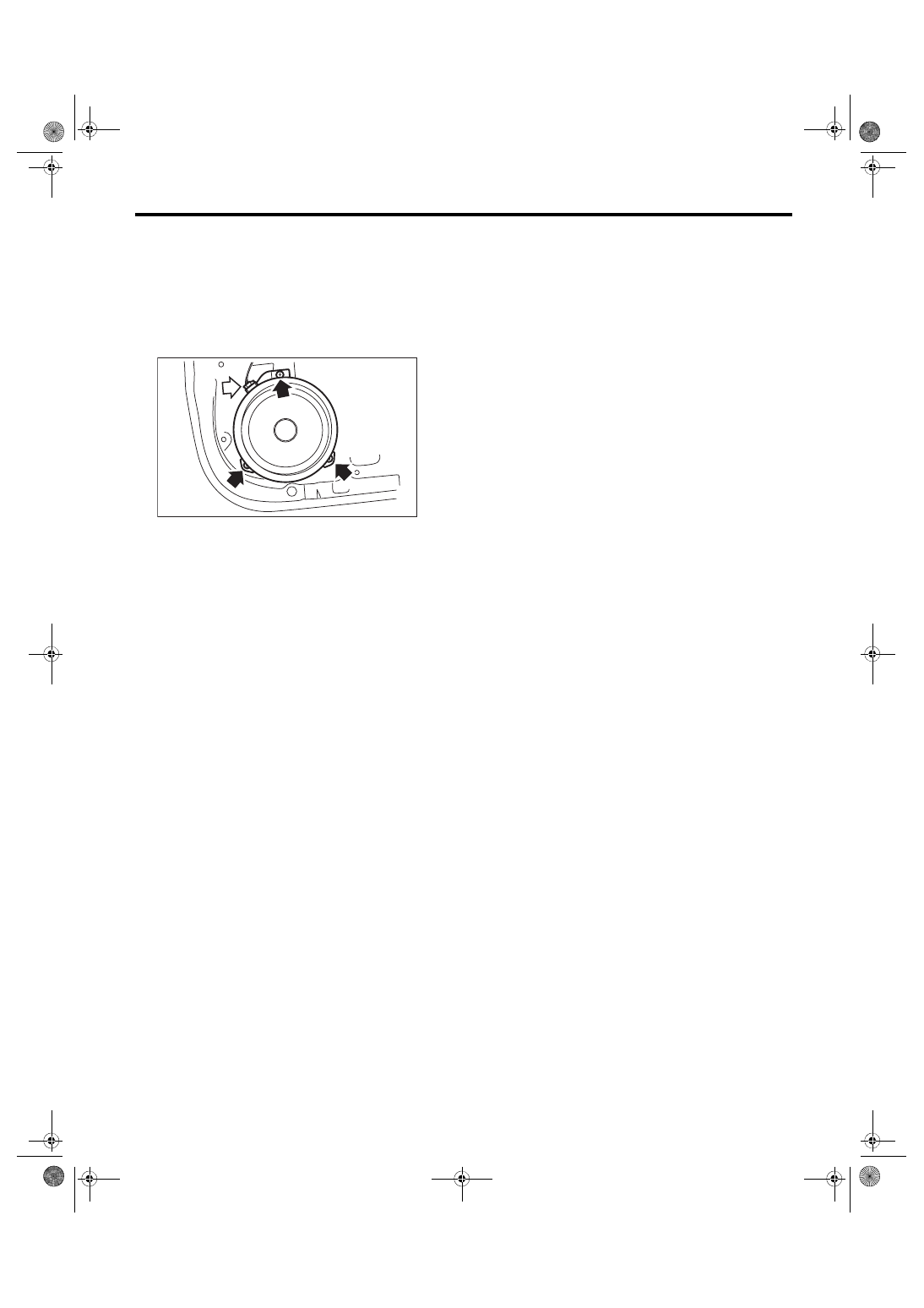

3) Remove the mounting screw of the rear speaker.

4) Disconnect the harness connector and remove

the rear speaker.

B: INSTALLATION

Install each part in the reverse order of removal.

ET-00288

ET-10

Antenna

ENTERTAINMENT

8. Antenna

A: REMOVAL

1. ROOF ANTENNA

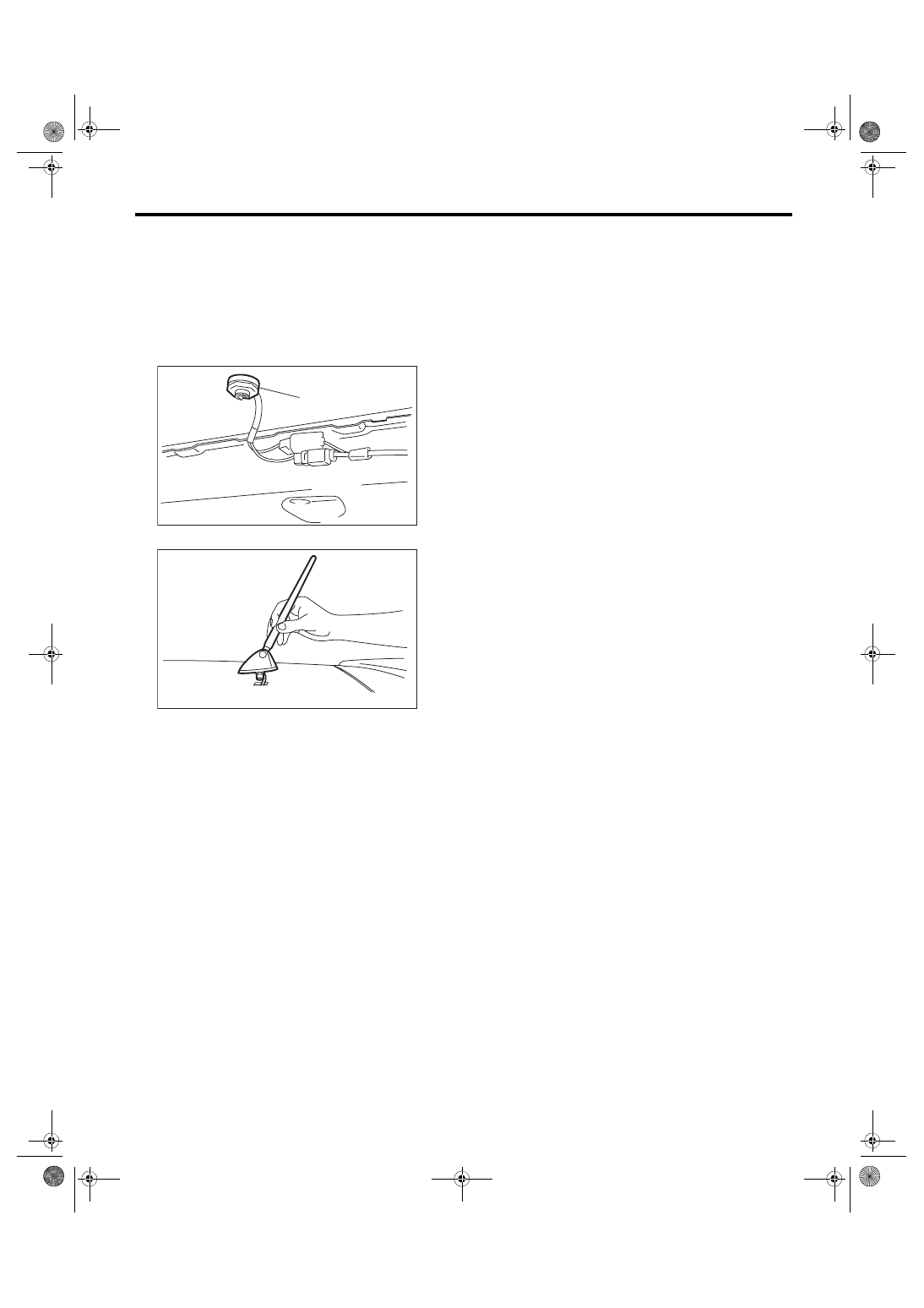

1) Remove the roof trim. <Ref. to EI-66, REMOV-

AL, Roof Trim.>

2) Disconnect the harness connector and terminal,

and remove the mounting nut (A).

3) Pull out the antenna from the roof top.

2. FEEDER CORD

1) Remove the roof trim. <Ref. to EI-66, REMOV-

AL, Roof Trim.>

2) Remove the feeder cord from the roof trim.

B: INSTALLATION

Install each part in the reverse order of removal.
NOTE:

For how to attach the feeder cord, refer to the “Roof

Trim”  section.  <Ref.  to  EI-68,  INSTALLATION,

Roof Trim.>

C: INSPECTION

Check for cracks or damages.

If any cracks or damages, replace the antenna.

(A)

ET-00056

ET-00057
