LI-27

Rear Turn Signal Light Bulb

LIGHTING SYSTEM

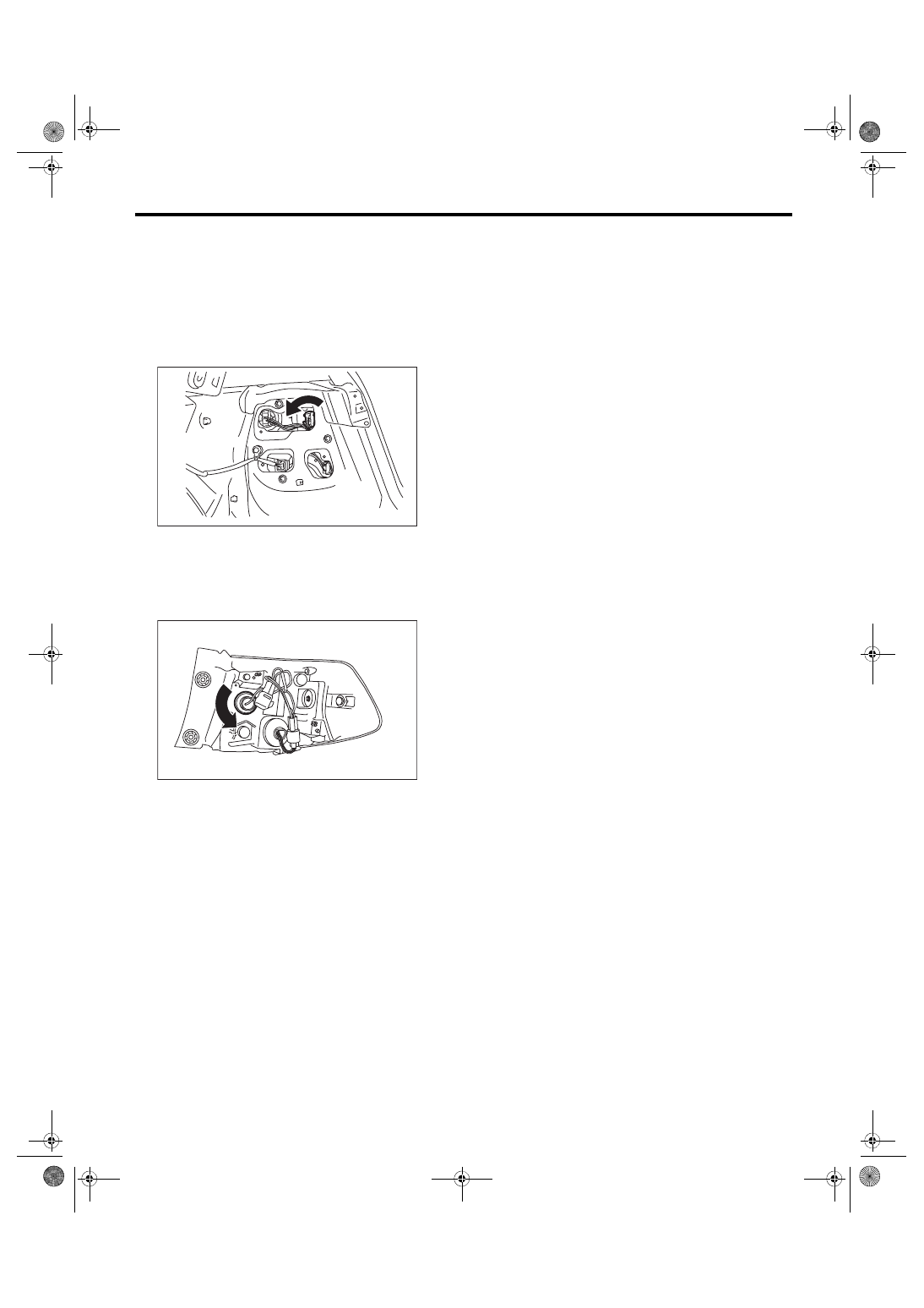

21.Rear Turn Signal Light Bulb

A: REMOVAL

1. 4 DOOR MODEL

1) Disconnect the ground cable from battery.

2) Remove the trunk room side trim cover. <Ref. to

EI-63, REMOVAL, Trunk Room Trim.>

3) Turn the socket and remove the bulb.

2. 5 DOOR MODEL

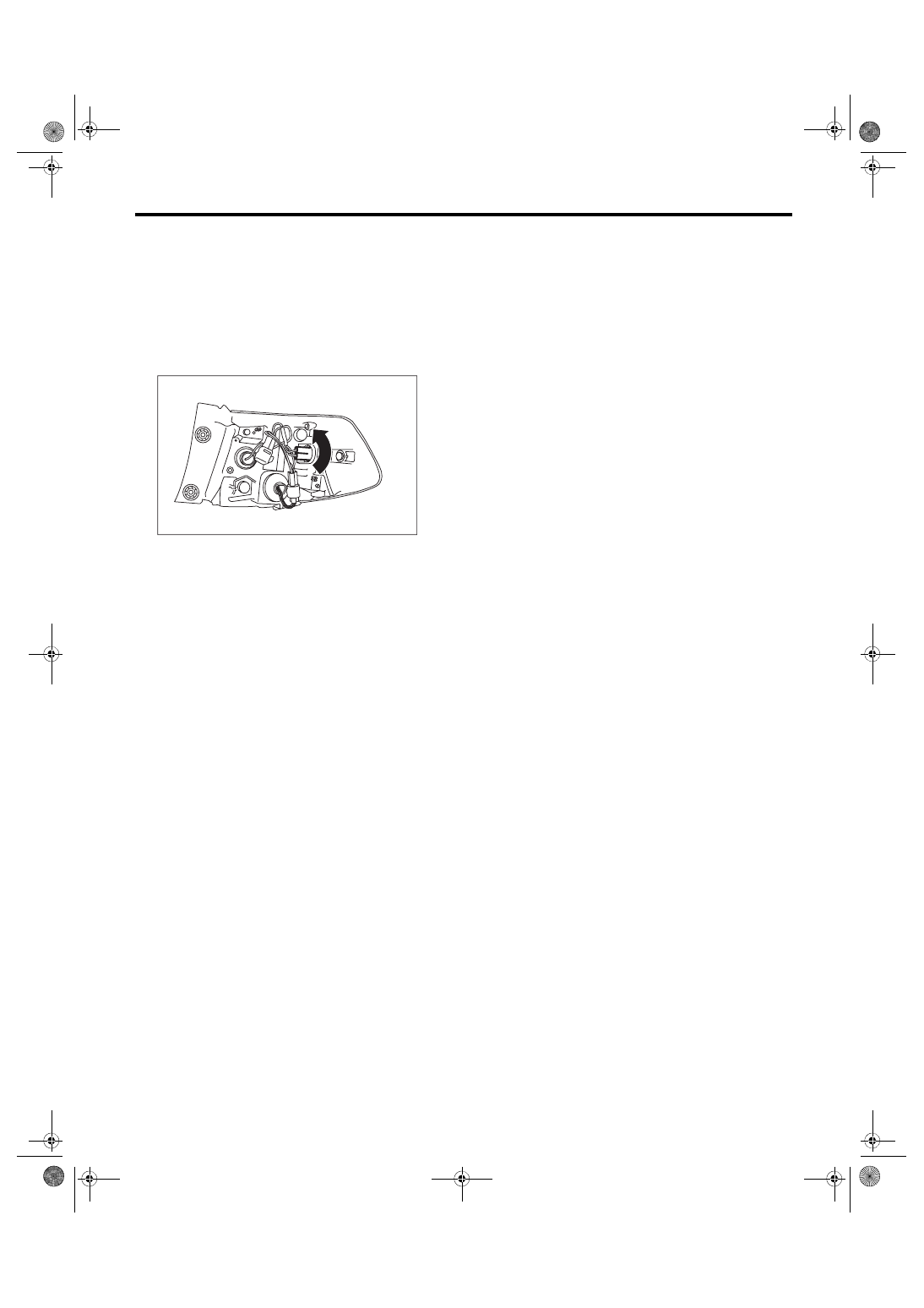

1) Remove  the  rear  combination  light  assembly.

<Ref. to LI-25, 5 DOOR MODEL, REMOVAL, Rear

Combination Light Assembly.>

2) Turn the socket and remove the bulb.

B: INSTALLATION

Install each part in the reverse order of removal.

C: INSPECTION

1) Visually check the bulb for blow out.

2) Check  the  bulb  specification.  <Ref.  to  LI-2,

SPECIFICATION, General Description.>

3) Replace the bulb if it is found defective.

LI-00836

LI-00818

LI-28

Rear Side Marker Light Bulb

LIGHTING SYSTEM

22.Rear Side Marker Light Bulb

A: REMOVAL

NOTE:

Equipped with 5 door model only.

1) Remove  the  rear  combination  light  assembly.

<Ref. to LI-25, 5 DOOR MODEL, REMOVAL, Rear

Combination Light Assembly.>

2) Turn the socket and remove the bulb.

B: INSTALLATION

Install each part in the reverse order of removal.

C: INSPECTION

1) Visually check the bulb for blow out.

2) Check  the  bulb  specification.  <Ref.  to  LI-2,

SPECIFICATION, General Description.>

3) Replace the bulb if it is found defective.

LI-01272

LI-29

Rear Finisher Light Assembly

LIGHTING SYSTEM

23.Rear Finisher Light Assembly

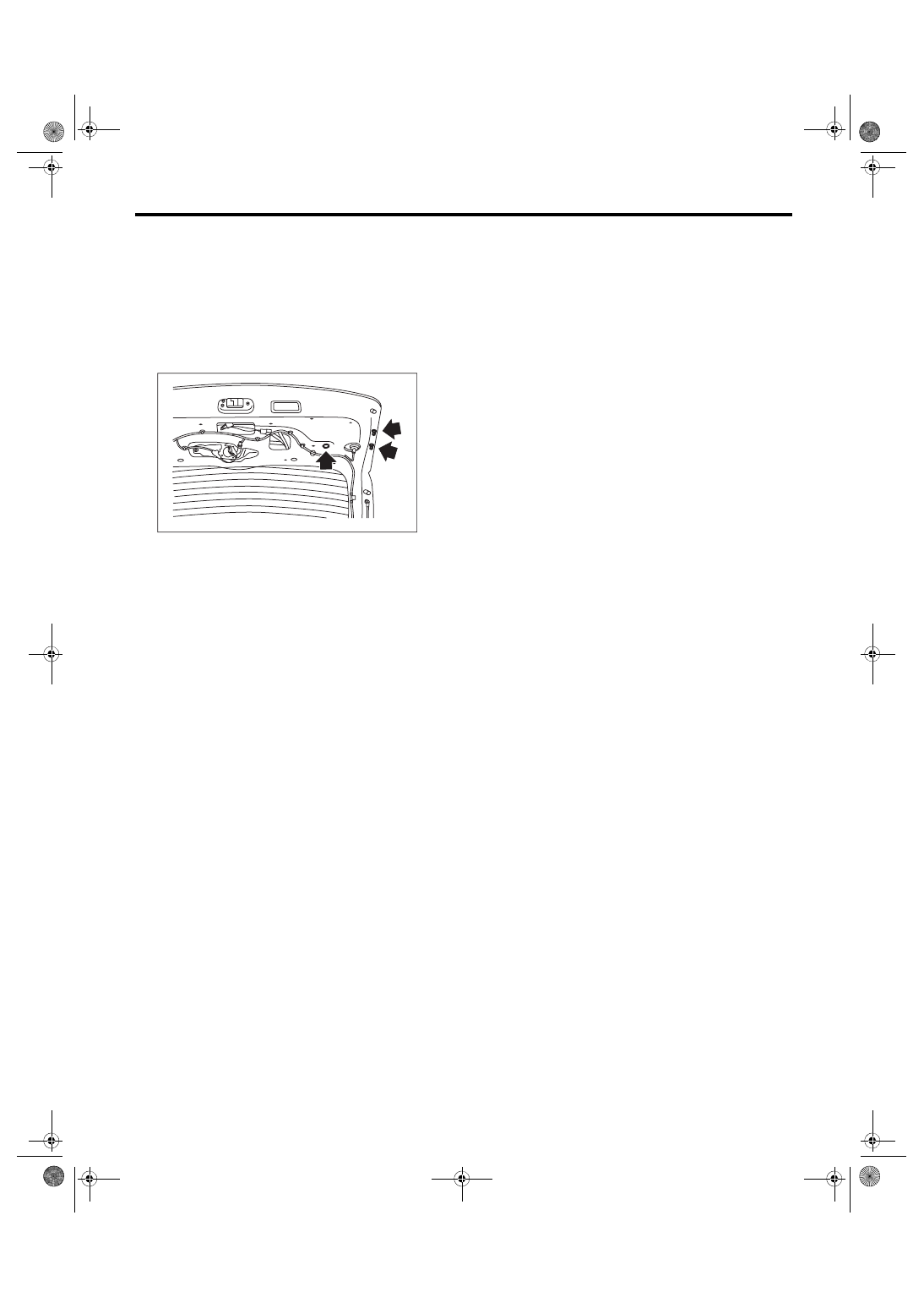

A: REMOVAL

1) Disconnect the ground cable from battery.

2) Remove the rear gate trim. <Ref. to EI-69, RE-

MOVAL, Rear Gate Trim.>

3) Disconnect the rear finisher light connector.

4) Remove the nuts, and then remove the rear fin-

isher light assembly.

B: INSTALLATION

Install each part in the reverse order of removal.
Tightening torque:

4.5 N·m (0.46 kgf-m, 3.3 ft-lb)

LI-00819

LI-30

Back-up Light Bulb

LIGHTING SYSTEM

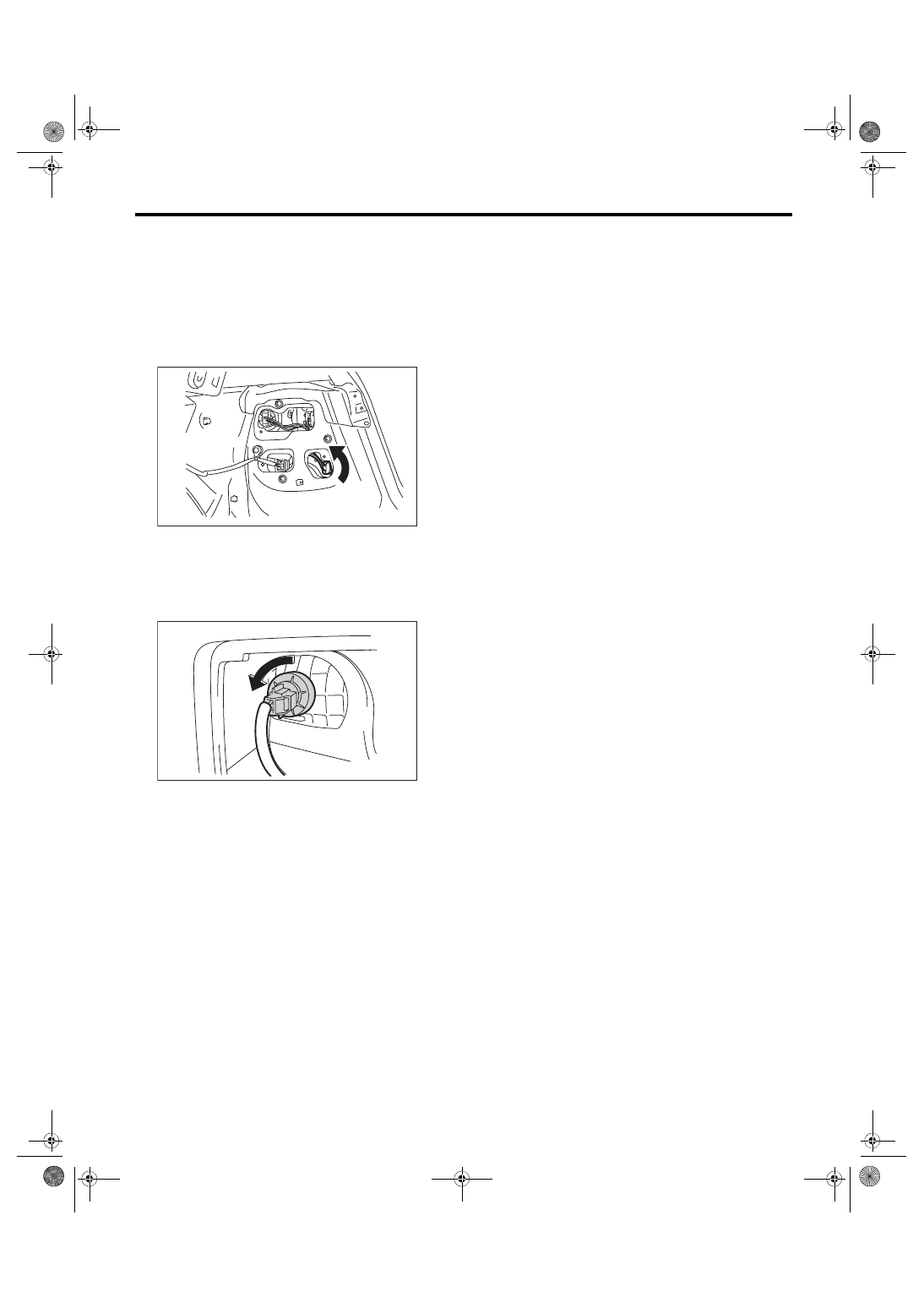

24.Back-up Light Bulb

A: REMOVAL

1. 4 DOOR MODEL

1) Disconnect the ground cable from battery.

2) Remove the trunk room side trim cover. <Ref. to

EI-63, REMOVAL, Trunk Room Trim.>

3) Turn the socket and remove the bulb.

2. 5 DOOR MODEL

1) Disconnect the ground cable from battery.

2) Remove  the  bulb  inspection  cover  of  the  rear

gate trim.

3) Turn the socket and remove the bulb.

B: INSTALLATION

Install each part in the reverse order of removal.

C: INSPECTION

1) Visually check the bulb for blow out.

2) Check  the  bulb  specification.  <Ref.  to  LI-2,

SPECIFICATION, General Description.>

3) Replace the bulb if it is found defective.

LI-00837

LI-00820
