LI-23

Front Fog Light Bulb

LIGHTING SYSTEM

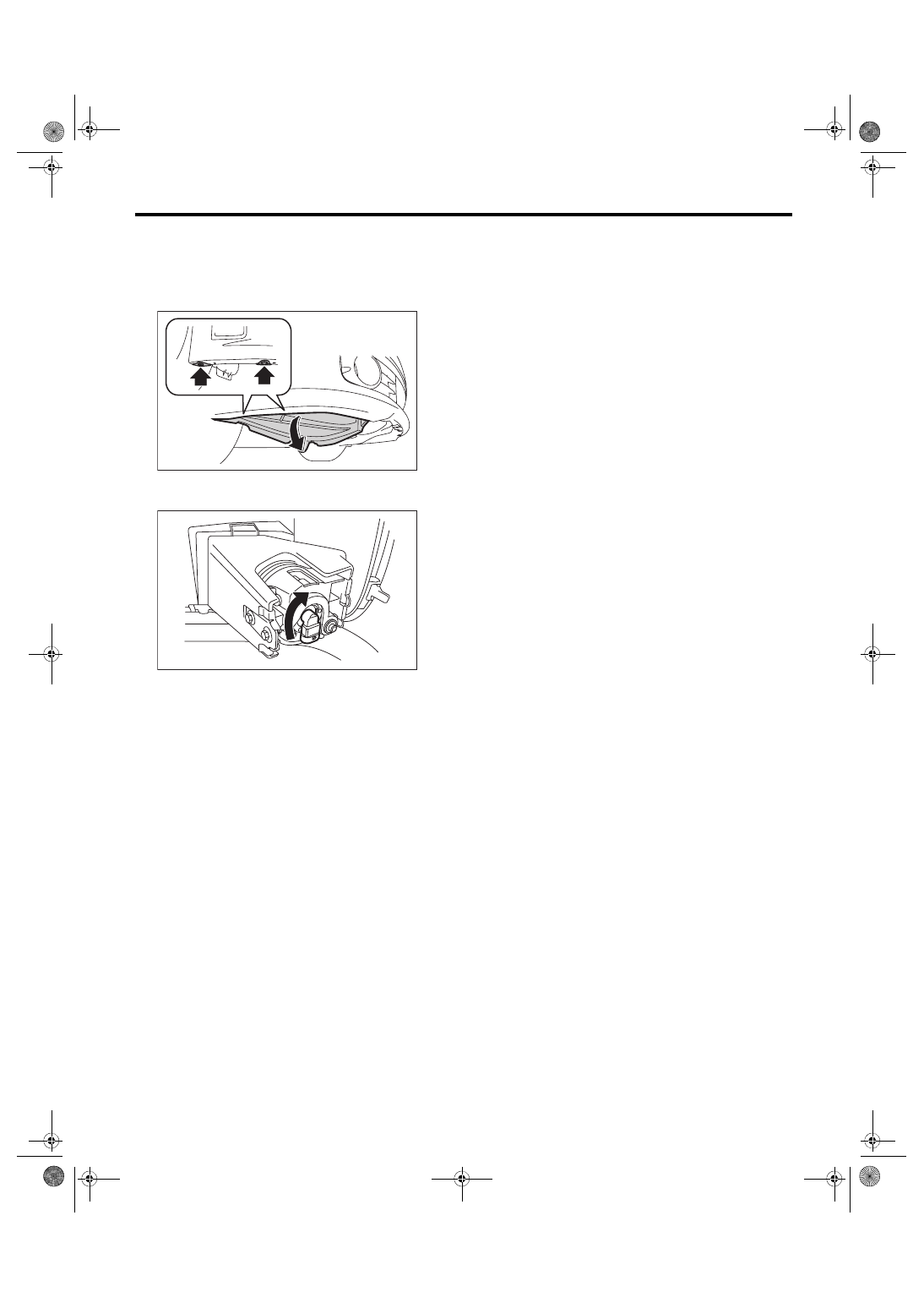

17.Front Fog Light Bulb

A: REMOVAL

1) Disconnect the ground cable from battery.

2) Remove the clips and turn over the mud guard.

3) Disconnect the bulb connector.

4) Rotate the bulb then detach the fog light bulb.

B: INSTALLATION

CAUTION:

Align the bulb tabs with the fog light securely,

push the bulb fully, and then rotate it.

Install each part in the reverse order of removal.

C: INSPECTION

1) Visually check the bulb for blow out.

2) Check  the  bulb  specification.  <Ref.  to  LI-2,

SPECIFICATION, General Description.>

3) Replace the bulb if it is found defective.

LI-01139

LI-01127

LI-24

Side Turn Signal Light Assembly

LIGHTING SYSTEM

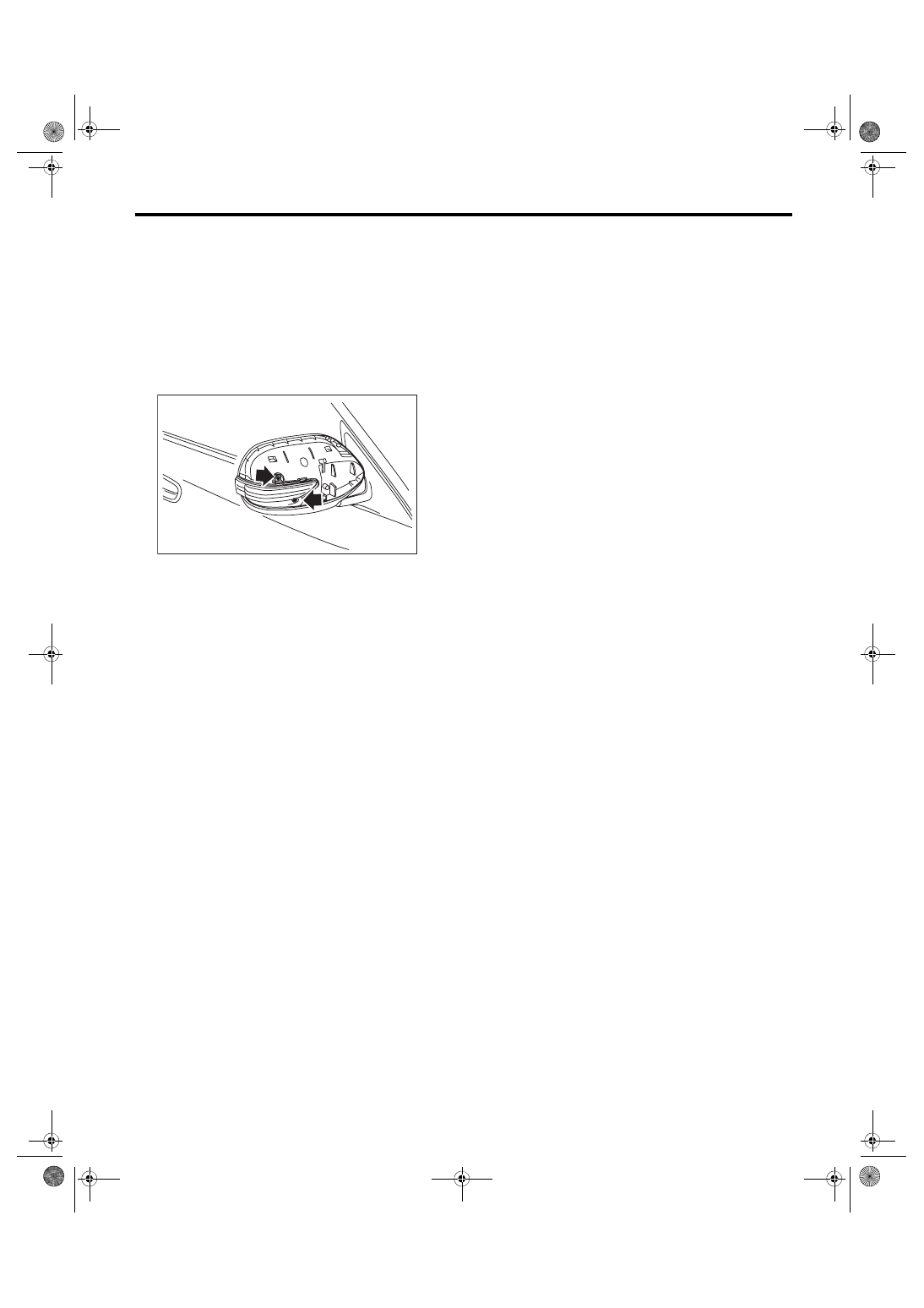

18.Side Turn Signal Light As-

sembly

A: REMOVAL

1) Disconnect the ground cable from battery.

2) Remove the mirror. <Ref. to GW-19, REPLACE-

MENT, Outer Mirror.>

3) Remove  the  scalp  cap.  <Ref.  to  GW-15,  RE-

PLACEMENT, Scalp Cap.>

4) Remove the screws.

5) Disconnect the harness connector and remove

the side turn signal light assembly.

B: INSTALLATION

Install each part in the reverse order of removal.

C: INSPECTION

1) Install  the  side  turn  signal  light  assembly  and

check that it blinks normally.

2) If it fails to blink normally, replace the side turn

signal light assembly with a new part.
NOTE:

Since  LED  (Light  Emitting  Diode)  is  used  for  the

side  turn  signal  light,  replace  the  side  turn  signal

light assembly if the LED burns out.

LI-00707

LI-25

Rear Combination Light Assembly

LIGHTING SYSTEM

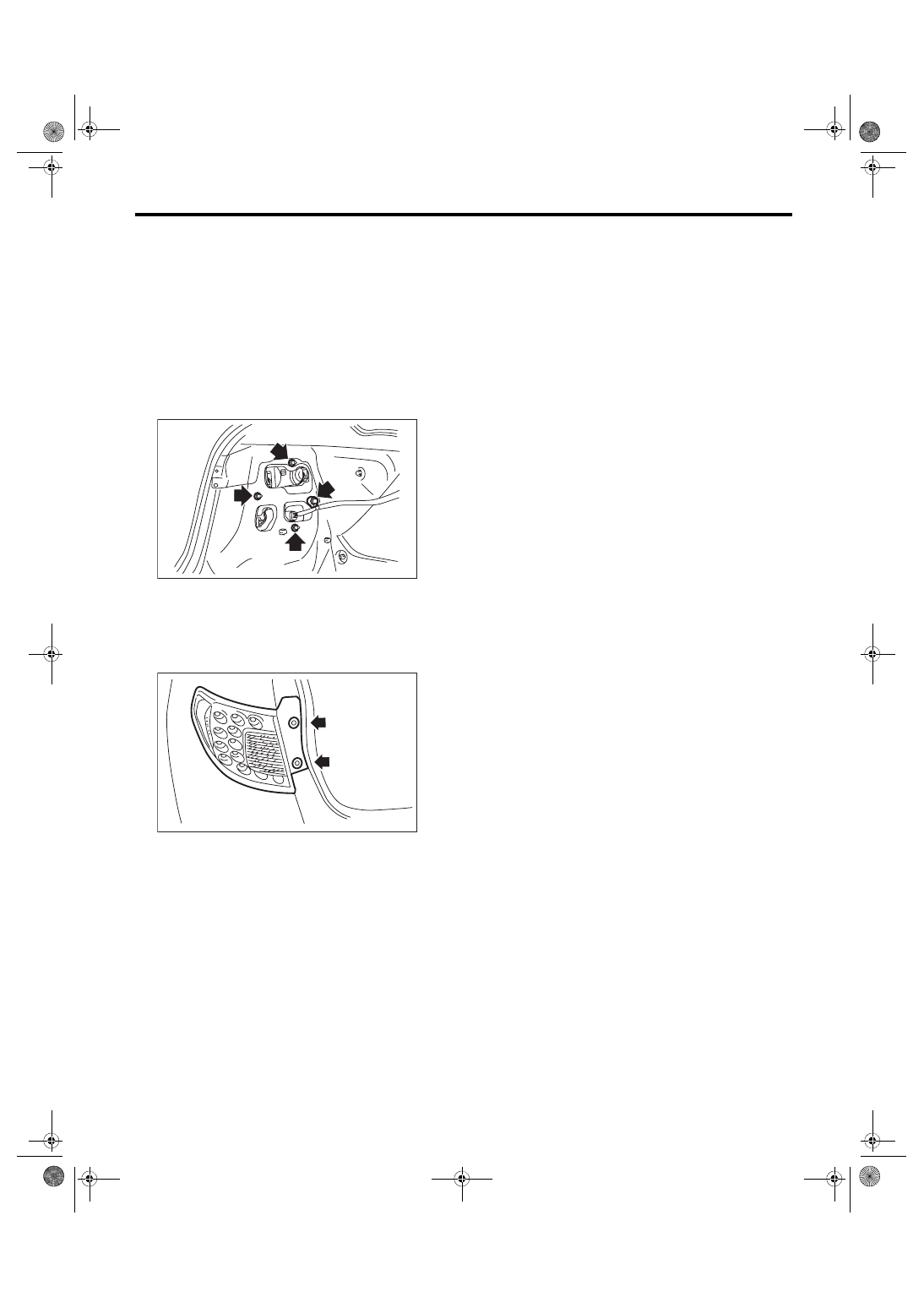

19.Rear Combination Light As-

sembly

A: REMOVAL

1. 4 DOOR MODEL

1) Disconnect the ground cable from battery.

2) Remove the trunk room side trim. <Ref. to EI-63,

REMOVAL, Trunk Room Trim.>

3) Disconnect the rear combination light connector.

4) Remove the nuts and detach the rear combina-

tion light.

2. 5 DOOR MODEL

1) Disconnect the ground cable from battery.

2) Remove  the  bolts,  and  then  detach  the  rear

combination light by pulling it to the rear side of ve-

hicle.

3) Disconnect the harness connector and remove

the rear combination light.

B: INSTALLATION

Install each part in the reverse order of removal.
Tightening torque:

4 door model

4.5 N·m (0.46 kgf-m, 3.3 ft-lb)

5 door model

7.5 N·m (0.76 kgf-m, 5.5 ft-lb)

C: INSPECTION

1. 4 DOOR MODEL

1) Visually check the bulb for blow out.

2) Check  the  bulb  specification.  <Ref.  to  LI-2,

SPECIFICATION, General Description.>

3) Replace the bulb if it is found defective.

2. 5 DOOR MODEL

1) Install the rear combination light assembly and

check that it blinks normally.

2) If it fails to blink normally, replace the rear com-

bination light assembly with a new part.
NOTE:

Since LED (Light Emitting Diode) is used for the tail

light/stop  light  bulb,  replace  the  rear  combination

light assembly if the LED burns out.

LI-00834

LI-00817

LI-26

Tail/Stop Light Bulb

LIGHTING SYSTEM

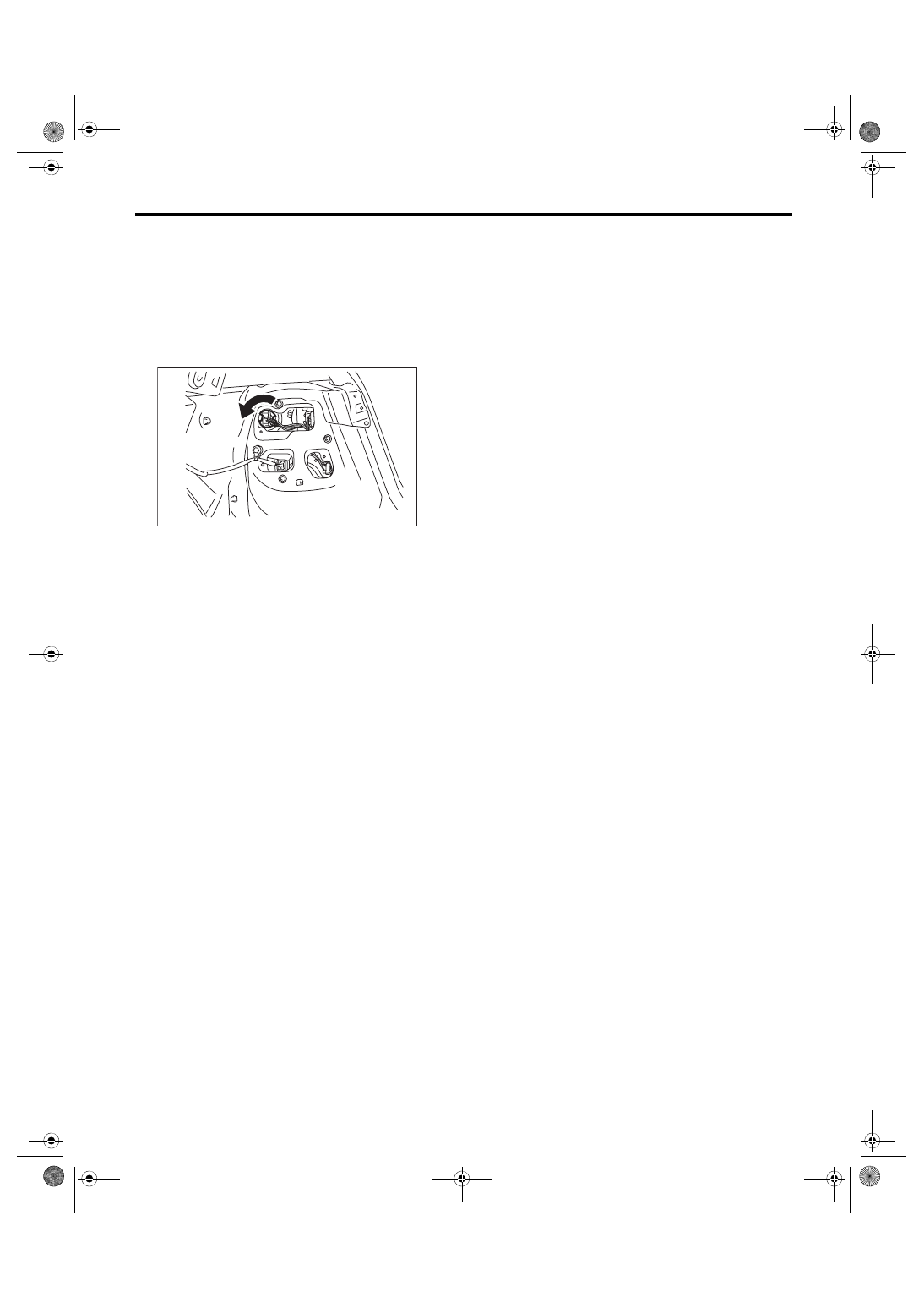

20.Tail/Stop Light Bulb

A: REMOVAL

1. 4 DOOR MODEL

1) Disconnect the ground cable from battery.

2) Remove the trunk room side trim cover. <Ref. to

EI-63, REMOVAL, Trunk Room Trim.>

3) Turn the socket and remove the bulb.

2. 5 DOOR MODEL

The tail light/stop light bulbs use LEDs (Light Emit-

ting Diode) can not removed.

B: INSTALLATION

Install each part in the reverse order of removal.

C: INSPECTION

1. 4 DOOR MODEL

1) Visually check the bulb for blow out.

2) Check  the  bulb  specification.  <Ref.  to  LI-2,

SPECIFICATION, General Description.>

3) Replace the bulb if it is found defective.

2. 5 DOOR MODEL

NOTE:

Since LED (Light Emitting Diode) is used for the tail

light/stop  light  bulb,  replace  the  rear  combination

light assembly if the LED burns out.

LI-00835
