EXTERIOR/INTERIOR TRIM

General Description

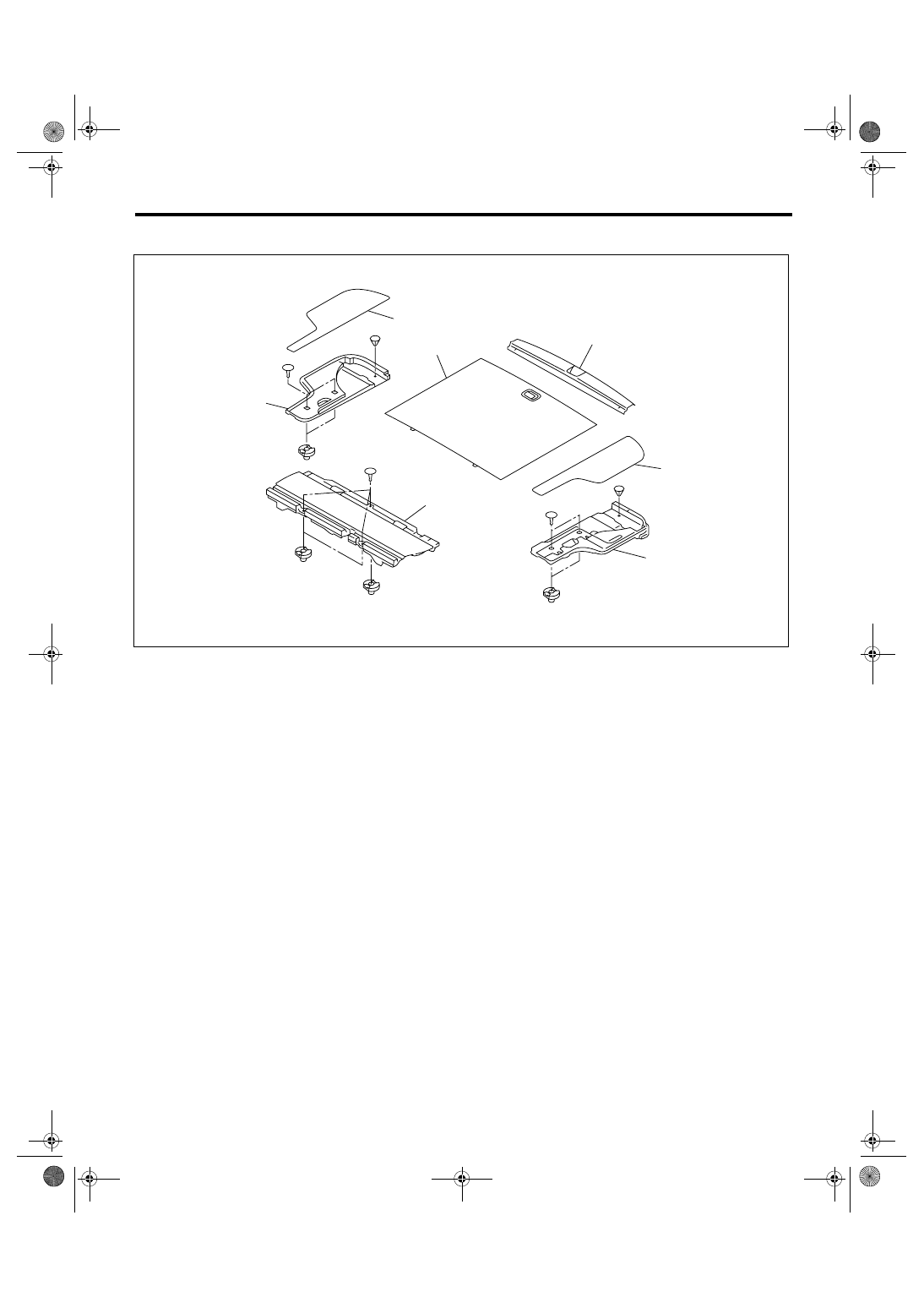

27.LUGGAGE FLOOR MAT

(1)

Front floor mat

(4)

Center floor mat

(7)

Luggage floor end cover

(2)

Floor box (RH)

(5)

Side floor mat (RH)

(3)

Floor box (LH)

(6)

Side floor mat (LH)

EI-00757

(1)

(2)

(7)

(3)

(6)

(4)

(5)

EI-22

EXTERIOR/INTERIOR TRIM

General Description

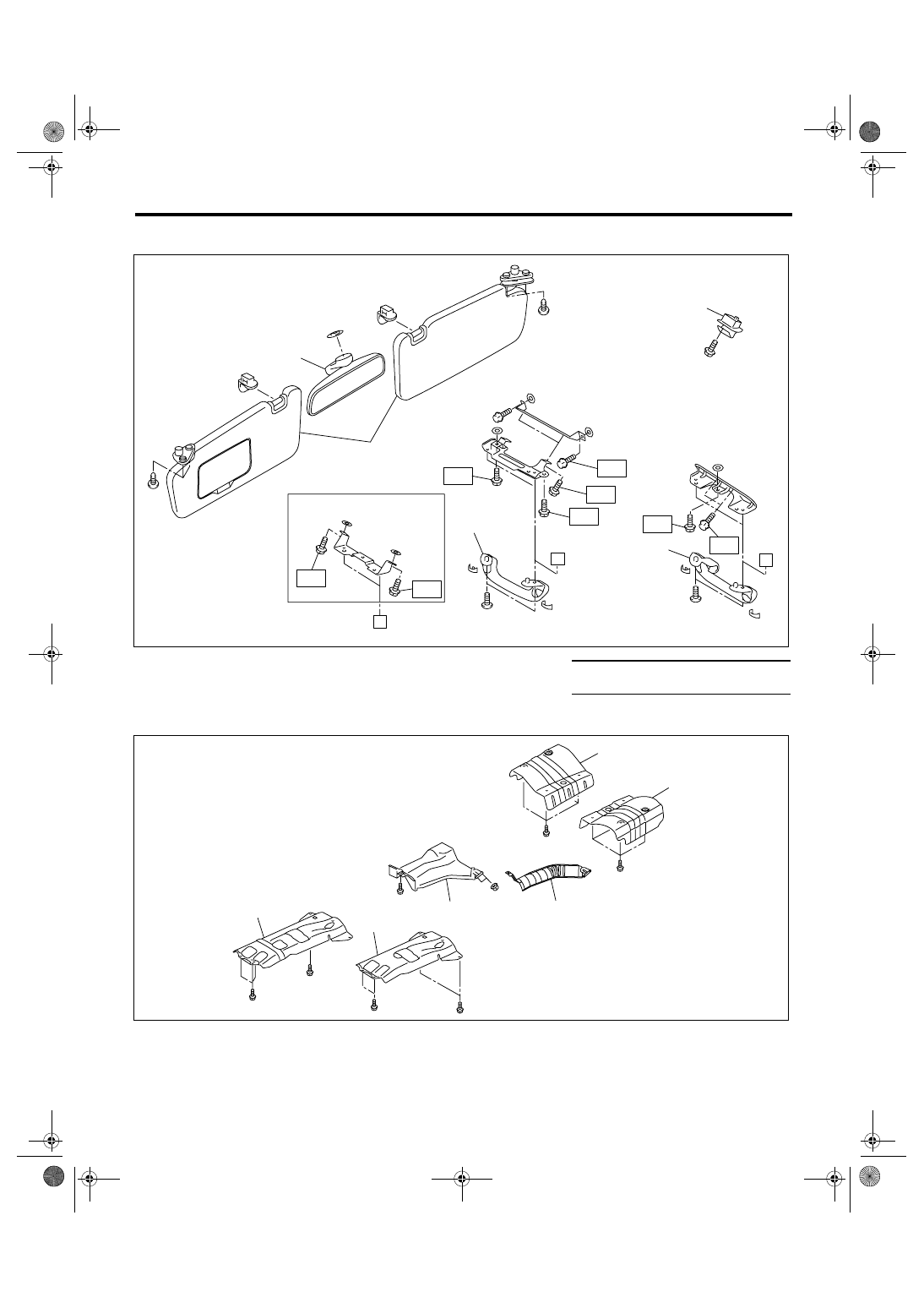

28.ROOM INNER PARTS

29.HEAT SHIELD COVER

(1)

Room mirror

(3)

Assist grip

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Sun visor

(4)

Coat hook (Wagon model)

T: 7.5 (0.77, 5.53)

(1)

Front heat shield cover (5AT
model)

(3)

Sensor heat shield cover (Turbo
model)

(5)

Rear heat shield cover RH

(6)

Rear heat shield cover LH

(2)

Front heat shield cover (4AT
model and MT model)

(4)

Sensor heat shield cover (Non-
turbo model)

EI-00789

T

T

T

T

T

T

T

T

E

E

E

(1)

(2)

(3)

(3)

(4)

EI-00798

(5)

(4)

(3)

(2)

(1)

(6)

EI-23

EXTERIOR/INTERIOR TRIM

General Description

B: PREPARATION TOOL

TOOL NAME

REMARKS

Clip remover

Used for removal of trim.

Clip clamp pliers

Used for removal of various clips and clamps.

EI-24

EXTERIOR/INTERIOR TRIM

Front Grille

2. Front Grille

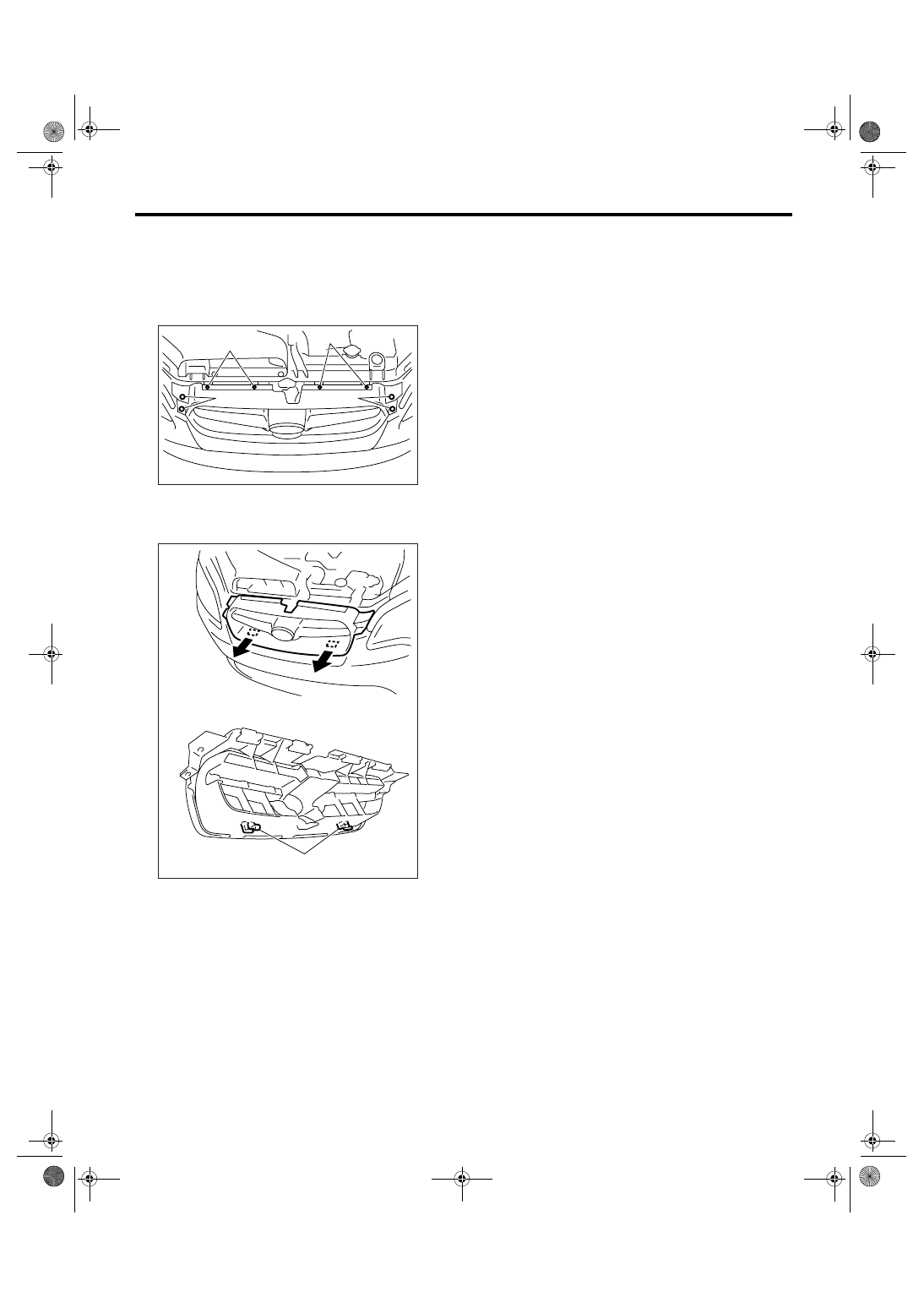

A: REMOVAL

1) Open the front hood.
2) Remove the push clips (A) and front grille clips
(B) from each side of front grille.

3) Pull lower side of the front grille forward, remove
hooks (A), and then remove the front grille from ve-
hicle body.

B: INSTALLATION

Install in the reverse order of removal.

(B)

(B)

(A)

(A)

EI-00551

(A)

EI-00552
