EI-17

EXTERIOR/INTERIOR TRIM

General Description

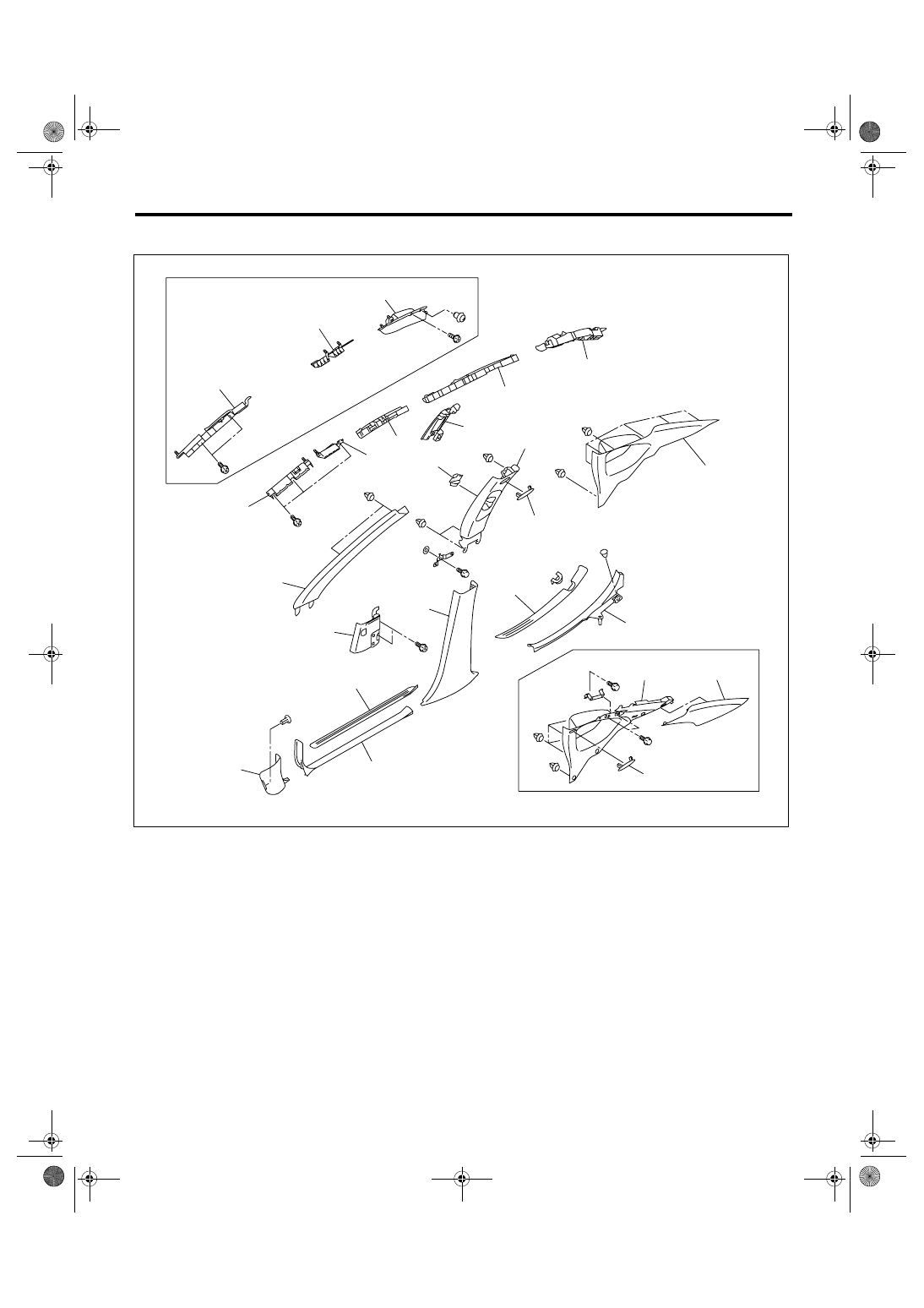

21.INNER TRIM (SEDAN MODEL)

(1)

Front pillar upper trim

(11)

Bolt cover (Model with curtain air-
bag)

(20)

Curtain airbag guide center
(Model with curtain airbag)

(2)

Front pillar lower trim

(3)

Front outside scuff plate

(12)

Rear quarter trim

(21)

Curtain airbag guide rear (Model
with curtain airbag)

(4)

Front inside scuff plate

(13)

Center pillar inner protector upper

(5)

Center pillar upper trim

(14)

Center pillar inner protector lower

(22)

Rear quarter trim front (Model with
curtain airbag)

(6)

Center pillar lower trim

(15)

Front pillar inner protector upper

(7)

Rear outside scuff plate

(16)

Roof side inner protector front

(23)

Rear quarter trim rear (Model with
curtain airbag)

(8)

Rear inside scuff plate

(17)

Roof side inner protector center

(9)

Center pillar inner protector lower

(18)

Roof side inner protector rear

(10)

Seat belt shoulder anchor adjuster
button

(19)

Curtain airbag guide front (Model
with curtain airbag)

EI-01165

(9)

(14)

(16)

(20)

(21)

(19)

(13)

(11)

(12)

(22)

(23)

(11)

(17)

(18)

(10)

(15)

(1)

(2)

(3)

(4)

(6)

(7)

(5)

(8)

EI-18

EXTERIOR/INTERIOR TRIM

General Description

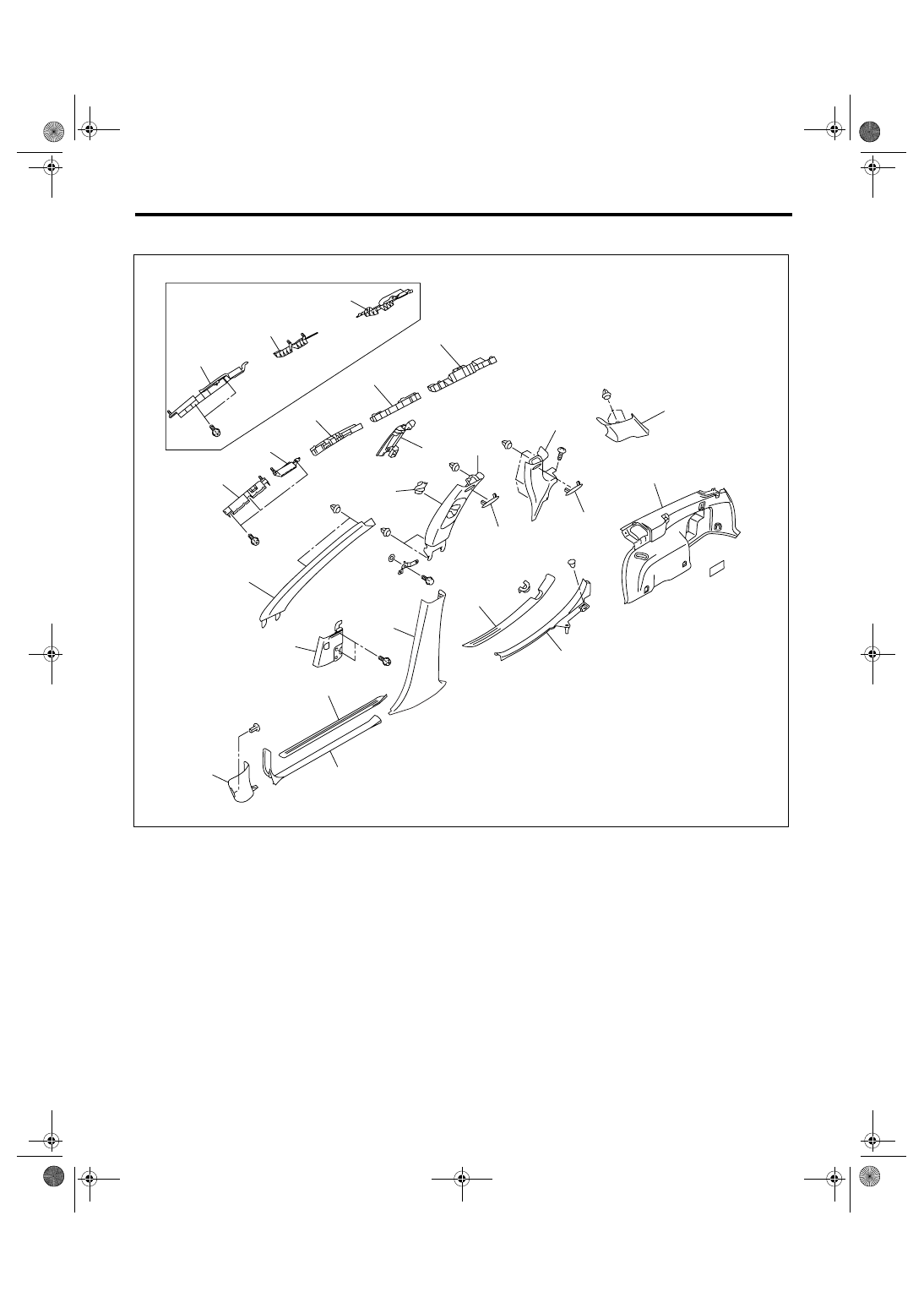

22.INNER TRIM (WAGON MODEL)

(1)

Front pillar upper trim

(11)

Bolt cover (Model with curtain air-
bag)

(21)

Curtain airbag guide front (Model
with curtain airbag)

(2)

Front pillar lower trim

(3)

Front outside scuff plate

(12)

Rear quarter front pillar trim

(22)

Curtain airbag guide center
(Model with curtain airbag)

(4)

Front inside scuff plate

(13)

Rear quarter rear pillar trim

(5)

Center pillar upper trim

(14)

Rear quarter lower trim

(23)

Curtain airbag guide rear (Model
with curtain airbag)

(6)

Center pillar lower trim

(15)

Center pillar inner protector upper

(7)

Rear outside scuff plate

(16)

Center pillar inner protector lower

(8)

Rear inside scuff plate

(17)

Front pillar inner protector upper

(9)

Center pillar inner protector lower

(18)

Roof side inner protector front

(10)

Seat belt shoulder anchor adjuster
button

(19)

Roof side inner protector center

(20)

Roof side inner protector rear

EI-01166

(9)

(16)

(18)

(22)

(12)

(23)

(21)

(15)

(11)

(11)

(13)

(14)

(19)

(20)

(10)

(17)

(1)

(2)

(3)

(4)

(6)

(7)

(5)

(8)

EI-19

EXTERIOR/INTERIOR TRIM

General Description

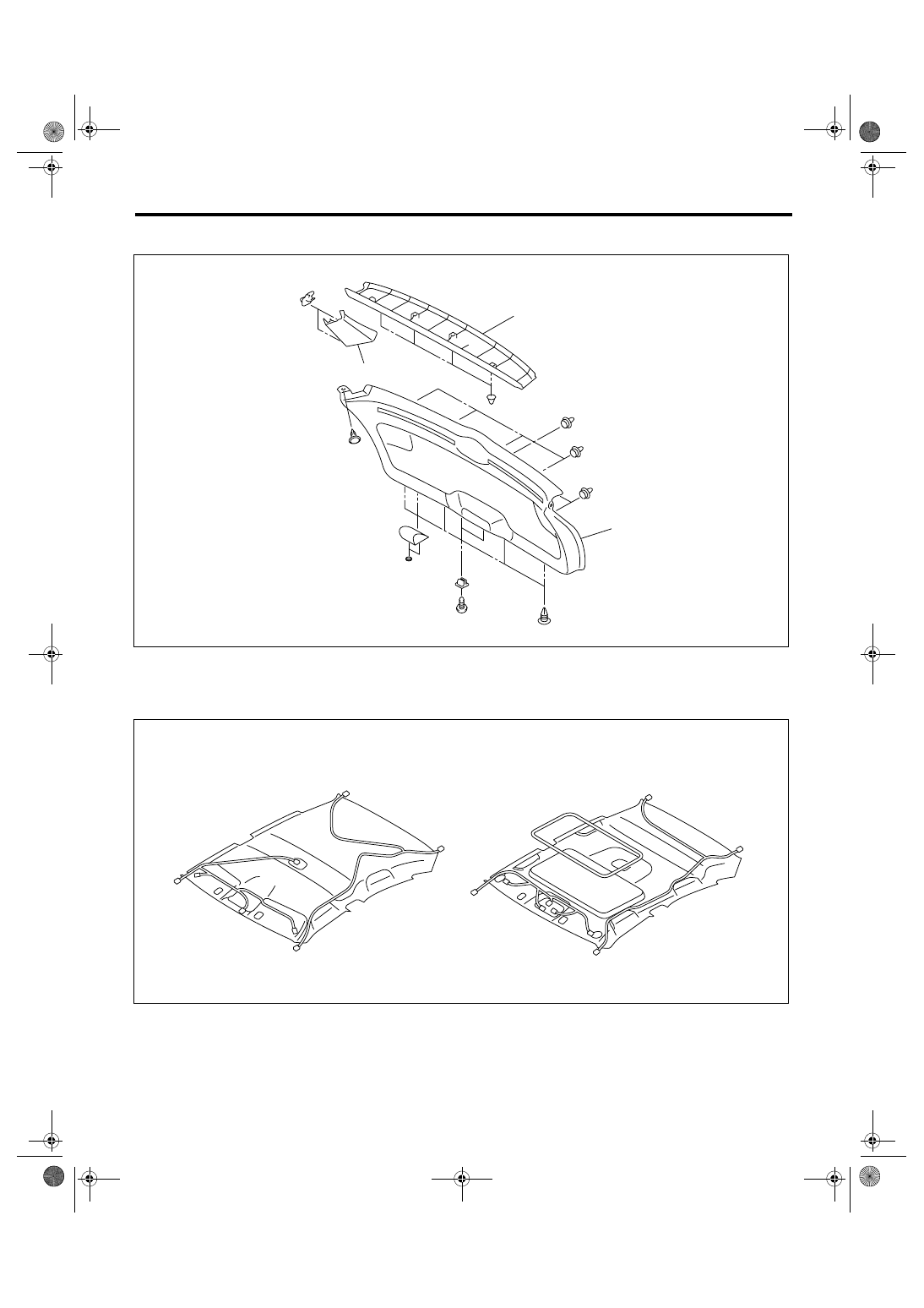

23.REAR GATE TRIM

24.ROOF TRIM (SEDAN MODEL)

(1)

Rear gate panel upper trim

(2)

Rear gate panel pillar trim

(3)

Rear gate panel lower trim

EI-00808

(3)

(2)

(1)

EI-00755

EI-20

EXTERIOR/INTERIOR TRIM

General Description

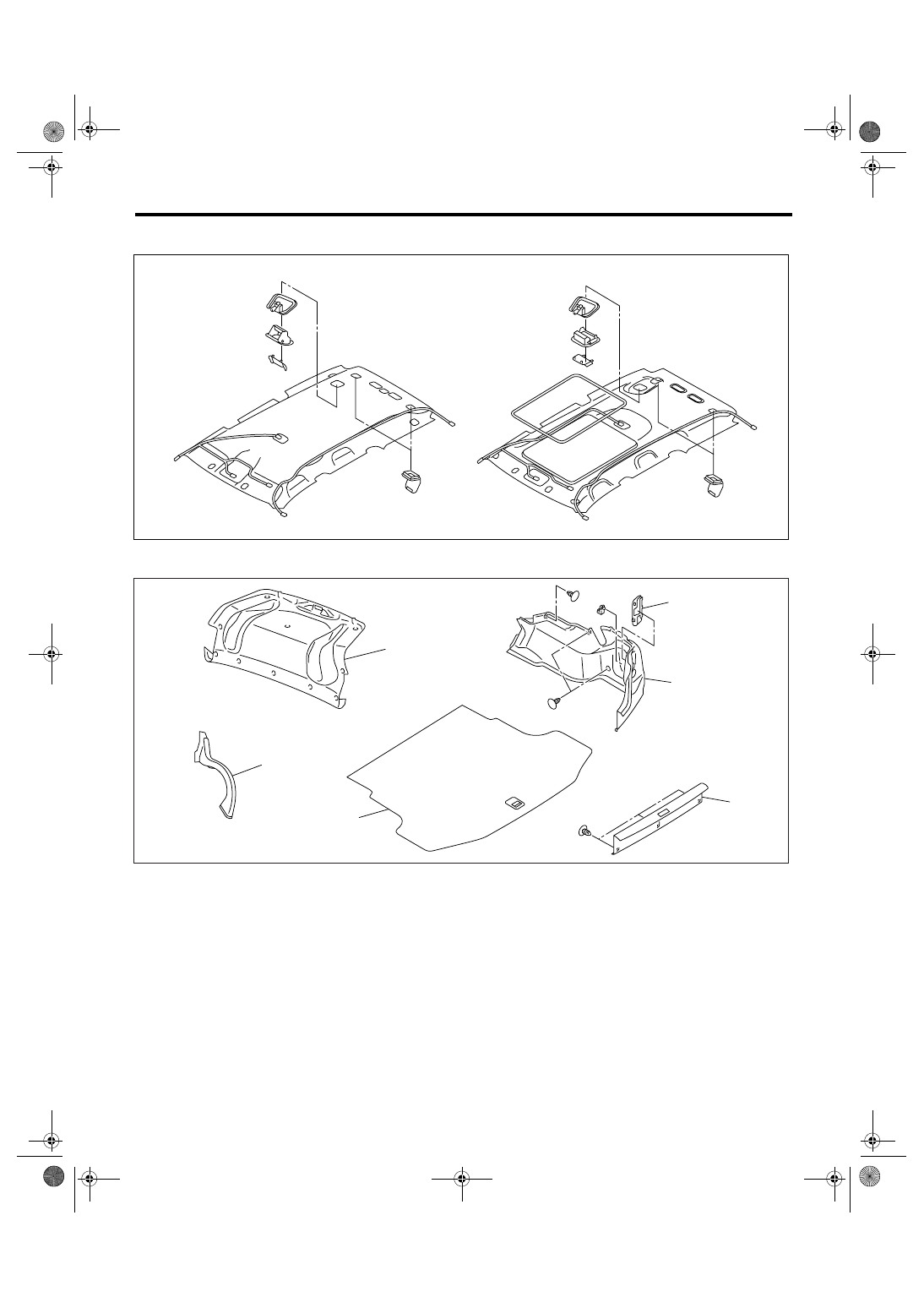

25.ROOF TRIM (WAGON MODEL)

26.TRUNK ROOM TRIM

(1)

Trunk lid trim

(3)

Trunk room mat

(5)

Combination light cover

(2)

Trunk lid arm cover

(4)

Trunk side trim

(6)

Trunk room end cover

EI-00756

EI-00722

(1)

(3)

(2)

(4)

(5)

(6)
