EI-9

EXTERIOR/INTERIOR TRIM

General Description

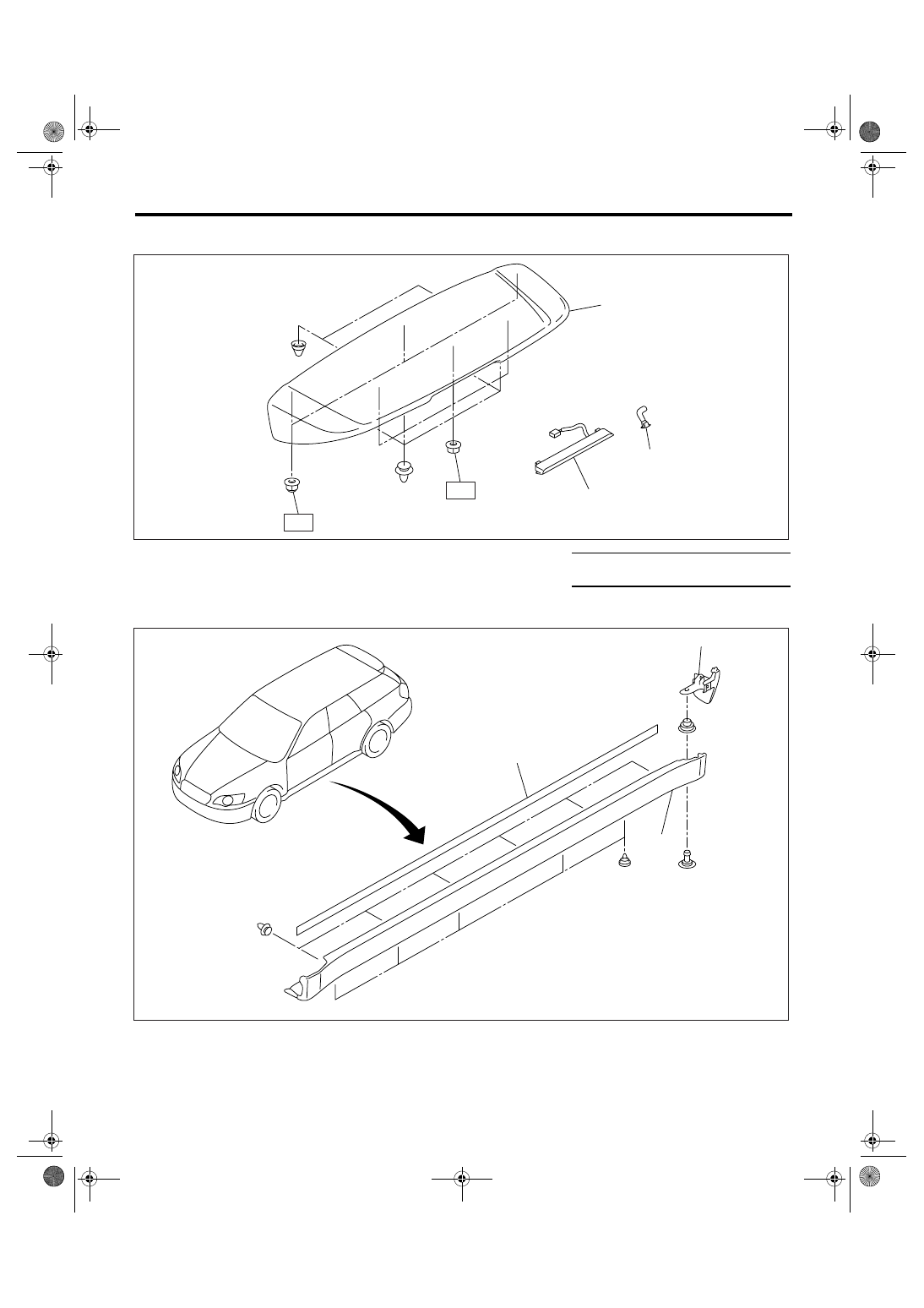

10.ROOF SPOILER

11.SIDE SILL SPOILER

(1)

Roof spoiler

(3)

Washer nozzle

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

High-mounted stop light

T: 4.5 (0.46, 3.32)

(1)

Side sill spoiler

(2)

Packing

(3)

Side sill end

EI-01079

(1)

(2)

(3)

T

T

EI-01080

(1)

(2)

(3)

EI-10

EXTERIOR/INTERIOR TRIM

General Description

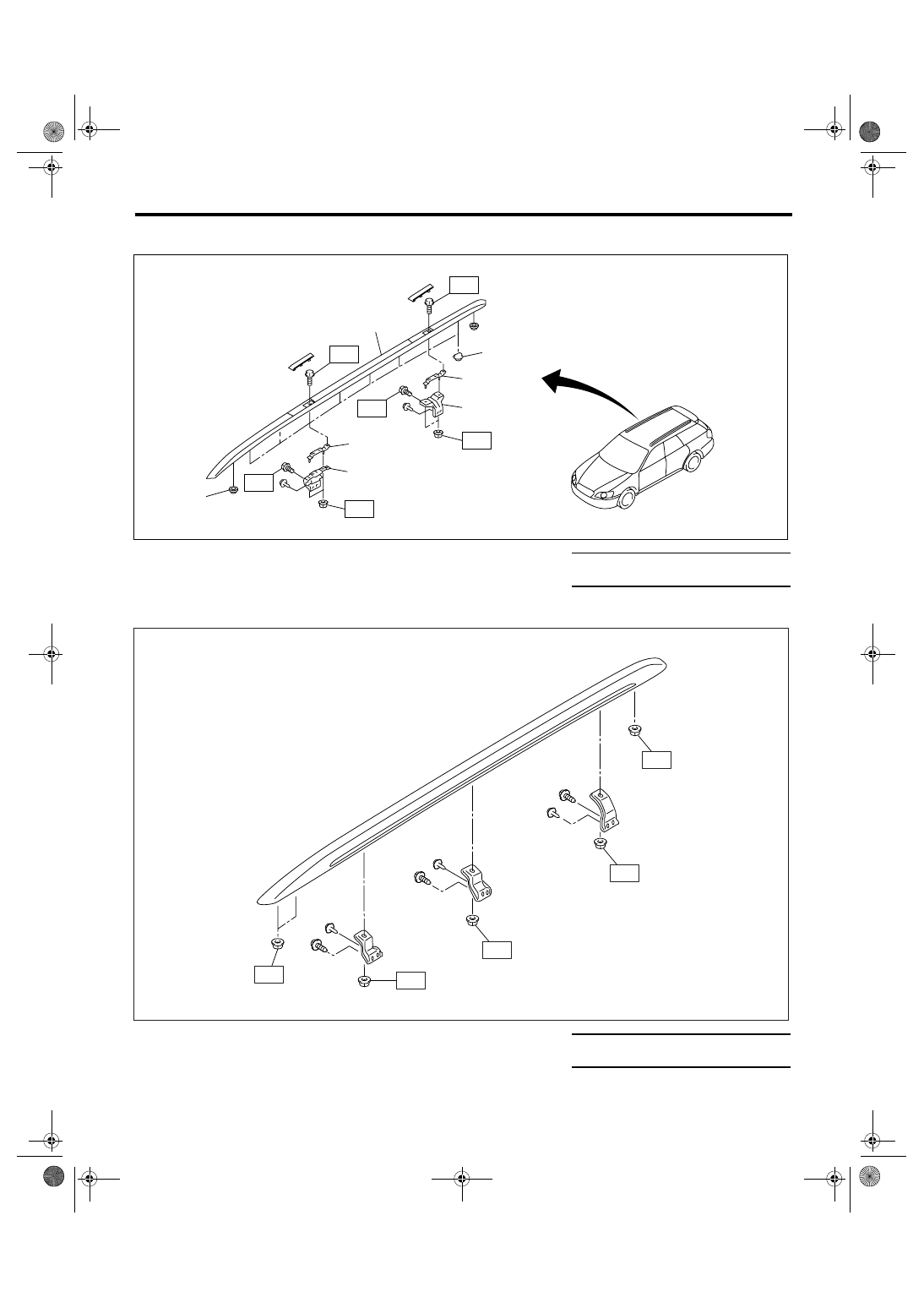

12.ROOF MOLDING

13.ROOF RAIL

(1)

Roof molding

(3)

Clip

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Roof carrier attachment

(4)

Roof carrier attachment bracket

T: 4.5 (0.46, 3.32)

Tightening torque: N

⋅

m (kgf-m, ft-lb)

T: 7.5 (0.77, 5.53)

EI-00752

T

T

T

(2)

(3)

(4)

(1)

T

(2)

(3)

(4)

T

T

EI-01033

T

T

T

T

T

EI-11

EXTERIOR/INTERIOR TRIM

General Description

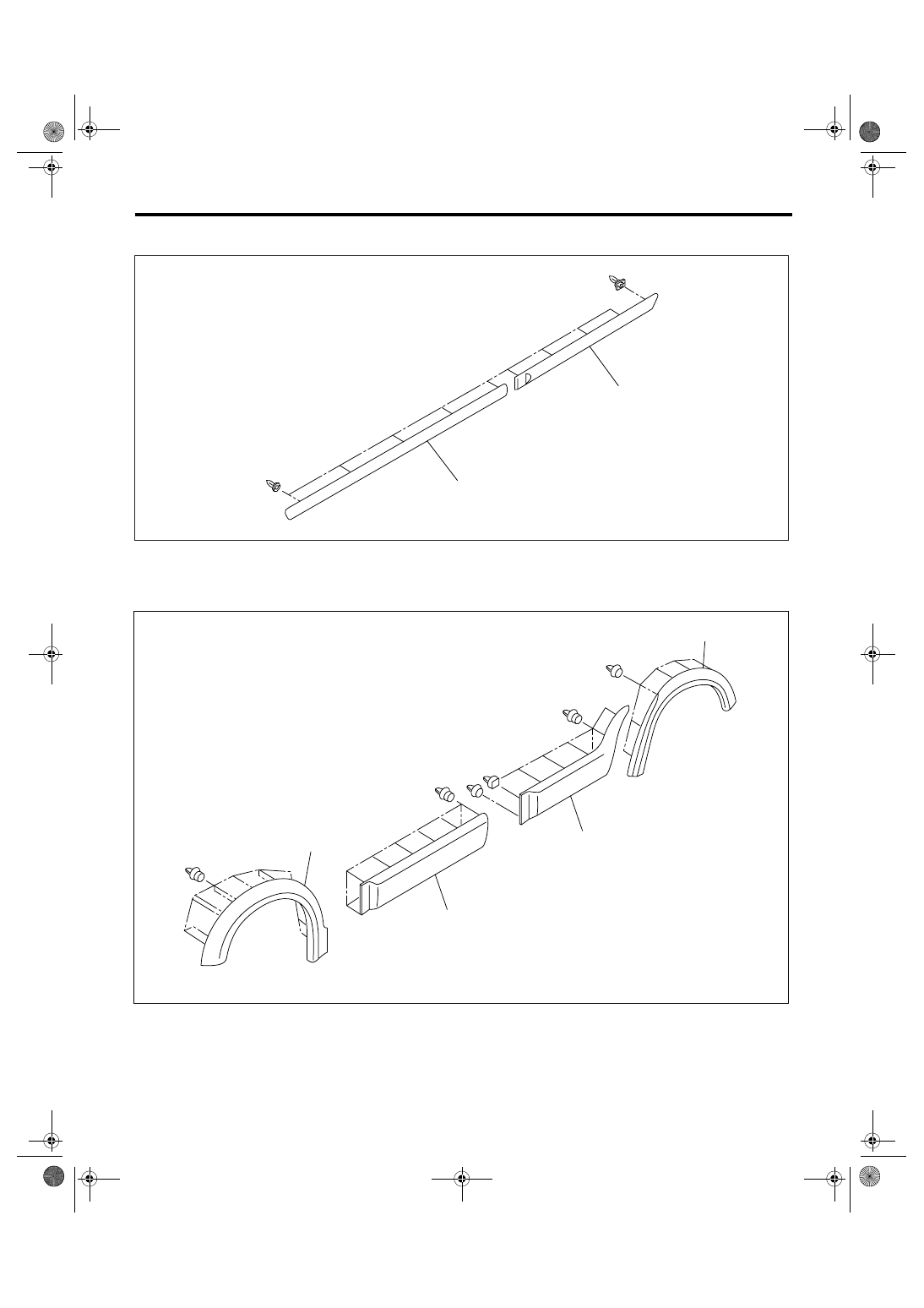

14.SIDE PROTECTOR

15.SIDE GARNISH

(1)

Front door protector

(2)

Rear door protector

(1)

Front fender garnish

(3)

Rear door garnish

(4)

Rear quarter garnish

(2)

Front door garnish

EI-00829

(1)

(2)

EI-00800

(4)

(3)

(2)

(1)

EI-12

EXTERIOR/INTERIOR TRIM

General Description

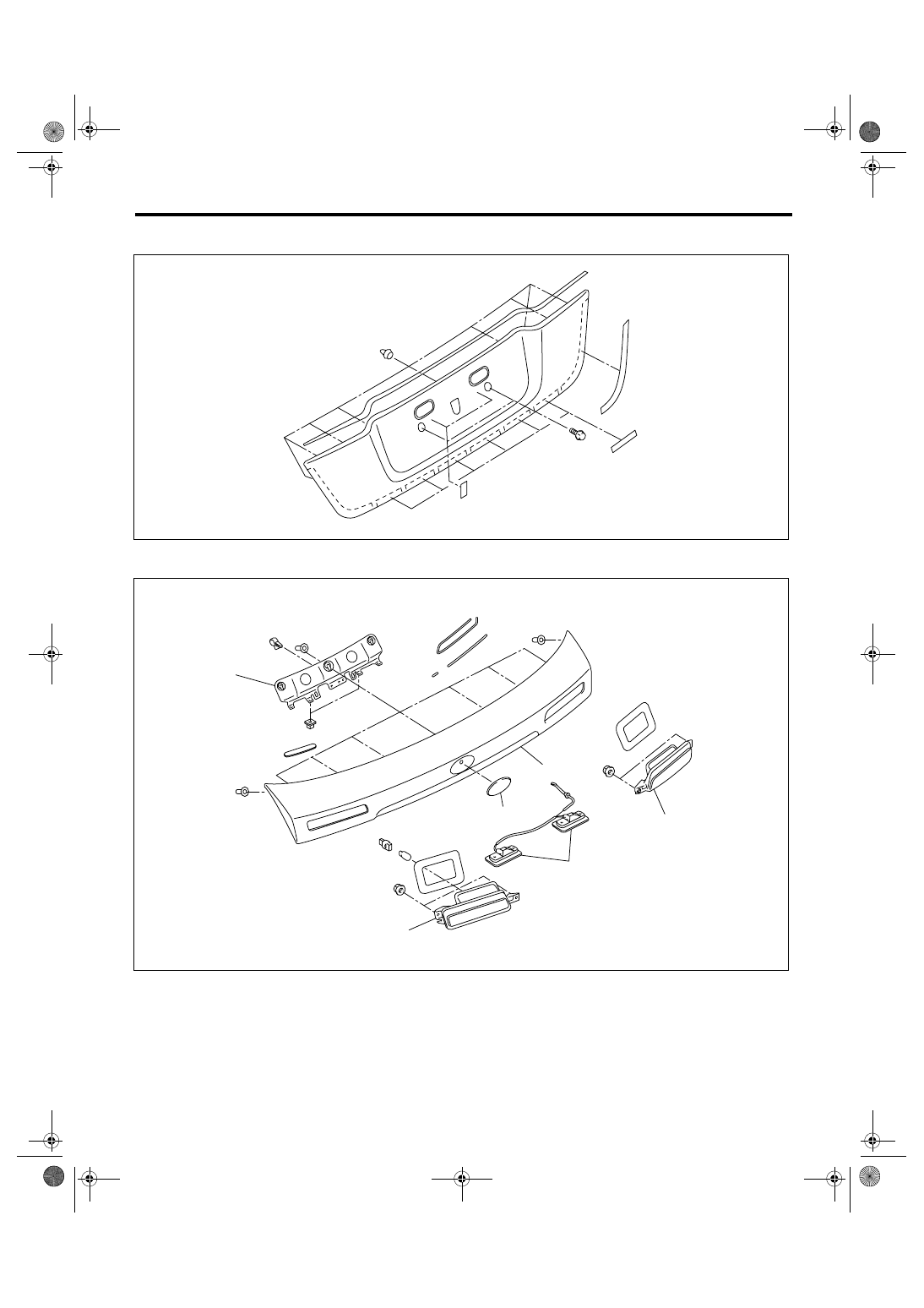

16.TRUNK LID GARNISH

17.REAR GATE GARNISH

(1)

Rear gate garnish

(4)

Rear fog light (Model with rear fog
light) or Back-up light (Model with-
out rear fog light)

(5)

Back-up light

(2)

Ornament

(6)

License plate light bracket

(3)

License plate light

EI-00806

EI-00807

(6)

(2)

(1)

(4)

(3)

(5)
