EI-5

EXTERIOR/INTERIOR TRIM

General Description

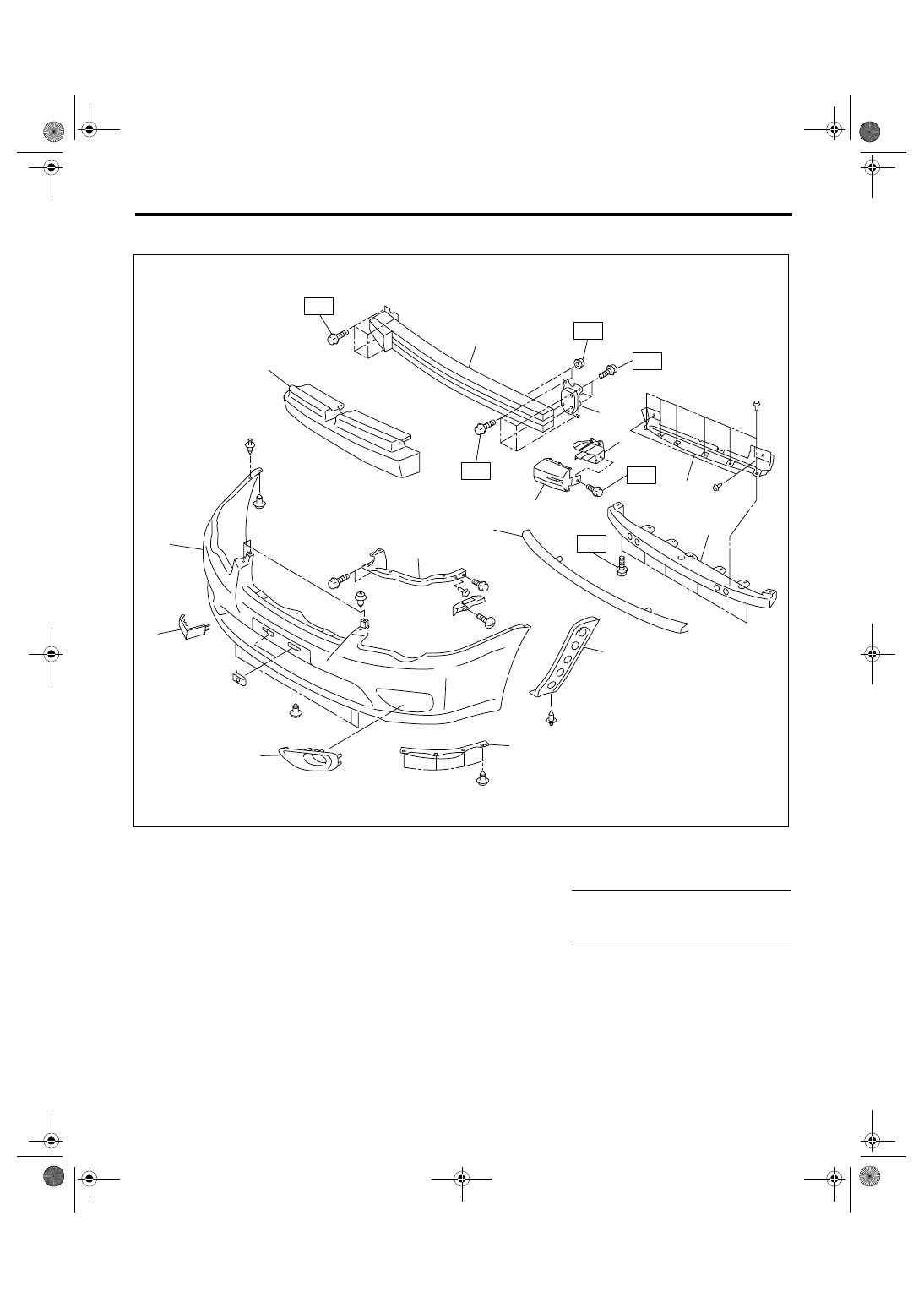

5. FRONT BUMPER

(1)

Bumper face

(7)

Energy absorber foam upper

(13)

Lower center bracket

(2)

Towing hook cover

(8)

Energy absorber foam lower

(14)

Radiator guide

(3)

Fog light cover

(9)

Main beam reinforcement

(4)

Lower side bracket

(10)

Main beam bracket

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(5)

Upper bracket

(11)

Bracket support

T1: 7.5 (0.77, 5.53)

(6)

Side bracket

(12)

Energy absorber side

T2: 33 (3.4, 24)

EI-00795

(1)

(2)

(3)

(4)

(6)

(5)

(8)

(7)

(12)

(13)

(11)

(10)

(9)

(14)

T1

T2

T2

T2

T2

T2

EI-6

EXTERIOR/INTERIOR TRIM

General Description

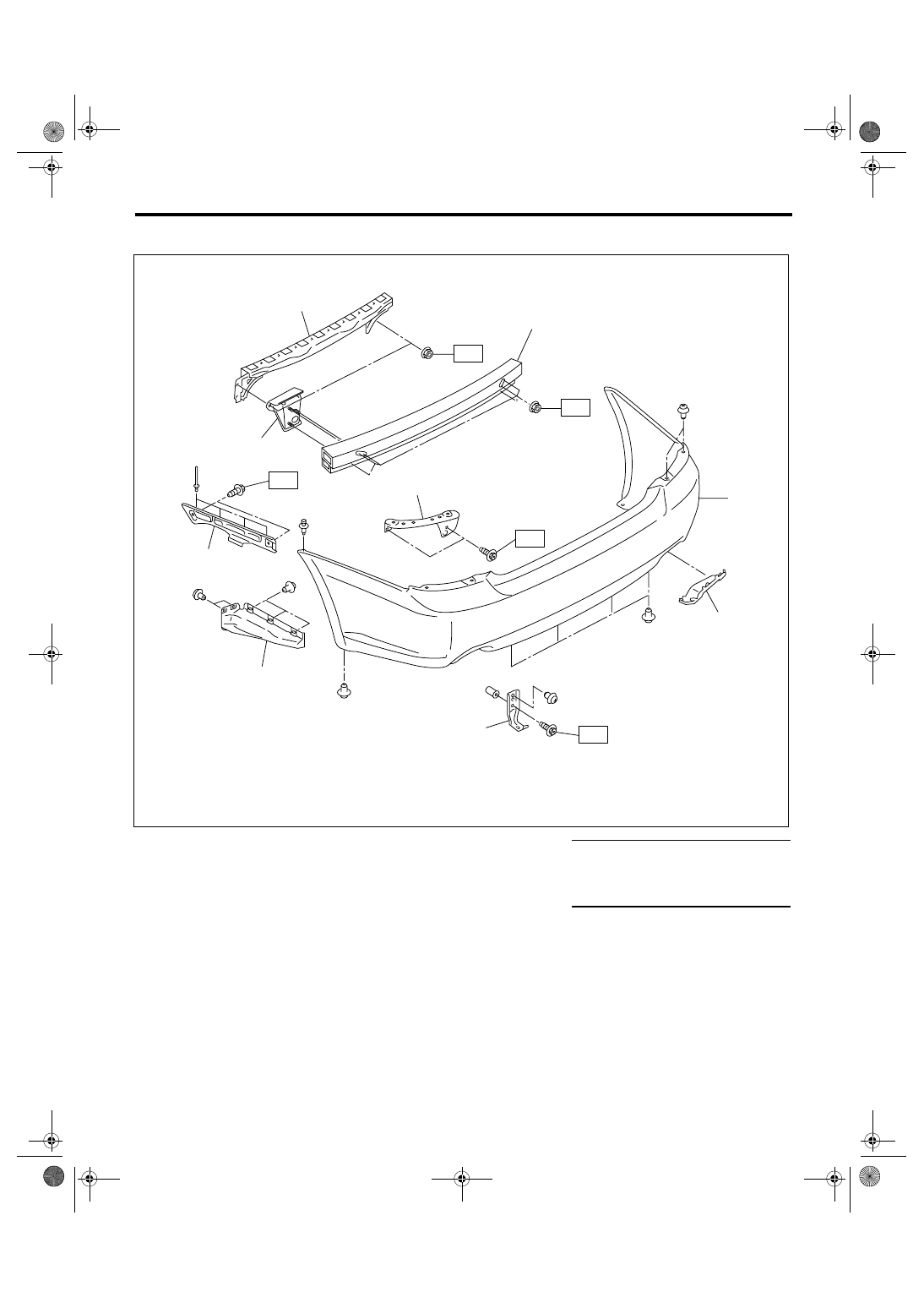

6. REAR BUMPER (SEDAN MODEL)

(1)

Bumper face

(6)

Bumper side support upper

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Exhaust end cover

(7)

Bumper side support lower

T1: 2 (0.2, 1.48)

(3)

Beam upper rear

(8)

Beam main reinforcement

T2: 7.5 (0.77, 5.53)

(4)

Bracket corner

(9)

Bumper beam bracket

T3: 33 (3.4, 24)

(5)

Lower bracket

EI-01116

(1)

(2)

(5)

(7)

(6)

(3)

(4)

(8)

(9)

T3

T2

T2

T1

T3

EI-7

EXTERIOR/INTERIOR TRIM

General Description

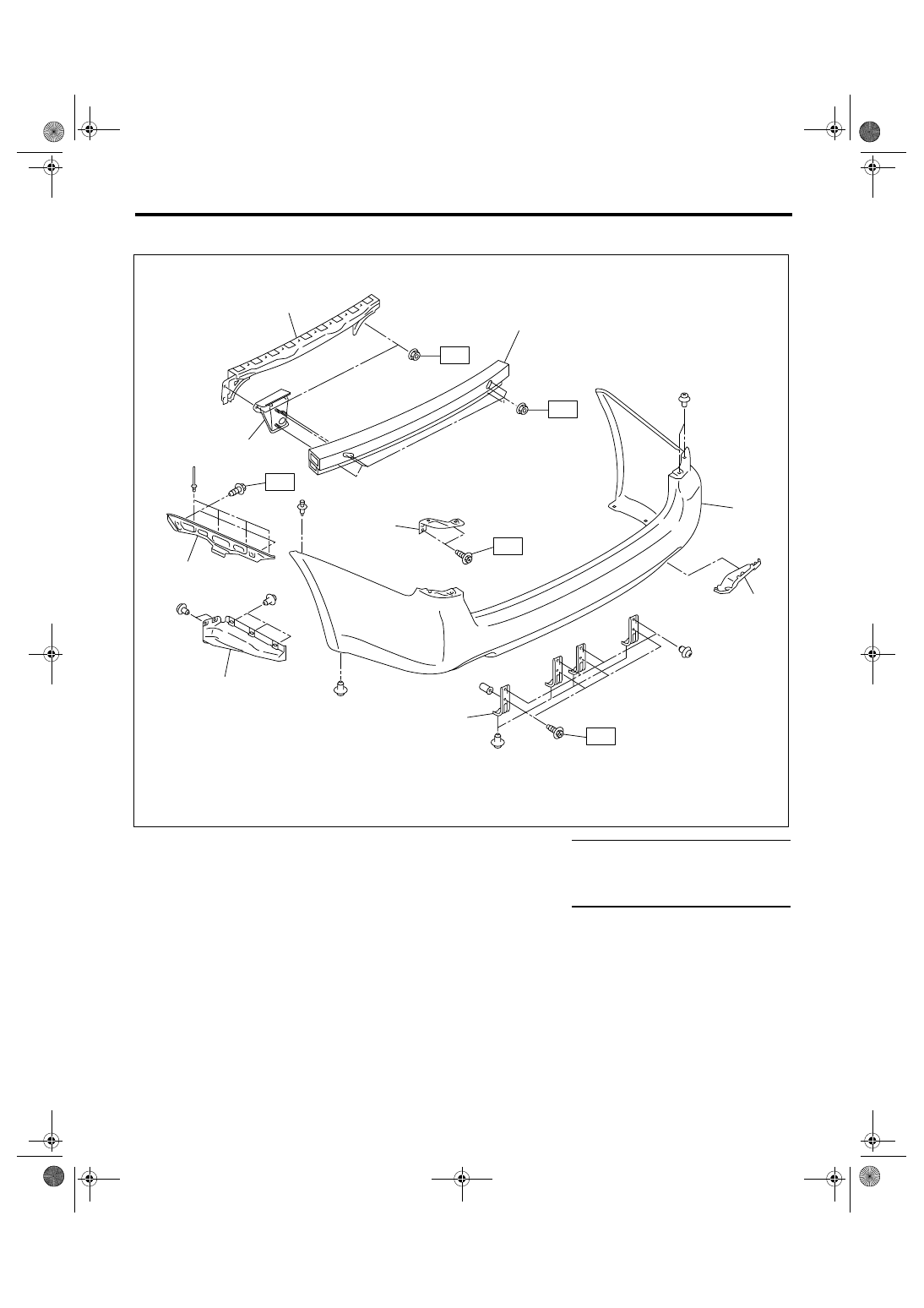

7. REAR BUMPER (WAGON MODEL)

(1)

Bumper face

(6)

Bumper side support upper

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Exhaust end cover

(7)

Bumper side support lower

T1: 2 (0.2, 14.8)

(3)

Beam upper rear

(8)

Beam main reinforcement

T2: 7.5 (0.77, 5.53)

(4)

Bracket corner

(9)

Bumper beam bracket

T3: 33 (3.4, 24)

(5)

Lower bracket

EI-01117

(1)

(2)

(5)

(4)

(7)

(6)

(3)

(8)

(9)

T3

T3

T2

T2

T1

EI-8

EXTERIOR/INTERIOR TRIM

General Description

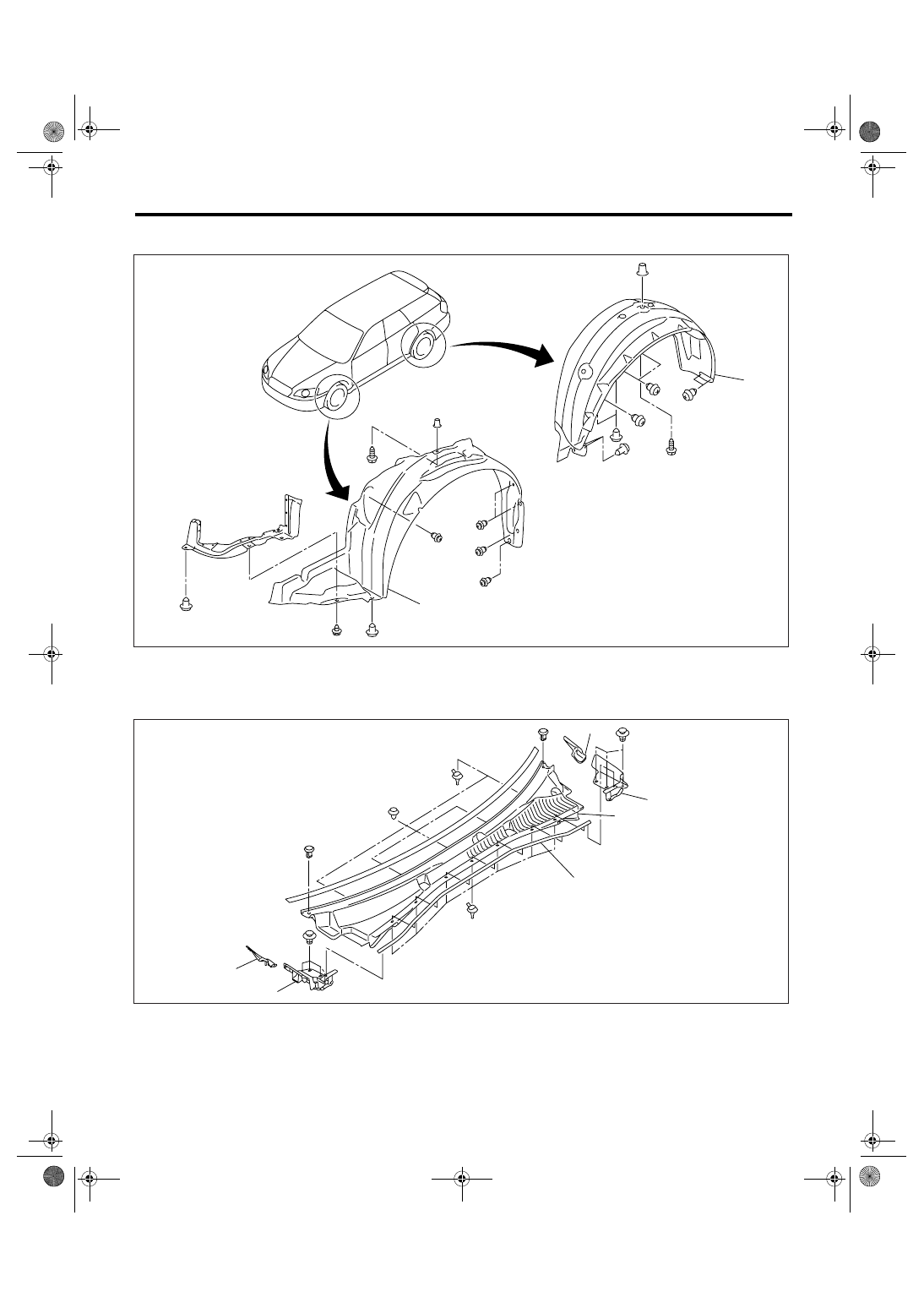

8. MUD GUARD

9. COWL PANEL

(1)

Front mud guard

(2)

Rear mud guard

(1)

Cowl panel

(3)

Cover cowl panel

(4)

Cowl side panel

(2)

Weather strip

EI-00835

(2)

(1)

EI-01078

(1)

(4)

(3)

(3)

(4)

(2)
