Subaru Legacy (2005 year). Manual - part 985

SR-15

SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)

Sunroof Switch

2. WAGON MODEL

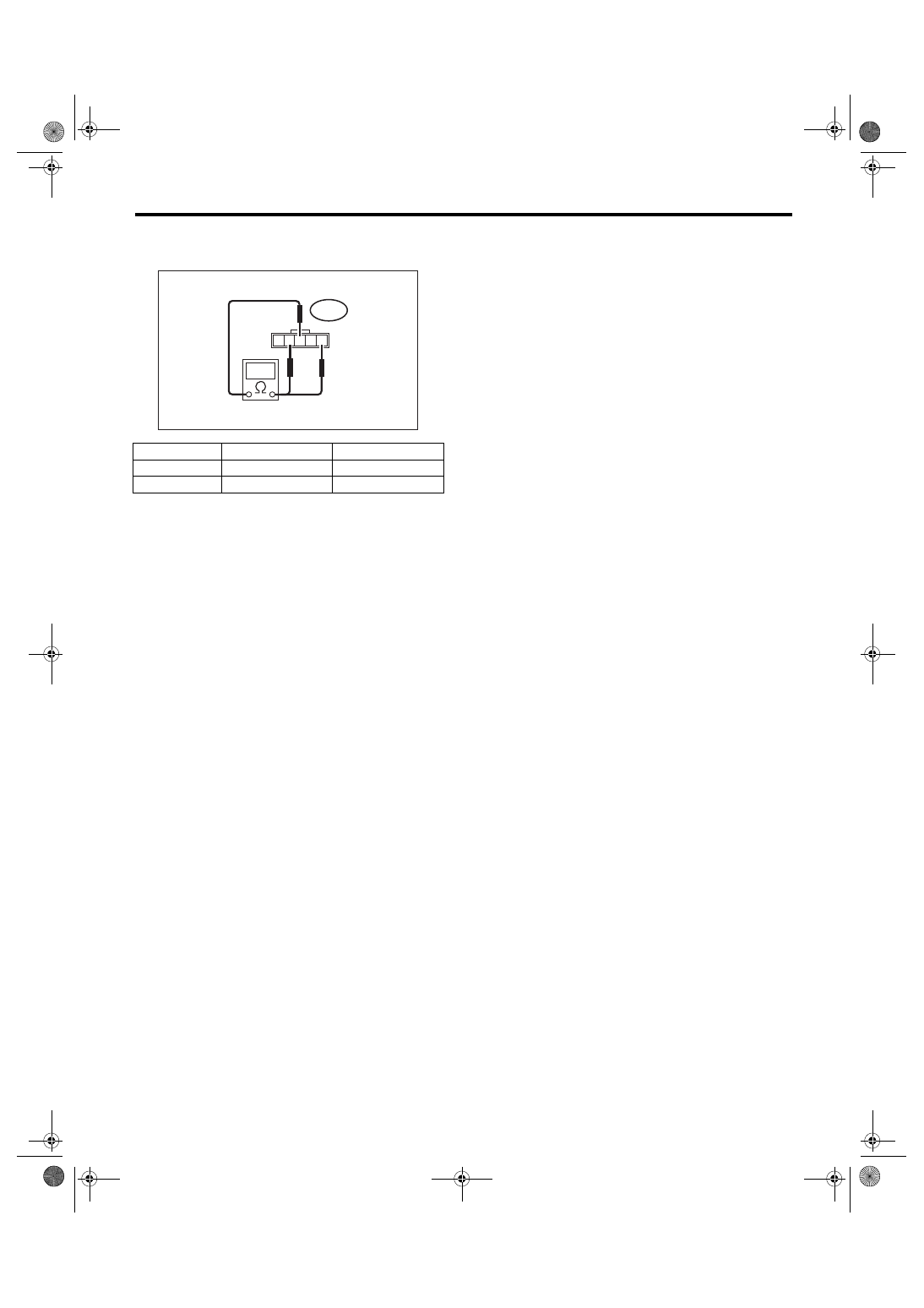

Measure the sunroof switch resistance.

NOTE:
If glass lid does not operate or is not supplied with
power, move the glass lid using the emergency
handle (hex wrench). <Ref. to SR-7, FORCED
DRIVE, Glass Lid.>

Switch position

Terminal No.

Standard

Open

1 and 3

Less than 1

Ω

Close

3 and 4

Less than 1

Ω

SR-00041

R128

3

4

5

1

2

SR-16

SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)

Sunshade

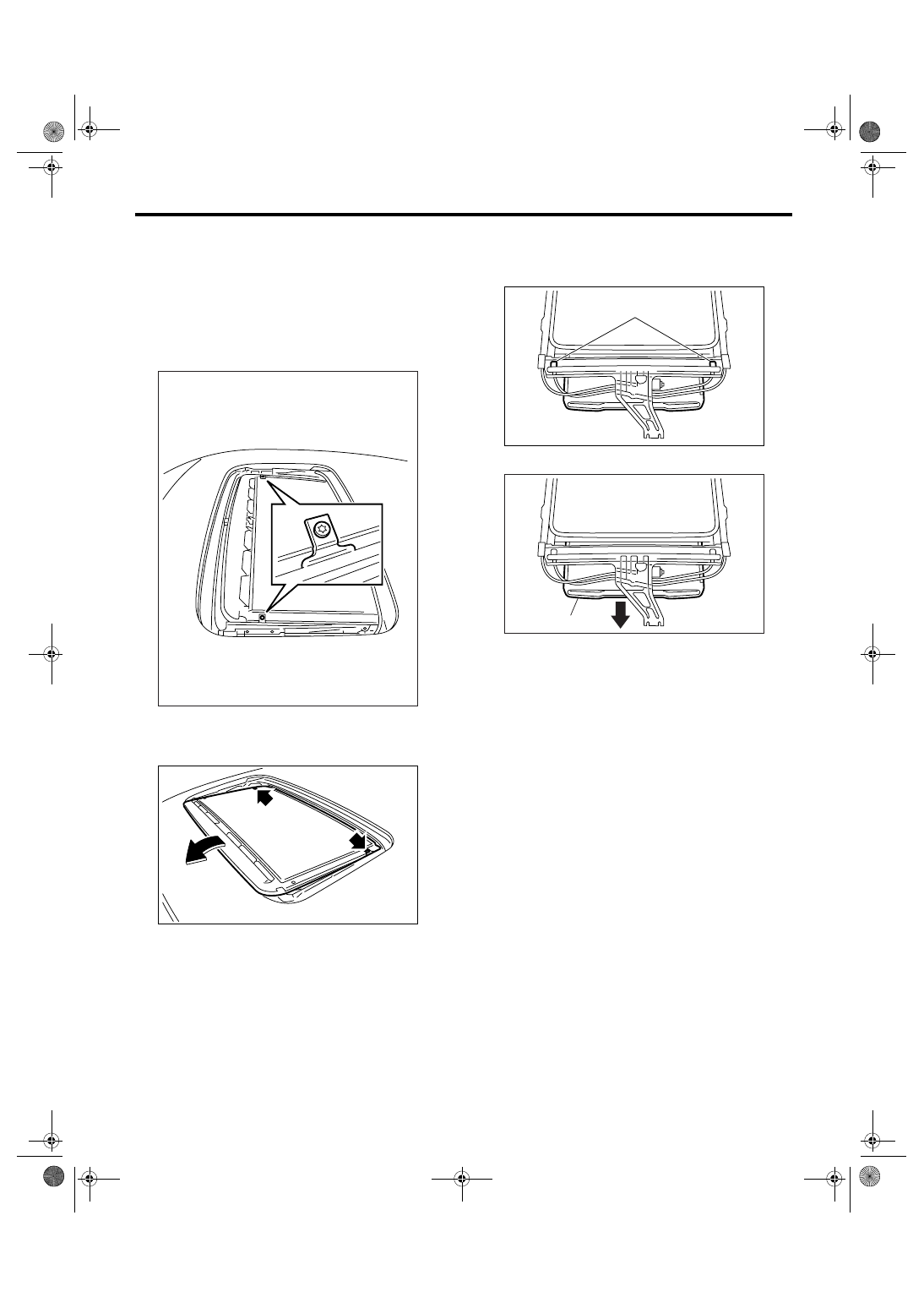

7. Sunshade

A: REMOVAL

1. SEDAN MODEL

1) Remove the glass lid. <Ref. to SR-6, SEDAN
MODEL, REMOVAL, Glass Lid.>
2) Loosen the TORX

®

 bolts, and remove sunshade

bracket (front).

3) Pull out the sunshade until sunshade bracket
(rear) is shown, loosen the TORX

®

 bolts, and re-

move sunshade.

2. WAGON MODEL

1) Remove the frame assembly.
2) Remove the shade stopper (A) of sunshade.

3) Pull out the sunshade (A) from sunroof frame.

B: INSTALLATION

Install in the reverse order of removal.

SR-00122

SR-00123

SR-00093

(A)

SR-00086

(A)

SR-17

SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)

Sunshade

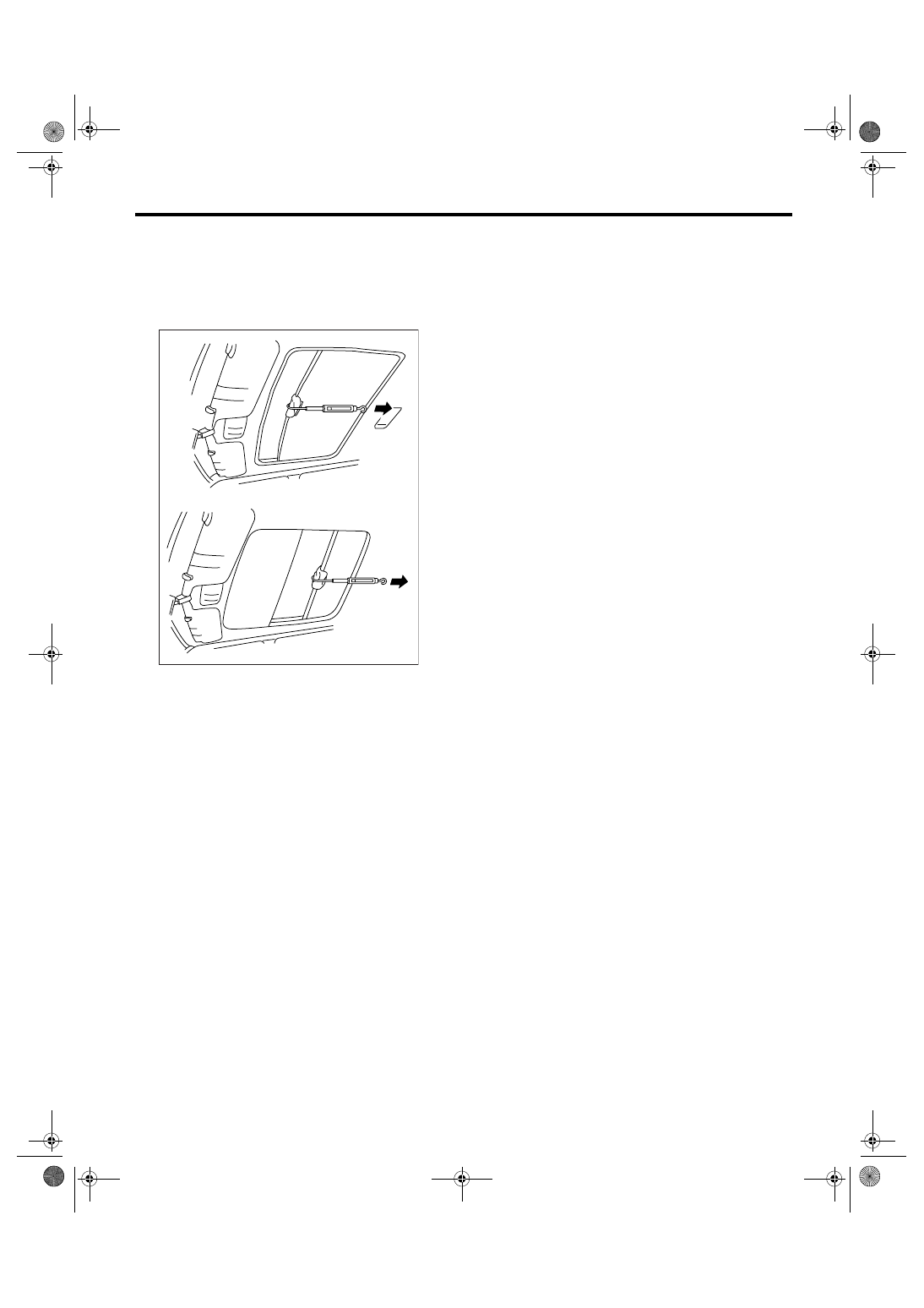

C: INSPECTION

1. CHECK FOR MOVING LOAD OF SUN-
SHADE

1) Attach a spring balance to sunshade edge using
a cloth.

2) Pull the spring balance to measure moving load
of the sunshade.

Moving load of sunshade:

Specification

18.0

±

5.0 N (1.8

±

0.5 kgf, 13

±

3.7 lbf)

NOTE:
Moving load is larger at the beginning of pulling a
spring balance, so take a spring balance reading
while sunshade sliding smoothly.
3) If moving load exceeds specifications, check the
glass lid, sunshade and frame assembly for im-
proper installation.

SR-00087

SR-18

SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF)

Sunshade
