EI-13

EXTERIOR/INTERIOR TRIM

General Description

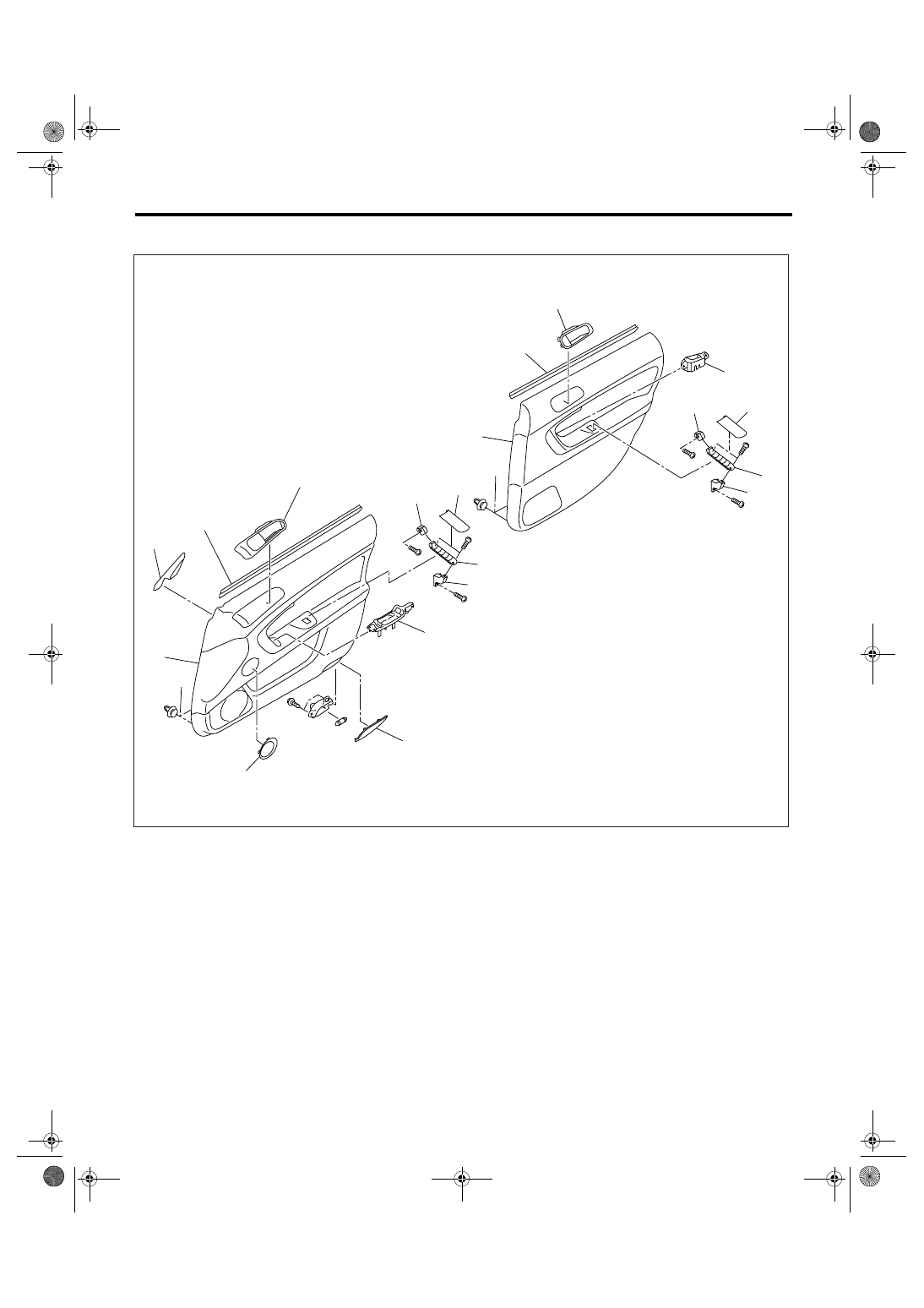

18.DOOR TRIM

(1)

Front door trim

(5)

Door grip

(9)

Power window switch

(2)

Gusset cover

(6)

Door grip bracket upper

(10)

Step light cover

(3)

Upper weather strip

(7)

Door grip frame

(11)

Speaker cover

(4)

Inner remote cover

(8)

Door grip bracket lower

(12)

Rear door trim

EI-00714

(1)

(2)

(3)

(6)

(4)

(5)

(7)

(8)

(6)

(5)

(9)

(7)

(8)

(9)

(10)

(11)

(4)

(3)

(12)

EI-14

EXTERIOR/INTERIOR TRIM

General Description

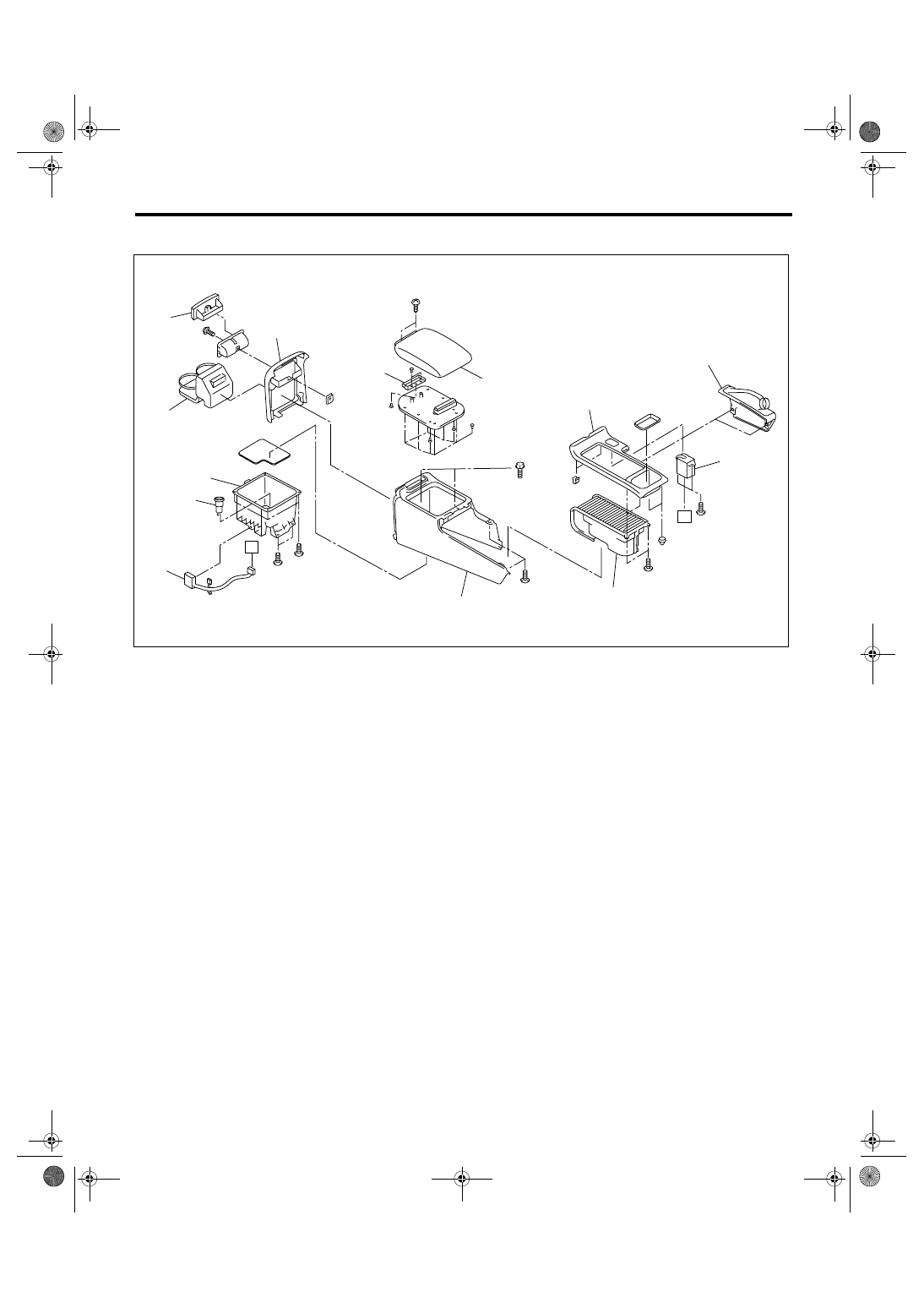

19.CONSOLE BOX

(1)

Upper lid

(6)

Rear lid

(11)

Console pocket

(2)

Console cover

(7)

Rear cup holder

(12)

Front accessory power supply
socket

(3)

Seat heater switch

(8)

Ash tray

(4)

Front cup holder

(9)

Lid hinge

(13)

Console box harness

(5)

Console box outer

(10)

Parking brake lever boot

EI-00812

(10)

(3)

(2)

(4)

(5)

(1)

(9)

(6)

(8)

(7)

(11)

(12)

(13)

A

A

EI-15

EXTERIOR/INTERIOR TRIM

General Description

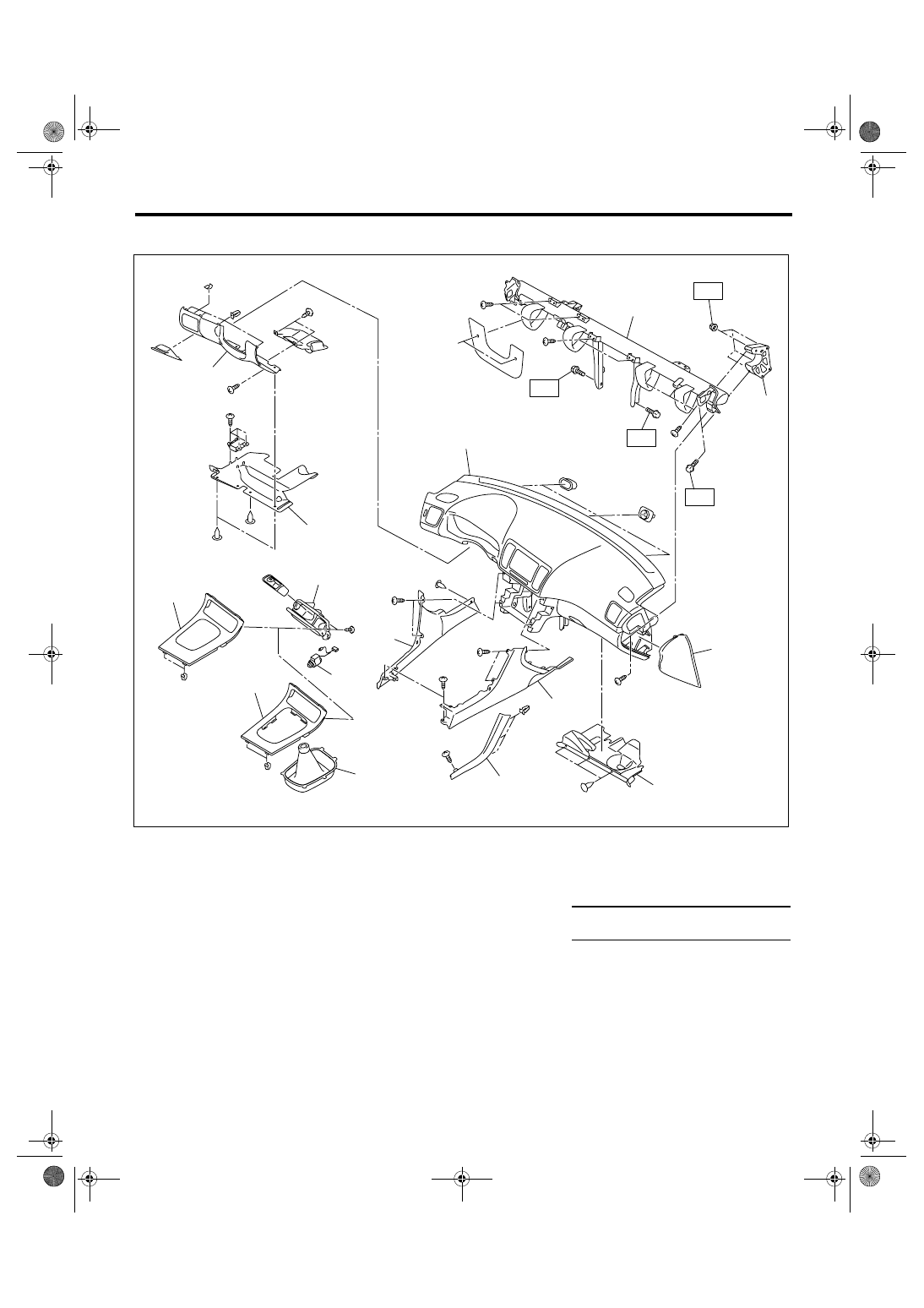

20.INSTRUMENT PANEL

(1)

Steering support beam bracket

(8)

Console side garnish

(13)

Console front panel (AT model)

(2)

Steering support beam

(9)

Instrument panel lower cover
upper

(14)

Console front panel (MT model)

(3)

Instrument panel pad & frame
ASSY

(15)

Shift lever boot

(10)

Instrument panel lower cover
under

(4)

Instrument panel side cover

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(5)

Glove box lower cover

(11)

Ash tray holder

T: 25 (25.5, 18.4)

(6)

Console side panel RH

(12)

Front accessory power supply
socket

(7)

Console side panel LH

EI-01057

T

T

T

T

(13)

(14)

(15)

(8)

(7)

(6)

(5)

(4)

(3)

(2)

(1)

(12)

(11)

(10)

(9)

EI-16

EXTERIOR/INTERIOR TRIM

General Description

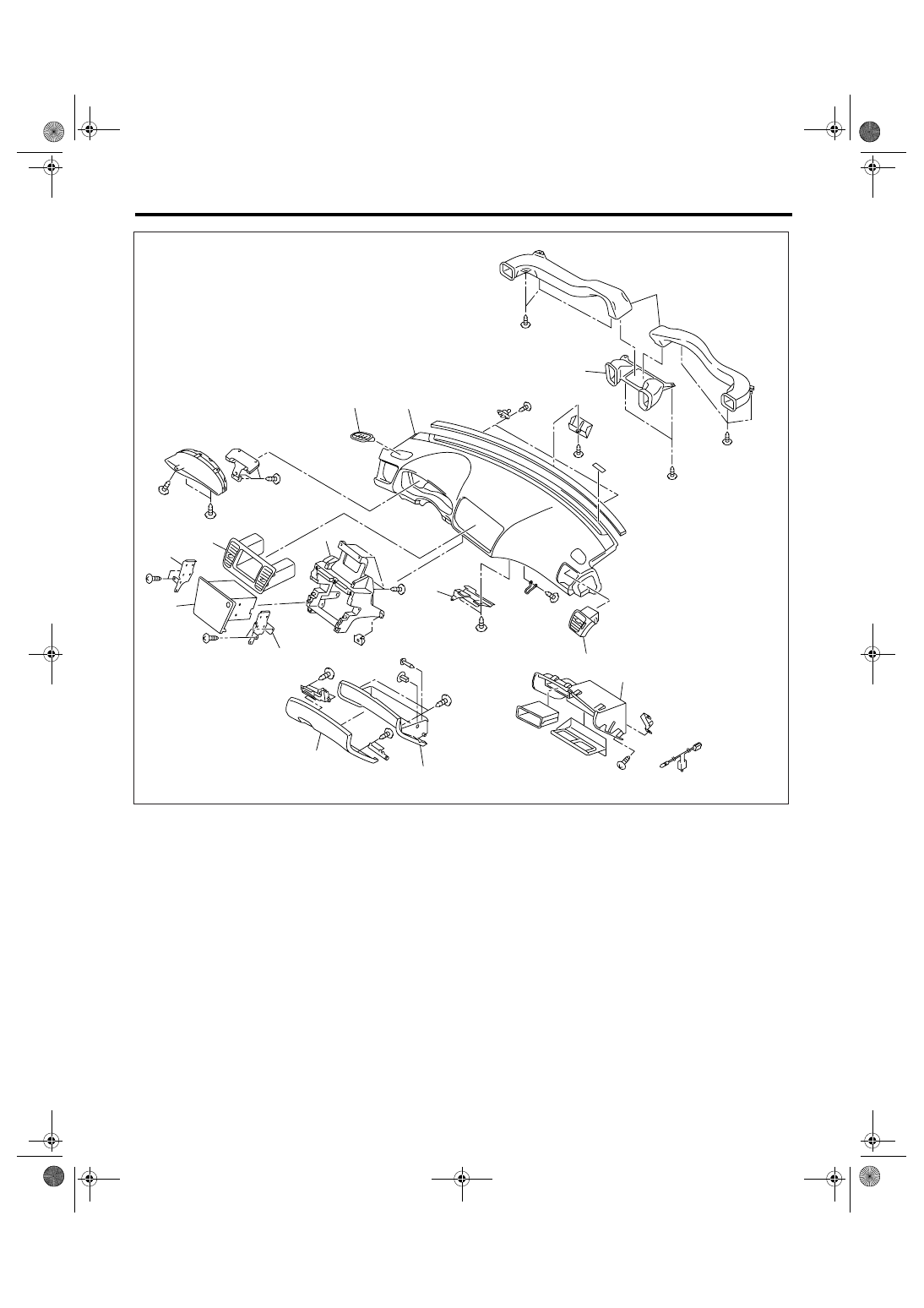

(1)

Air vent side duct

(6)

Navigation unit bracket (Model
with navigation system)

(10)

Audio bracket (LH)

(2)

Air vent center duct

(11)

Audio bracket (RH)

(3)

Instrument panel pad & frame

(7)

Glove box panel

(12)

Center panel

(4)

Air vent defroster grille

(8)

Center console frame

(13)

Glove box lid inner

(5)

Air vent side grille

(9)

Air vent center grille

(14)

Glove box lid outer

EI-00814

(1)

(2)

(3)

(4)

(5)

(7)

(6)

(8)

(9)

(10)

(11)

(12)

(14)

(13)
