EI-25

EXTERIOR/INTERIOR TRIM

Front Hood Grille

3. Front Hood Grille

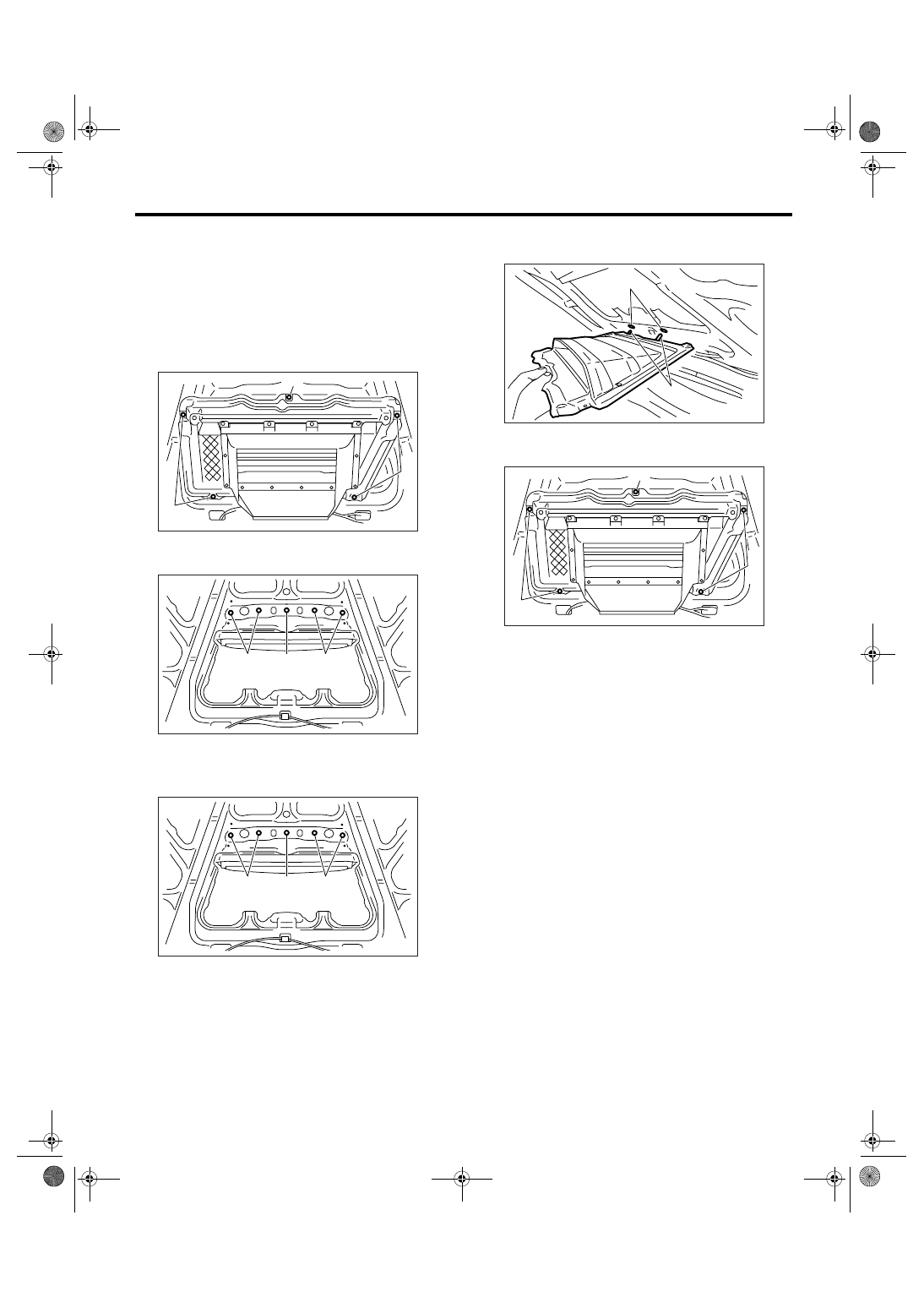

A: REMOVAL

1) Open the front hood.
2) Remove the front hood insulator. <Ref. to EB-
13, FRONT HOOD INSULATOR, REMOVAL,
Front Hood.>
3) Remove the screws (A) and clip (B), and remove
the front hood duct.

4) Loosen the nuts (A), remove the clip (B), and
then remove the front hood grille.

B: INSTALLATION

1) Fit the clip (B) of front hood grille, and install the
front hood grille using nuts (A).

Tightening torque:

4.5 N

⋅

m (0.46 kgf-m, 3.32 ft-lb)

2) Insert the hooks (B) of the front hood duct into
holes (A) of front hood.

3) Install the front hood duct with the screws (A)
and clip (B).

EI-00632

(B)

(A)

(A)

(A)

(B)

(A)

EI-00633

(A)

(B)

(A)

EI-00633

(B)

(A)

EI-00634

EI-00632

(B)

(A)

(A)

EI-26

EXTERIOR/INTERIOR TRIM

Front Under Cover

4. Front Under Cover

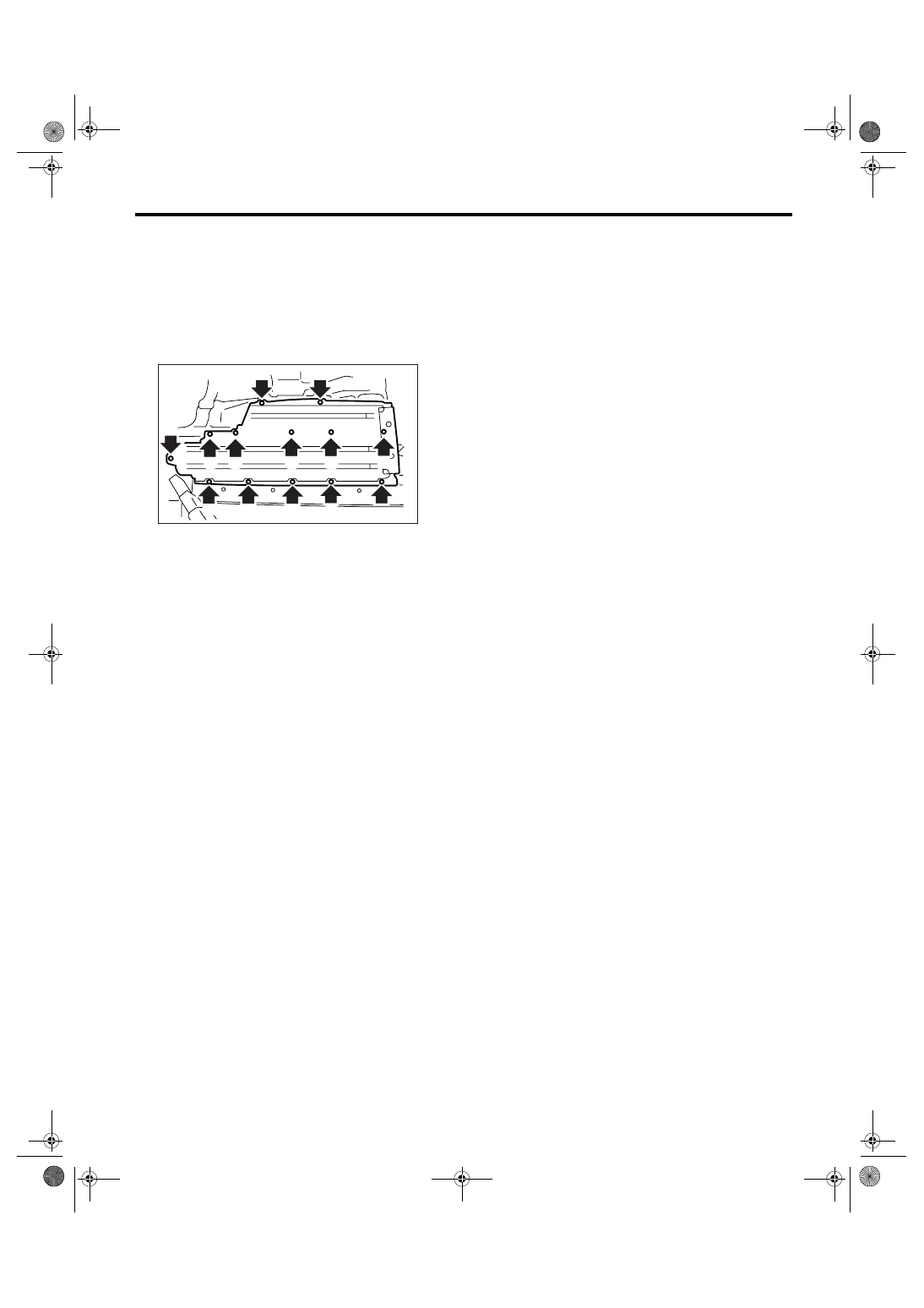

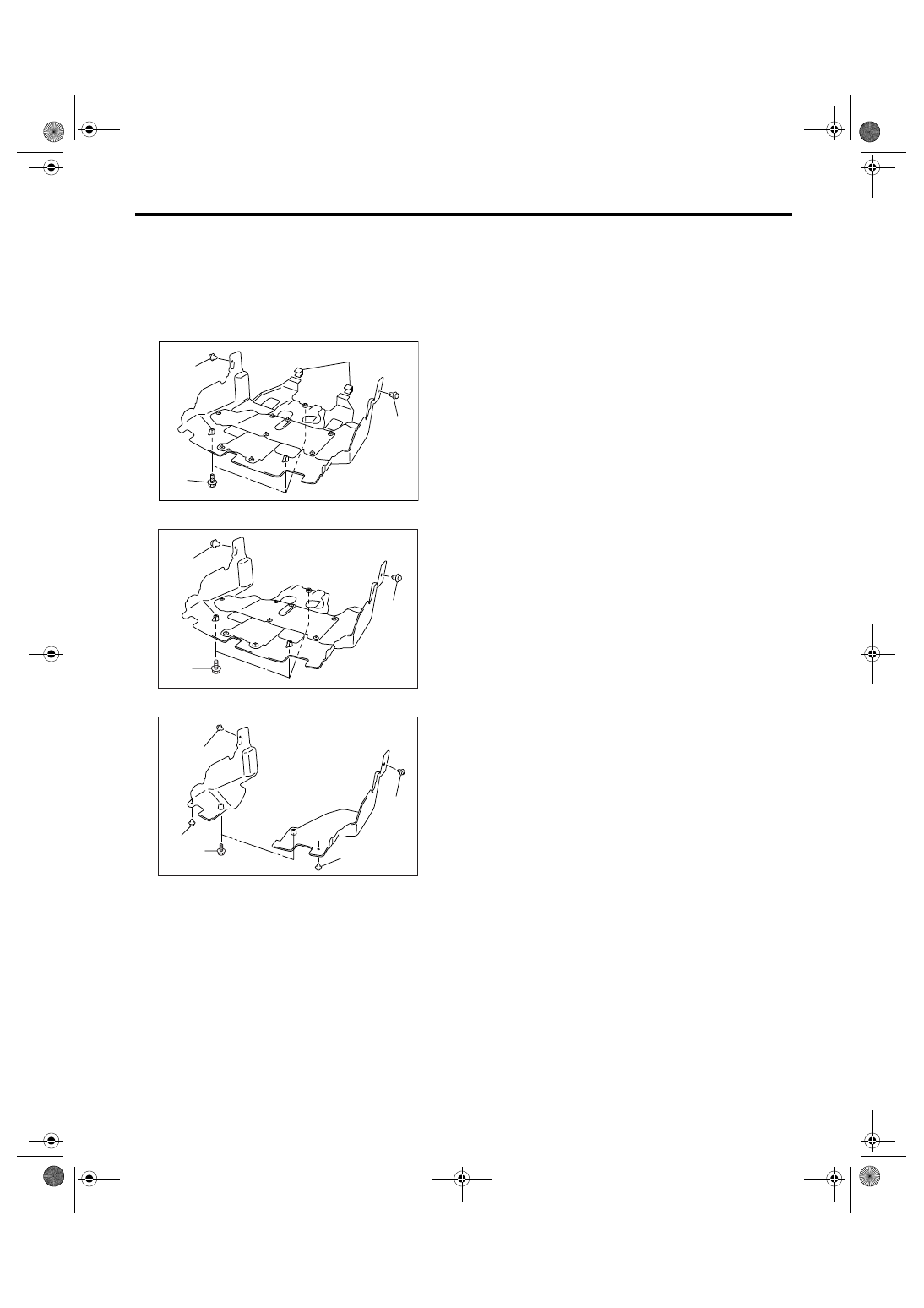

A: REMOVAL

1) Lift-up the vehicle.
2) Remove the clips (A), (C) and bolts (B) in front
fender, and then remove the front under cover.
• Large type (Turbo model)

• Large type (DOHC non-turbo model)

• Small type (SOHC non-turbo model)

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

14 N

⋅

m (1.42 kgf-m, 10.3 ft-lb)

(B)

(C)

(A)

EI-00735

(A)

(A)

(B)

(A)

EI-00635

EI-00636

(A)

(B)

(A)

(A)

(A)

EI-27

EXTERIOR/INTERIOR TRIM

Floor Under Protector

5. Floor Under Protector

A: REMOVAL

1) Lift-up the vehicle.

NOTE:
Plate type lift can not be used.
2) Remove the push turn clips (A) and bolts (B),
and remove the floor under protector.

B: INSTALLATION

Install in the reverse order of removal.

EI-00637

(A)

(A)

(B)

(A)

(B)

(A)

(A)

(B)

(A)

(A)

(A)

(A)

(A)

EI-28

EXTERIOR/INTERIOR TRIM

Fuel Tank Protector

6. Fuel Tank Protector

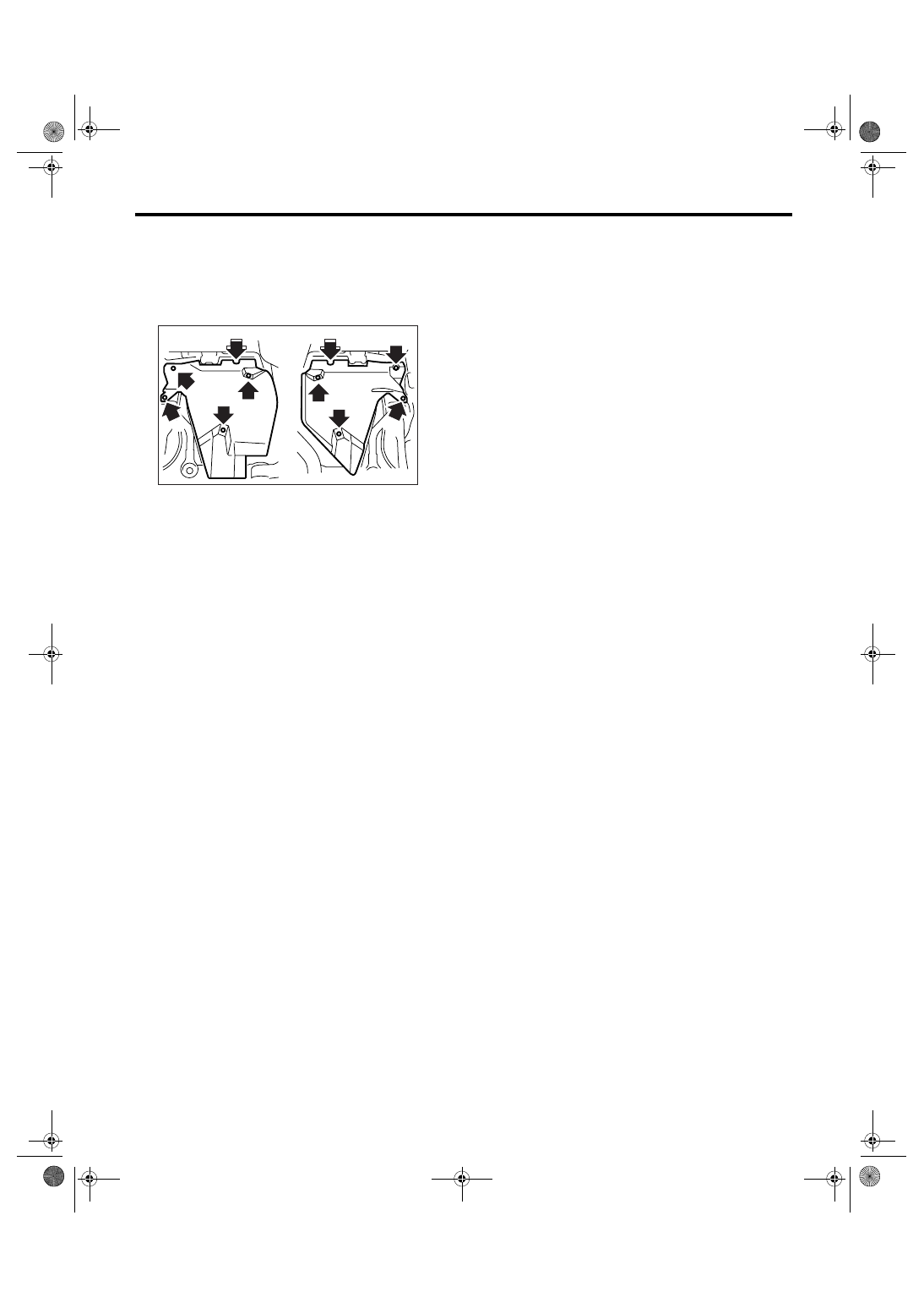

A: REMOVAL

1) Lift-up the vehicle.
2) Remove the bolts (A) and plastic nuts (B), and
then remove the fuel tank protector.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

Bolt

17.5 N

⋅

m (1.78 kgf-m, 12.9 ft-lb)

EI-00638

(B)

(B)

(A)

(A)

(B)

(B)

(A)

(A)

(A)

(A)
