Rear Window Glass

15.Rear Window Glass

A: REMOVAL

1) Disconnect the connectors from rear defogger
terminal.
2) Remove the glass in the same procedure for
windshield glass. <Ref. to GW-27, REMOVAL,
Windshield Glass.>

B: INSTALLATION

1) Bond the dam rubber.

2) Install the glass in the same procedure as for
windshield glass. <Ref. to GW-28, INSTALLA-
TION, Windshield Glass.>
3) Connect the connector to the rear defogger and
antenna terminals.
4) After completion of all work, allow the vehicle to
stand for about 24 hours.

NOTE:
• When the door is opened/closed after glass
bonded, always lower the door glass and then
open/close it carefully.
• Move the vehicle slowly.

• For minimum time for drying after bonding and
leaving vehicle before driving, follow instructions or
instruction manual from the manufacturer of adhe-
sive.
5) After curing of adhesive, pour water on the exter-
nal surface of vehicle to check that there are no wa-
ter leaks.

NOTE:
When returning the vehicle to the owner, tell him or
her that the vehicle should not be subjected to
heavy impact for at least three days.

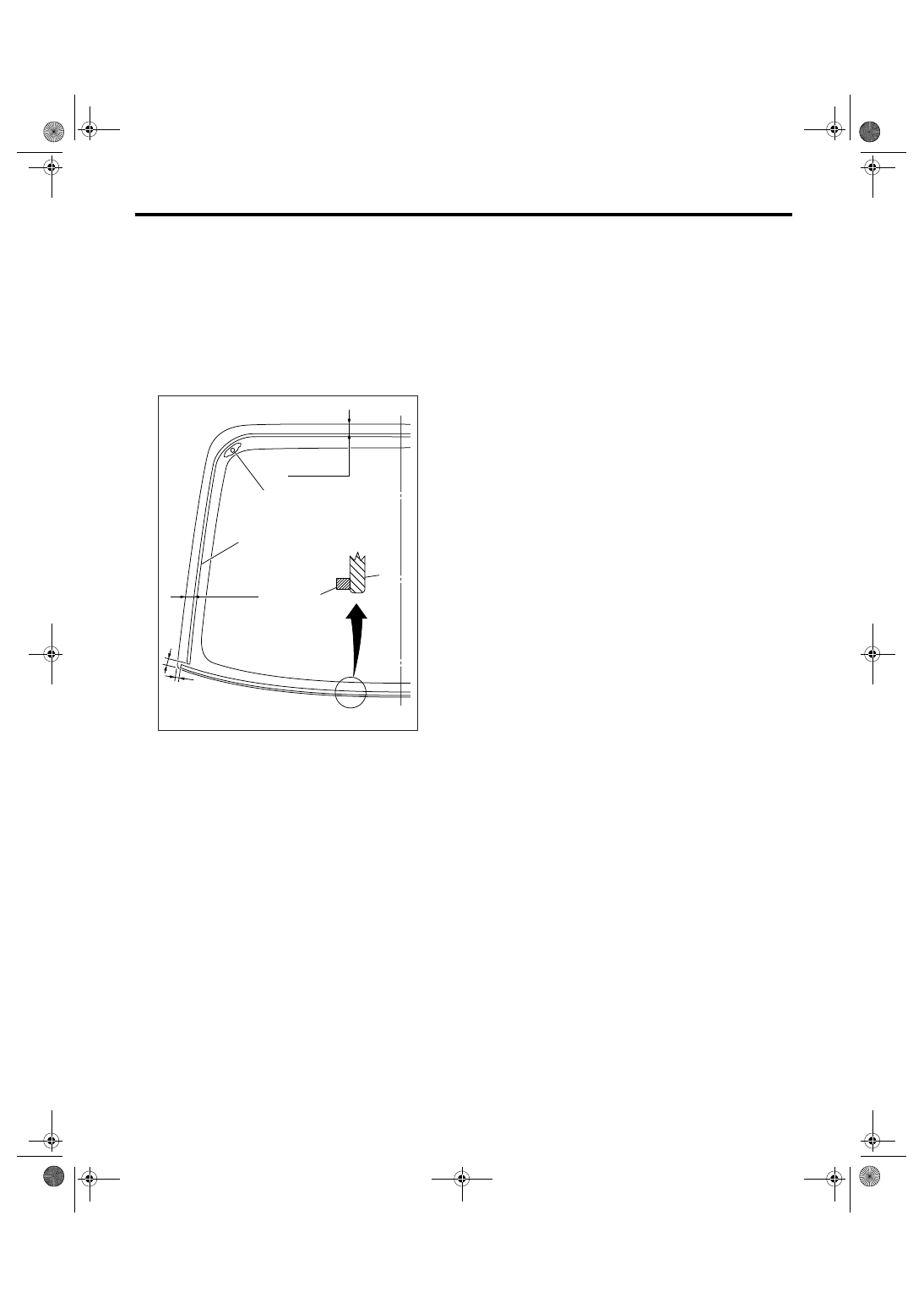

(1) Locating pin (bonded)

(2) Dam rubber

(3) 11 mm (0.433 in)

(4) 4 mm (0.157 in)

(5) Rear window glass

(6) 40 mm (1.575 in)

(1)

(2)

(2)

(5)

(3)

(3)

GW-00436

(4)

(6)

GW-32

GLASS/WINDOWS/MIRRORS

Rear Window Defogger System

16.Rear Window Defogger System

A: WIRING DIAGRAM

<Ref. to WI-303, Rear Defogger System.>

B: INSPECTION

NOTE:
Rear window defogger system can be customized on the touch panel in center display or Subaru Select Mon-
itor.

Symptom

Repair order

Rear window defogger does not operate.

(1) Fuse (M/B No. 10) (F/B No. 22)
(2) Rear defogger relay
(3) Defogger switch
(4) Rear defogger condenser
(5) Defogger wire
(6) Wiring harness
(7) Body integrated module

System name

Initial setting

Customize setting

Rear window defogger timer

OFF after 15 min.

Repeat 15 min. operation and
2 min. stop.

GW-33

GLASS/WINDOWS/MIRRORS

Rear Window Defogger

17.Rear Window Defogger

A: INSPECTION

1. WITH SUBARU SELECT MONITOR

CAUTION:
Check that the rear window defogger timer is in initial setting or customize setting before performing
inspection.

2. HEAT WIRE INSPECTION

CAUTION:
Use a dry and soft cloth when wiping stain off
on the glass. Move it along the heat wire to
avoid damage to heat wire.
1) Turn the ignition switch to ON.
2) Turn the defogger switch to ON.
3) Wrap the tips of tester probe with aluminum foil
to avoid damage to heat wire.

4) Measure the voltage at heat wire center with DC
voltmeter.

Standard voltage:

Approx. 6 V

NOTE:
• If the measured value is 12 volts, heat wire is
open between heat wire center and positive (+) ter-
minal of tester probe.
• If zero volt, heat wire is open between wire cen-
ter and ground.

Step

Check

Yes

No

1

CHECK INPUT SIGNAL TO BODY INTE-
GRATED MODULE.
Check the input signal when the rear window
defogger switch is operated using Subaru
Select Monitor.
1) Connect the Subaru Select Monitor to data
link connector.
2) Turn the ignition switch to ON.
3) Select the {Integ. unit} from the «Main
Menu».
4) Select the {Current Data Display & Save}.
5) Check the input signal when the rear win-
dow defogger switch is set to ON.

Does the rear defogger switch
turn to OFF in 15 minutes after
set to ON? Or does it repeat 15
minutes operation and 2 min-
utes stop?

END.

Replace the body
integrated mod-
ule. <Ref. to SL-
44, REMOVAL,
Body Integrated
Module.>

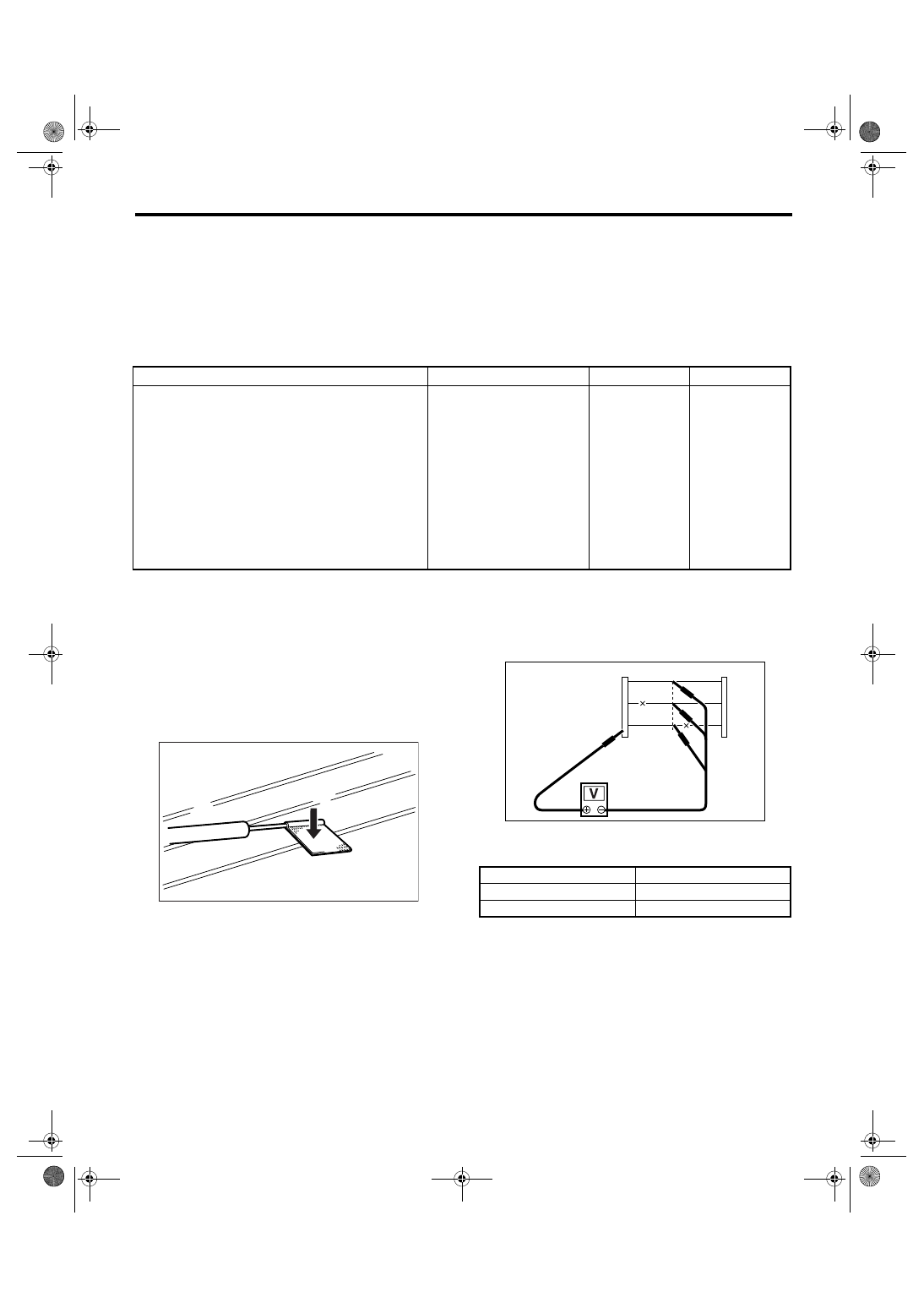

(1) Tester probe

(2) Aluminum foil

(3) Heat wire

(4) Push

GW-00076

(2)

(3)

(4)

(1)

(1) Center of heat wire

Voltage

Criteria

Approx. 6 V

Normal

Approx. 12 V or 0 V

Open

GW-00077

(1)

GW-34

GLASS/WINDOWS/MIRRORS

Rear Window Defogger

5) Connect the tester probe of voltmeter positive
lead to positive terminal of heat wire, and move the
tester probe of negative lead along the heat wire up
to the negative terminal end. If voltage changes
from zero to several volts while moving the tester
probe, heat wire is open at the point where voltage
changed.

B: REPAIR

1) Clean the broken point with alcohol or white gas-
oline.
2) Mask both side of the heat wire with thin film.
3) Apply conductive silver composition (DUPONT
No. 4817) to the broken point.

4) After repair, check the heat wire.

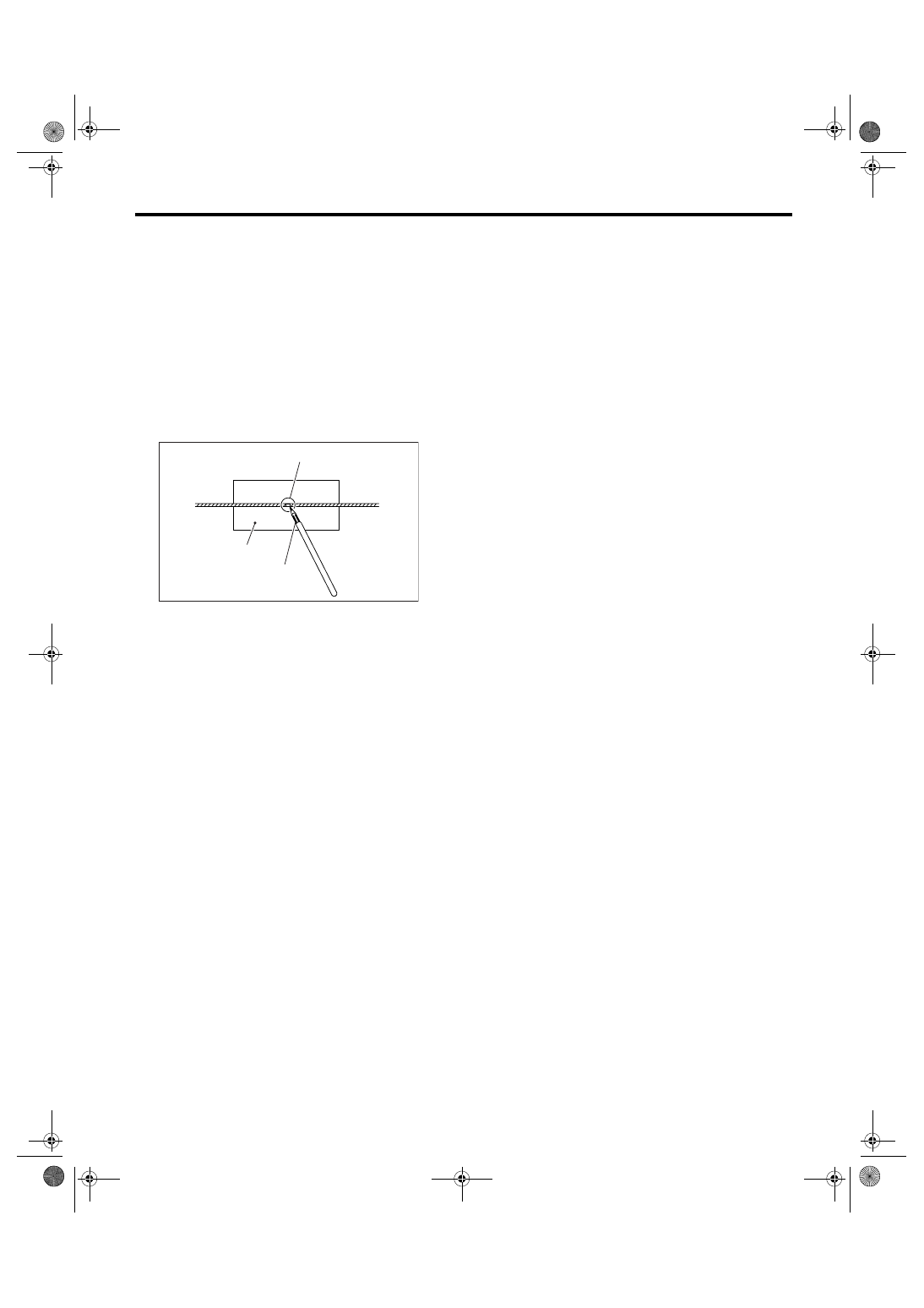

(1) Broken point

(2) Thin film

(3) Broken heat wire

(4) Conductive silver composition (DUPONT No.

4817)

GW-00078

(2)

(3)

(4)

(1)
