GW-23

GLASS/WINDOWS/MIRRORS

Remote Control Mirror Switch

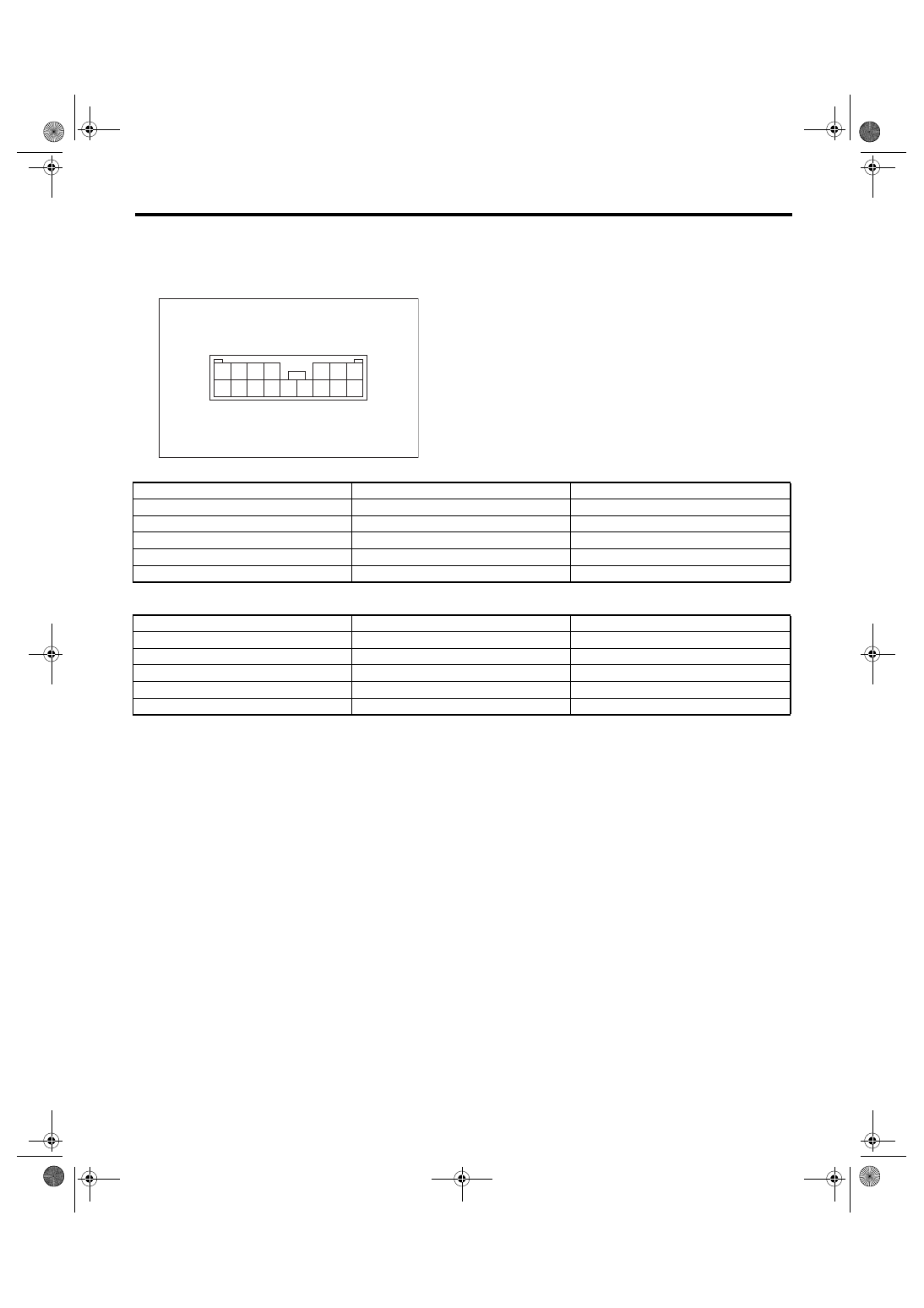

C: INSPECTION

1. REMOTE CONTROL MIRROR SWITCH

Move the remote control mirror switch to each position and check continuity between terminals.

• Change over switch R

• Change over switch L

Replace the remote control mirror switch if defective.

GW-00283

9

14

7 6 5 4

3 2 1

8

13 12 11 10

16 15

Switch position

Terminal No.

Standard

OFF

—

More than 1 M

Ω

UP

10 and 12, 15 and 14

Less than 1

Ω

DOWN

10 and 15, 12 and 14

Less than 1

Ω

LEFT

10 and 11, 15 and 14

Less than 1

Ω

RIGHT

10 and 15, 11 and 14

Less than 1

Ω

Switch position

Terminal No.

Standard

OFF

—

More than 1 M

Ω

UP

10 and 8, 15 and 14

Less than 1

Ω

DOWN

10 and 15, 8 and 14

Less than 1

Ω

LEFT

10 and 9, 15 and 14

Less than 1

Ω

RIGHT

10 and 15, 9 and 14

Less than 1

Ω

GW-24

GLASS/WINDOWS/MIRRORS

Rear Door Glass

11.Rear Door Glass

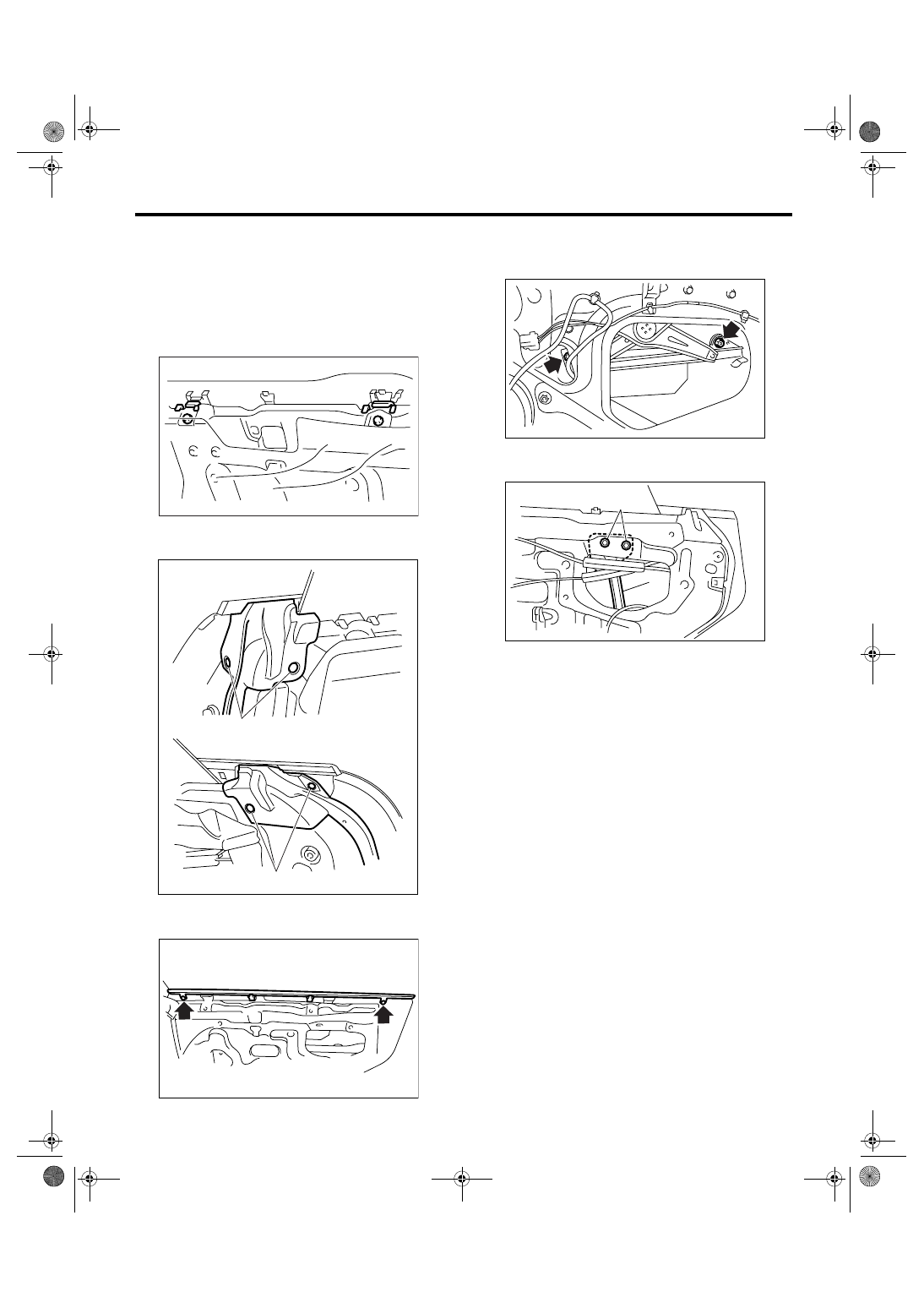

A: REMOVAL

1) Remove the rear door trim. <Ref. to EI-48, RE-
MOVAL, Door Trim.>
2) Remove the sealing cover. <Ref. to EB-24, RE-
MOVAL, Rear Sealing Cover.>
3) Remove the stabilizer.

4) Remove the clips (A), and remove the front end
and rear end of weather strip.

5) Remove the two screws to remove weather strip
outer.

6) Operate the power window switch to move the
glass to the position shown in the figure, and then
remove the two nuts through service holes.

7) Remove the rear sash retaining nuts (A), and
move the rear sash (B) backward.

8) Remove the door glass.

CAUTION:
• Since the gear may be disengaged, do not
turn regulator in the closing direction after re-
moving glass.
• Avoid impact and damage to the glass.

B: INSTALLATION

1) Install in the reverse order of removal.

CAUTION:
Make sure that the glass stay is placed securely
in sash.
2) Adjust the rear door glass. <Ref. to GW-25, AD-
JUSTMENT, Rear Door Glass.>

Tightening torque:

Refer to “COMPONENT” of “General Descrip-
tion”. <Ref. to GW-5, REAR DOOR GLASS,
COMPONENT, General Description.>

GW-00284

GW-00285

(A)

(A)

GW-00286

GW-00287

(B)

(A)

GW-00288

GW-25

GLASS/WINDOWS/MIRRORS

Rear Door Glass

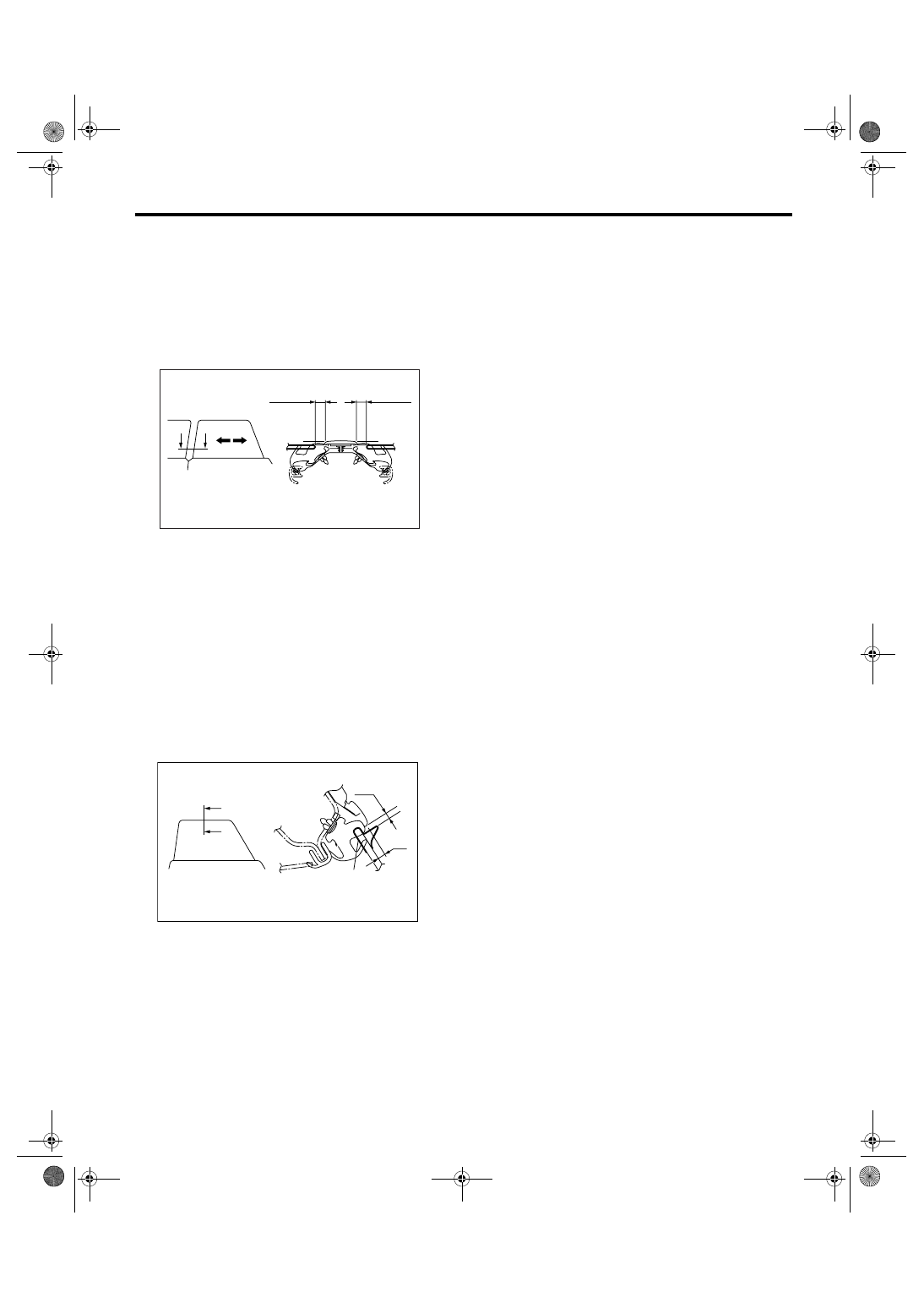

C: ADJUSTMENT

NOTE:
The rear door glass, as a rule, should be adjusted
in the same manner as front door glass even they
are different in dimensions. <Ref. to GW-12, AD-
JUSTMENT, Front Door Glass.>
1) Adjust the glass position using the following di-
mensions as a guide line.

NOTE:
• If the dimensions are smaller than the given di-
mensions, glass may get caught in weather strip
during lifting/lowering operation and may not be ful-
ly open.
• After adjustment, move the glass up and down to
ensure it is not caught.
2) Install the ST to glass and adjust the glass adhe-
sion to the value shown.
ST

61299AE010

SPACER (Glass thickness: 4
mm (0.157 in) for rear door
glass)

NOTE:
• If the rear glass adhesion is higher than neces-
sary, glass may get caught in weather strip of cen-
ter pillar corner, resulting in early wear of weather
strip. Care should be taken for adjustment.
• After adjustment, move the glass up and down to
ensure it is not caught.

(1) 11 mm (0.433 in)

(1) 3.2 — 4.8 mm (0.126 — 0.189 in)

(2) When reusing weather strip: 5.5 mm (0.217 in)

With new weather strip: 5 mm (0.197 in)

(3) ST

A

A

A-A

(1)

(1)

GW-00067

A

A

GW-00431

A-A

(1)

(2)

(3)

GW-26

GLASS/WINDOWS/MIRRORS

Rear Regulator and Motor Assembly

12.Rear Regulator and Motor As-

sembly

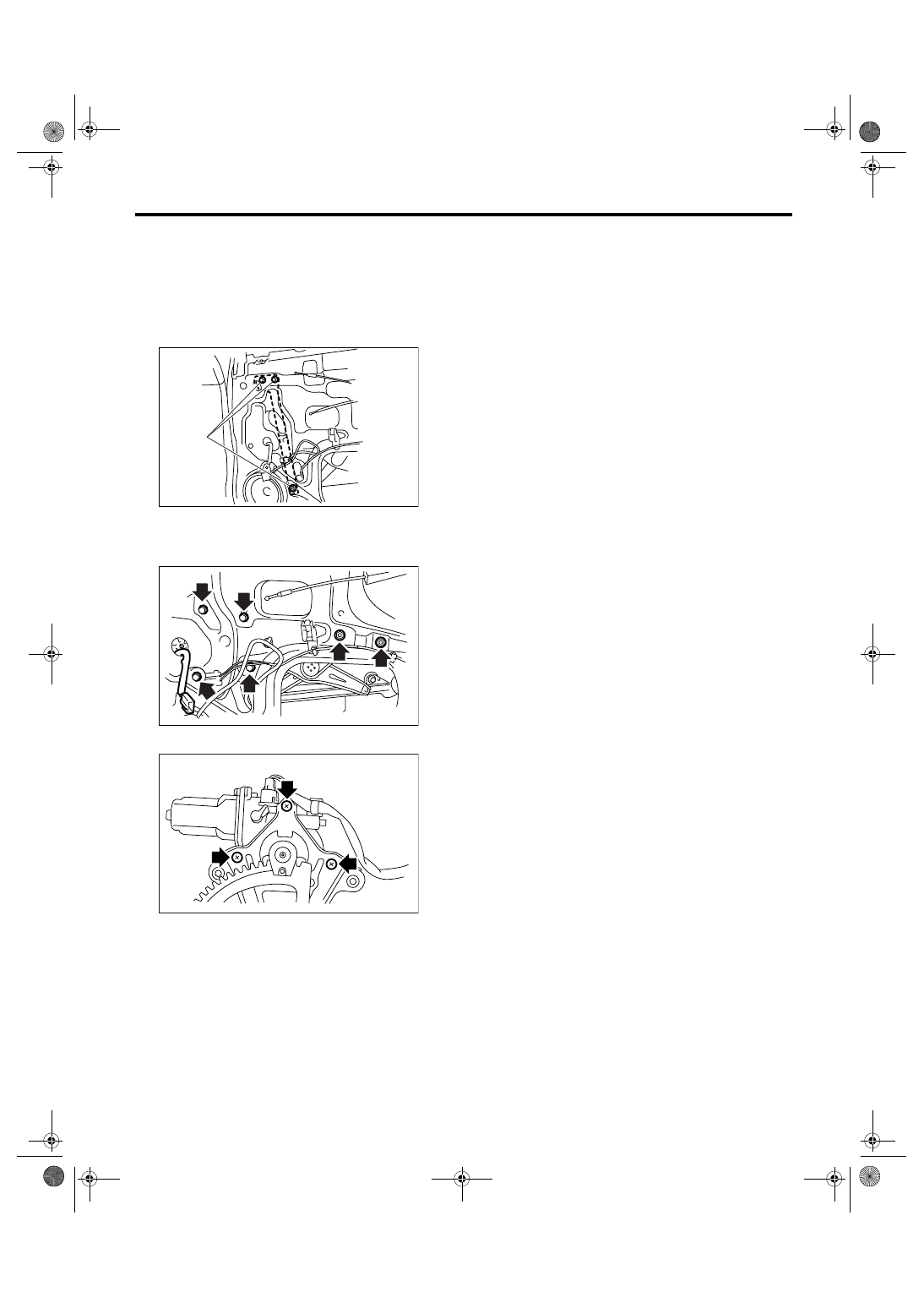

A: REMOVAL

1) Remove the rear door glass. <Ref. to GW-24,
REMOVAL, Rear Door Glass.>
2) Remove the nut (A) to remove front sash.

3) Disconnect the motor connector.
4) Remove the four bolts and two nuts to remove
regulator assembly.

5) Remove the screws to remove motor assembly.

B: INSTALLATION

1) Install in the reverse order of removal.
2) Adjust the rear door glass. <Ref. to GW-25, AD-
JUSTMENT, Rear Door Glass.>

Tightening torque:

Refer to “COMPONENT” of “General Descrip-
tion”. <Ref. to GW-5, REAR DOOR GLASS,
COMPONENT, General Description.>

C: INSPECTION

1) Make sure that the power window motor rotates
properly when the battery voltage is applied to the
terminals of motor connector.
2) Change polarity of battery connection to termi-
nals to ensure that the motor rotates in reverse di-
rection.

GW-00289

(A)

GW-00290

GW-00291
