GW-19

GLASS/WINDOWS/MIRRORS

Outer Mirror Assembly

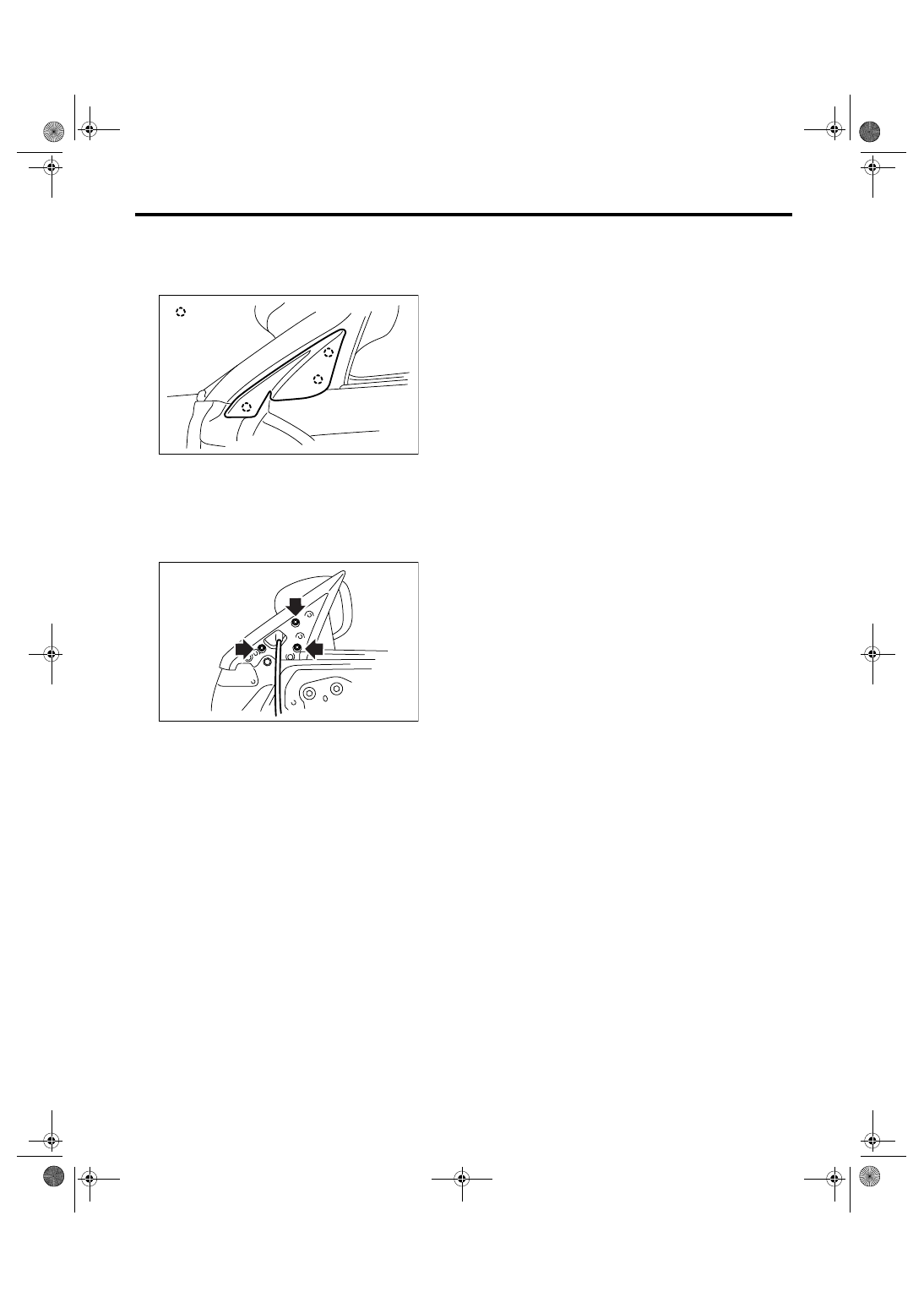

8. Outer Mirror Assembly

A: REMOVAL

1) Remove the mirror gusset cover.

2) Remove the door trim. <Ref. to EI-48, REMOV-
AL, Door Trim.>
3) Disconnect the mirror connector.
4) Remove the screws to remove mirror assembly.

B: INSTALLATION

Install in the reverse order of removal.

(1) Hook

GW-00277

: (1)

GW-00278

GW-20

GLASS/WINDOWS/MIRRORS

Outer Mirror Assembly

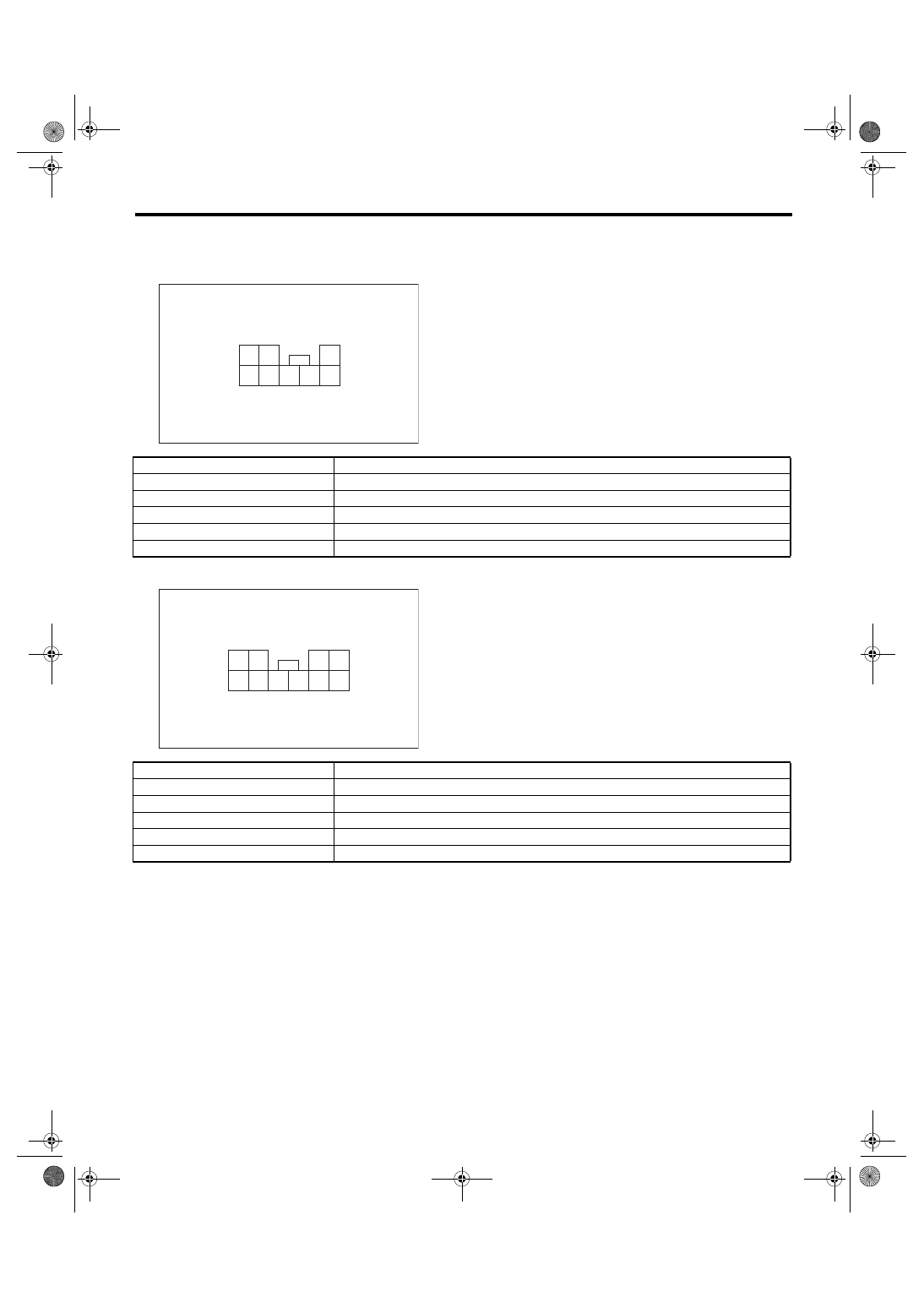

C: INSPECTION

Check that the rearview mirror moves properly when the battery voltage is applied to terminals.
• Model without mirror heater

• Model with mirror heater

Replace the outer mirror assembly if defective.

GW-00428

3

2

1

8

7

6

5

4

Switch position

Terminal No.

OFF

—

UP

6 (+) and 3 (

−) or 8 (−)

DOWN

3 (+) or 8 (+) and 6 (

−)

LEFT

7 (+) and 3 (

−) or 8 (−)

RIGHT

3 (+) or 8 (+) and 7 (

−)

GW-00429

4

3

2

1

10

9

8

7

6

5

Switch position

Terminal No.

OFF

—

UP

7 (+) and 3 (

−) or 9 (−)

DOWN

3 (+) or 9 (+) and 7 (

−)

LEFT

8 (+) and 3 (

−) or 9 (−)

RIGHT

3 (+) or 9 (+) and 8 (

−)

GW-21

GLASS/WINDOWS/MIRRORS

Outer Mirror

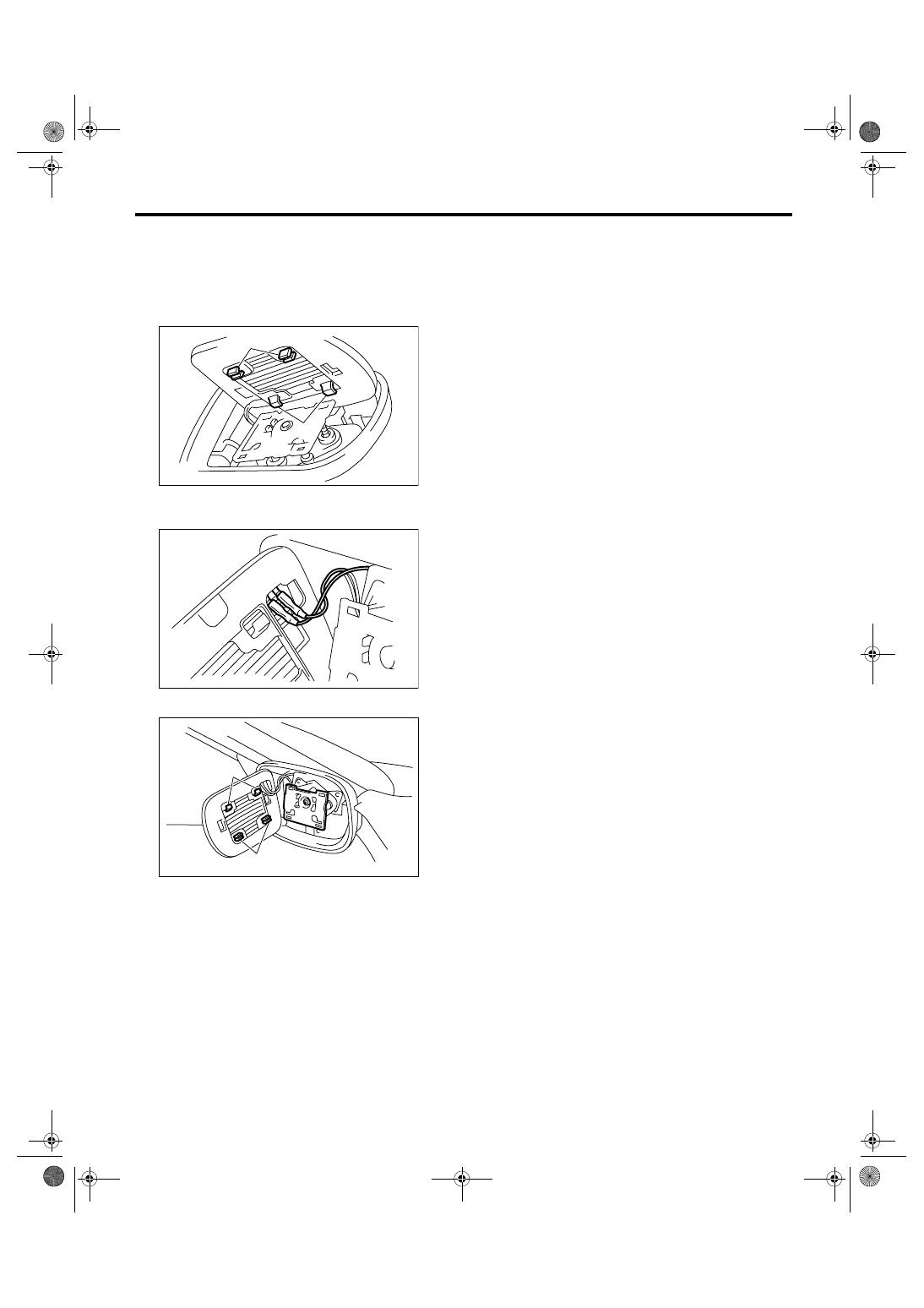

9. Outer Mirror

A: REPLACEMENT

1) Face the mirror upward.
2) Use a flat tip screwdriver to remove clip (A).
3) Lift the lower mirror up to remove hooks (B).

4) Disconnect the mirror heater connector from mir-
ror edge.(Model with mirror heater)

5) Catch the hooks (B) and install clips (A).

CAUTION:
• When removing the mirror, be careful not to
damage the back side of mirror with a flat tip
screwdriver.
• When installing the mirror, insert the hook
and clip securely.

(A)

GW-00279

(B)

GW-00280

(B)

GW-00450

(A)

GW-22

GLASS/WINDOWS/MIRRORS

Remote Control Mirror Switch

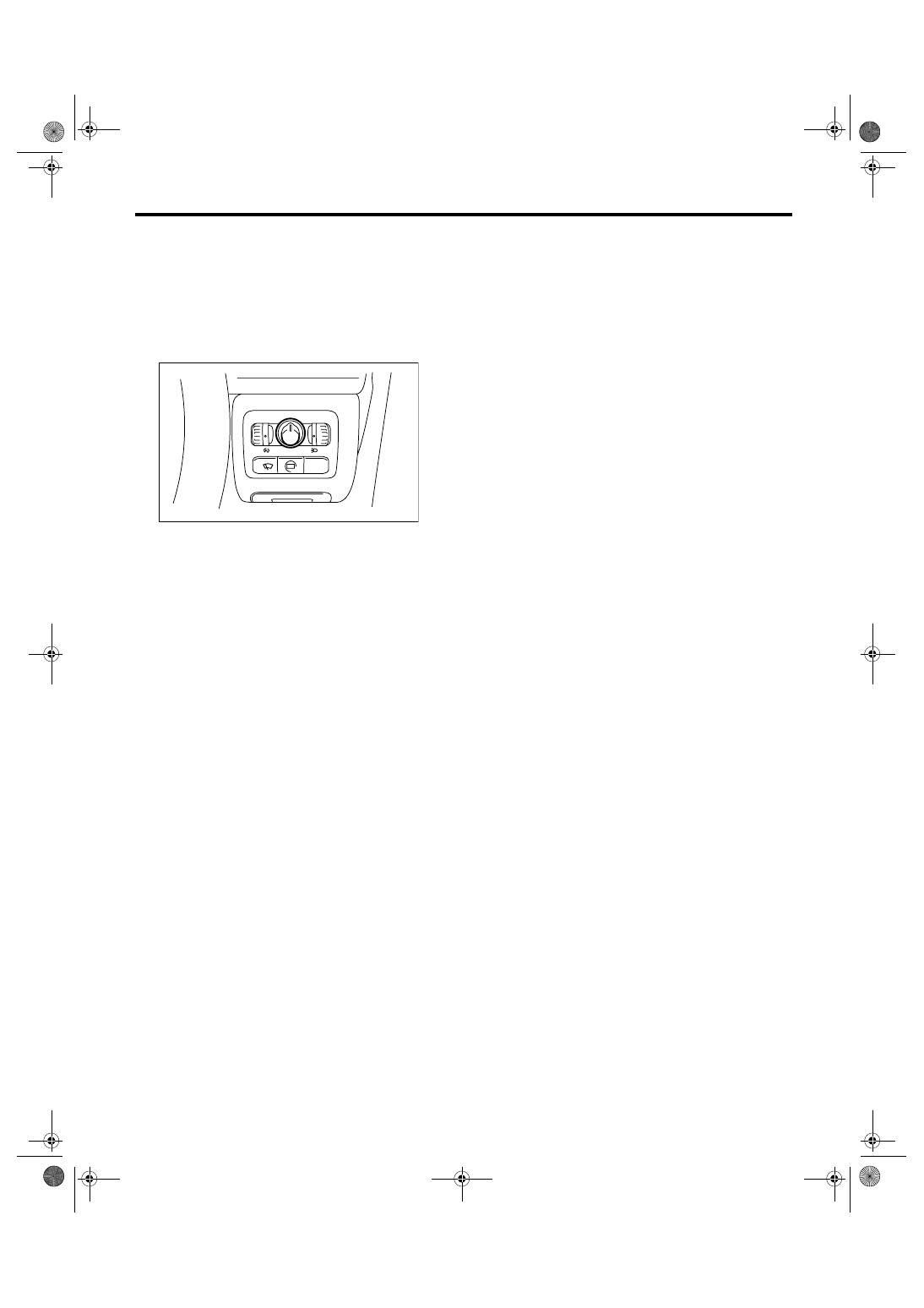

10.Remote Control Mirror

Switch

A: REMOVAL

1) Remove the instrument panel lower cover. <Ref.
to EI-50, REMOVAL, Instrument Panel Lower Cov-
er.>
2) Disconnect the connector.

3) Remove the remote control mirror switch from
instrument panel lower cover.

B: INSTALLATION

Install in the reverse order of removal.

GW-00282

L

R

0
1
