Rear Quarter Glass
18.Rear Quarter Glass
A: REMOVAL
Remove the glass in the same procedure as for
windshield glass. <Ref. to GW-27, REMOVAL,
Windshield Glass.>
B: INSTALLATION
1) Install the dam rubber.
2) Cut out the nozzle head and apply adhesive to
the glass end surface as shown.
3) Install the glass in the same procedure as for
windshield glass. <Ref. to GW-28, INSTALLA-
TION, Windshield Glass.>
4) After completion of all work, allow the vehicle to
stand for about 24 hours.
NOTE:
• When the door is opened/closed after glass
bonded, always lower the door glass and then
open/close it carefully.
• Move the vehicle slowly.
• For minimum time for drying after bonding and
leaving vehicle before driving, follow instructions or
instruction manual from the manufacturer of adhe-
sive.
5) After curing of adhesive, pour water on the exter-
nal surface of vehicle to check that there are no wa-
ter leaks.
NOTE:
When returning the vehicle to the owner, tell him or
her that the vehicle should not be subjected to
heavy impact for at least three days.

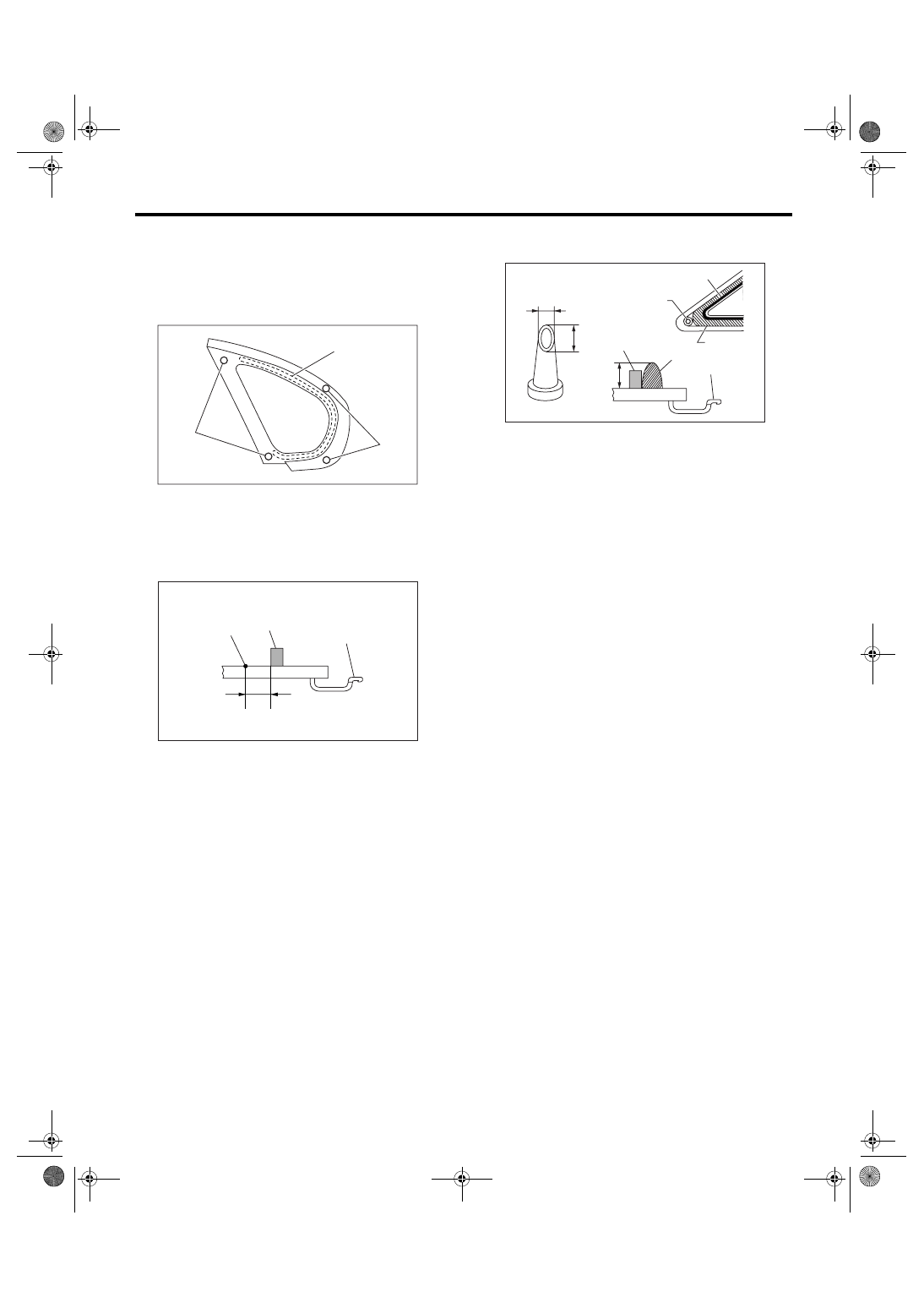

(1) Locating pin
(2) Dam rubber
(1) Dam rubber
(2) Molding
(3) 10.5 mm (0.413 in) (constant)
(4) Ceramic terminal
GW-00332
(1)
(1)
(2)
GW-00411
(2)
(1)
(4)
(3)
(1) Locating pin
(2) Dam rubber
(3) Adhesive
(4) Molding
(5) 8 — 10 mm (0.31 — 0.39 in)
(6) 15 mm (0.59 in)
(7) 10 mm (0.39 in)
GW-00412
(2)
(3)
(4)
(1)
(7)
(6)
(5)
(2)
(3)
