WIPER AND WASHER SYSTEMS

WW

Page

1.

General Description ....................................................................................2

2.

Wiper and Washer System .........................................................................7

3.

Combination Switch (Wiper)........................................................................8

4.

Wiper Blade...............................................................................................13

5.

Washer Tank and Motor............................................................................16

6.

Front Wiper Arm........................................................................................17

7.

Front Wiper Motor and Link.......................................................................18

8.

Front Washer Nozzle ................................................................................20

9.

Rear Wiper Arm ........................................................................................21

10.

Rear Wiper Motor......................................................................................22

11.

Rear Washer .............................................................................................23

WW-2

WIPER AND WASHER SYSTEMS

General Description

1. General Description

A: SPECIFICATION

B: COMPONENT

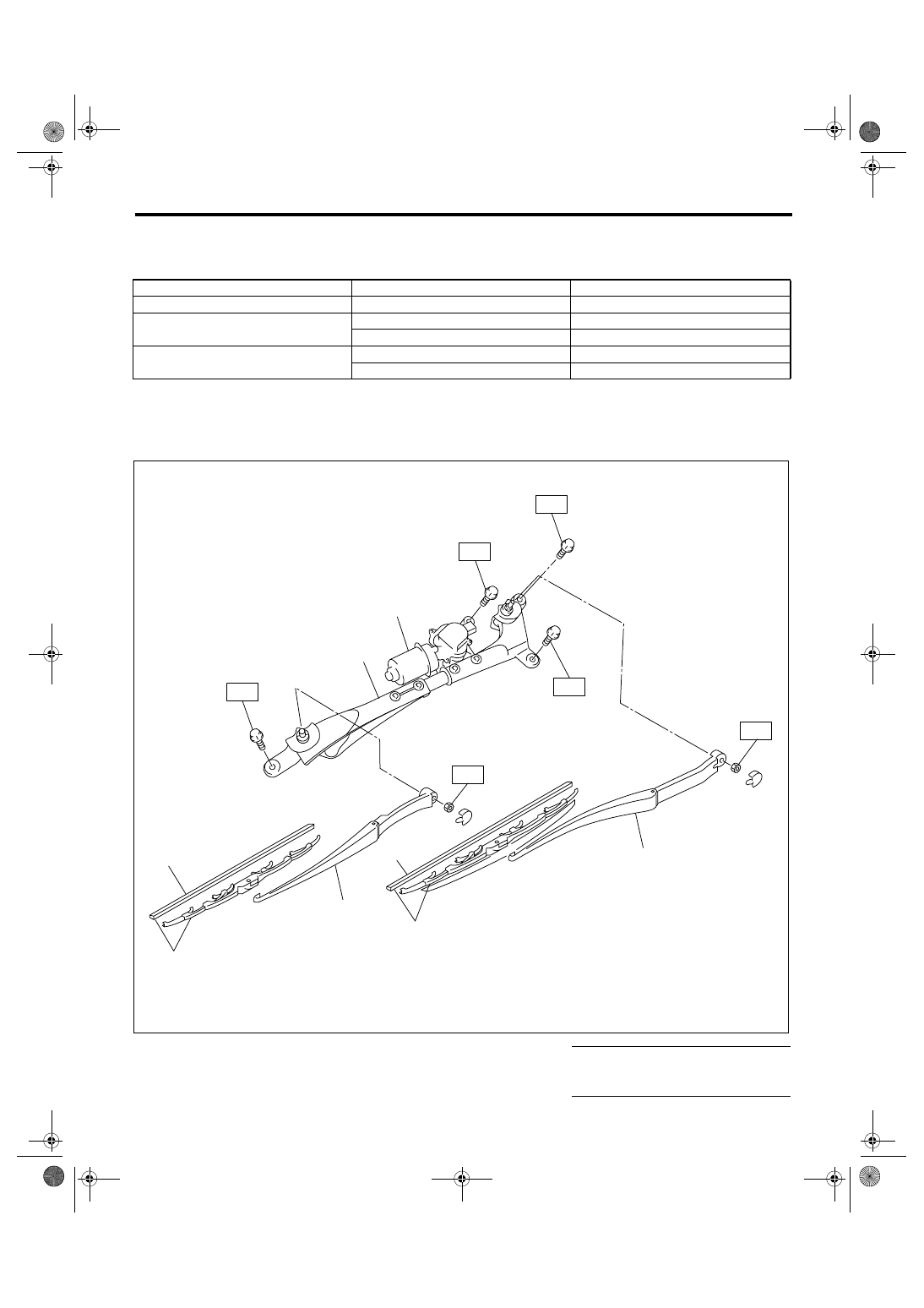

1. FRONT WIPER

• LHD model

Front wiper motor

Input

12 V — 72 W or less

Rear wiper motor

Input

12 V — 42 W or less

Front washer motor

Pump type

Centrifugal

Input

12 V — 36 W or less

Rear washer motor

Pump type

Centrifugal

Input

12 V — 36 W or less

(1)

Wiper rubber

(4)

Wiper link ASSY

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Wiper blade ASSY

(5)

Wiper motor ASSY

T1: 6.0 (0.61, 4.3)

(3)

Wiper arm

T2: 20 (2.0, 14.5)

WW-00215

T2

T2

(5)

(4)

(1)

(2)

(3)

(1)

(2)

(3)

T1

T1

T1

T1

WW-3

WIPER AND WASHER SYSTEMS

General Description

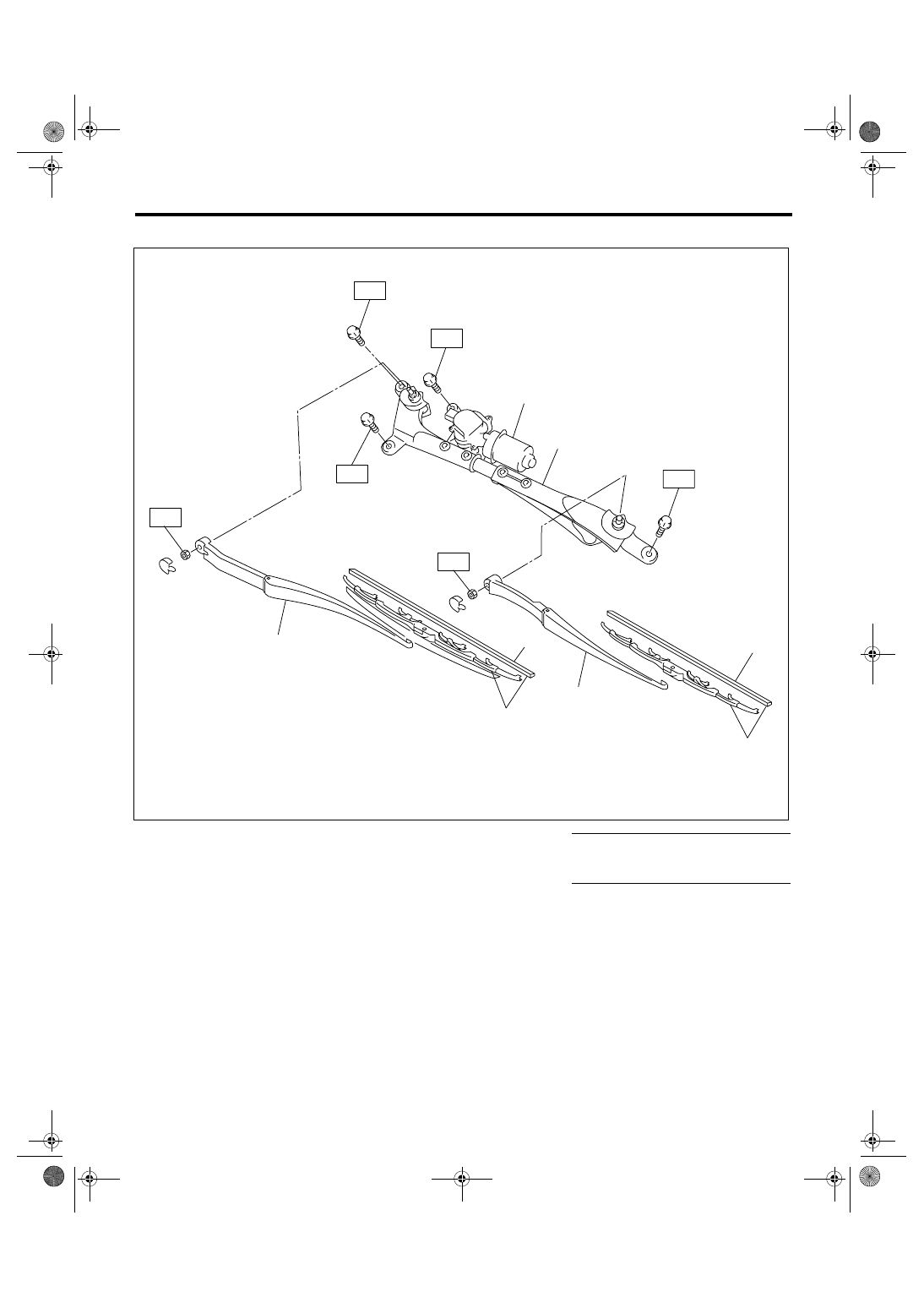

• RHD model

(1)

Wiper rubber

(4)

Wiper link ASSY

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Wiper blade ASSY

(5)

Wiper motor ASSY

T1: 6.0 (0.61, 4.3)

(3)

Wiper arm

T2: 20 (2.0, 14.5)

WW-00222

T2

T2

(5)

(4)

(1)

(2)

(3)

(1)

(2)

(3)

T1

T1

T1

T1

WW-4

WIPER AND WASHER SYSTEMS

General Description

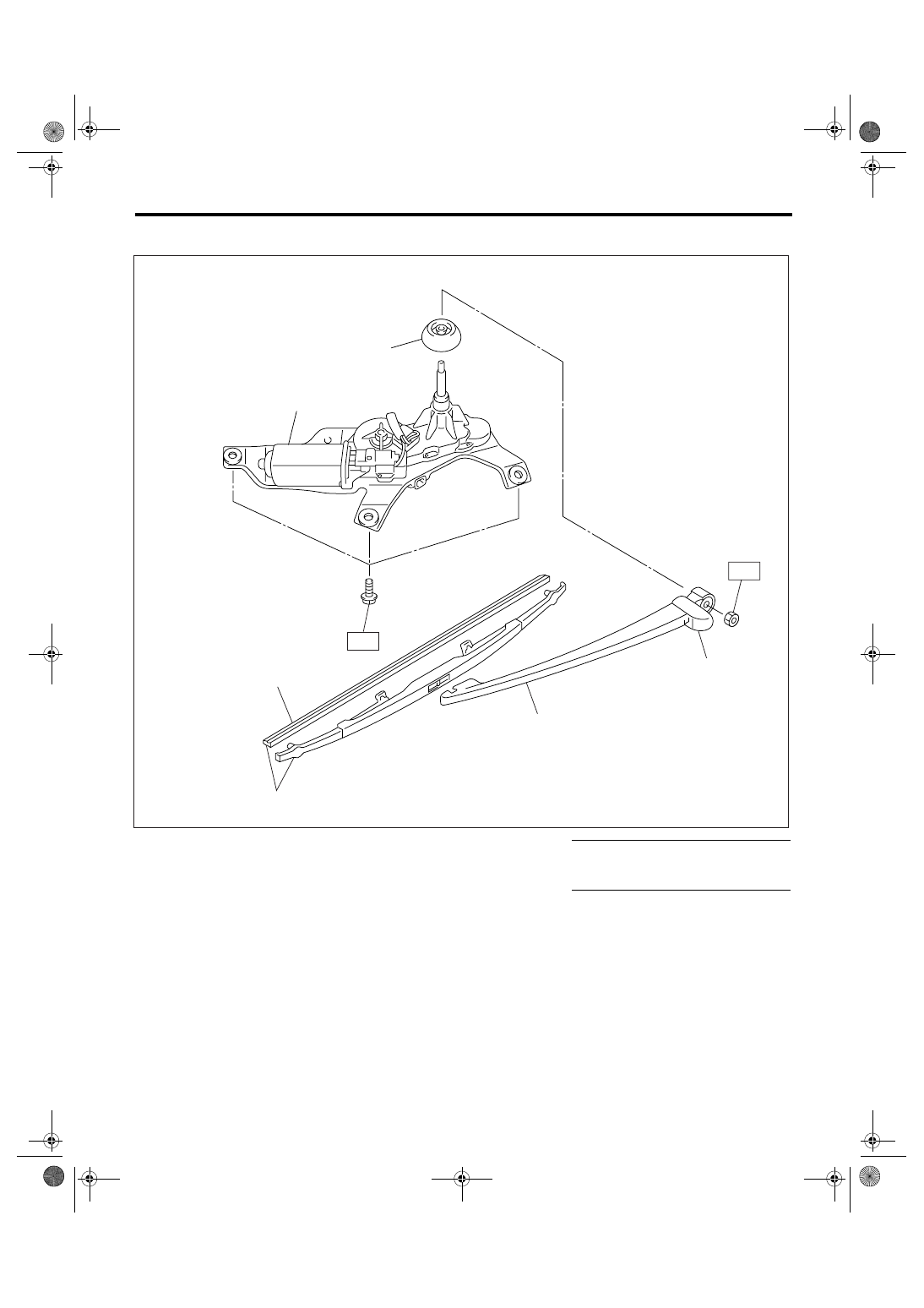

2. REAR WIPER (WAGON MODEL)

(1)

Wiper rubber

(4)

Wiper arm cover

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Wiper blade ASSY

(5)

Cap

T1: 6.0 (0.61, 4.3)

(3)

Wiper arm

(6)

Wiper motor ASSY

T2: 8.0 (0.82, 5.9)

WW-00328

T1

(5)

(1)

T2

(2)

(3)

(4)

(6)
