LI-37

LIGHTING SYSTEM

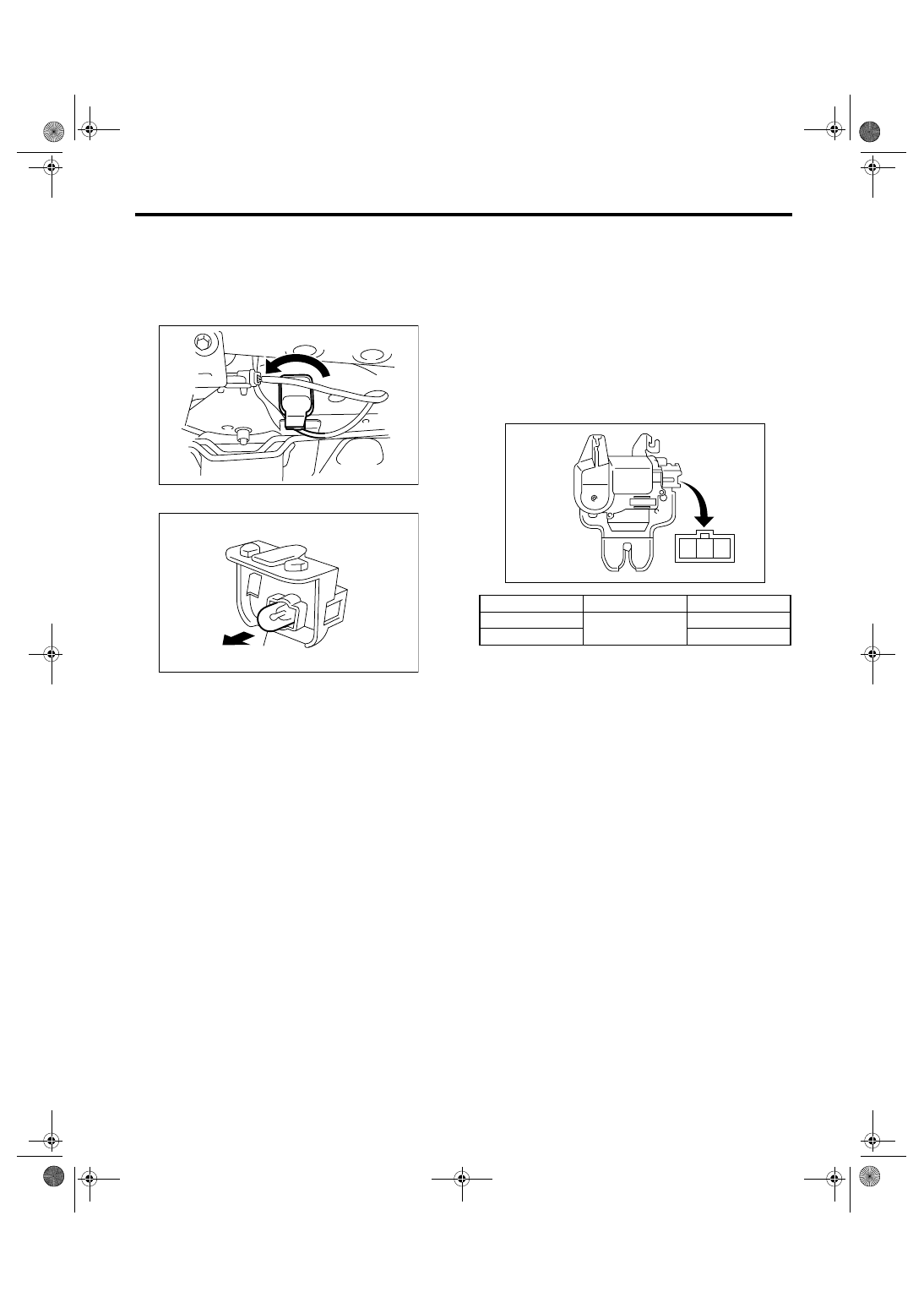

Trunk Room Light

32.Trunk Room Light

A: REMOVAL

1) Disconnect the ground cable from battery.
2) Turn the trunk room light to the left for 60

° to re-

move it and disconnect the harness connector.

3) Remove the bulb (A).

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1. TRUNK ROOM LIGHT BULB

1) Visually check the bulb for blow out.
2) Check the bulb specification. <Ref. to LI-2,
SPECIFICATION, General Description.>
3) If NG, replace the bulb with a new one.

2. TRUNK LID SWITCH (TRUNK ROOM
LIGHT SWITCH)

Measure the resistance between trunk lid switch
terminals.

LI-00321

LI-00286

(A)

Trunk lid position

Terminal No.

Standard

Close

1 and 3

More than 1 M

Ω

Open

1.5

±0.5 Ω

LI-00290

3

2

1

LI-38

LIGHTING SYSTEM

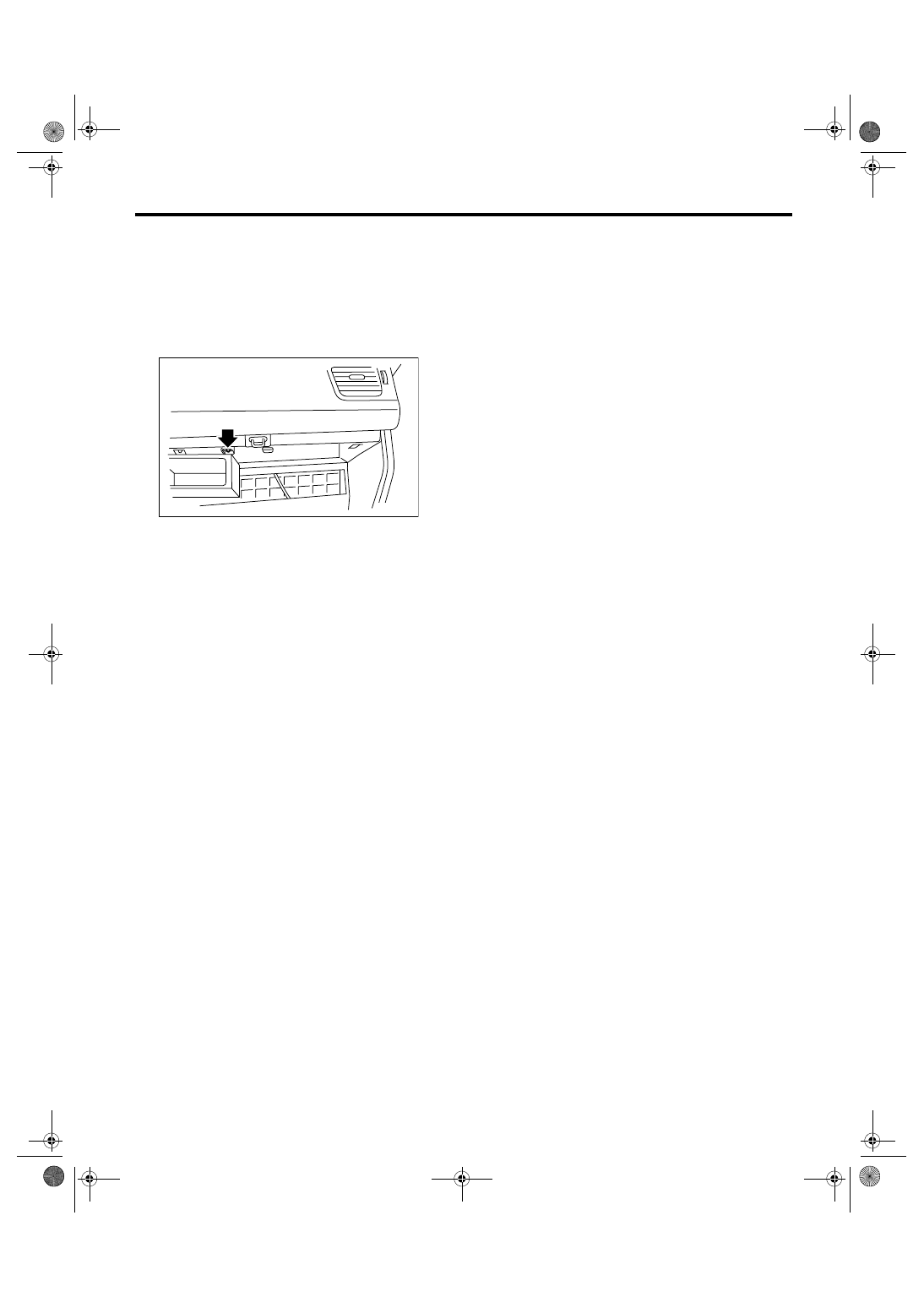

Glove Box Light

33.Glove Box Light

A: REMOVAL

1) Disconnect the ground cable from battery.
2) Remove the glove box. <Ref. to EI-51, REMOV-
AL, Glove Box.>
3) Disconnect the harness connector.
4) Remove the glove box light.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Visually check the bulb for blow out.
2) Check the bulb specification.
<Ref. to LI-2, SPECIFICATION, General Descrip-
tion.>
3) If NG, replace the bulb with a new one.

LI-00323

LI-39

LIGHTING SYSTEM

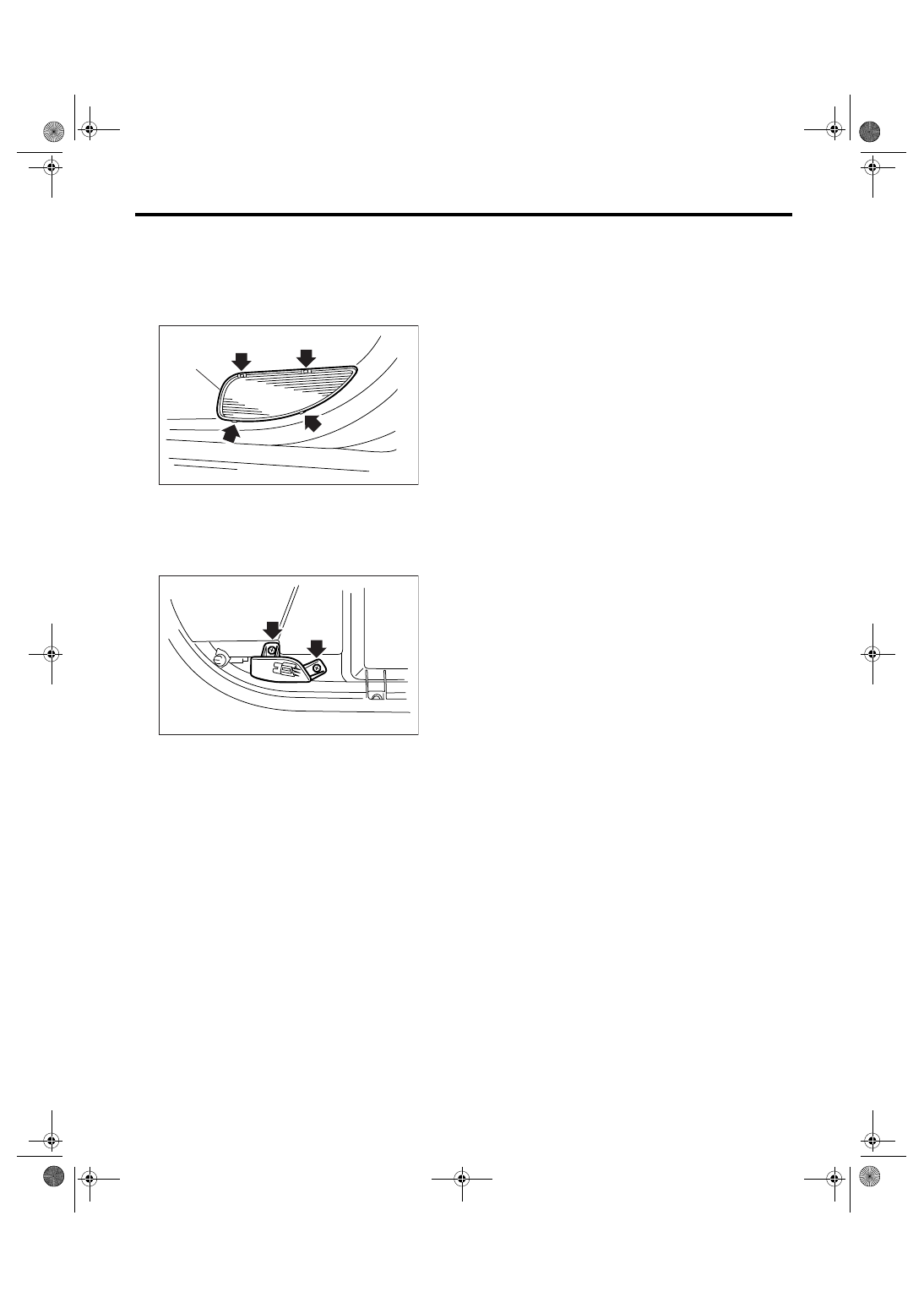

Door Step Light

34.Door Step Light

A: REMOVAL

1) Disconnect the ground cable from battery.
2) Remove the lens (A), and then remove the door
step light bulb.

3) Remove the front door trim. <Ref. to EI-48, RE-
MOVAL, Door Trim.>
4) Disconnect the harness connector.
5) Remove the mounting screw from rear side of
trim and remove the door step light.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Visually check the bulb for blow out.
2) Check the bulb specification.
<Ref. to LI-2, SPECIFICATION, General Descrip-
tion.>
3) If NG, replace the bulb with a new one.

LI-00266

(A)

LI-00267

LI-40

LIGHTING SYSTEM

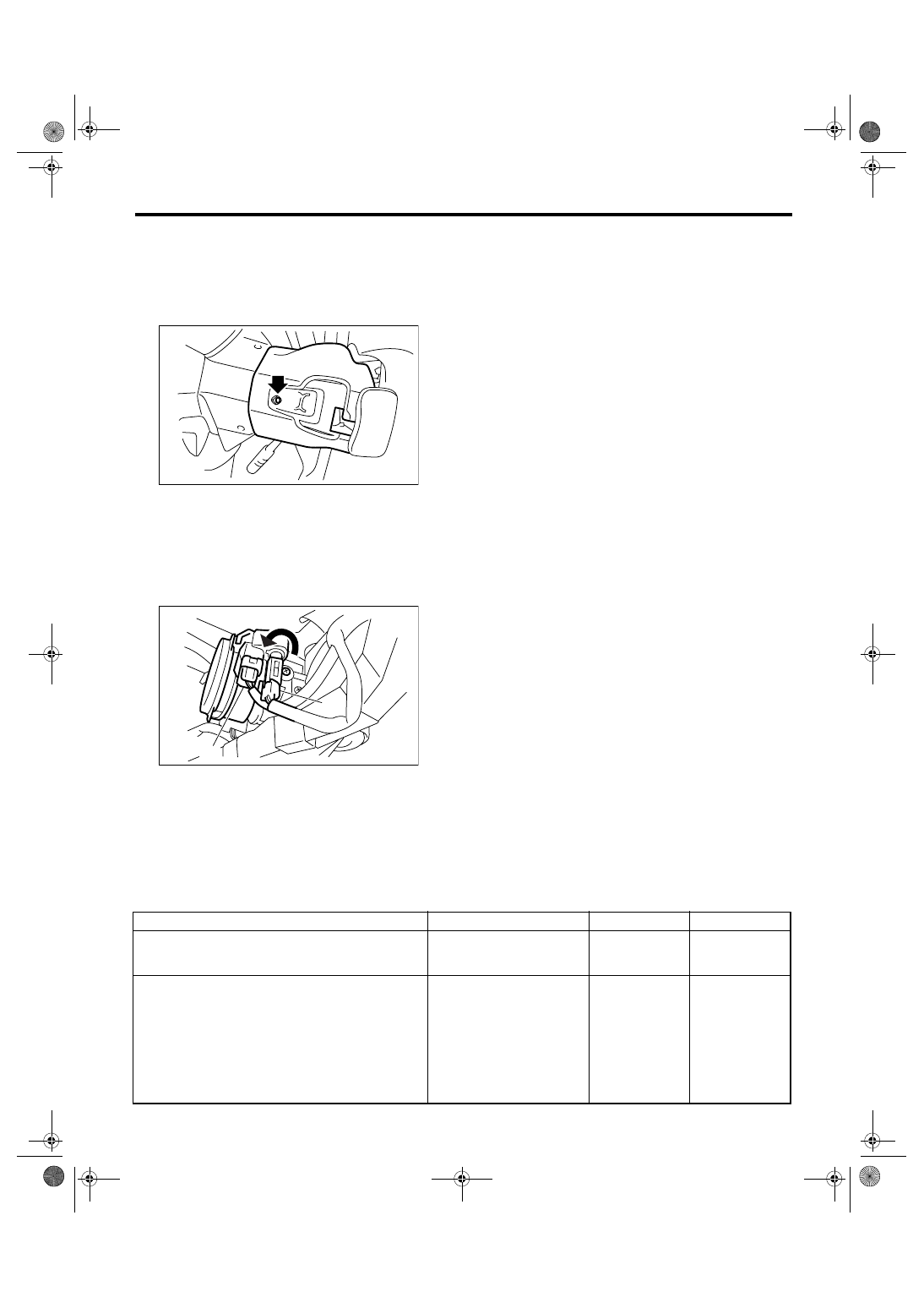

Ignition Switch Illumination

35.Ignition Switch Illumination

A: REMOVAL

1) Disconnect the ground cable from battery.
2) Remove the screws and detach the upper col-
umn cover and lower column cover.

3) Remove the instrument panel lower cover. <Ref.
to EI-50, REMOVAL, Instrument Panel Lower Cov-
er.>
4) Disconnect the ignition switch illumination con-
nector (A).
5) Turn the ignition switch illumination connector to
left and remove it.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

(A) Ignition switch illumination connector

(B) Ignition switch illumination

(C) Immobilizer antenna connector

SL-00258

LI-00343

(C)

(B)

(A)

Step

Check

Yes

No

1

CHECK IGNITION SWITCH ILLUMINATION.
Make sure the ignition switch illumination illu-
minates when driver’s side door is open.

Does the ignition switch illumi-
nation illuminate?

Ignition switch illu-
mination is normal.

Go to step 2.

2

CHECK IGNITION SWITCH ILLUMINATION.
Make sure the ignition switch illumination
blinks when ignition switch is turned to ON.

Does the ignition switch illumi-
nation blink?

Check the func-
tion setting of body
integrated mod-
ule. <Ref. to
LAN(diag)-2, Basic
Diagnostic Proce-
dure.>

Check the ignition
switch illumination
circuit. <Ref. to
SL-25, CHECK
IGNITION
SWITCH ILLUMI-
NATION, INSPEC-
TION, Keyless
Entry System.>
