LI-33
LIGHTING SYSTEM
High-mounted Stop Light
28.High-mounted Stop Light
A: REMOVAL

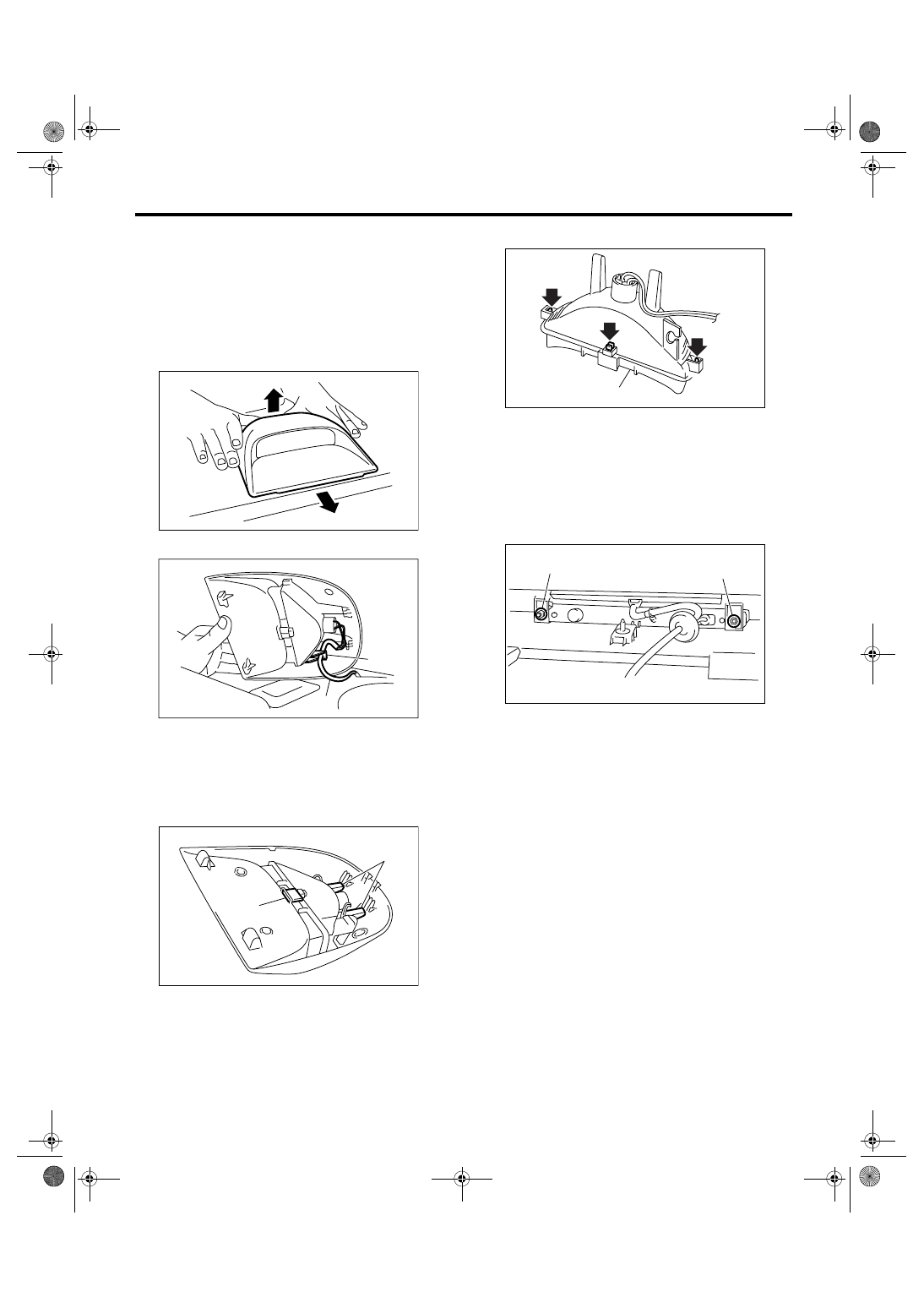

1. SEDAN MODEL
1) Disconnect the ground cable from battery.
2) Push the high-mounted stop light backward of
the vehicle (1), raise the rear portion of it (2) and re-
move the clips to remove it.
3) Remove the harness from clamp.
4) Disengage two claws (A), pull out the high-
mounted stop light from the cover and remove the
claw (B).
5) Remove three claws and remove the lens (A).
6) Remove the bulb.
2. WAGON MODEL
1) Disconnect the ground cable from battery.
2) Detach the roof spoiler. <Ref. to EI-40, REMOV-
AL, Roof Spoiler.>
3) Remove the nuts (A), then detach the high-
mounted stop light.
B: INSTALLATION
Install in the reverse order of removal.
C: INSPECTION
1. SEDAN (STANDARD TYPE)
1) Visually check the bulb for blow out.
2) Check the bulb specification. <Ref. to LI-2,
SPECIFICATION, General Description.>
3) If NG, replace the bulb with a new one.
2. SEDAN (REAR SPOILER BUILT-IN
TYPE) AND WAGON
1) Install the high-mounted stop light to test if it illu-
minates normally.
2) If the high-mounted stop light does not illumi-
nate, replace it with a new one.
NOTE:
Since LED (Light Emitting Diode) is used for the
high-mounted stop light of wagon model, replace
the high-mounted stop light assembly when the
LED is powered off.
(1) Harness
(2) Clamp
(1)
(2)
LI-00333
(2)
(1)
LI-00334
LI-00309
(A)
(B)
LI-00310
(A)
LI-00312
(A)
(A)
