LI-29

LIGHTING SYSTEM

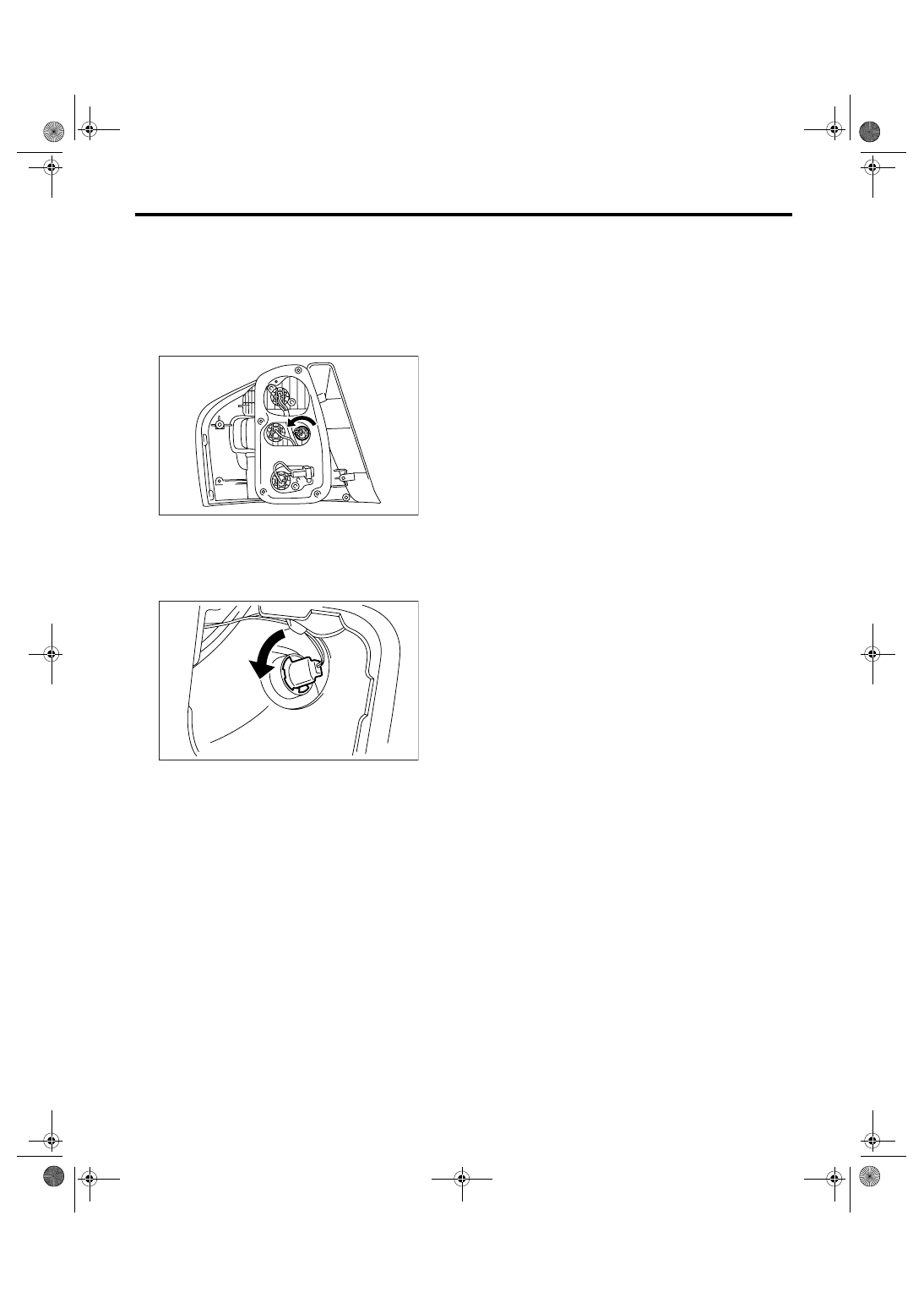

Back-up Light Bulb

24.Back-up Light Bulb

A: REMOVAL

1. SEDAN MODEL

1) Remove the bulb inspection cover of trunk side
trim.
2) Turn the socket and remove the bulb.

2. WAGON MODEL

1) Remove the bulb inspection cover of rear gate
trim.
2) Turn the socket and remove the bulb.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Visually check the bulb for blow out.
2) Check the bulb specification. <Ref. to LI-2,
SPECIFICATION, General Description.>
3) If NG, replace the bulb with a new one.

LI-00304

LI-00305

LI-30

LIGHTING SYSTEM

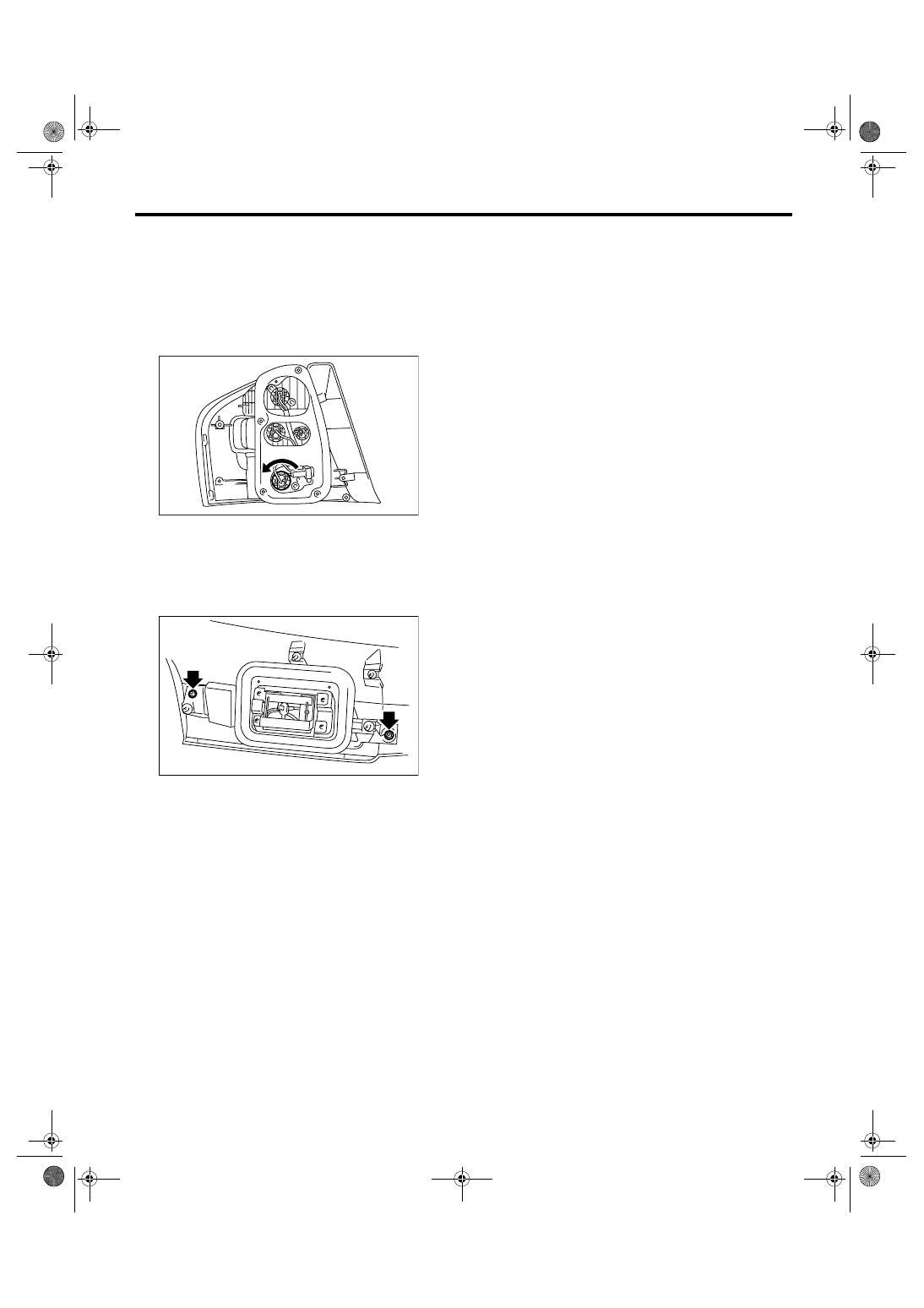

Rear Fog Light Bulb

25.Rear Fog Light Bulb

A: REMOVAL

1. SEDAN MODEL

1) Remove the bulb inspection cover of trunk side
trim.
2) Turn the socket and remove the bulb.

2. WAGON MODEL

1) Remove the rear fog light assembly. <Ref. to LI-
23, REMOVAL, Rear Fog Light.>
2) Remove the mounting screws, and then remove
the rear fog light assembly.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1. SEDAN MODEL

1) Visually check the bulb for blow out.
2) Check the bulb specification. <Ref. to LI-2,
SPECIFICATION, General Description.>
3) If NG, replace the bulb with a new one.

2. WAGON MODEL

1) Install the rear fog light assembly to check that it
illuminate normally.
2) If it does not illuminate, replace the rear fog light
assembly with a new one.

NOTE:
Since LED (Light Emitting Diode) is used for the
rear fog light, replace the rear fog light assembly
when the LED is powered off.

LI-00302

LI-00292

LI-31

LIGHTING SYSTEM

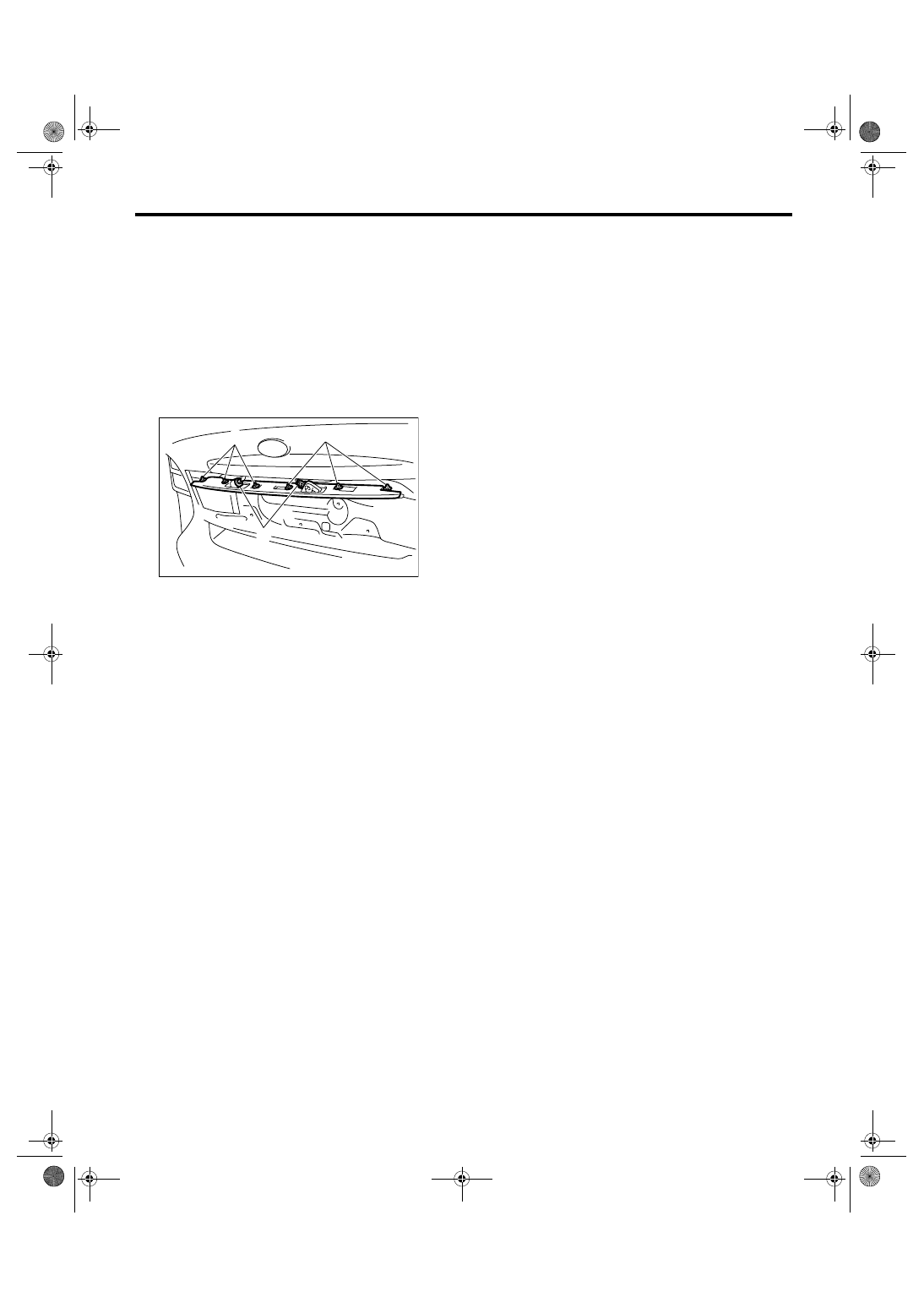

License Plate Light Assembly

26.License Plate Light Assembly

A: REMOVAL

1. SEDAN MODEL

1) Remove the trunk lid garnish. <Ref. to EI-75,
REMOVAL, Trunk Lid Garnish.>
2) Remove the trunk lid trim. <Ref. to EI-71,
TRUNK LID TRIM, REMOVAL, Trunk Room Trim.>
3) Turn and remove the bulb socket (A). Remove
the clip (B) and remove the license plate light as-
sembly.

B: INSTALLATION

Install in the reverse order of removal.

LI-00306

(A)

(B)

(B)

LI-32

LIGHTING SYSTEM

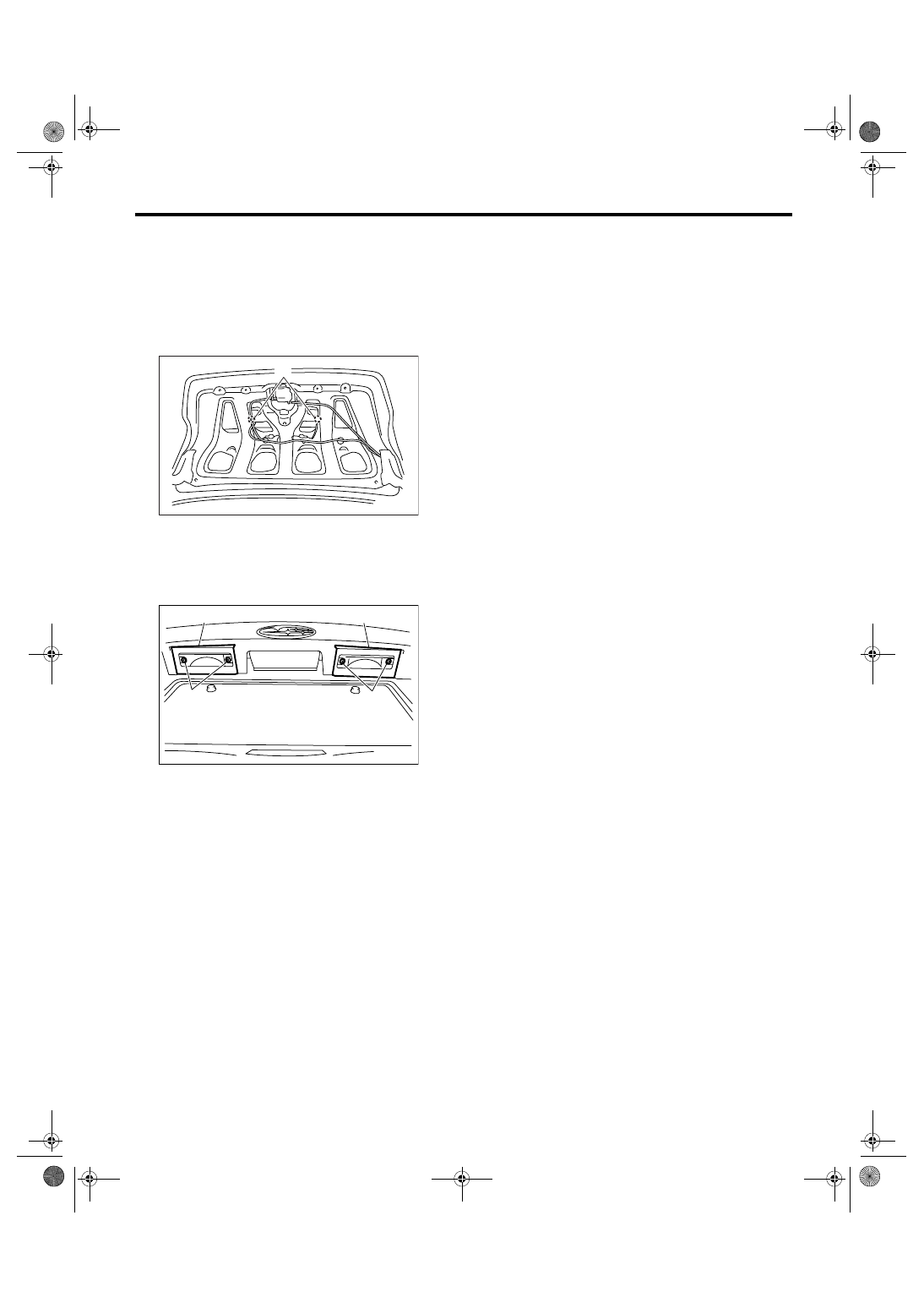

License Plate Light

27.License Plate Light

A: REMOVAL

1. SEDAN MODEL

1) Remove the trunk lid trim. <Ref. to EI-71,
TRUNK LID TRIM, REMOVAL, Trunk Room Trim.>
2) Turn and remove the bulb socket (A).

3) Remove the bulb.

2. WAGON MODEL

1) Remove the license plate light mounting screw
(A) and then remove the lens (B).

2) Remove the bulb.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Visually check the bulb for blow out.
2) Check the bulb specification. <Ref. to LI-2,
SPECIFICATION, General Description.>
3) If NG, replace the bulb with a new one.

LI-00307

(A)

(A)

(A)

(B)

(B)

LI-00308
