Subaru Legacy (2005 year). Manual - part 931

LI-21

LIGHTING SYSTEM

Front Fog Light Assembly

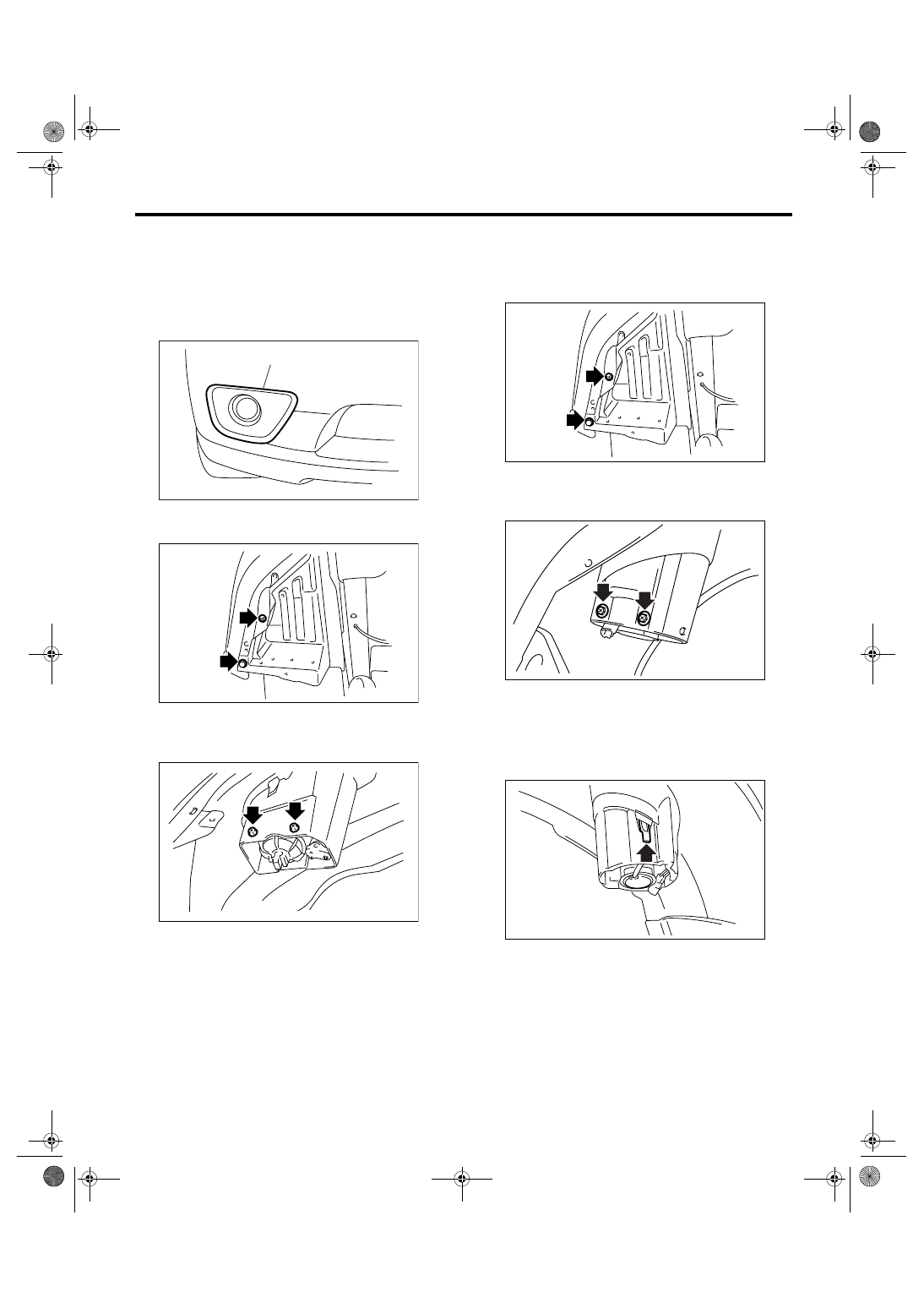

16.Front Fog Light Assembly

A: REMOVAL

1. EXCEPT FOR OUTBACK MODEL

1) Disconnect the ground cable from battery.
2) Remove the front fog light cover (A).

3) Disengage the two clips, and then turn over the
lower mud guard.

4) Disconnect the harness connector.
5) Remove the mounting bolts, and then detach the
fog light assembly by pulling it.

2. OUTBACK MODEL

1) Disconnect the ground cable from battery.
2) Remove the two clips, and then turn over the
lower mud guard.

3) Disconnect the harness connector.
4) Remove the mounting bolts, and then detach the
fog light assembly by pulling it.

B: INSTALLATION

Install in the reverse order of removal.

CAUTION:
When installing the fog light assembly, be sure
to secure the upper hock.

LI-00287

(A)

LI-00288

LI-00289

LI-00288

LI-00325

LI-00326

LI-22

LIGHTING SYSTEM

Front Fog Light Bulb

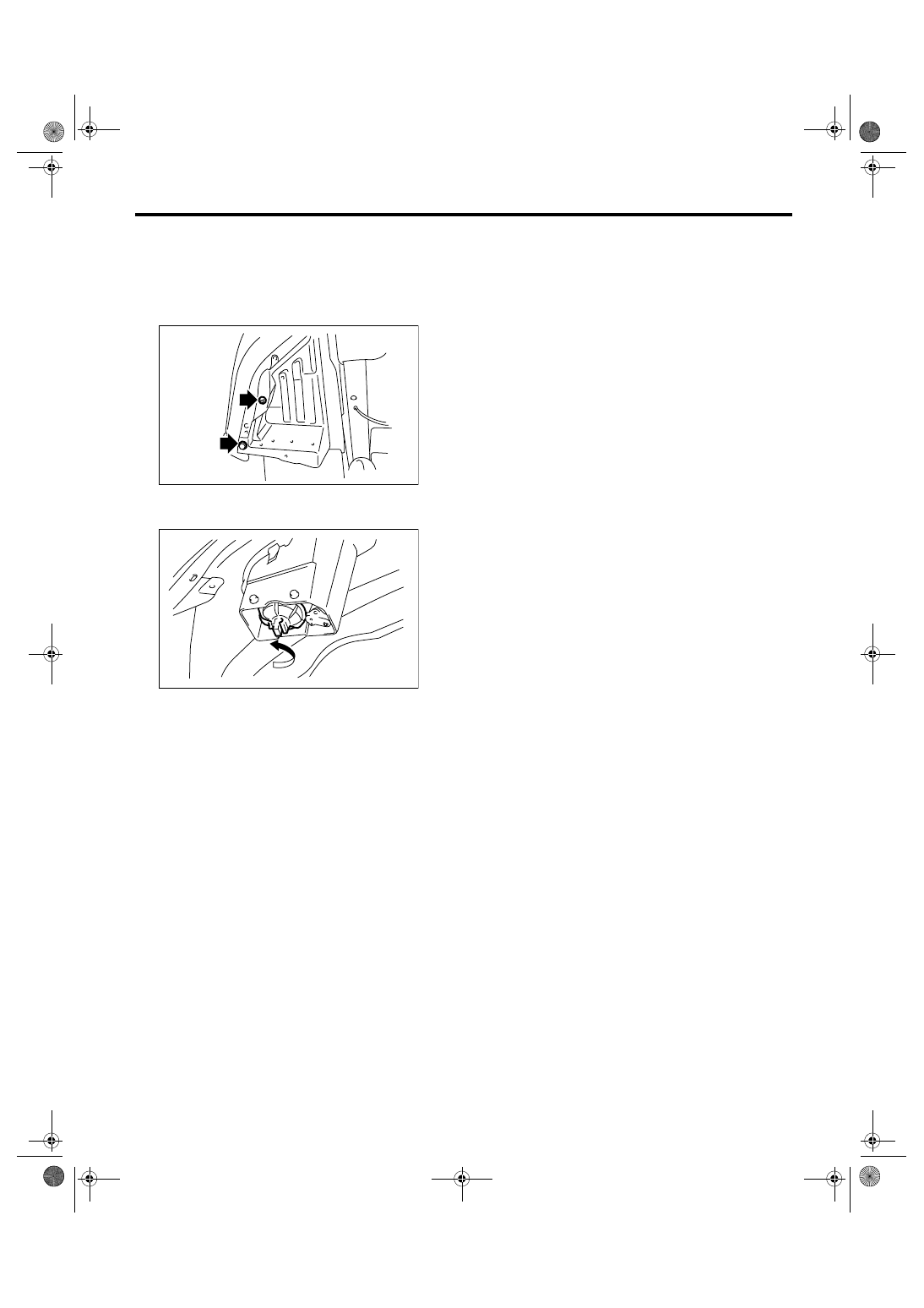

17.Front Fog Light Bulb

A: REMOVAL

1) Disconnect the ground cable from battery.
2) Remove the two clips, and then turn over the
lower mud guard.

3) Disconnect the harness connector.
4) Remove the back cover.

5) Remove the spring retainer then detach the fog
light bulb.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Visually check the bulb for blow out.
2) Check the bulb specification. <Ref. to LI-2,
SPECIFICATION, General Description.>
3) If NG, replace the bulb with a new one.

LI-00288

LI-00291

LI-23

LIGHTING SYSTEM

Rear Fog Light

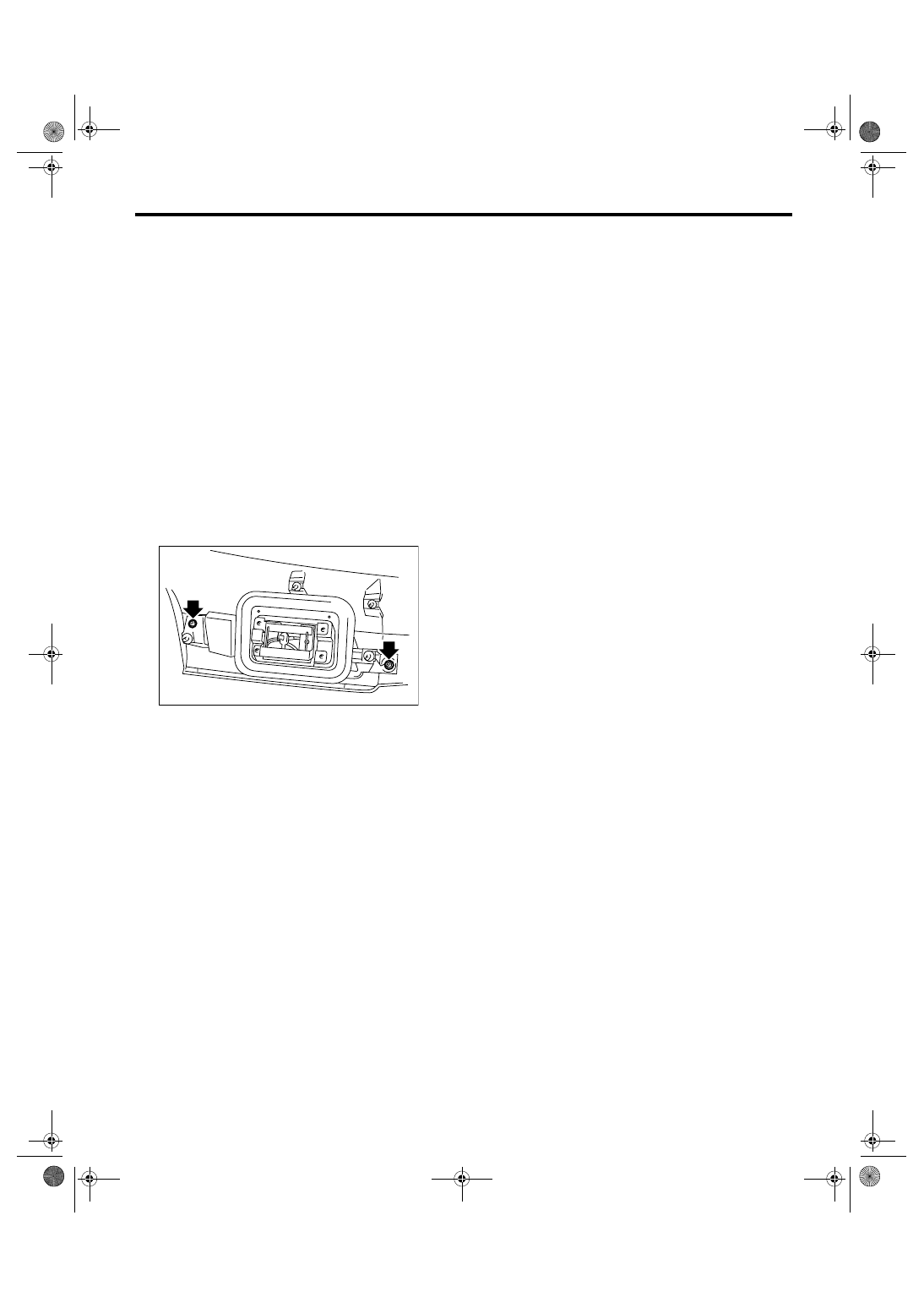

18.Rear Fog Light

A: REMOVAL

NOTE:
Rear fog light is installed to rear combination light
of driver’s side for sedan and rear gate garnish of
driver’s side for wagon.

1. SEDAN MODEL

Remove the rear combination light. <Ref. to LI-25,
REMOVAL, Rear Combination Light Assembly.>

2. WAGON MODEL

1) Remove the rear gate trim. <Ref. to EI-69, RE-
MOVAL, Rear Gate Trim.>
2) Disconnect the harness connectors and remove
the rear gate garnish. <Ref. to EI-76, REMOVAL,
Rear Gate Garnish.>
3) Remove the mounting nuts and detach the rear
fog light assembly.

B: INSTALLATION

Install in the reverse order of removal.

LI-00292

LI-24

LIGHTING SYSTEM

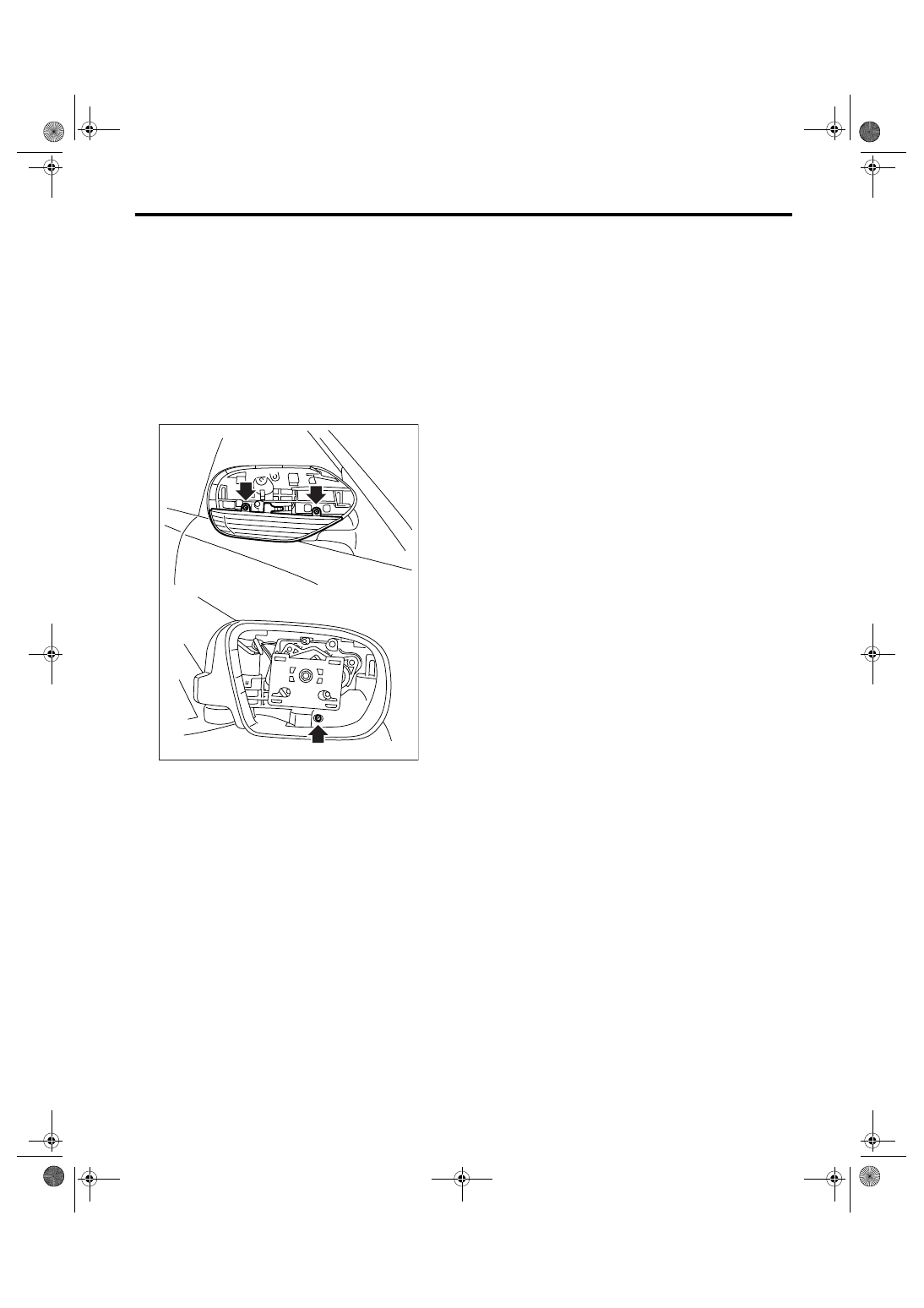

Side Turn Signal Light Assembly

19.Side Turn Signal Light As-

sembly

A: REMOVAL

1) Disconnect the ground cable from battery.
2) Remove the scalp caps. <Ref. to GW-18, RE-
PLACEMENT, Scalp Cap.>
3) Remove the mirror. <Ref. to GW-21, REPLACE-
MENT, Outer Mirror.>
4) Disconnect the harness connector, remove the 3
mounting screws and then remove the side turn
signal light assembly.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Install the side turn signal light assembly and
check that it blinks normally.
2) If it does not blink normally, replace the side turn
signal light assembly with a new one.

NOTE:
Since LED (Light Emitting Diode) is used for side
turn signal light, replace the side turn signal light
assembly when the LED is powered off.

LI-00293
