Rear Combination Light Assembly

20.Rear Combination Light As-

sembly

A: REMOVAL

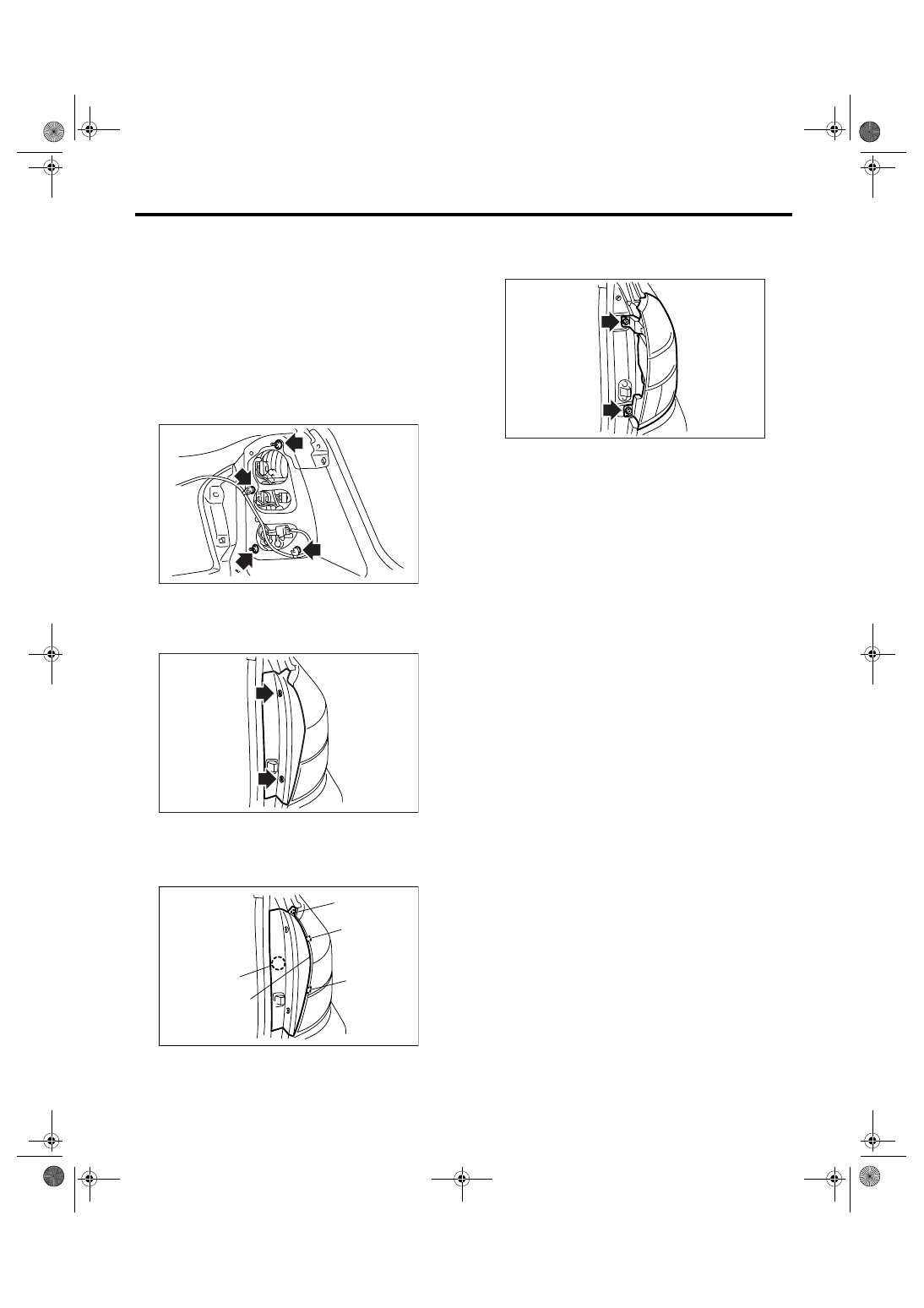

1. SEDAN MODEL

1) Disconnect the ground cable from battery.
2) Remove the trunk room side trim. <Ref. to EI-71,
REMOVAL, Trunk Room Trim.>
3) Remove the four nuts, and then detach the rear
combination light after disconnecting the connec-
tor.

2. WAGON MODEL

1) Disconnect the ground cable from battery.
2) Remove the clips.

3) While pressing the portion (A), insert your finger
or flat-tip screwdriver wrapped with tape into the
clearance (B) to remove pawls in the order of (C),
(D), (E), and remove the rear combination cover.

4) Remove the two bolts, and then detach the rear
combination light by pulling it to the rear side of ve-
hicle.

5) Remove the rear combination light after turning
the socket of tail/stop light bulb and rear turn signal
light bulb to remove the bulbs.

B: INSTALLATION

Install in the reverse order of removal.

LI-00294

LI-00295

LI-00284

(E)

(C)

(D)

(B)

(A)

LI-00296

LI-26

LIGHTING SYSTEM

Tail/Stop Light Bulb

21.Tail/Stop Light Bulb

A: REMOVAL

1. SEDAN MODEL

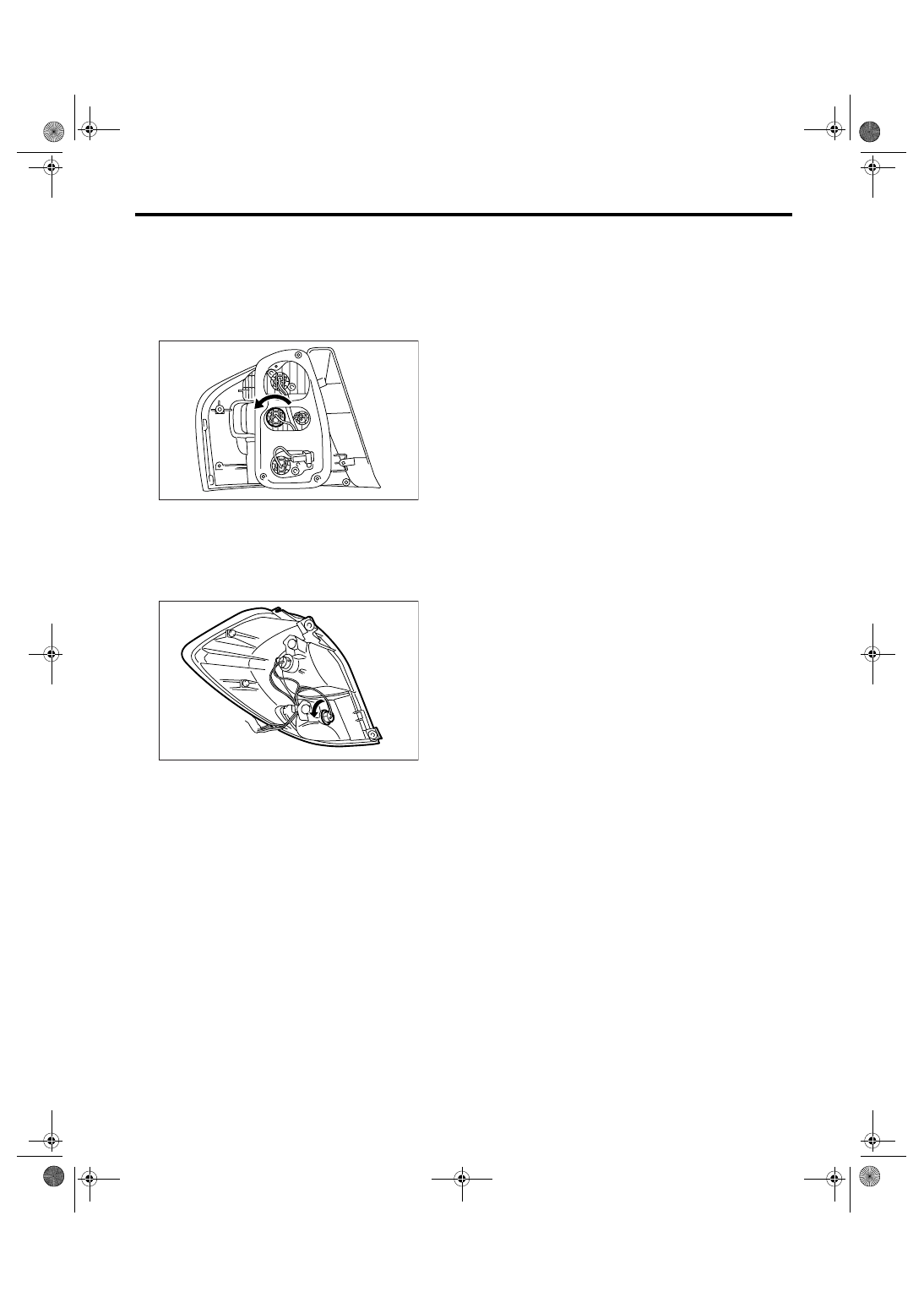

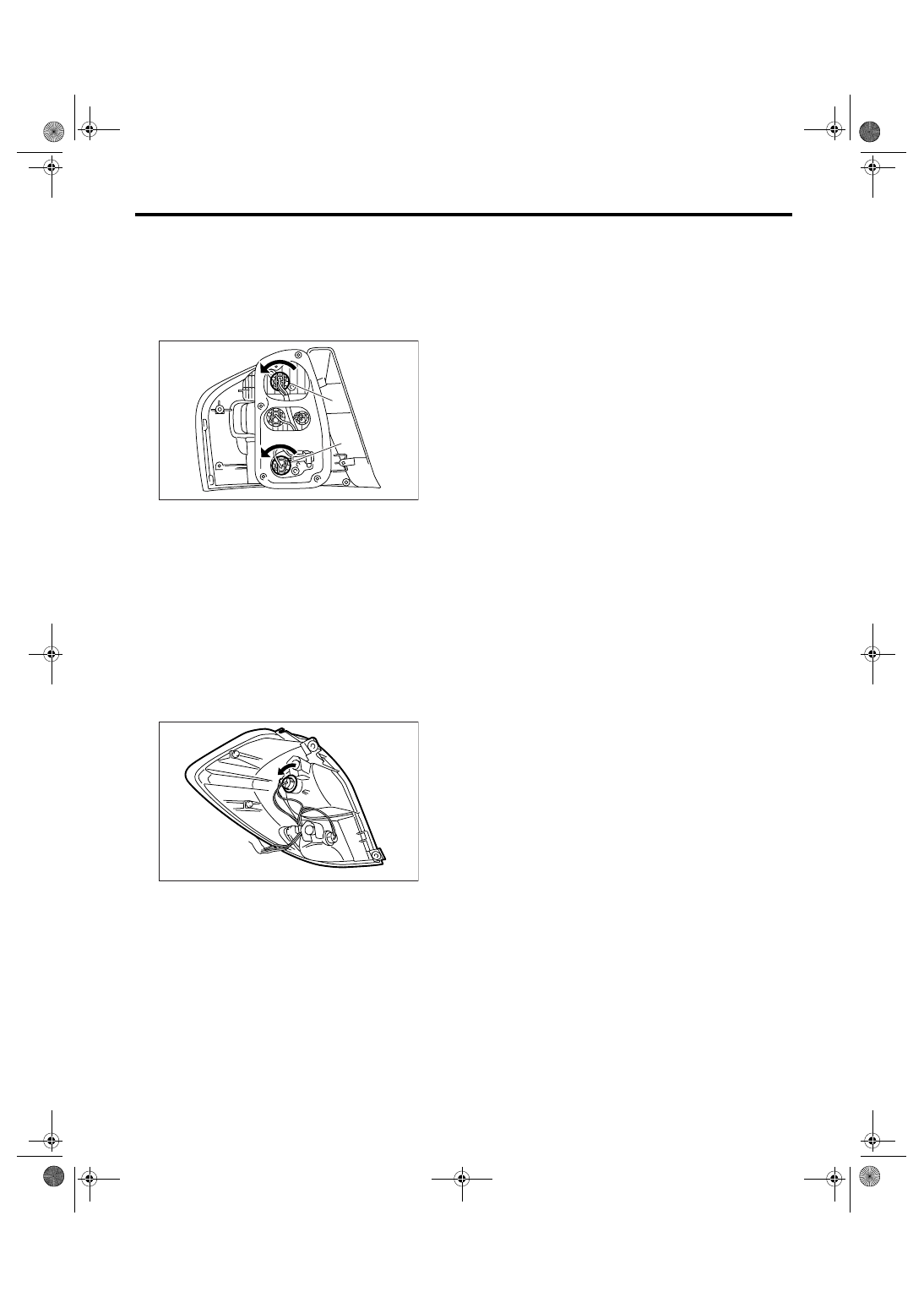

1) Remove the trunk side trim cover.
2) Turn the socket and remove the bulb.

2. WAGON MODEL

1) Remove the rear combination light assembly.
<Ref. to LI-25, WAGON MODEL, REMOVAL, Rear
Combination Light Assembly.>
2) Turn the socket and remove the bulb.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Visually check the bulb for blow out.
2) Check the bulb specification. <Ref. to LI-2,
SPECIFICATION, General Description.>
3) If NG, replace the bulb with a new one.

Model without rear fog light

(A) Tail light

(B) Stop light

Model with rear fog light

(A) Tail/stop light

(B) Rear fog light (Driver’s side only)

(A)

(B)

LI-00297

LI-00298

LI-27

LIGHTING SYSTEM

Rear Turn Signal Light Bulb

22.Rear Turn Signal Light Bulb

A: REMOVAL

1. SEDAN MODEL

1) Remove the trunk side trim cover.
2) Turn the socket and remove the bulb.

2. WAGON MODEL

1) Remove the rear combination light assembly.
<Ref. to LI-25, WAGON MODEL, REMOVAL, Rear
Combination Light Assembly.>
2) Turn the socket and remove the bulb.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1) Visually check the bulb for blow out.
2) Check the bulb specification. <Ref. to LI-2,
SPECIFICATION, General Description.>
3) If NG, replace the bulb with a new one.

LI-00299

LI-00300

LI-28

LIGHTING SYSTEM

Back-up Light Assembly

23.Back-up Light Assembly

A: REMOVAL

NOTE:
In case of model with rear fog light, back-up light is
installed to only passenger’s side.

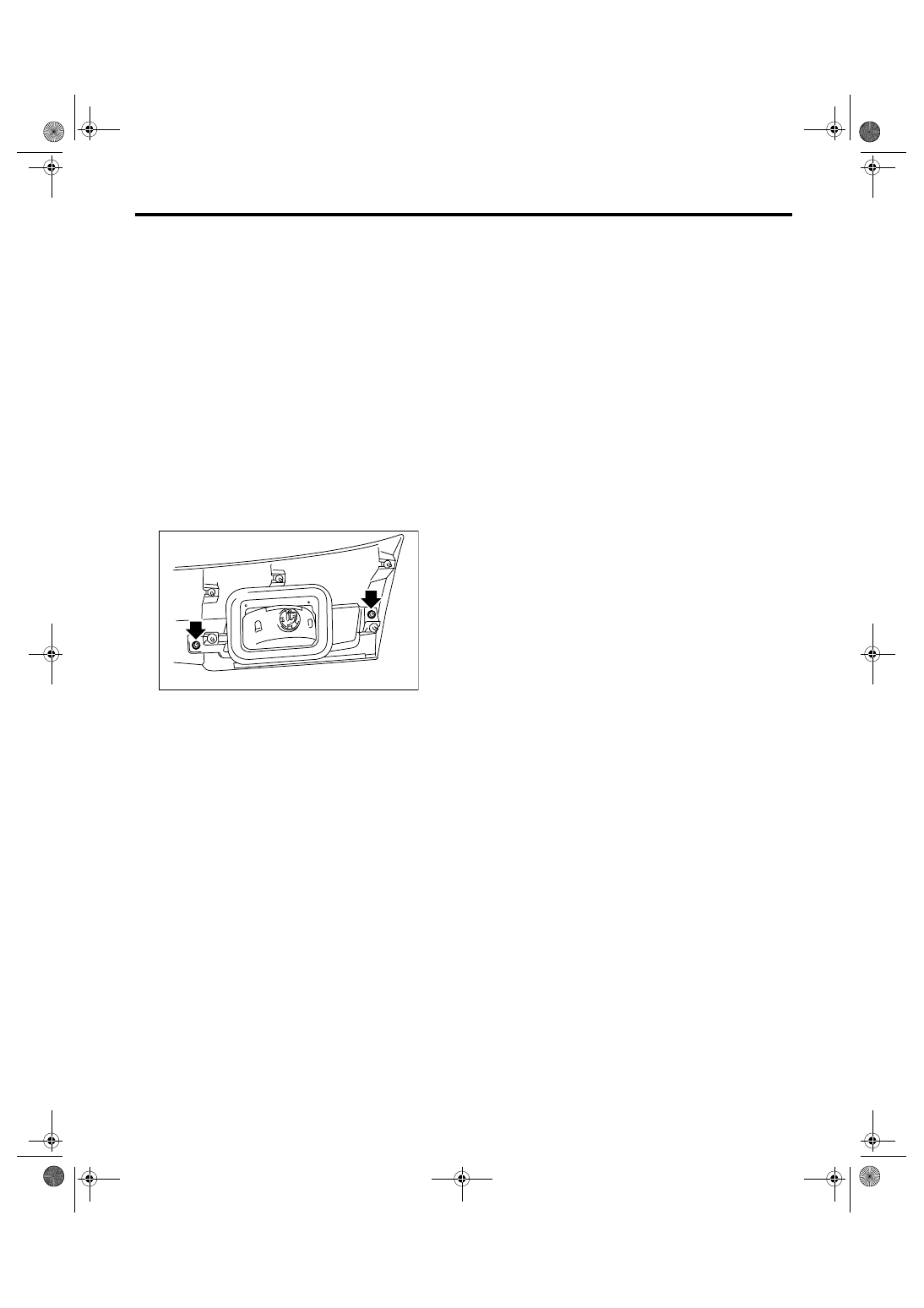

1. SEDAN MODEL

Remove the rear combination light. <Ref. to LI-25,
REMOVAL, Rear Combination Light Assembly.>

2. WAGON MODEL

1) Remove the rear gate trim. <Ref. to EI-69, RE-
MOVAL, Rear Gate Trim.>
2) Disconnect the harness connectors and remove
the rear gate garnish. <Ref. to EI-76, REMOVAL,
Rear Gate Garnish.>
3) Remove the mounting nuts and detach the back-
up light assembly.

B: INSTALLATION

Install in the reverse order of removal.
