WW-5

WIPER AND WASHER SYSTEMS

General Description

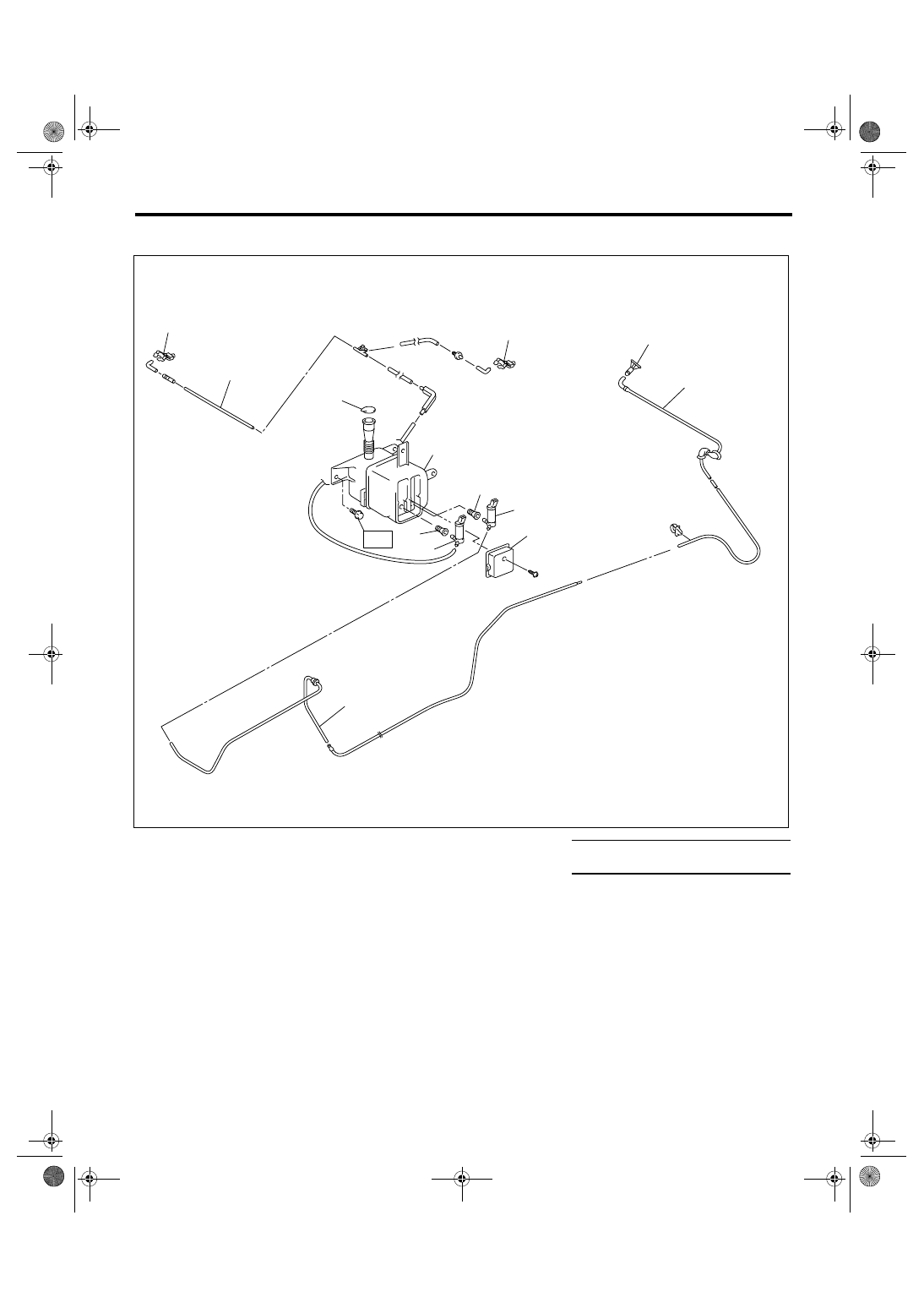

3. WASHER TANK

(1)

Washer nozzle

(6)

Rear washer motor (Wagon
model)

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Washer hose

T: 6.0 (0.61, 4.3)

(3)

Washer tank

(7)

Grommet

(4)

Washer tank cap

(8)

Washer motor cover

(5)

Front washer motor

WW-00329

(2)

(7)

(6)

(5)

(2)

(4)

(3)

(7)

T

(1)

(8)

(1)

(2)

(1)

WW-6

WIPER AND WASHER SYSTEMS

General Description

C: CAUTION

• Connect the connectors and hoses securely dur-
ing reassembly.
• After reassembly, make sure functional parts op-
erate smoothly.
• Be careful that wire harnesses of airbag system
pass near electrical parts and switches.
• Wiring harnesses and connectors of all airbag
system are yellow color. Do not use a tester equip-
ment on these circuits.
• Care must be taken when connecting the piping
hose so that no bending, jamming, etc. are caused.
• If even a little oil or grease such as silicon oil gets
in the tank and washer passages, an oil film is eas-
ily formed on the glass, causing the wiper to chatter
and judder, therefore, be careful not to let this hap-
pen.

WW-7

WIPER AND WASHER SYSTEMS

Wiper and Washer System

2. Wiper and Washer System

A: WIRING DIAGRAM

1. WIPER AND WASHER (FRONT) LHD MODEL

<Ref. to WI-275, LHD MODEL, WIRING DIAGRAM, Front Wiper and Washer System.>

2. WIPER AND WASHER (FRONT) RHD MODEL

<Ref. to WI-276, RHD MODEL, WIRING DIAGRAM, Front Wiper and Washer System.>

3. WIPER AND WASHER (REAR) LHD MODEL

<Ref. to WI-277, LHD MODEL, WIRING DIAGRAM, Rear Wiper and Washer System.>

4. WIPER AND WASHER (REAR) RHD MODEL

<Ref. to WI-278, RHD MODEL, WIRING DIAGRAM, Rear Wiper and Washer System.>

B: INSPECTION

Symptom

Repair order

Wiper and washers do not operate.

(1) Wiper fuse (Front: F/B No. 30, Rear: F/B No. 23)
(2) Combination switch
(3) Wiper motor assembly
(4) Wiring harness
(5) Body integrated module (rear wiper only)

Wipers do not operate in LO or HI.

(1) Combination switch
(2) Wiper motor assembly
(3) Wiring harness

Wipers do not operate in INT.

(1) Combination switch
(2) Wiper motor assembly
(3) Wiring harness
(4) Body integrated module (rear wiper only)

Washer motor does not operate.

(1) Washer switch
(2) Washer motor
(3) Wiring harness

Wipers do not operate when washer switch is ON.

(1) Wiper motor assembly
(2) Wiring harness

Washer fluid spray does not operate properly.

(1) Washer motor
(2) Washer hose and nozzle

WW-8

WIPER AND WASHER SYSTEMS

Combination Switch (Wiper)

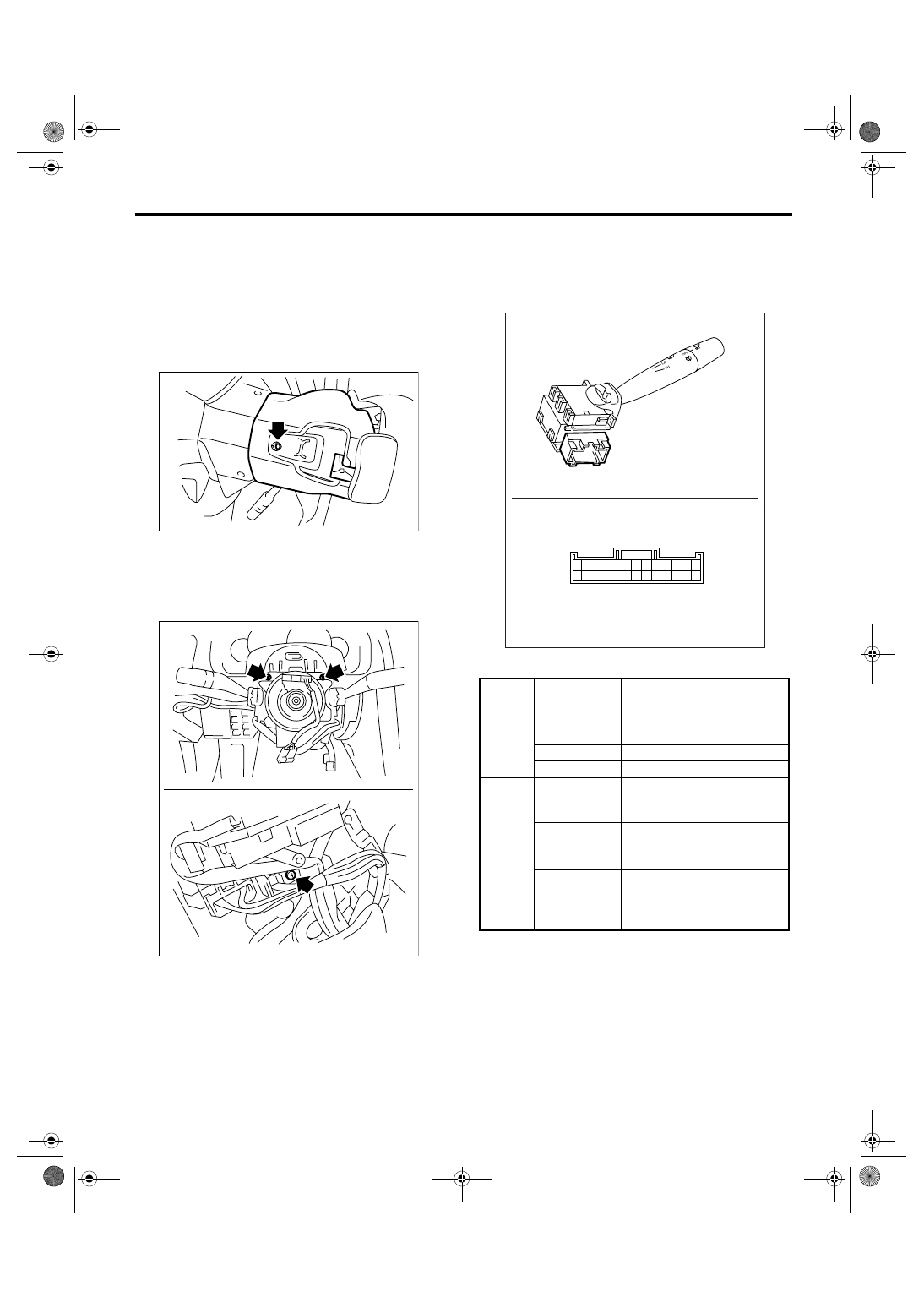

3. Combination Switch (Wiper)

A: REMOVAL

1) Disconnect the ground cable from battery.
2) Remove the instrument panel lower cover. <Ref.
to EI-50, REMOVAL, Instrument Panel Lower Cov-
er.>
3) Remove the screw to remove steering column
cover (upper and lower).

4) Disconnect the connector from combination
switch.
5) Remove the three screws, and pull out the com-
bination base switch assembly toward you. (EC,
EK, KS and K4 model)

6) Remove the screws which secure switch, then
remove the combination switch.

B: INSTALLATION

Install in the reverse order of removal.

C: INSPECTION

1. COMBINATION SWITCH

1) Inspect the continuity between each connector
terminal.

• EC, EK, KS, EH, ER and K4 model

SL-00258

LI -00332

Switch position

Terminal No.

Standard

Front

OFF

7 and 16

Less than 1

Ω

INT

7 and 16

Less than 1

Ω

LO

7 and 17

Less than 1

Ω

HI

8 and 17

Less than 1

Ω

Washer ON

2 and 11

Less than 1

Ω

Rear
(Wagon
model)

Washer ON

2 and 11

12 and 10

2 and 10

Less than 1

Ω

OFF

—

More than 1

M

Ω

INT

2 and 13

Less than 1

Ω

ON

2 and 10

Less than 1

Ω

Washer ON

2 and 12

12 and 10

2 and 10

Less than 1

Ω

WW-00046

8

7

6 5 4

3

2

1

9

17

16 15 14 13 12

11 10

18
