PS-11

POWER ASSISTED SYSTEM (POWER STEERING)

General Description

D: PREPARATION TOOL

1. SPECIAL TOOL

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

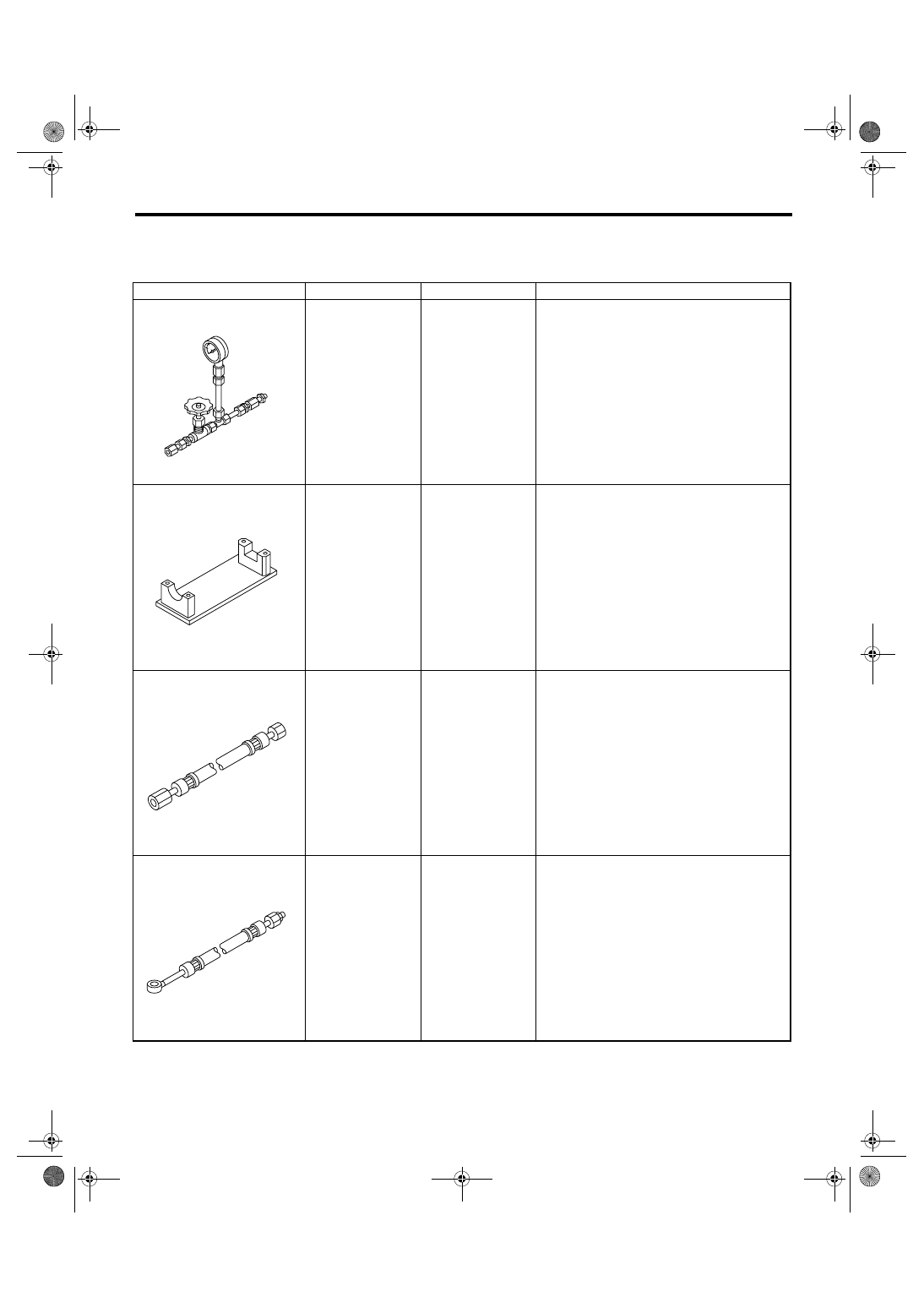

925711000

PRESSURE
GAUGE

Used for measuring oil pump pressure.

926200000

STAND

• Used when inspecting characteristic of gear-
box assembly and disassembling it.
• Used with BOSS D (34199AG000).

34099AC010

ADAPTER HOSE A

Used with PRESSURE GAUGE (925711000).

34099AC020

ADAPTER HOSE B

Used with PRESSURE GAUGE (925711000).

ST-925711000

ST-926200000

ST34099AC010

ST34099AC020

PS-12

POWER ASSISTED SYSTEM (POWER STEERING)

General Description

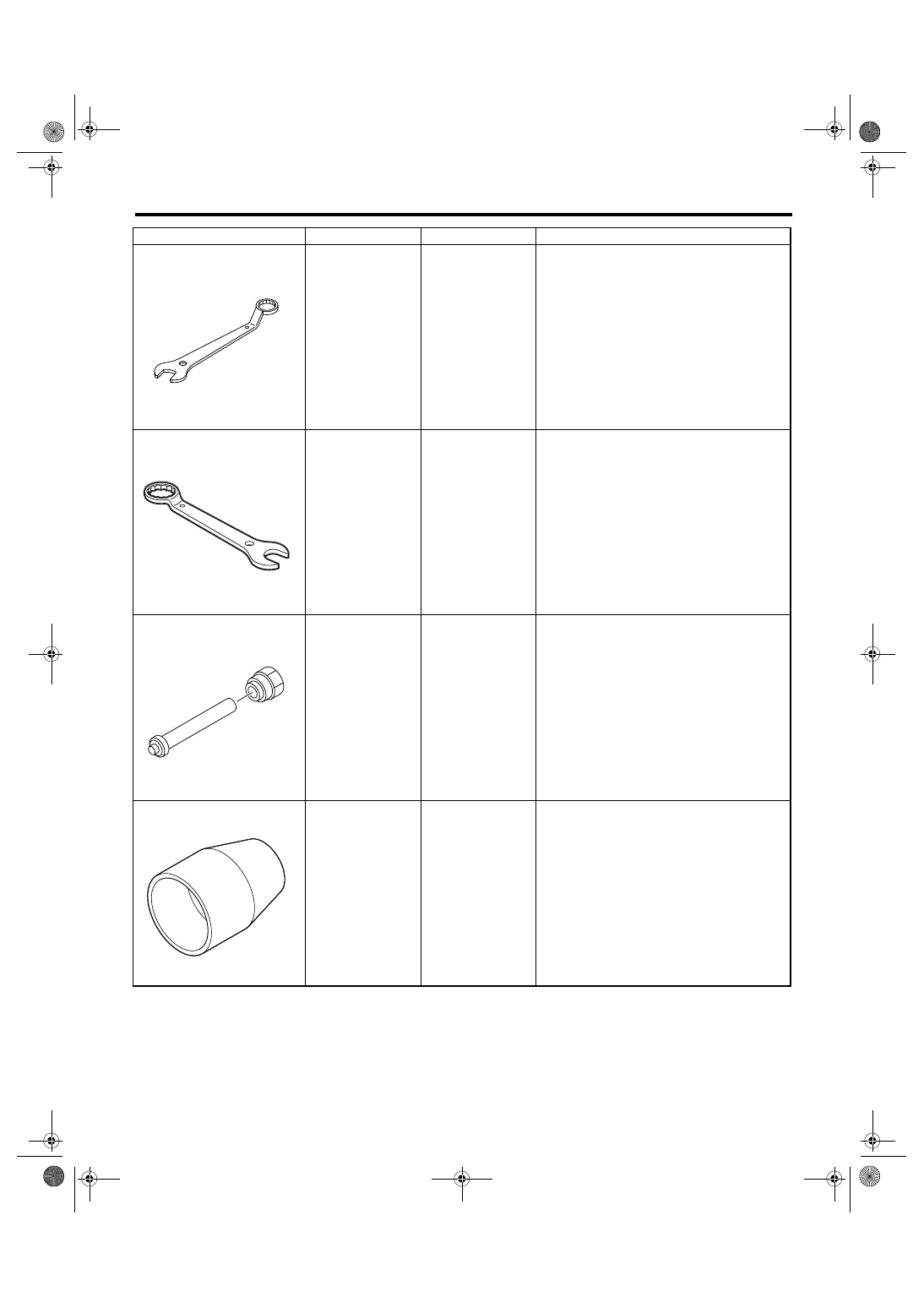

926230000

SPANNER

For the lock nut when adjusting backlash of gear-
box.

34099PA100

SPANNER

Used when measuring the rotating resistance of
gearbox assembly.

926420000

PLUG

Used when fluid leaks from pinion side of gear-
box assembly, the pipe B is removed from valve
housing, and then this tool is installed to check
the fluid leaking point.

926250000

GUIDE

• Used for installing holder assembly into rack
housing.
• Except for turbo and 3.0 R model.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-926230000

ST34099PA100

ST-926420000

ST-926250000

PS-13

POWER ASSISTED SYSTEM (POWER STEERING)

General Description

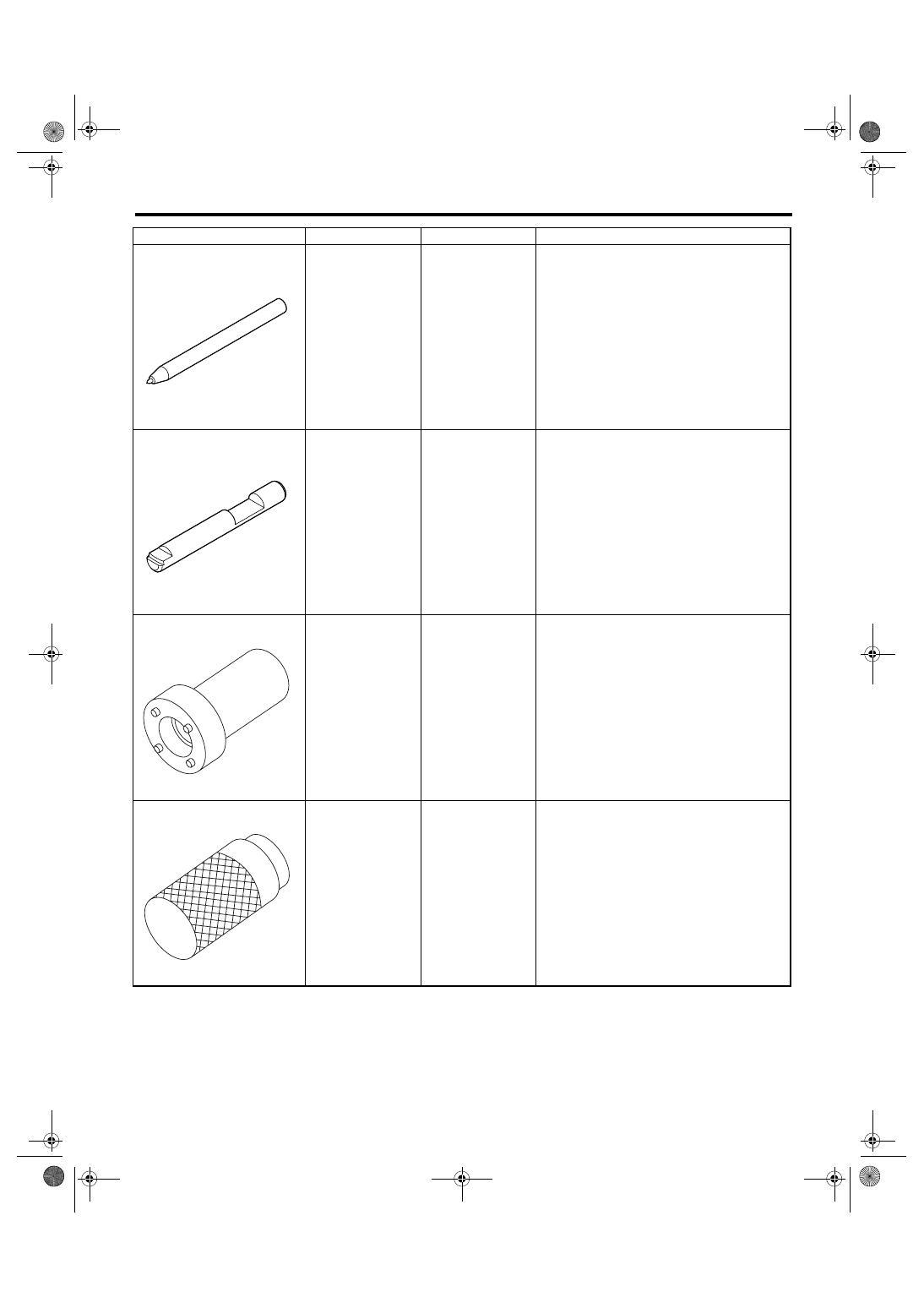

34099FA060

PUNCH HOLDER

Used for caulking.

34099FA080

PUNCH

• Used for removing caulking.
• For RHD model.

34199AE090

PLUG WRENCH

• Used for removing plug.
• For RHD model.

34199AE100

OIL SEAL PLUG
REMOVER

• Used for removing oil seal plug.
• For RHD model.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST34099FA060

ST34099FA080

ST34199AE090

ST34199AE100

PS-14

POWER ASSISTED SYSTEM (POWER STEERING)

General Description

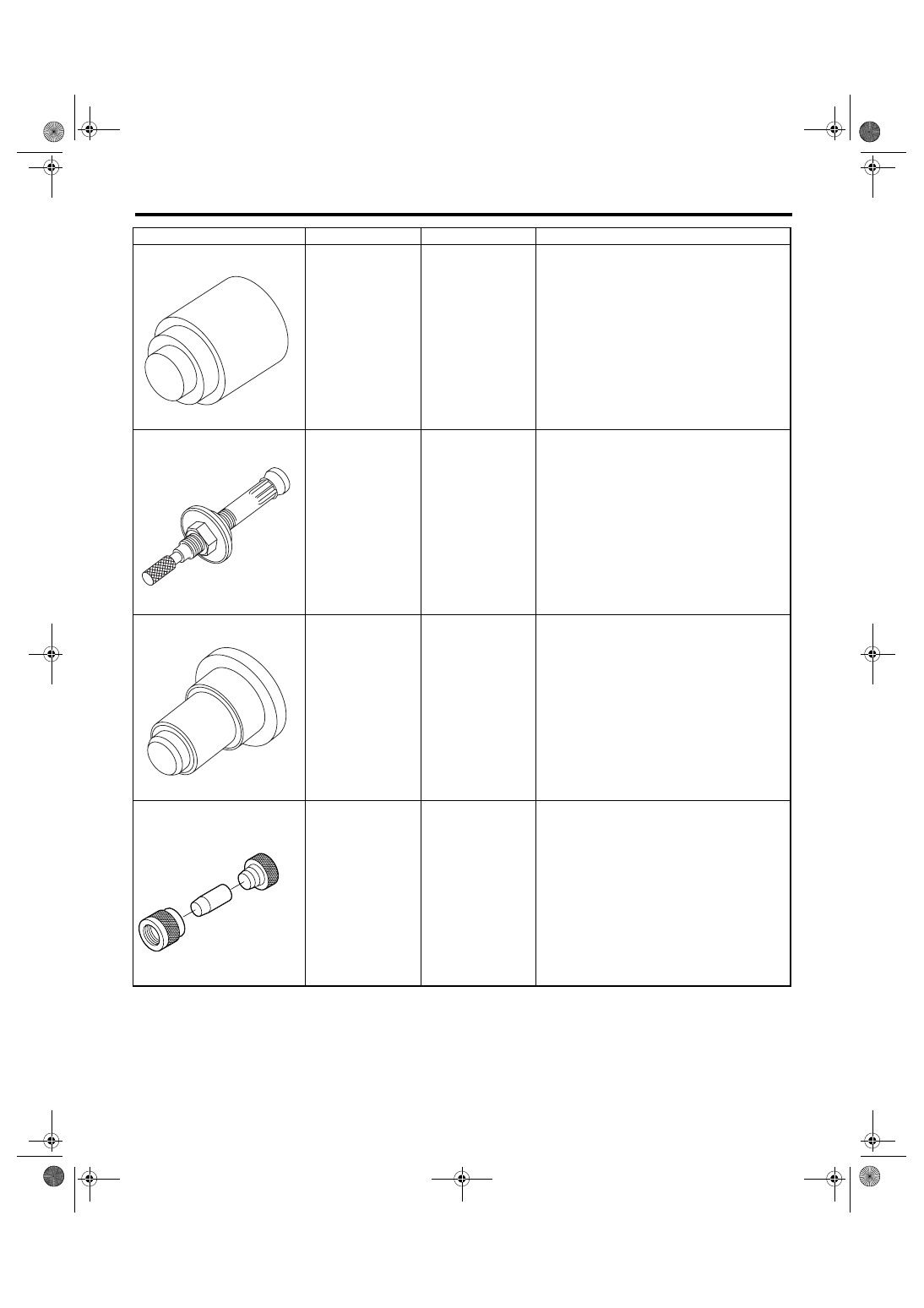

34199AE110

OIL SEAL PLUG
INSTALLER

• Used for installing oil seal plug.
• For RHD model.

34199AE120

GEARBOX OIL
SEAL REMOVER

• Used for removing gearbox oil seal.
• For RHD model.

34199AE130

GEARBOX OIL
SEAL INSTALLER

• Used for installing gearbox oil seal.
• For RHD model.

34199FE040

INSTALLER A, B, C

• Used for installing oil seal to rack assembly.
• For turbo and 3.0 R model.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST34199AE110

ST34199AE120

ST34199AE130

ST34199FE040
