Subaru Legacy (2005 year). Manual - part 833

PS-3

POWER ASSISTED SYSTEM (POWER STEERING)

General Description

Steering
wheel

Free play

mm (in)

17 (0.67)

Steering
shaft

Clearance between steering wheel and
column cover

mm (in)

2 — 4 (0.08 — 0.16)

Steering
gearbox
(Power
steering
system)

Sliding resis-
tance

N (kgf, lbf)

LHD

400 (41, 90) or less

Difference between right and left sliding resistance: Less

than 20%

RHD

314 (32, 71) or less

Difference between right and left sliding resistance: Less

than 20%

Rack shaft play
in radial direc-
tion

Right-turn
steering

mm (in)

LHD

0.19 (0.007) or less

RHD

Horizontal movement: 0.6 (0.024) or less

Vertical movement: 0.4 (0.016) or less

Left-turn
steering

mm (in)

LHD

Horizontal movement: 0.15 (0.006) or less

Vertical movement: 0.3 (0.012) or less

RHD

0.4 (0.016) or less

Input shaft play

In radial direction

mm (in)

0.18 (0.0071) or less

In axial
direction

mm (in)

LHD

0.5 (0.020) or less

RHD

0.27 (0.0106) or less

Resistance to
rotation

N (kgf, lbf)

LHD

Maximum allowable value: 10.5 (1.1, 2.4) or less

Difference between right and left rotating resistance:

Less than 20%

RHD

Maximum allowable value: 13 (1.3, 2.9) or less

Difference between right and left rotating resistance:

Less than 20%

Oil pump
(Power
steering
system)

Pulley shaft

Radial play

mm (in)

0.4 (0.016) or less

Axial play

mm (in)

0.9 (0.035) or less

Pulley

Ditch deflection

mm (in)

1.0 (0.039) or less

Resistance to rotation

N (kgf, lbf)

9.22 (0.94, 2.07) or less

Regular pressure (Unloaded)

kPa (kgf/cm

, psi)

981 (10, 142) or less

Steering
wheel
effort
(Power
steering
system)

At standstill with engine idling on a con-
crete road

N (kgf, lbf)

29.4 (3.0, 6.6) or less

At standstill with engine stalled on a con-
crete road

N (kgf, lbf)

294.2 (30, 66.2) or less

Recommended power steering fluid

Manufacturer

ATF DEXRON III or equivalent

B.P.

CALTEX

CASTROL

MOBIL

SHELL

TEXACO

PS-4

POWER ASSISTED SYSTEM (POWER STEERING)

General Description

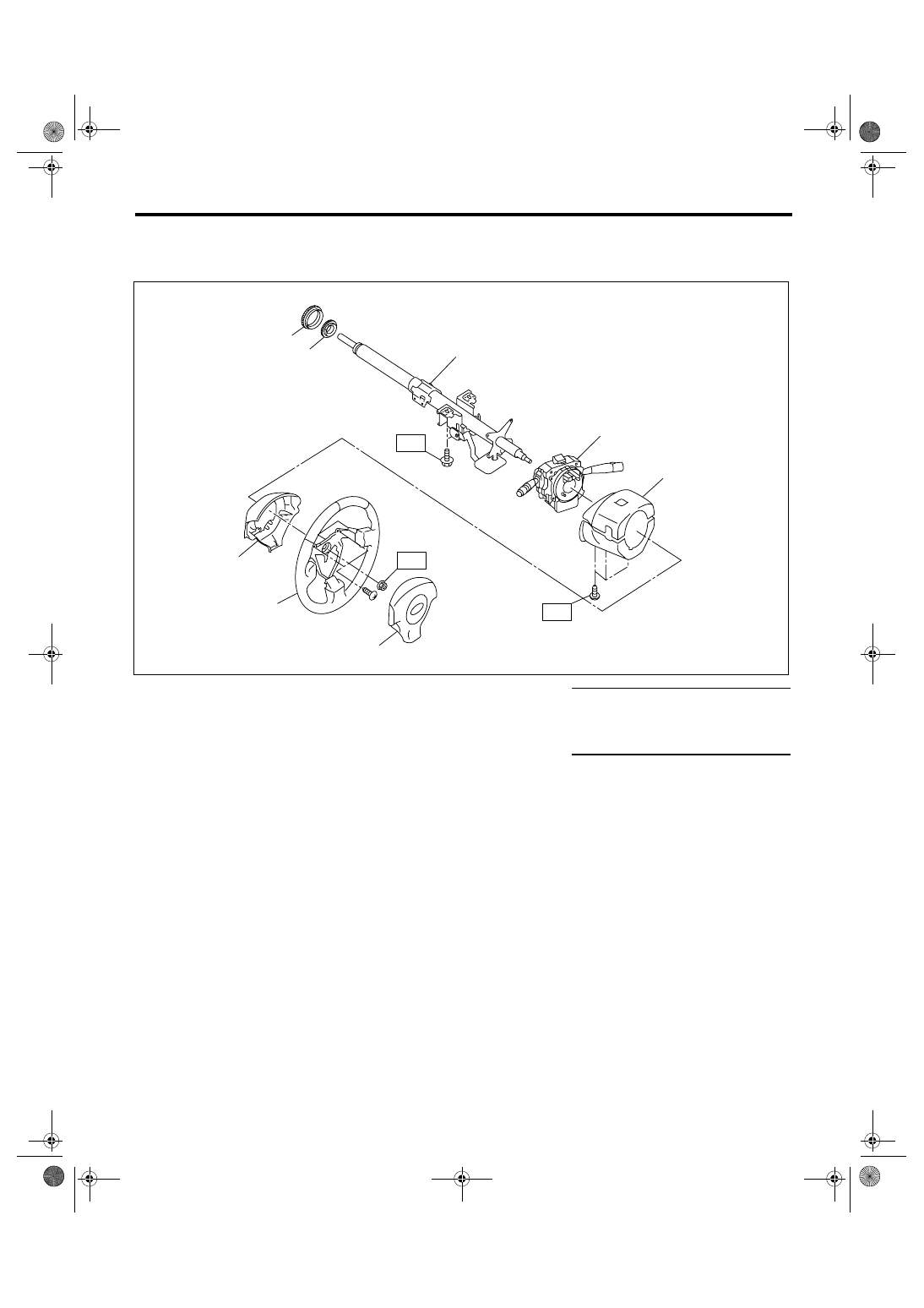

B: COMPONENT

1. STEERING WHEEL AND COLUMN

(1)

Bushing

(5)

Steering wheel

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Steering shaft

(6)

Airbag module

T1: 1.2 (0.12, 0.9)

(3)

Steering roll connector

(7)

Steering wheel lower cover

T2: 25 (2.5, 18.4)

(4)

Column cover

(8)

Insulator

T3: 45 (4.6, 33.2)

PS-00501

(6)

(5)

(8)

(1)

(2)

(3)

(4)

(7)

PS-5

POWER ASSISTED SYSTEM (POWER STEERING)

General Description

2. POWER ASSISTED SYSTEM

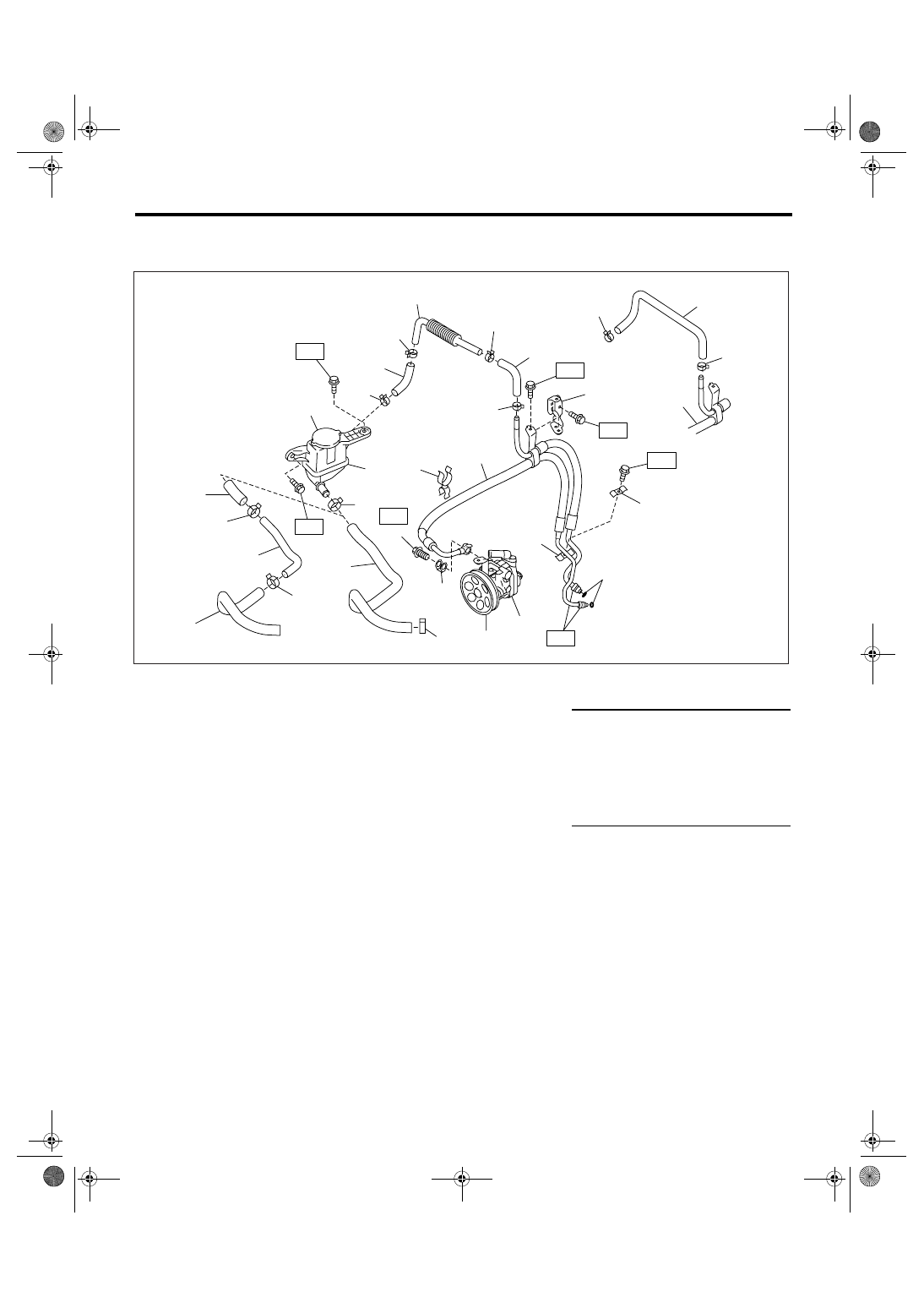

• Hose and tank (H4 model)

(1)

Eye bolt

(11)

Suction hose (Non-turbo model)

(21)

Return hose (Non-turbo model)

(2)

Hose

(12)

Suction hose (Turbo model)

(3)

Eye bolt gasket

(13)

Suction hose (Turbo model)

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(4)

Clip

(14)

Suction hose (Turbo model)

T1: 7.4 (0.75, 5.4)

(5)

Clamp E

(15)

Return hose (Turbo model)

T2: 10 (1.0, 7.4)

(6)

O-ring

(16)

Oil cooler (Turbo model)

T3: 13 (1.3, 9.6)

(7)

Cap

(17)

Return hose (Turbo model)

T4: 15 (1.5, 10.8)

(8)

Reservoir tank

(18)

Hose bracket

T5: 18 (1.84, 13.3)

(9)

Pulley

(19)

Clip

T6: 39 (4.0, 28.9)

(10)

Oil pump

(20)

Clip

PS-00695

(11)

(1)

(12)

(4)

(13)

(4)

(8)

(7)

(19)

(15)

(19)

(20)

(2)

(19)

(17)

(18)

(5)

(6)

(10)

(9)

(4)

(3)

(16)

(14)

(5)

(19)

(21)

(2)

PS-6

POWER ASSISTED SYSTEM (POWER STEERING)

General Description

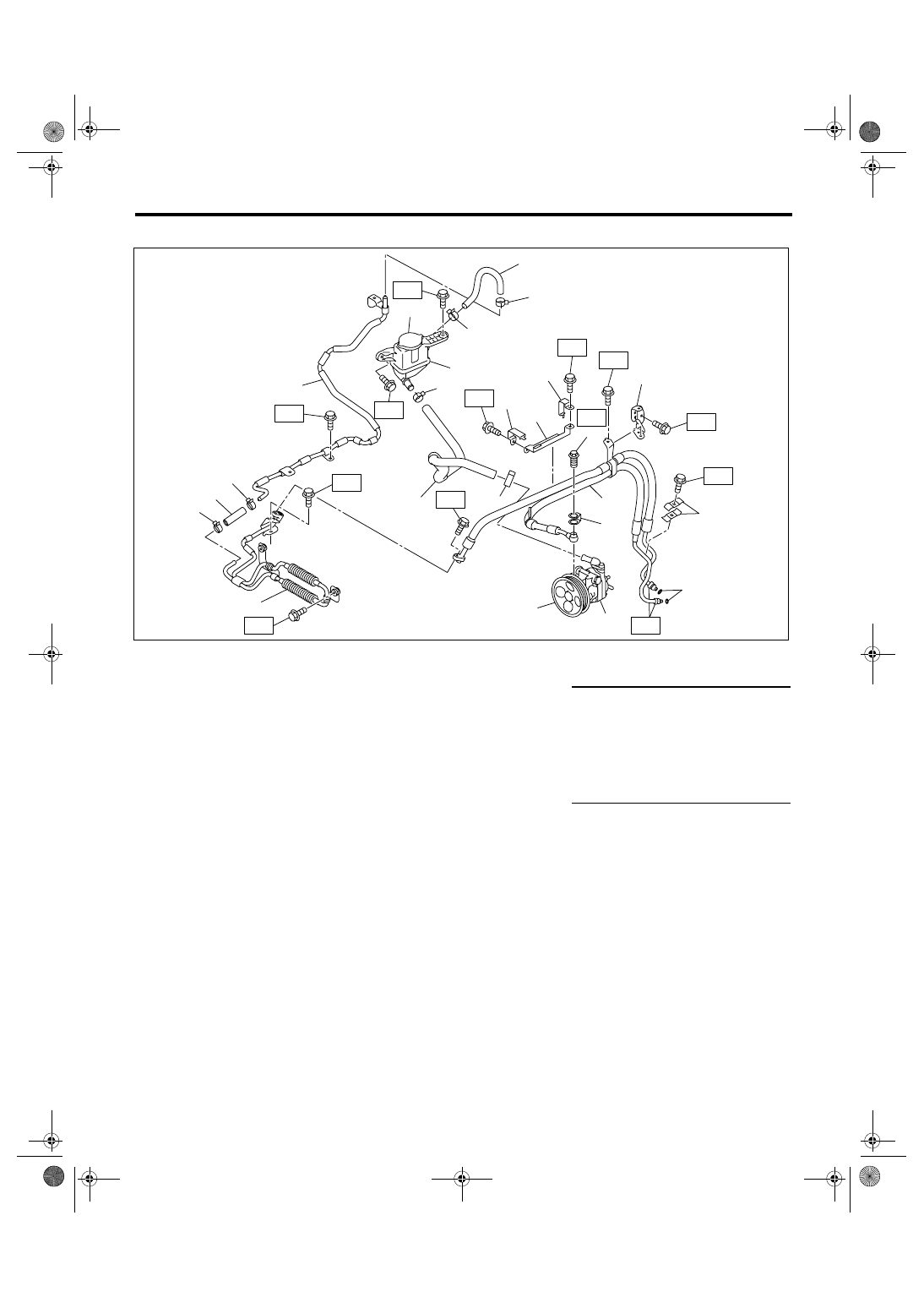

• Hose and tank (H6 model)

(1)

Eye bolt

(10)

Oil pump

(19)

Hose bracket D

(2)

Hose

(11)

Suction hose

(3)

Eye bolt gasket

(12)

Cooler pipe

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(4)

Clip

(13)

Return hose

T1: 7.4 (0.75, 5.4)

(5)

Clamp E

(14)

Return pipe

T2: 10 (1.0, 7.4)

(6)

O-ring

(15)

Return hose

T3: 13 (1.3, 9.6)

(7)

Cap

(16)

Hose bracket A

T4: 15 (1.5, 10.8)

(8)

Reservoir tank

(17)

Hose bracket B

T5: 18 (1.8, 13.3)

(9)

Pulley

(18)

Hose bracket C

T6: 39 (4.0, 28.9)

PS-00621

(1)

(16)

(14)

(13)

(17)

(15)

(18)

(19)

(12)

(2)

(4)

(7)

(8)

(4)

(3)

(10)

(11)

(5)

(6)

(9)

(4)
