POWER ASSISTED SYSTEM (POWER STEERING)

General Description

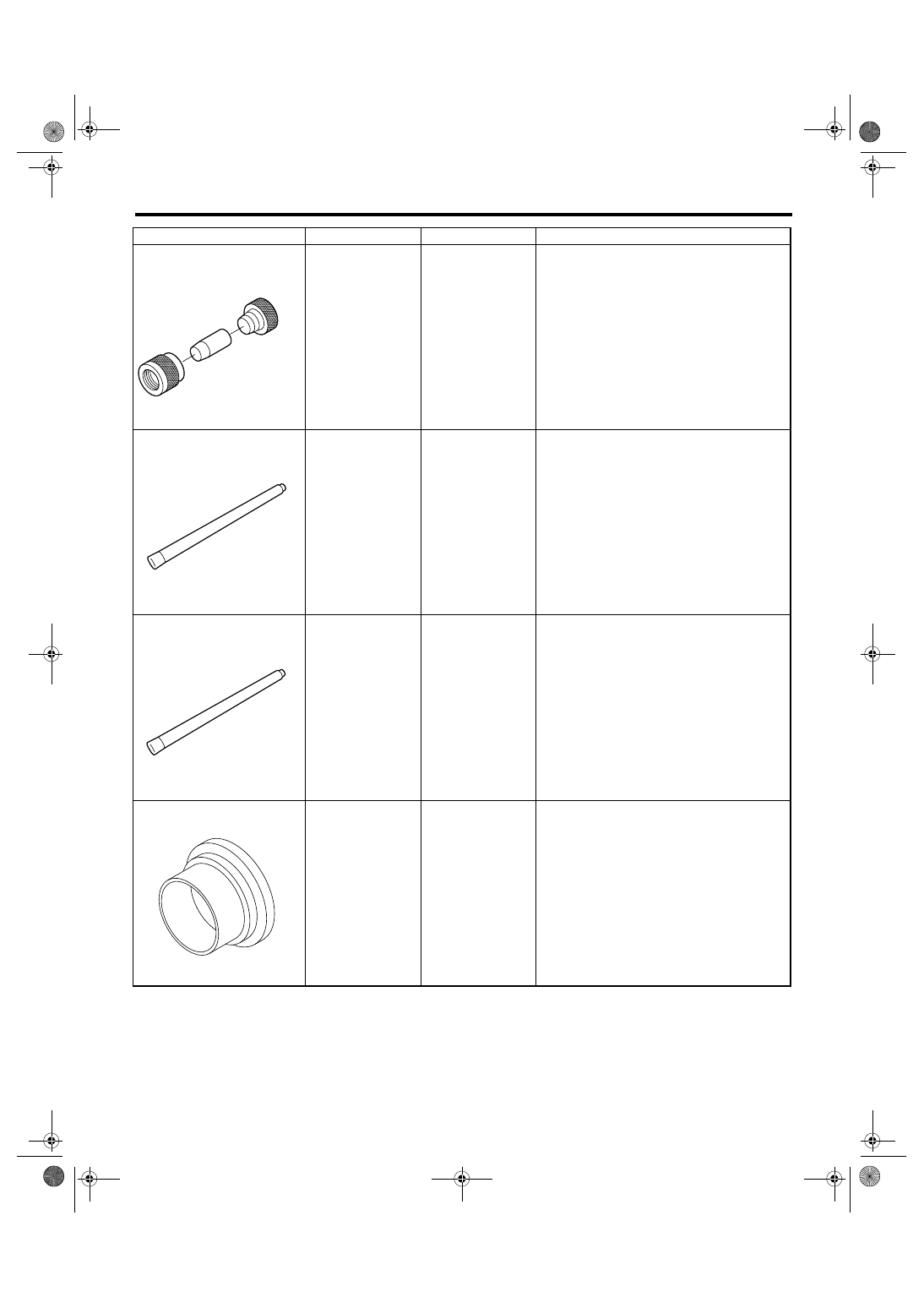

927490000

INSTALLER A, B, C

• Used for installing oil seal to rack assembly.
• Except for turbo and 3.0 R model.

34199FE010

REMOVER

• Used for removing back-up ring and oil seal.
• For turbo and 3.0 R model.

927580000

REMOVER

• Used for removing back-up ring and oil seal.
• Except for turbo and 3.0 R model.

34199FE050

GUIDE

• Used for installing rack and seal into housing
assembly.
• For turbo and 3.0 R model.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-927490000

ST34199FE010

ST-927580000

ST34199FE050

PS-16

POWER ASSISTED SYSTEM (POWER STEERING)

General Description

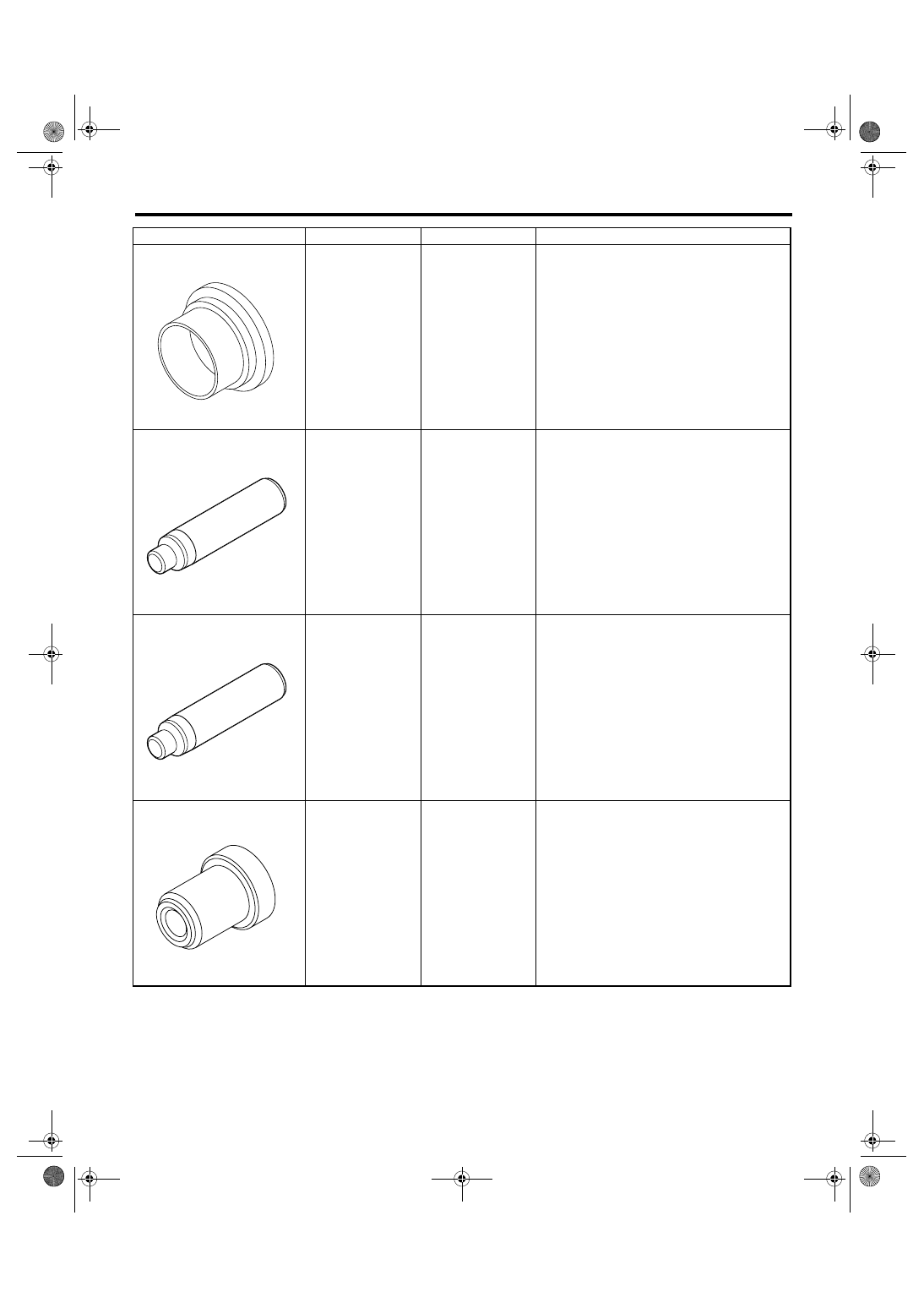

34199AE000

GUIDE

• Used for installing rack and seal into housing
assembly.
• Except for turbo and 3.0 R model.

34199FE000

INSTALLER &
REMOVER

• Used for removing and installing rack oil seal
(outer & inner).
• For turbo and 3.0 R model.

34099FA030

INSTALLER &
REMOVER

• Used for removing and installing rack oil seal
(outer & inner).
• Except for turbo and 3.0 R model.

34199FE060

INSTALLER

• Used for installing rack oil seal (outer).
• For turbo and 3.0 R model.
• For RHD model.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST34199AE000

ST34199FE000

ST34099FA030

ST34199FE060

PS-17

POWER ASSISTED SYSTEM (POWER STEERING)

General Description

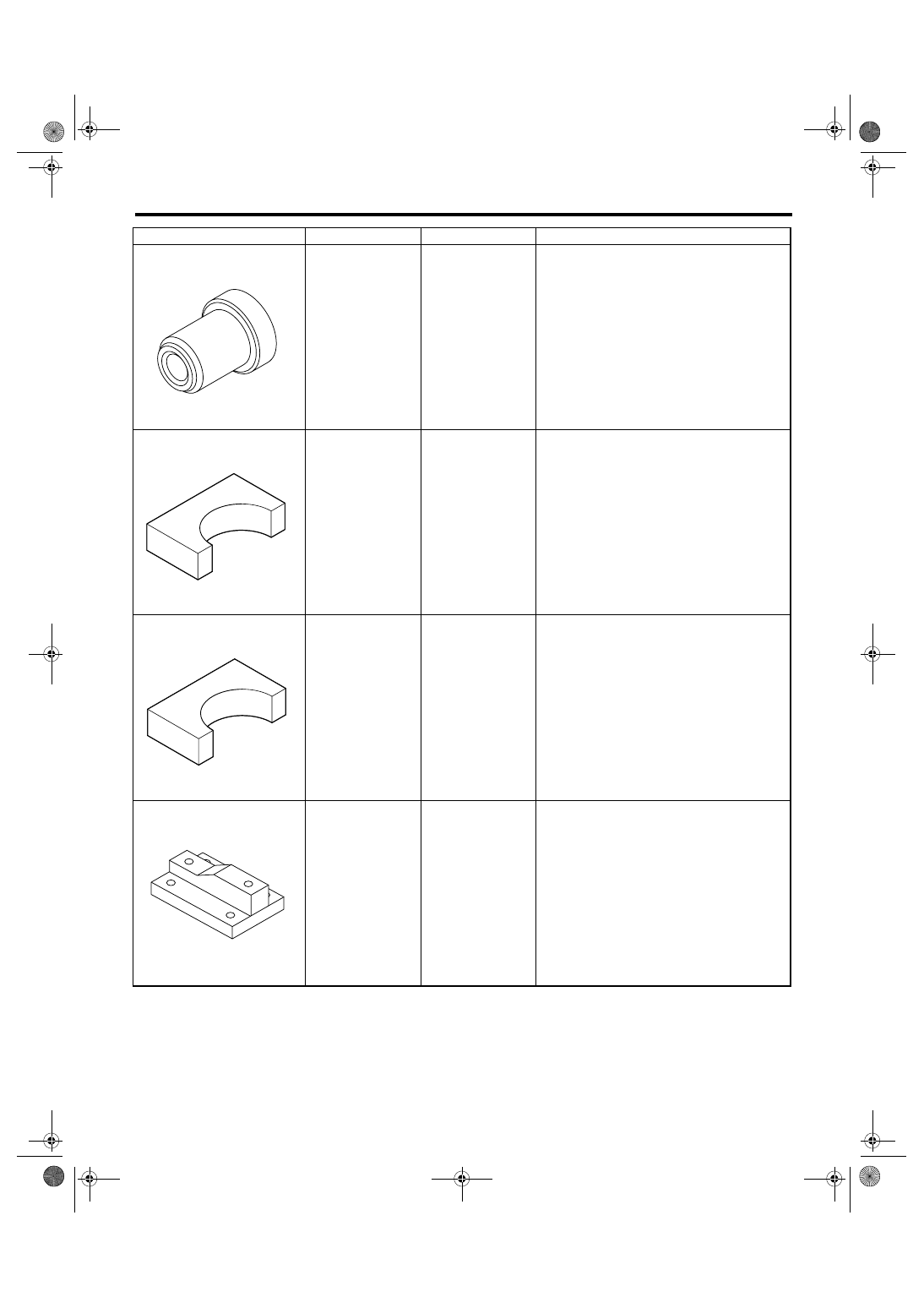

34199AE010

INSTALLER

• Used for installing rack oil seal (outer).
• Except for turbo and 3.0 R model.
• For RHD model.

34199FE020

BASE

• Used for support housing assembly.
• For turbo and 3.0 R model.
• For RHD model.

34099FA070

BASE

• Used for support housing assembly.
• Except for turbo and 3.0 R model.
• For RHD model.

34199AG000

BOSS D

• Used when inspecting characteristic of gear-
box assembly and disassembling it.
• Used with STAND (926200000).

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST34199AE010

ST34199FE020

ST34099FA070

ST34199AG000

PS-18

POWER ASSISTED SYSTEM (POWER STEERING)

General Description

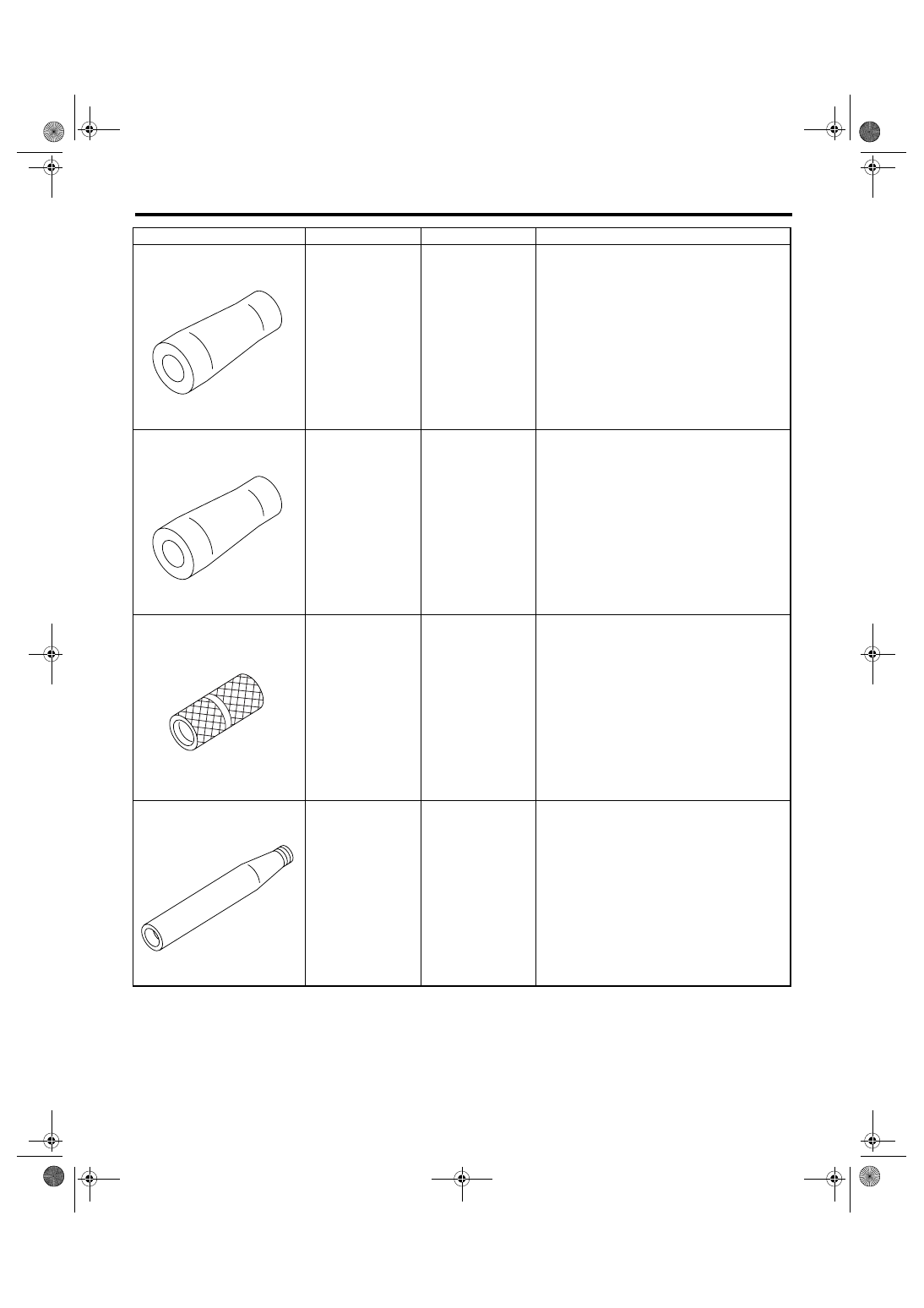

34199AG040

GUIDE

• Used for installing seal ring of rack.
• For 3.0 R model.
• For LHD model.

34199AG030

GUIDE

• Used for installing seal ring of rack.
• Except for 3.0 R model.
• For LHD model.

34199AG070

FORMER

• Used for forming seal ring of pinion.
• For LHD model.

34199AG020

GUIDE

• Used for installing seal ring of pinion.
• For LHD model.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST34199AG040

ST34199AG030

ST34199AG070

ST34199AG020
