5AT-15

AUTOMATIC TRANSMISSION

General Description

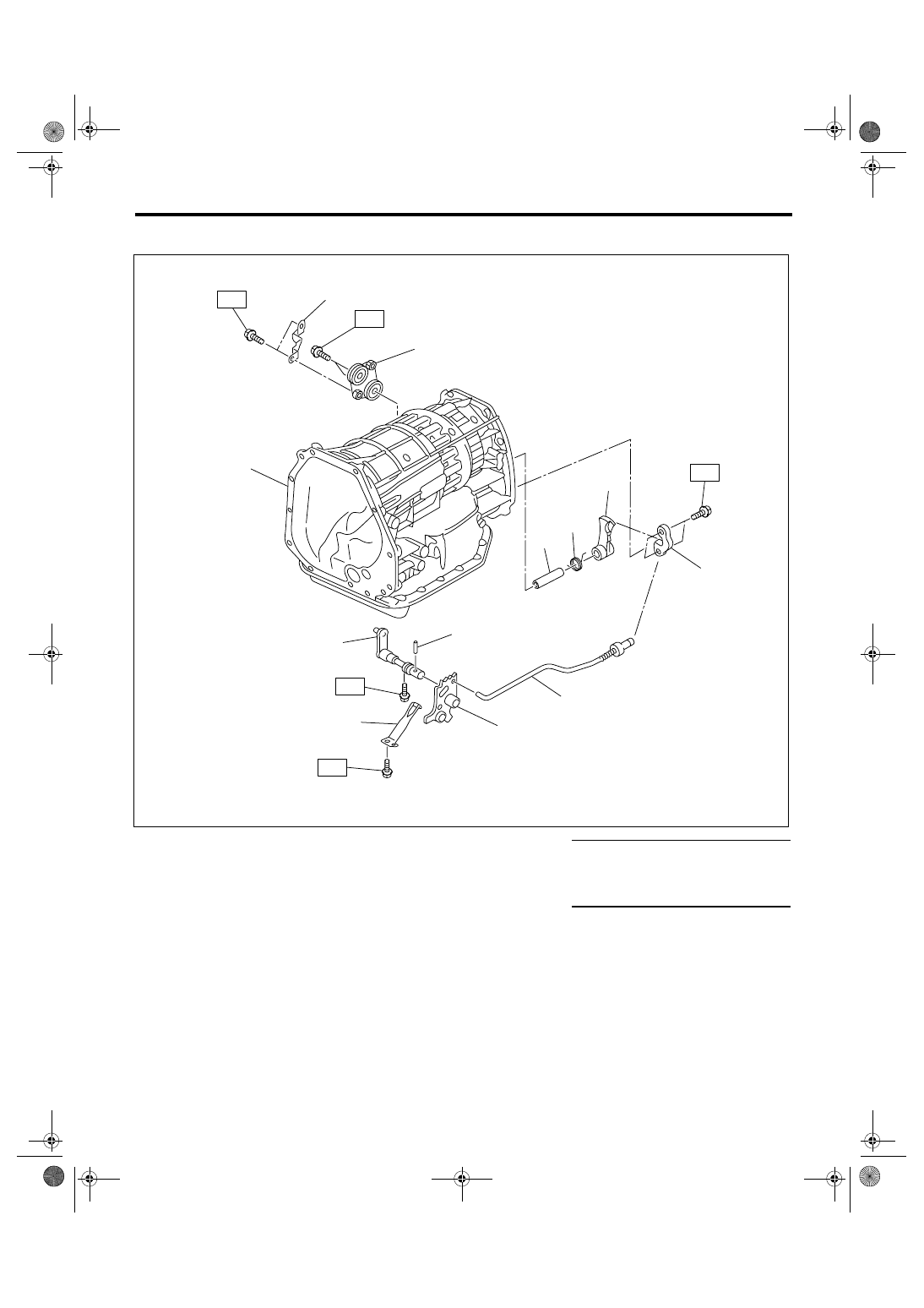

10.TRANSMISSION CONTROL DEVICE & PARKING SUPPORT

(1)

Bracket

(7)

Manual plate

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Floating bracket

(8)

Parking rod

T1: 6 (0.6, 4.4)

(3)

AT main case

(9)

Parking support actuator

T2: 25 (2.5, 18.4)

(4)

Range select lever

(10)

Parking pawl shaft

T3: <Ref. to 5AT-80, Parking Pawl.>

(5)

Straight pin

(11)

Return spring

(6)

Detent spring

(12)

Parking pawl

AT-03022

T2

T2

T3

T1

T1

(1)

(2)

(3)

(10)

(11)

(8)

(7)

(5)

(4)

(6)

(12)

(9)

5AT-16

AUTOMATIC TRANSMISSION

General Description

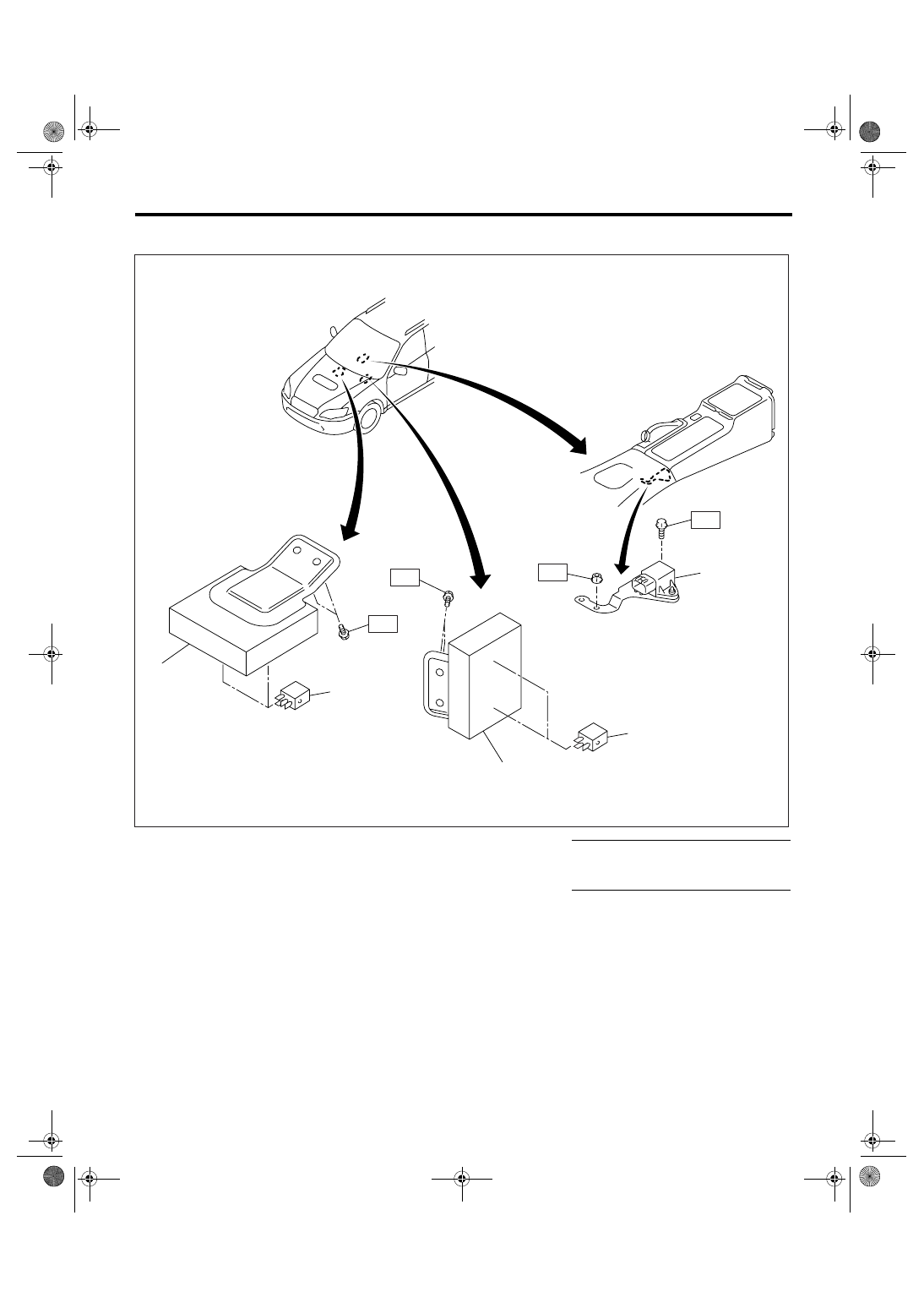

11.TRANSMISSION CONTROL MODULE

(1)

Transmission control module
(TCM) (RHD model)

(3)

Lateral G sensor

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(4)

Transmission control module
(TCM) (LHD model)

T1: 7.5 (0.76, 5.5)

(2)

Relay

T2: 24.5 (2.5, 18.1)

AT-02036

T2

T1

T1

(3)

(2)

(1)

(2)

(4)

T1

5AT-17

AUTOMATIC TRANSMISSION

General Description

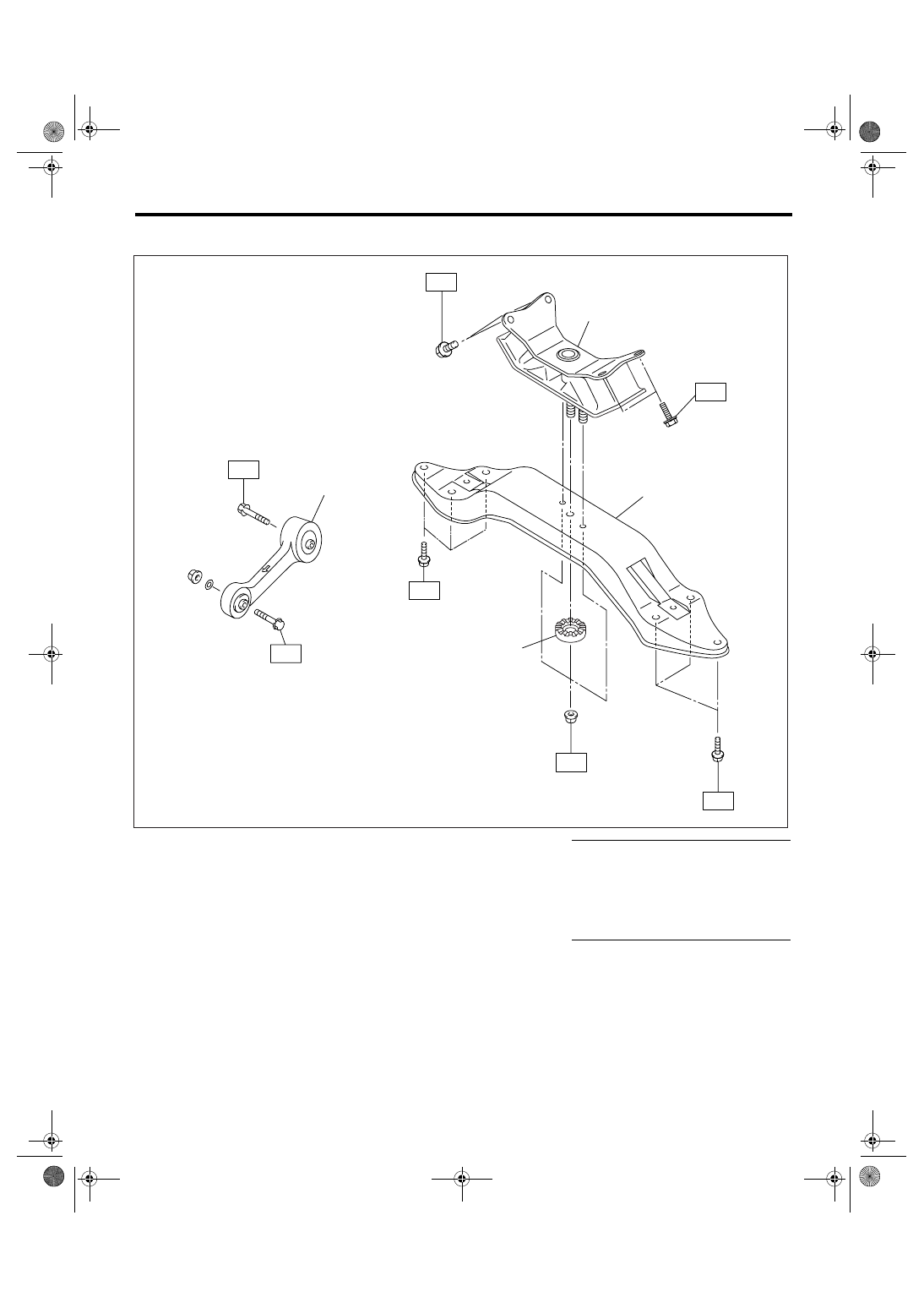

12.TRANSMISSION MOUNTING

(1)

Pitching stopper

(3)

Crossmember

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Rear cushion rubber

(4)

Stopper

T1: 35 (3.6, 26)

T2: 40 (4.1, 29.5)

T3: 50 (5.1, 36.9)

T4: 58 (5.9, 42.8)

T5: 70 (7.1, 51.6)

AT-01738

(2)

(3)

(4)

(1)

T4

T5

T5

T2

T2

T1

T3

S552.fm  17 ページ  ２００７年１２月３日　月曜日　午後１時４２分

5AT-18

AUTOMATIC TRANSMISSION

General Description

C: CAUTION

• Wear work clothing, including a cap, protective
goggles and protective shoes during operation.
• Remove contamination including dirt and corro-
sion before removal, installation or disassembly.
• Keep the disassembled parts in order and pro-
tect them from dust and dirt.
• Until the oil pan is removed, do not place with the
oil pan side facing up to prevent foreign matter from
entering the valve body.
• Before removal, installation or disassembly, be
sure to clarify the failure. Avoid unnecessary re-
moval, disassembly and replacement.
• When disassembling the case and other light al-
loy parts, disassemble them by slightly tapping with
a plastic hammer. Do not pry it apart with a screw-
driver or other tool.
• Be careful not to burn yourself, because each
part on the vehicle is hot after running.

• Use SUBARU genuine gear oil, grease etc. or
the equivalent. Do not mix them with that of another
grade or from other manufacturers.
• Be sure to tighten fasteners including bolts and
nuts to the specified torque.
• Place shop jacks or rigid racks at the specified
points.
• Apply gear oil onto sliding or revolution surfaces
before installation.
• Replace deformed or otherwise damaged snap
rings with new ones.
• Before installing O-rings or oil seals, apply suffi-
cient amount of ATF fluid to avoid damage and de-
formation.
• Be careful not to incorrectly install or fail to install
O-rings, snap rings and other such parts.
• Before securing a part on a vise, place cushion-
ing material such as wood blocks, aluminum plate,
or cloth between the part and the vise.
• Avoid damaging the mating surface of the case.
• Before applying liquid gasket, completely re-
move the old seal.

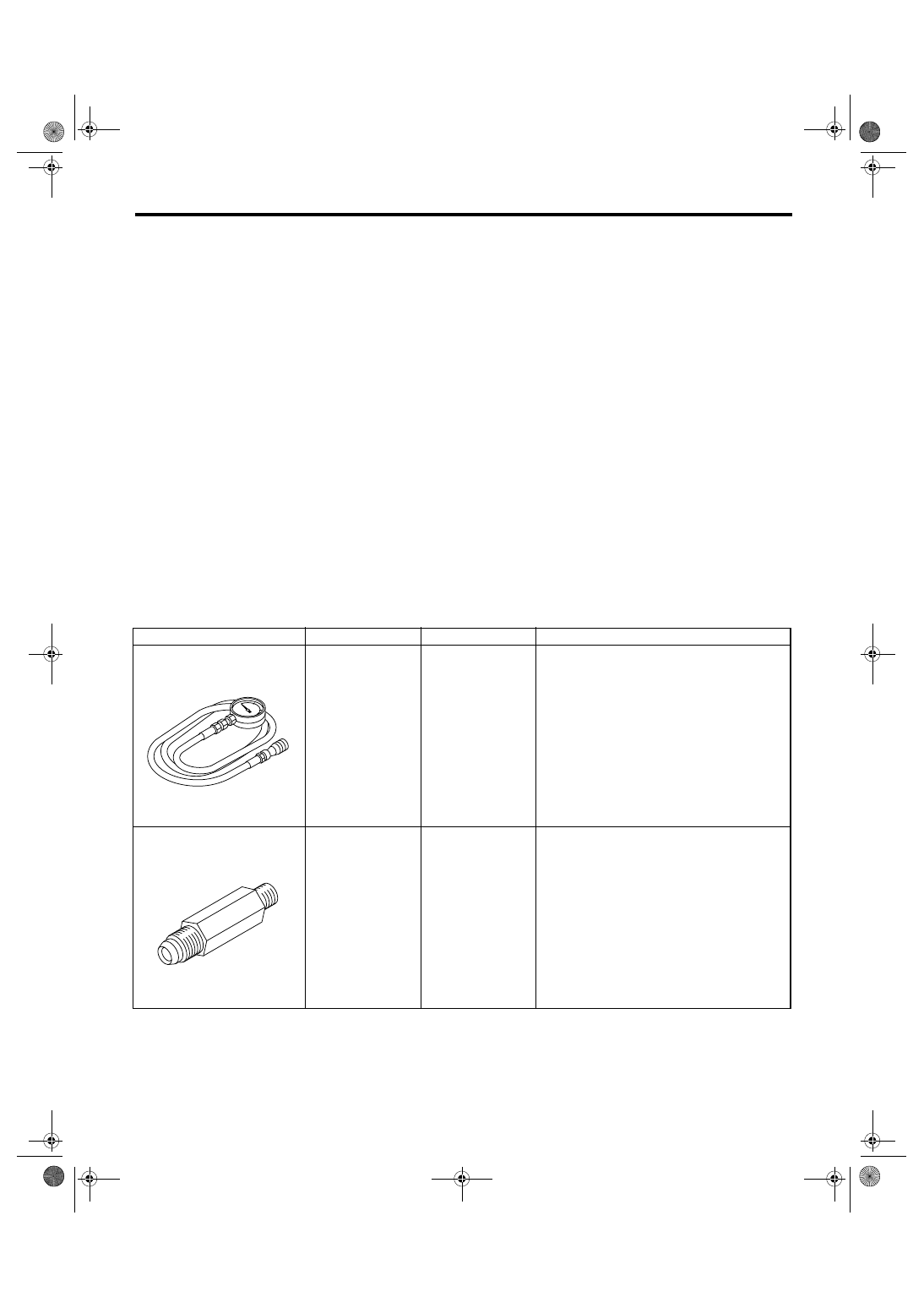

D: PREPARATION TOOL

1. SPECIAL TOOL

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

498575400

OIL PRESSURE
GAUGE ASSY

Used for measuring oil pressure.

498897200

ADAPTER

• Used with oil pump cover installed on when
measuring line pressure.
• Used with extension case installed on when
measuring transfer clutch pressure.

ST-498575400

ST-498897200
