Subaru Legacy (2005 year). Manual - part 578

5AT-11

AUTOMATIC TRANSMISSION

General Description

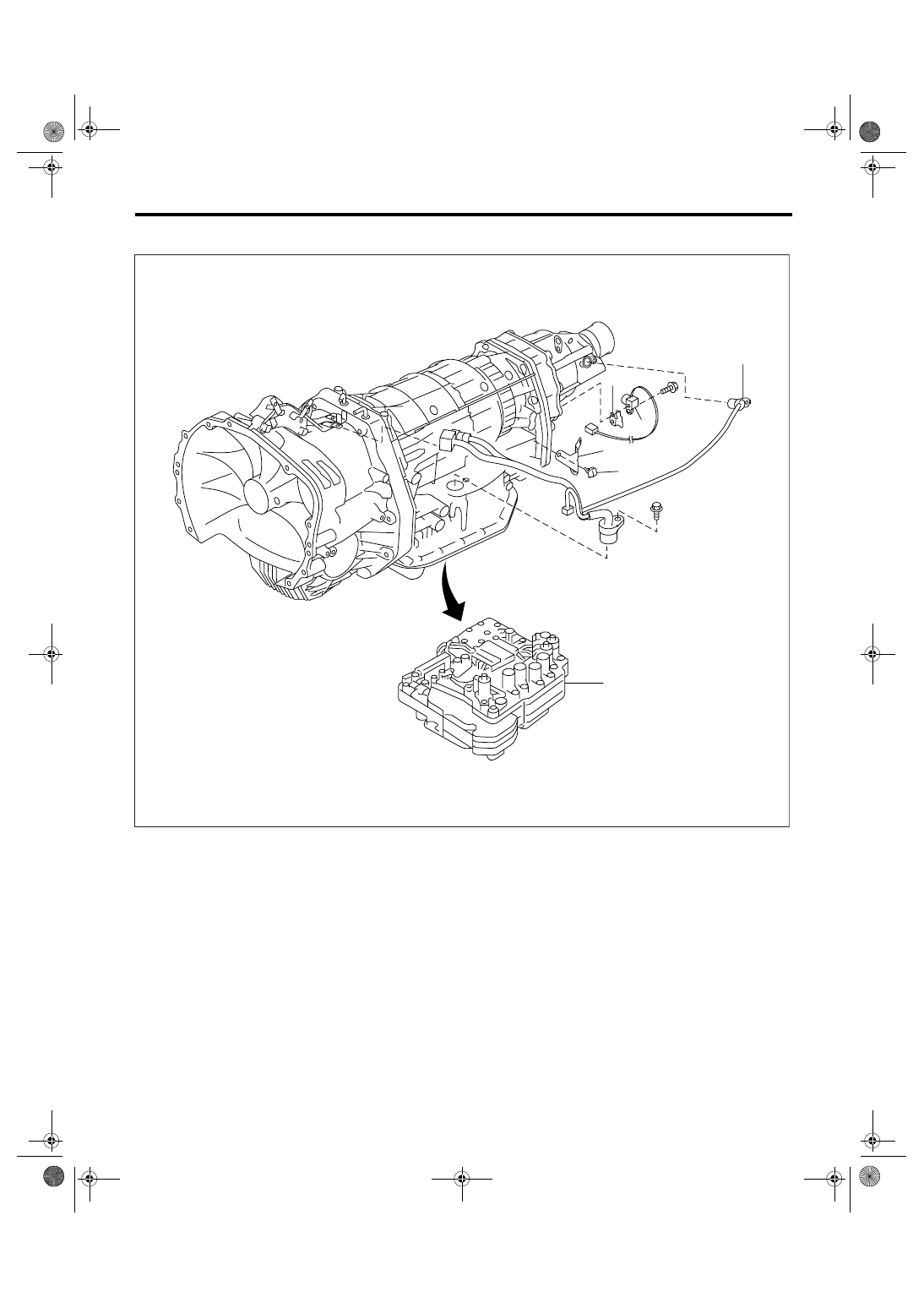

7. CONTROL VALVE & TRANSMISSION HARNESS

(1)

Transmission harness ASSY

(3)

Sensor cover

(5)

Clip

(2)

Front vehicle speed sensor

(4)

Harness bracket

(6)

Control valve ASSY

AT-02020

(1)

(2)

(3)

(4)

(5)

(6)

5AT-12

AUTOMATIC TRANSMISSION

General Description

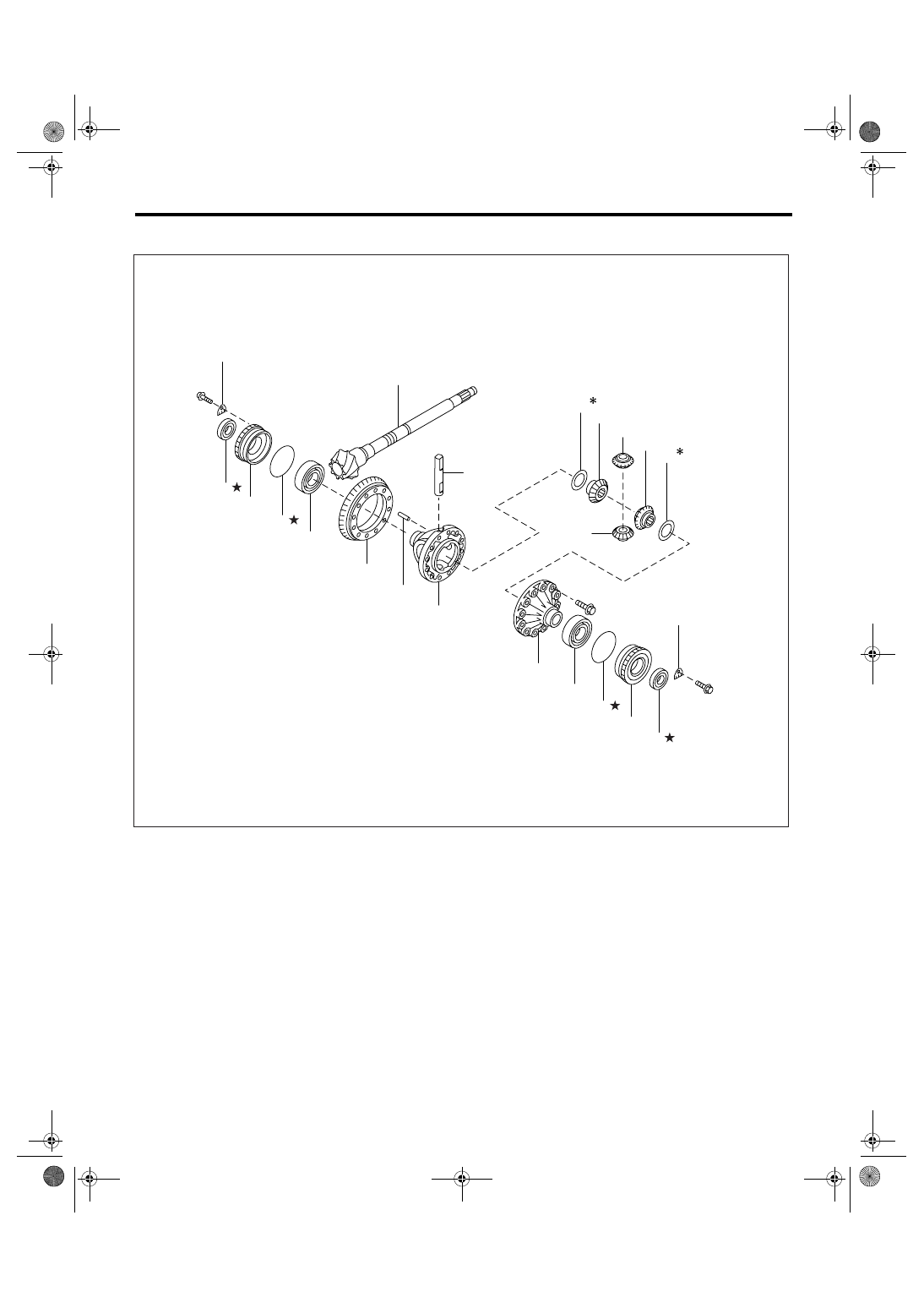

8. DIFFERENTIAL GEAR

(1)

Retainer plate

(7)

Drive pinion shaft

(13)

Washer

(2)

Differential side retainer RH

(8)

Pinion shaft

(14)

Differential bevel pinion

(3)

O-ring

(9)

Straight pin

(15)

Differential side retainer LH

(4)

Oil seal

(10)

Differential case RH

(5)

Taper roller bearing

(11)

Differential case LH

(6)

Hypoid driven gear

(12)

Differential bevel gear

AT-03008

(1)

(7)

(8)

(13)

(12)

(12)

(14)

(13)

(1)

(2)

(3)

(5)

(10)

(6)

(9)

(11)

(5)

(3)

(15)

(4)

(4)

(14)

S552.fm  12 ページ  ２００７年１２月３日　月曜日　午後１時４２分

5AT-13

AUTOMATIC TRANSMISSION

General Description

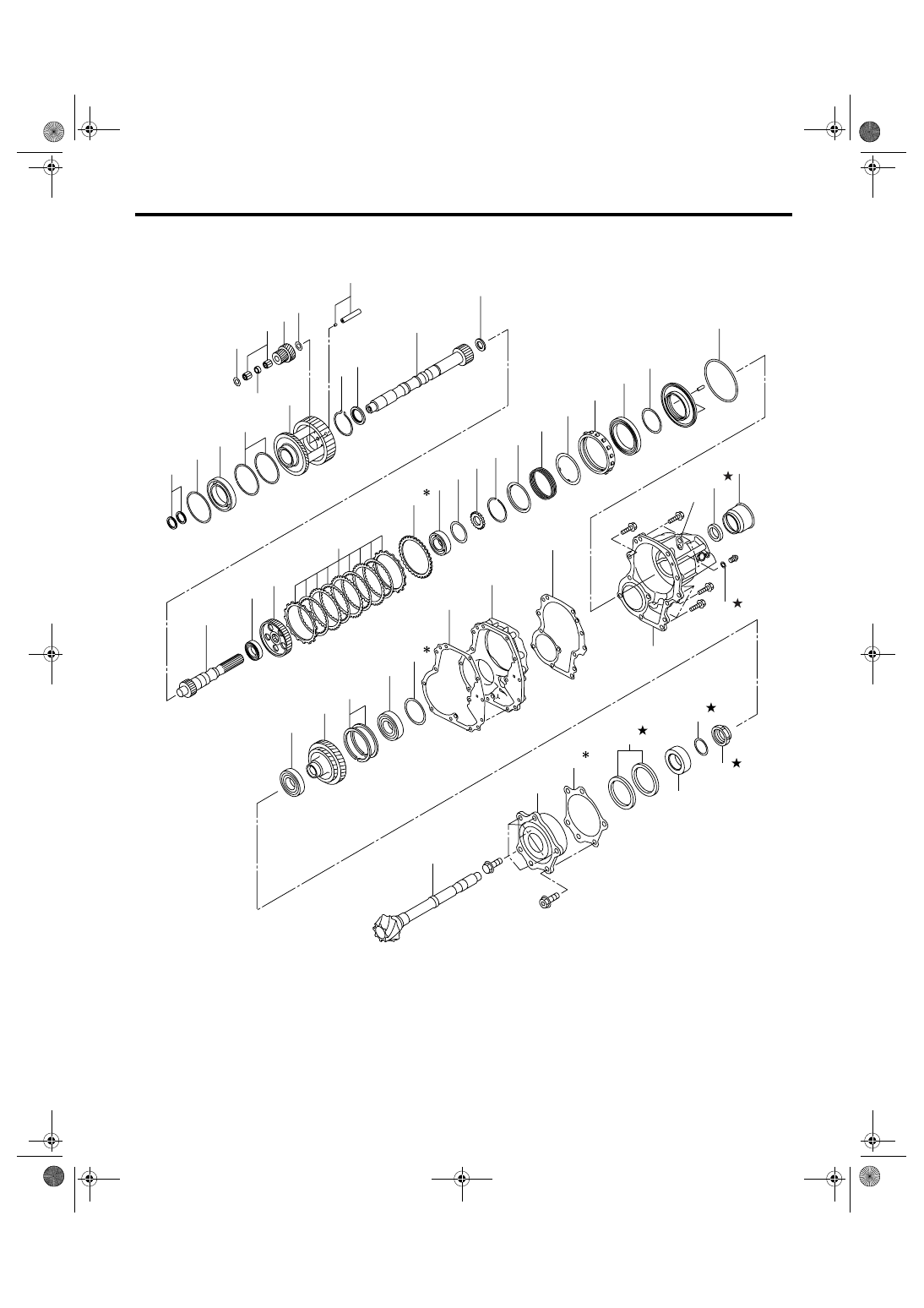

9. TRANSFER CASE, EXTENSION CASE & REDUCTION GEAR

AT-03009

(47)

(49)

(50)

(48)

(45)

(46)

(10)

(12)

(13)

(15)

(14)

(4)

(3)

(6)

(5)

(7)

(8)

(9)

(11)

(2)

(18)

(20)

(34)

(33)

(32)

(35)

(37)

(36)

(38)

(39)

(40)

(42)

(44)

(43)

(21)

(22)

(23)

(24)

(25)

(26)

(27)

(28)

(29)

(30)

(31)

(19)

(17)

(16)

(1)

(41)

(51)

5AT-14

AUTOMATIC TRANSMISSION

General Description

(1)

Seal ring

(18)

Transfer clutch hub

(35)

Snap ring

(2)

Reduction gear shim

(19)

Transfer clutch plate

(36)

Ball bearing

(3)

Ball bearing

(20)

Driven plate No. 3.

(37)

Rear drive shaft shim

(4)

Snap ring

(21)

Ball bearing

(38)

Gasket

(5)

Planetary pinion washer

(22)

Rear drive shaft shim

(39)

Intermediate case

(6)

Needle bearing

(23)

Revolution gear

(40)

Shim

(7)

Spacer

(24)

Snap ring

(41)

Extension case

(8)

Pinion gear

(25)

Clutch spring retainer

(42)

Transmission hanger

(9)

Washer

(26)

Return spring

(43)

Oil seal

(10)

Planetary carrier ASSY

(27)

Spring retainer

(44)

Dust cover

(11)

Planetary pinion shaft ASSY

(28)

Pressure plate

(45)

Taper roller bearing

(12)

Snap ring

(29)

Ball bearing

(46)

Drive pinion shim

(13)

Thrust bearing

(30)

O-ring

(47)

Oil seal

(14)

Intermediate shaft

(31)

C-ring

(48)

Drive pinion collar

(15)

Thrust washer

(32)

Drive pinion shaft

(49)

O-ring

(16)

Rear drive shaft

(33)

Ball bearing

(50)

Lock nut

(17)

Ball bearing

(34)

Reduction driven gear

(51)

O-ring
