Subaru Legacy (2005 year). Manual - part 577

5AT-7

AUTOMATIC TRANSMISSION

General Description

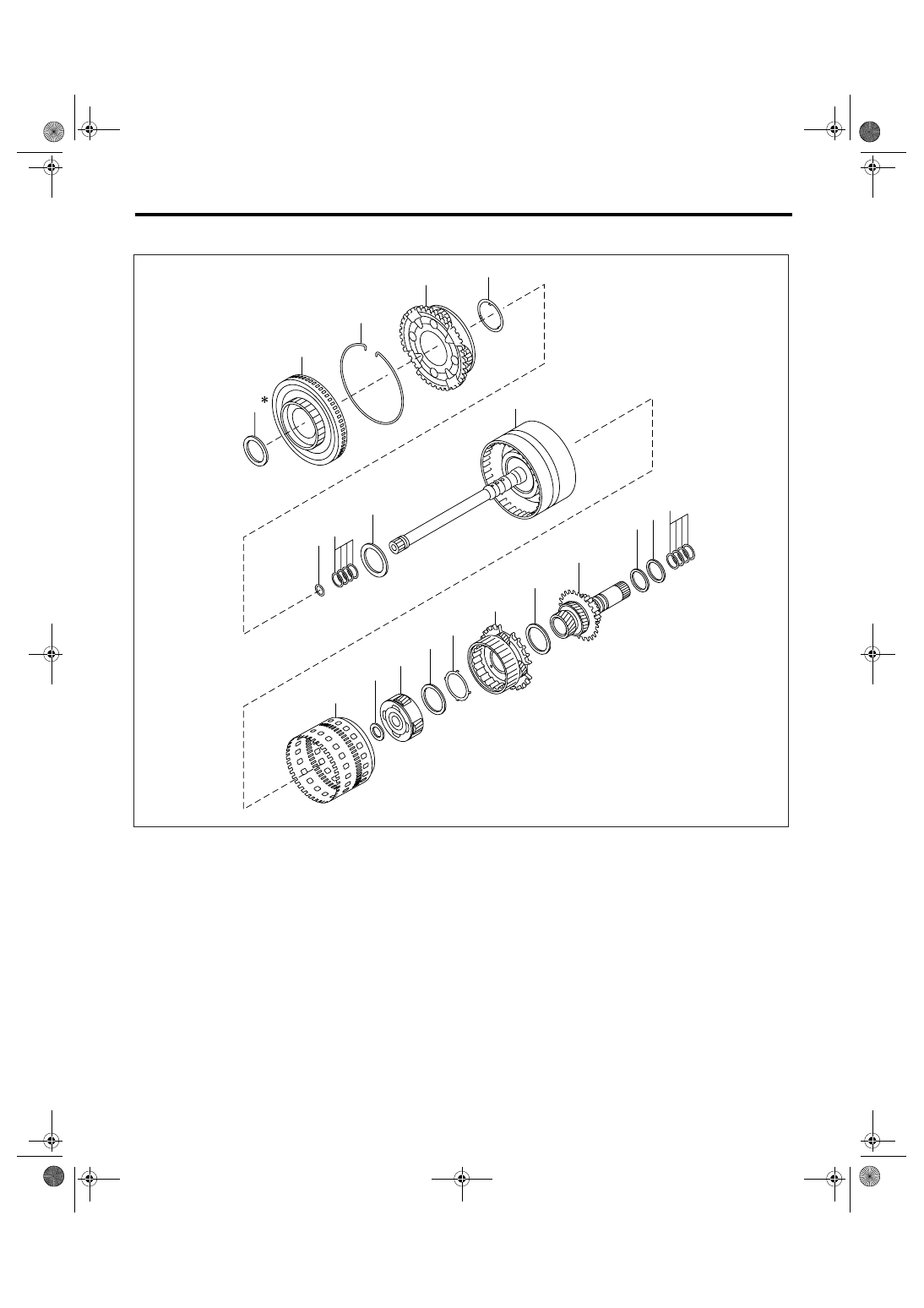

3. FRONT PLANETARY CARRIER AND MIDDLE & REAR PLANETARY CARRIER

(1)

Thrust bearing

(8)

Thrust bearing

(15)

Rear carrier ASSY

(2)

Front sun gear ASSY

(9)

Input clutch ASSY

(16)

Thrust bearing

(3)

Snap ring

(10)

Rear internal gear ASSY

(17)

Middle & Rear sun gear ASSY

(4)

Front carrier ASSY

(11)

Thrust bearing

(18)

Washer

(5)

Race bearing

(12)

Middle carrier ASSY

(19)

Thrust bearing

(6)

O-ring

(13)

Thrust bearing

(20)

Seal ring

(7)

Seal ring

(14)

Race bearing

AT-03006

(2)

(6)

(7)

(8)

(10)

(11)

(12)

(13)

(14)

(15)

(16)

(17)

(18)

(19)

(9)

(3)

(4)

(5)

(1)

(20)

5AT-8

AUTOMATIC TRANSMISSION

General Description

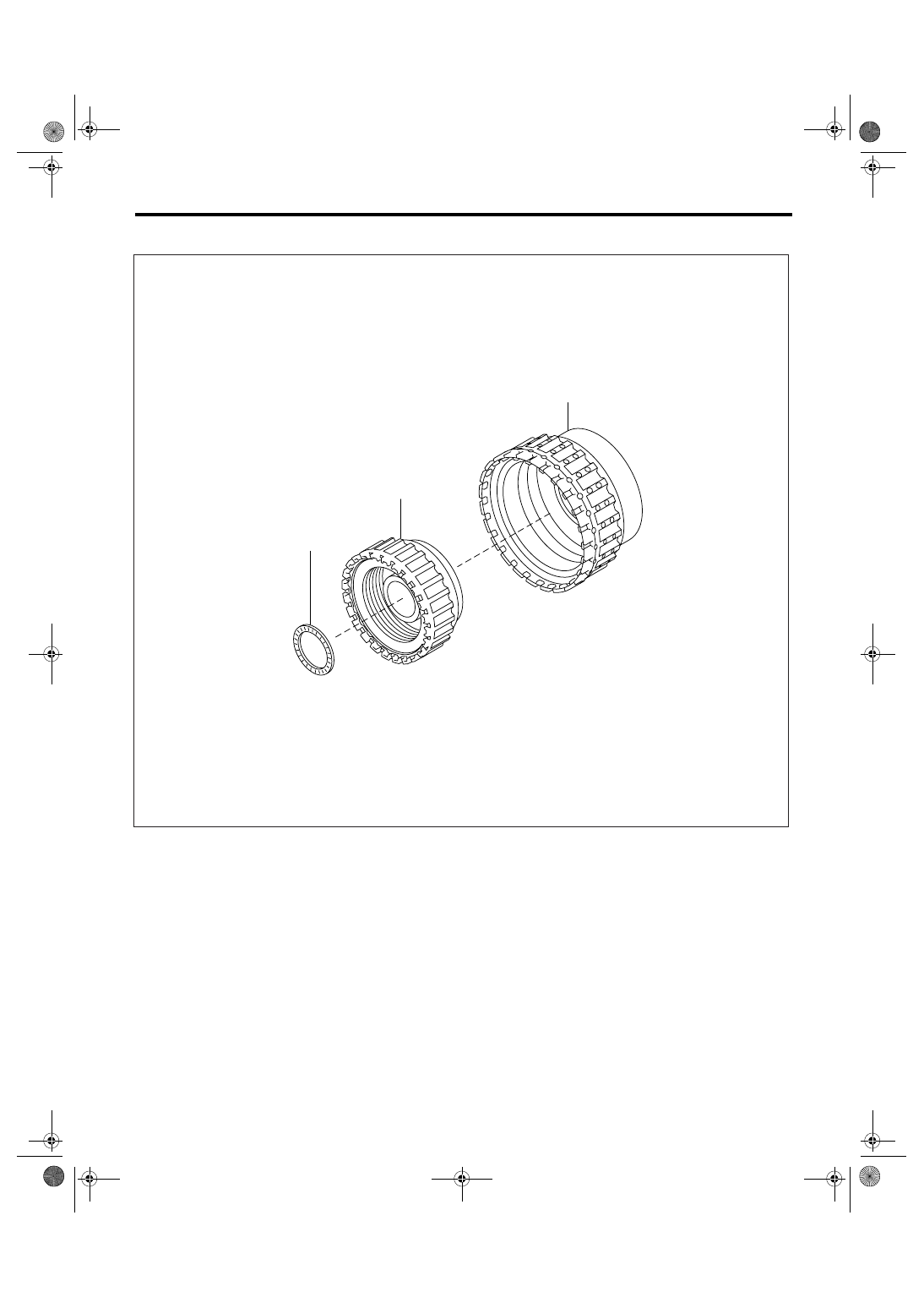

4. DIRECT CLUTCH AND HIGH & LOW REVERSE CLUTCH

(1)

Thrust bearing

(2)

High & low reverse clutch ASSY

(3)

Direct clutch ASSY

AT-02018

(3)

(2)

(1)

5AT-9

AUTOMATIC TRANSMISSION

General Description

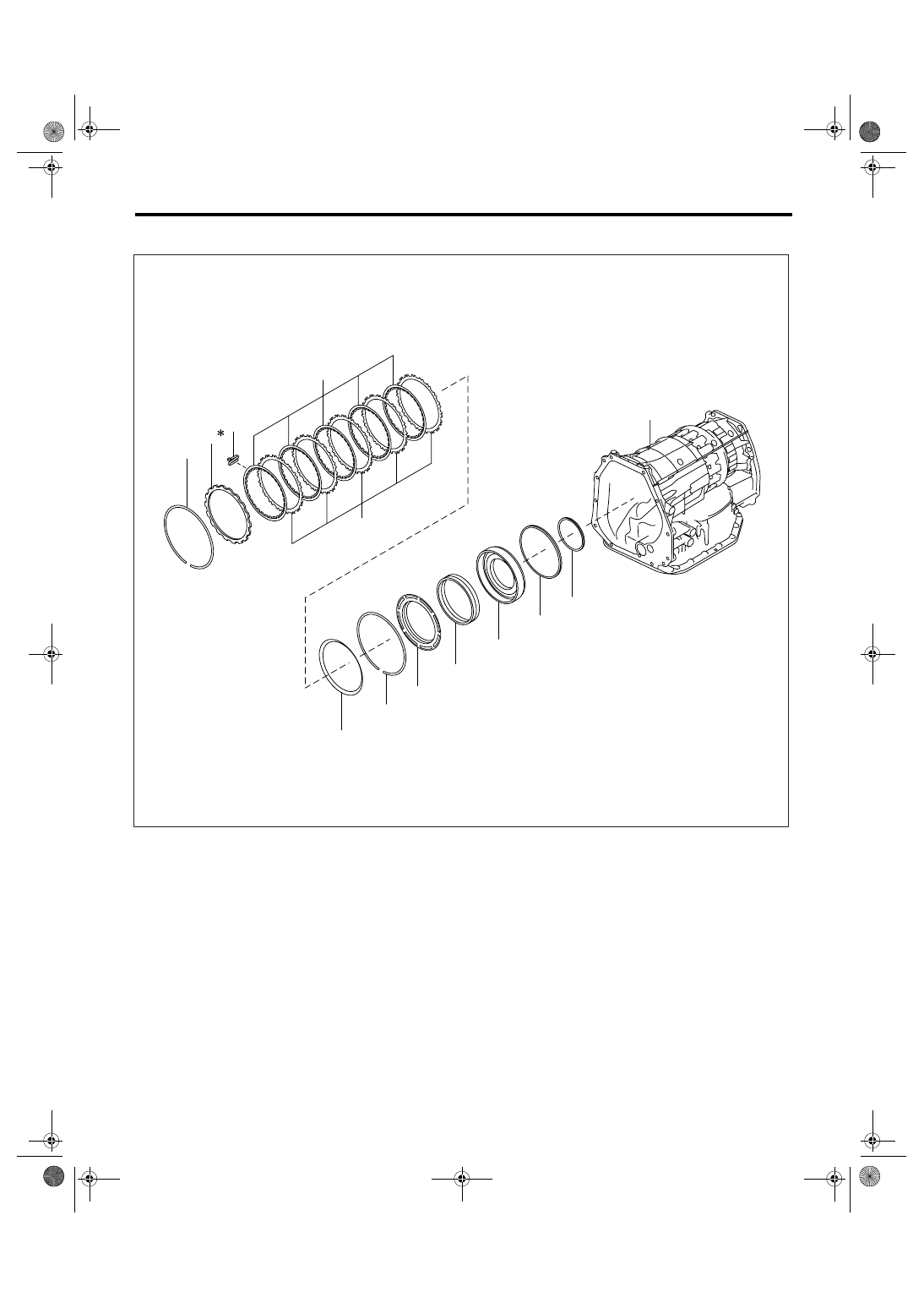

5. REVERSE BRAKE

(1)

Snap ring

(6)

Dish plate

(11)

D-ring (Outer)

(2)

Retainer plate

(7)

Snap ring

(12)

D-ring (Inner)

(3)

Leaf spring

(8)

Retainer

(13)

AT main case

(4)

Drive plate

(9)

Leaf spring

(5)

Driven plate

(10)

Reverse brake piston

AT-03007

(1)

(6)

(5)

(7)

(8)

(9)

(10)

(11)

(12)

(4)

(2)

(3)

(13)

5AT-10

AUTOMATIC TRANSMISSION

General Description

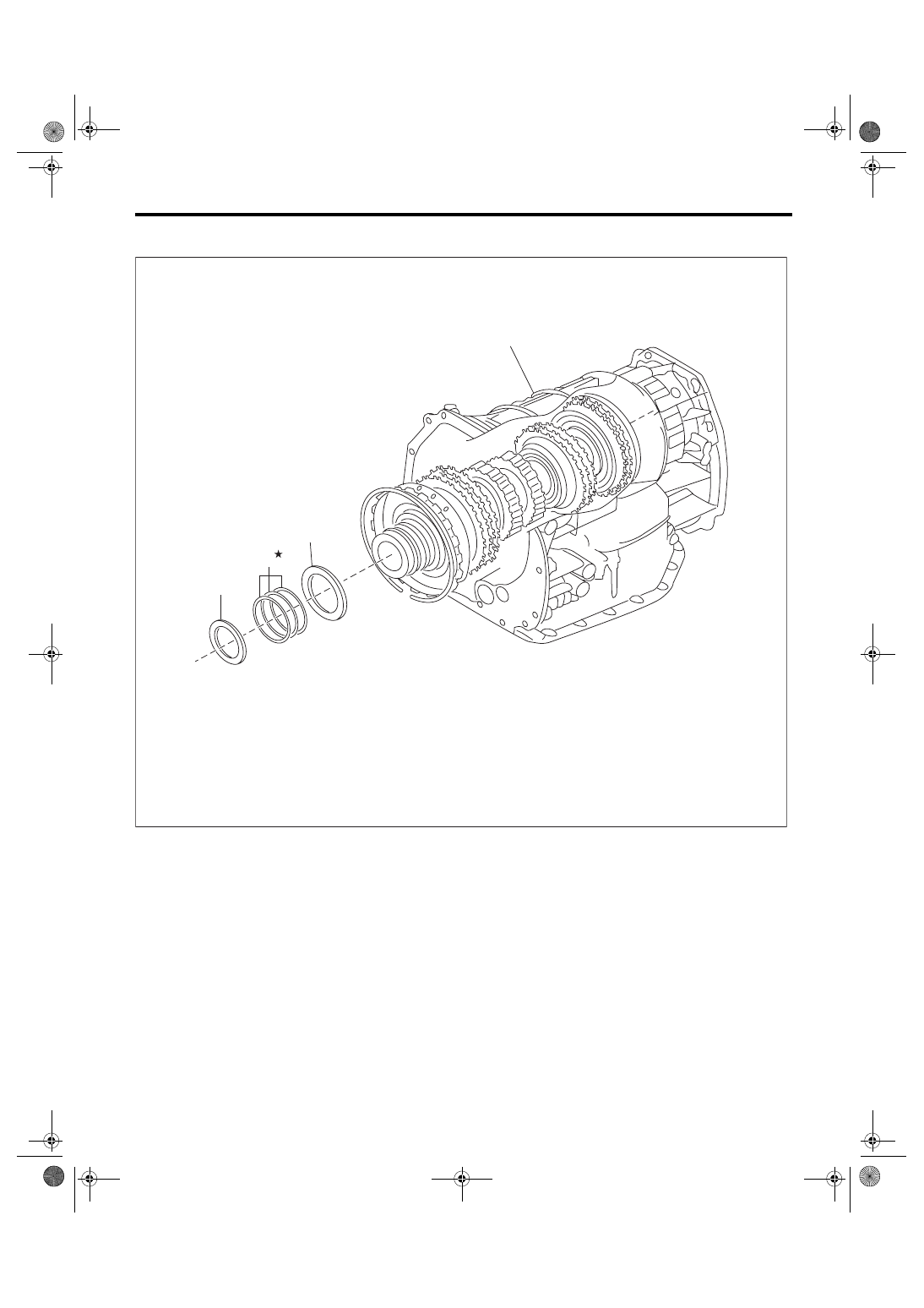

6. SHORT AT ASSY

(1)

Short AT ASSY (Non-disassem-
bled)

(3)

Seal ring

(4)

Thrust bearing

(2)

Thrust bearing

(1)

(4)

(3)

(2)

AT-04324
