Subaru Legacy (2005 year). Manual - part 580

5AT-19

AUTOMATIC TRANSMISSION

General Description

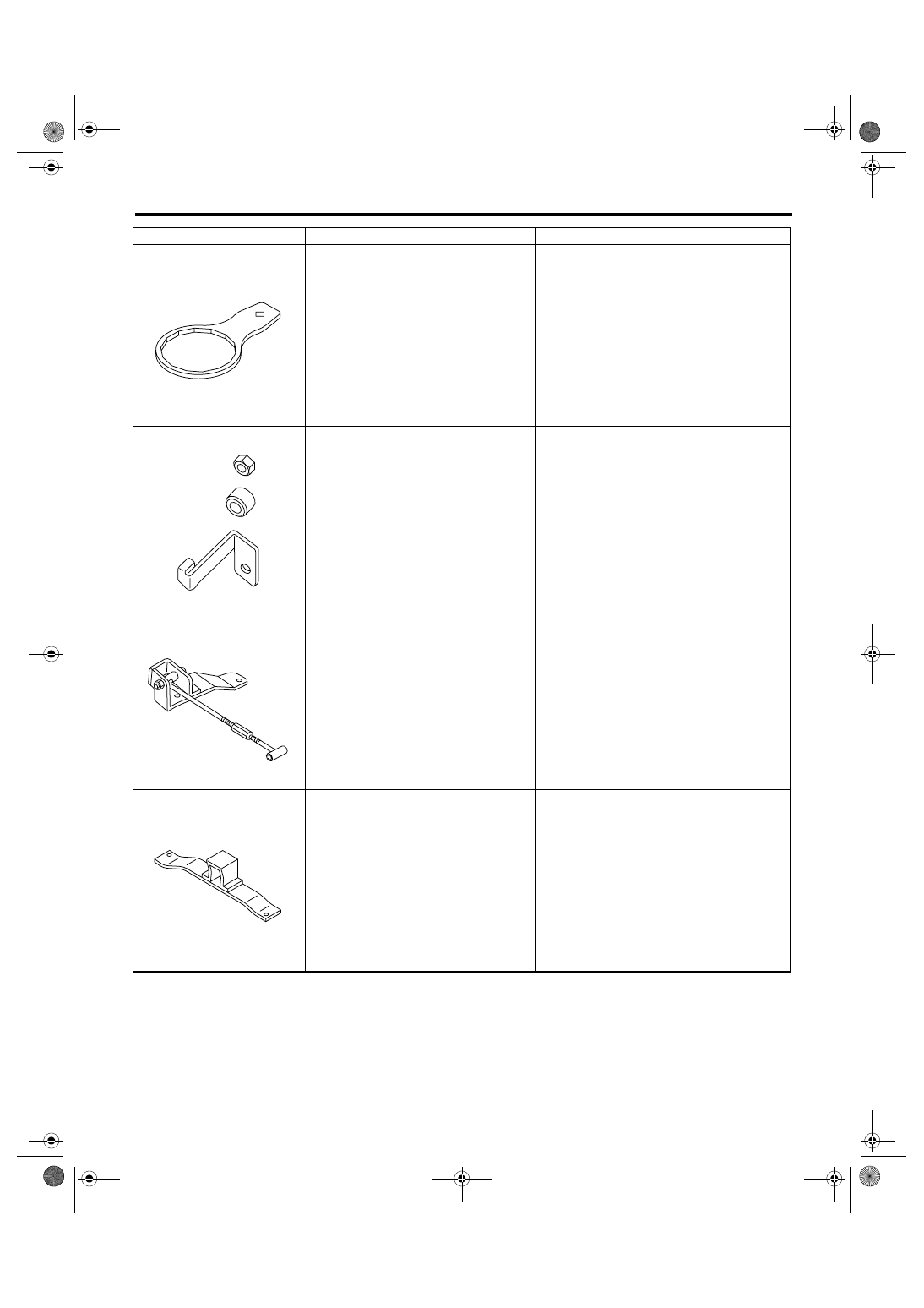

498545400

FILTER WRENCH

Used for removing and installing ATF filter.

498277200

STOPPER SET

Used for removing and installing automatic
transmission assembly to engine.

41099AC000

ENGINE SUPPORT
ASSY

Used for supporting engine. (Turbo model)

41099AA010

ENGINE SUPPORT
BRACKET

Used for supporting engine. (Non-turbo model)

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-498545400

ST-498277200

ST41099AC000

ST41099AA010

5AT-20

AUTOMATIC TRANSMISSION

General Description

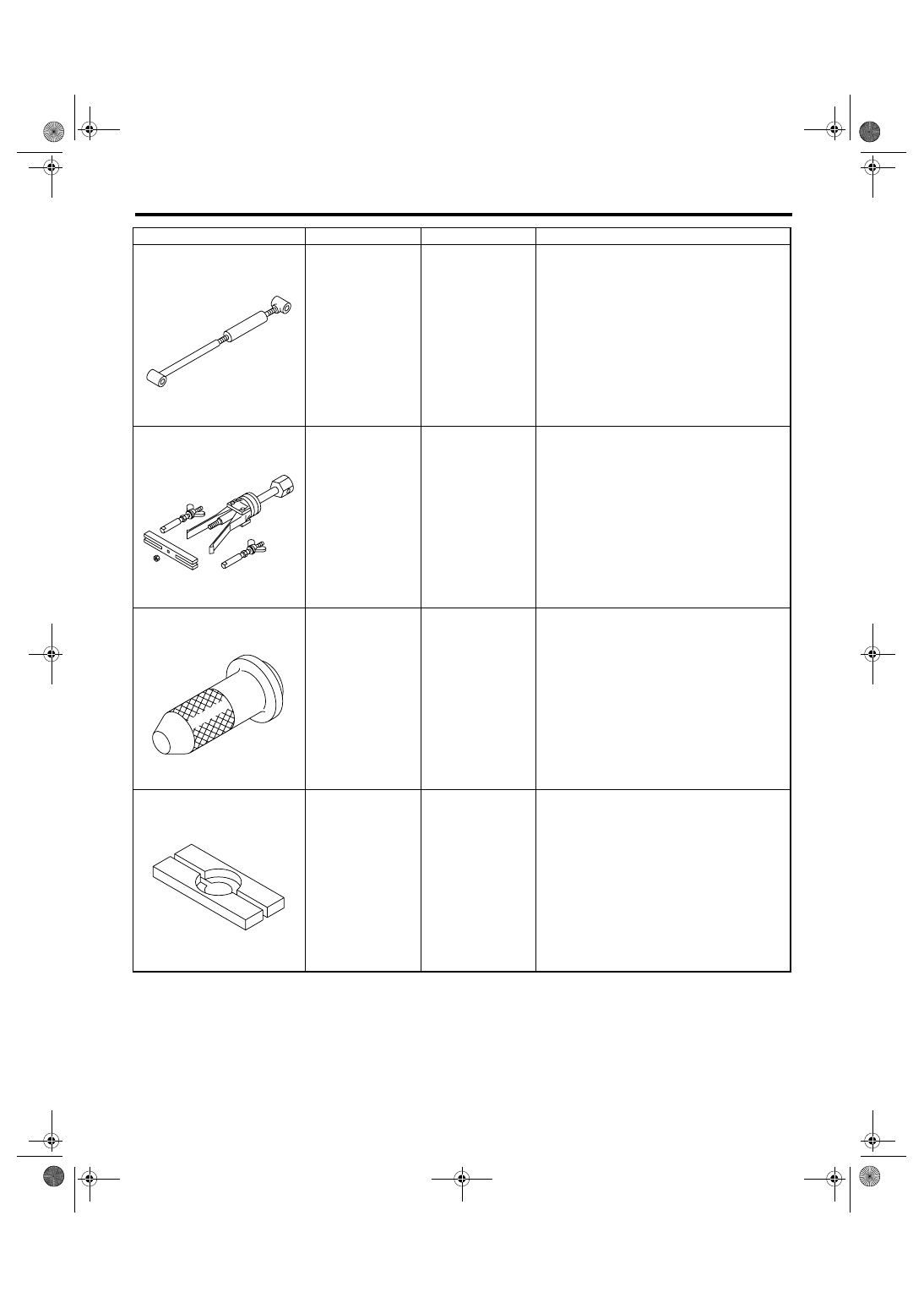

41099AA020

ENGINE SUPPORT

Used for supporting engine. (Non-turbo model)

398527700

PULLER ASSY

• Used for removing extension case roller bear-
ing.
• Used for removing extension oil seal.
• Used for removing front differential side
retainer bearing outer race.
• Used for removing front differential side
retainer oil seal.

498057300

INSTALLER

Used for installing extension oil seal.

498077000

REMOVER

Used for removing differential taper roller bear-
ing.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST41099AA020

ST-398527700

ST-498057300

ST-498077000

5AT-21

AUTOMATIC TRANSMISSION

General Description

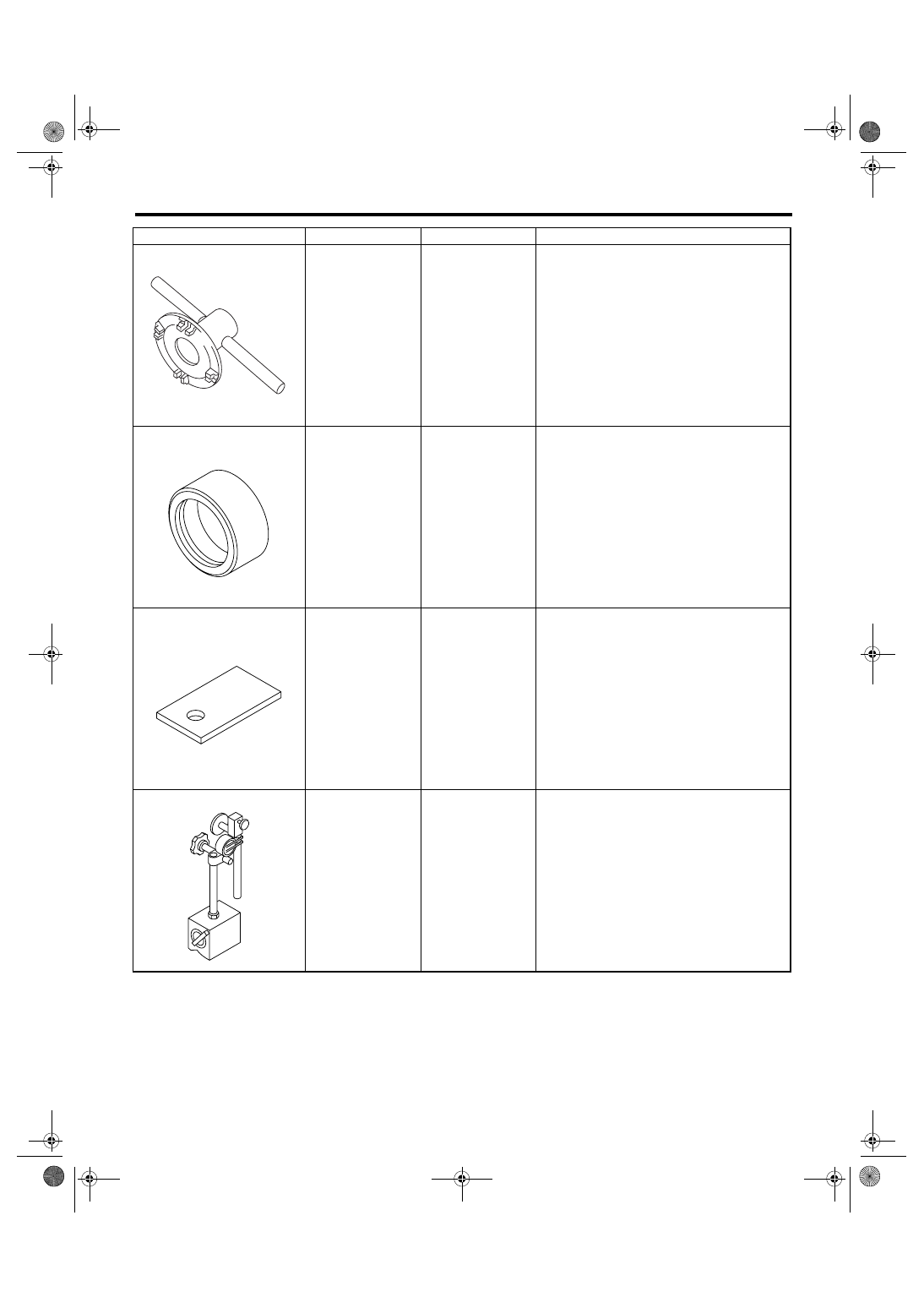

18630AA010

WRENCH COMPL
RETAINER

Used for removing and installing differential side
retainer.

398487700

DRIFT

Used for installing front differential taper roller
bearing.

498255400

PLATE

Used for measuring backlash of hypoid gear.

498247001

MAGNET BASE

• Used for measuring gear backlash.
• Used with DIAL GAUGE (498247100).

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST18630AA010

ST-398487700

ST-498255400

ST-498247001

5AT-22

AUTOMATIC TRANSMISSION

General Description

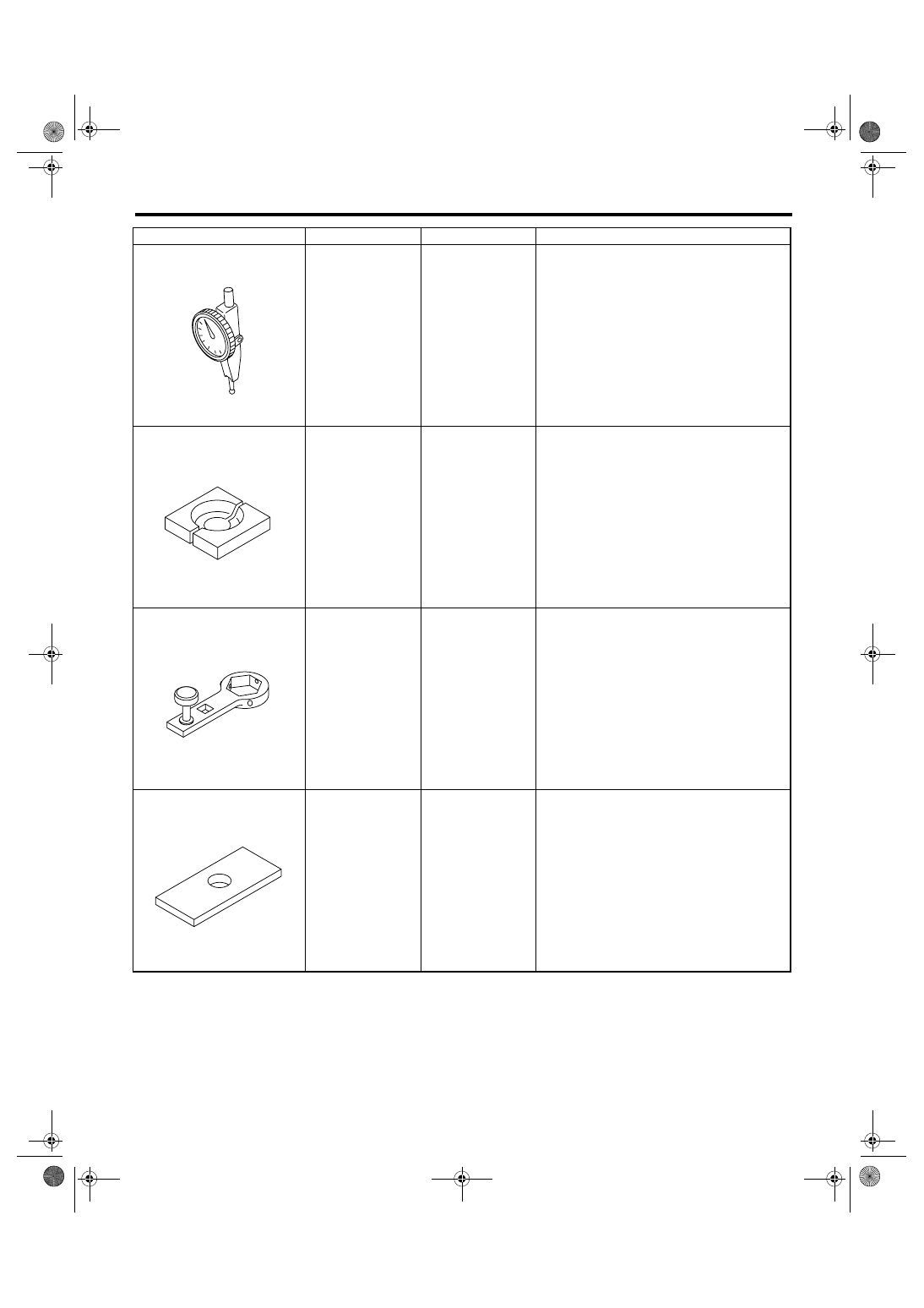

498247100

DIAL GAUGE

• Used for measuring gear backlash.
• Used with MAGNET BASE (498247001).

498517000

REPLACER

Used for removing front roller bearing.

499787700

WRENCH

Used for removing and installing drive pinion lock
nut.

398643600

GAUGE

Used for measuring total end play, extension end
play and drive pinion height.

ILLUSTRATION

TOOL NUMBER

DESCRIPTION

REMARKS

ST-498247100

ST-498517000

ST-499787700

ST-398643600
