CS-9

CONTROL SYSTEMS

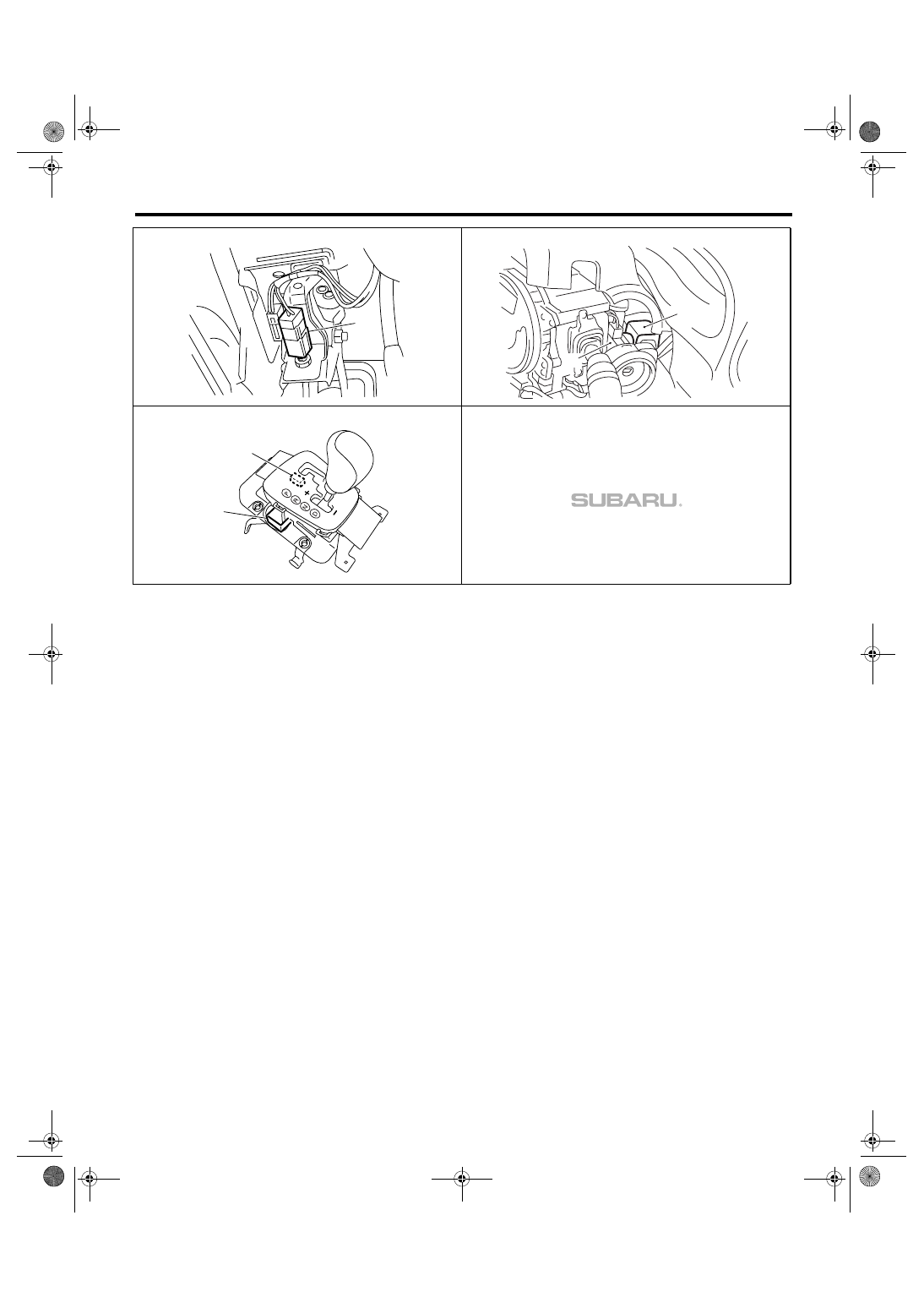

AT Shift Lock Control System

(3)

CS-00270

CS-00359

(7)

(4)

(5)

(6)

CS-00556

CS-10

CONTROL SYSTEMS

AT Shift Lock Control System

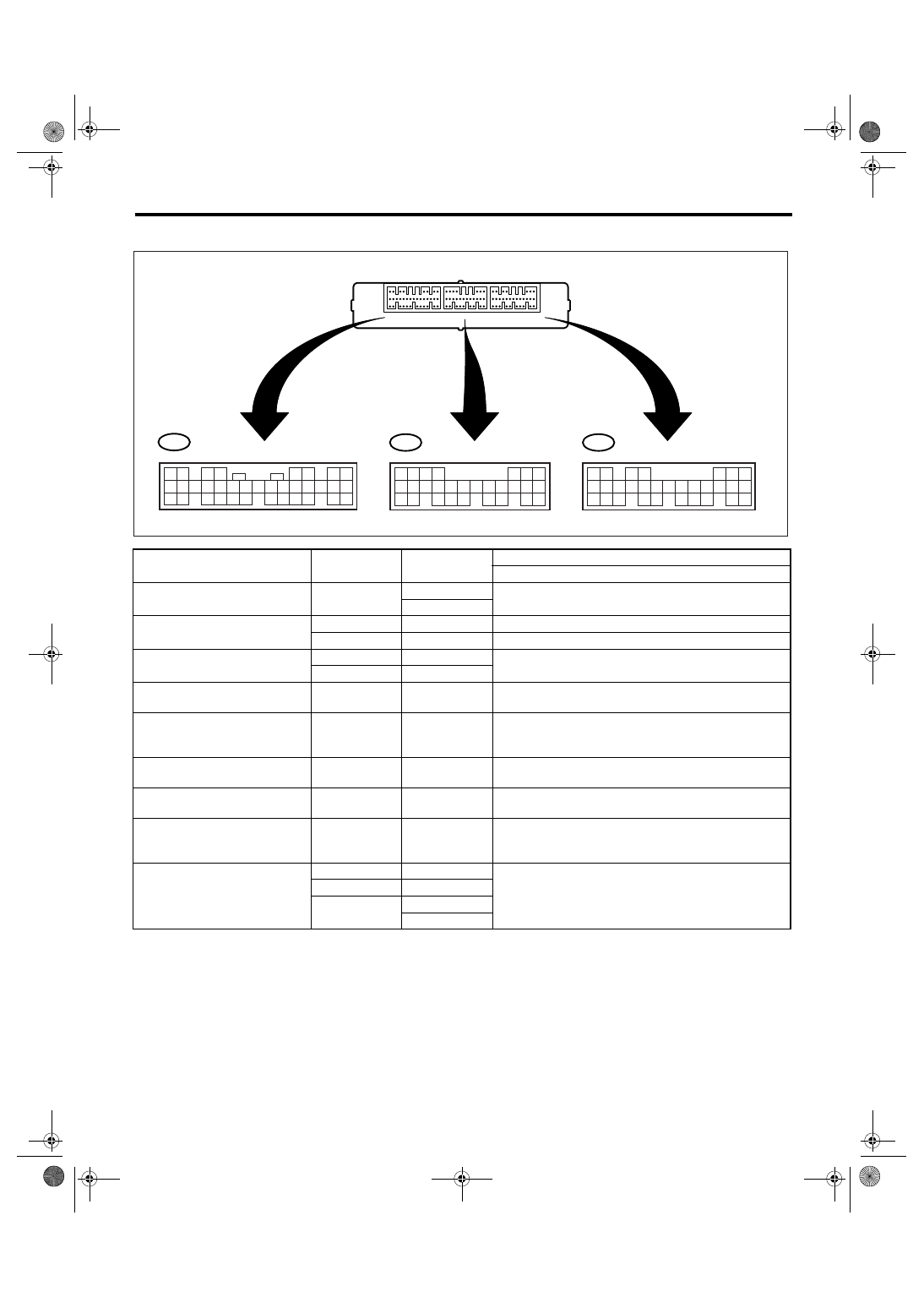

B: ELECTRICAL SPECIFICATION

Item

To connector

No.

Terminal No.

Input/Output signal

Measured value and measuring conditions

Battery power supply

B281

1

9 — 16 V

2

Ignition power supply

i84

1

10 — 15 V when ignition switch is at ON or START.

i84

24

10 — 15 V when ignition switch is at ACC.

TCM (“P” range)

B280

20

Pulse signal

B280

30

Stop light switch

B281

23

9 — 16 V when stop light switch is ON.

0 V when stop light switch is OFF.

“P” range switch

B281

13

0 V when select lever is in “P” range.

9 — 16 V when select lever is in other positions than “P”

range.

Shift lock solenoid signal

B280

6

8.5 — 16 V when shift lock is released.

0 V when shift lock is operating.

Key warning switch signal

B281

7

9 — 16 V when key is inserted.

0 V when key is removed.

Key lock solenoid signal

B280

5

7.5 — 16 V when ignition switch is ON, select lever is in

“P” range and brake switch is ON.

0 V at other conditions than above.

Ground

B280

22

—

i84

21

B281

8

9

CS-00273

7

19
28

6

18
27

5

17

4

16
26

15
25

14
24

13 12

23

11
22

3

10

2
9

21

1
8

20

B281

side

7

20
30

6

19
29

18
28

5

17

4

16
27

15
26

14 13

25

12
24

11
23

3

10

2
9

22

1
8

21

B280

side

8

23
35

7

22
34

21

6

20
33

5

19
32

18
31

17
30

16 15

29

14
28

4

13
27

3

12
26

11

2

10
25

1
9

24

i84

side

CS-11

CONTROL SYSTEMS

AT Shift Lock Control System

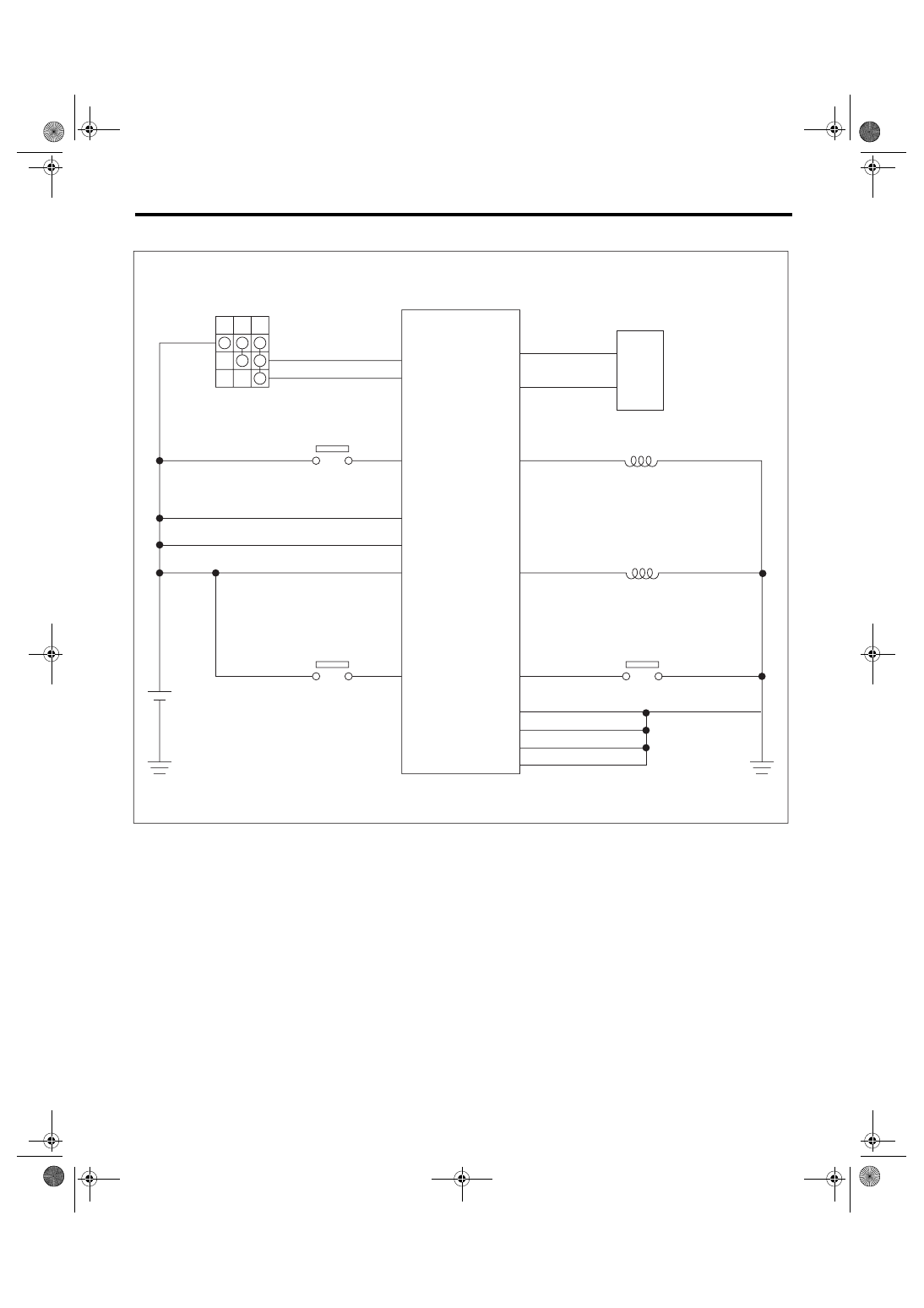

C: WIRING DIAGRAM

(1)

Ignition switch

(4)

Body integrated module

(7)

Shift lock solenoid

(2)

Stop light switch

(5)

TCM (“P” range)

(8)

“P” range switch

(3)

Key warning switch

(6)

Key lock solenoid

(9)

Battery

CS-00363

OFF ACC ON

(1)

(2)

(3)

(4)

(9)

(6)

(7)

(8)

(5)

CS-12

CONTROL SYSTEMS

AT Shift Lock Control System

D: INSPECTION

1. SHIFT LOCK OPERATION

Step

Check

Yes

No

1

CHECK SHIFT LOCK.
1) Turn the ignition switch to ON.
2) Shift the select lever to “P” range.

While brake pedal is not
depressed, can select lever
move from “P” range to other
ranges?

Inspect “SELECT
LEVER CANNOT
BE SHIFT
LOCKED”. <Ref.
to CS-15, SELECT
LEVER CANNOT
BE SHIFTED,
INSPECTION, AT
Shift Lock Control
System.>

Go to step 2.

2

CHECK SHIFT LOCK.

While brake pedal is
depressed, can select lever
move from “P” range to other
ranges?

Go to step 3.

Inspect “SELECT
LEVER SHIFT
LOCK CANNOT
BE RELEASED”.
<Ref. to CS-17,
SHIFT LOCK OF
SELECT LEVER
CANNOT BE
RELEASED,
INSPECTION, AT
Shift Lock Control
System.>

3

CHECK KEY INTERLOCK.

Is the ignition switch turned to
the “LOCK” position when the
select lever is set to other than
“P” range?

Inspect “KEY
INTERLOCK
DOES NOT BE
LOCKED OR
RELEASED”.
<Ref. to CS-17,
SHIFT LOCK OF
SELECT LEVER
CANNOT BE
RELEASED,
INSPECTION, AT
Shift Lock Control
System.>

Go to step 4.

4

CHECK KEY INTERLOCK.

Is the ignition switch turned to
the “LOCK” position when the
select lever is set to “P” range?

AT shift lock sys-
tem is normal.

Inspect “KEY
INTERLOCK
DOES NOT BE
LOCKED OR
RELEASED”.
<Ref. to CS-17,
SHIFT LOCK OF
SELECT LEVER
CANNOT BE
RELEASED,
INSPECTION, AT
Shift Lock Control
System.>
