CONTROL SYSTEMS

CS

Page

1.

General Description ....................................................................................2

2.

AT Shift Lock Control System .....................................................................8

3.

Select Lever ..............................................................................................22

4.

Select Cable..............................................................................................27

5.

AT Steering Shift Switch ...........................................................................31

6.

Shift Lock Solenoid ...................................................................................33

7.

Body Integrated Module ............................................................................36

8.

MT Gear Shift Lever..................................................................................37

9.

Reverse Check Cable ...............................................................................52

10.

MT Drive Select Lever...............................................................................56

11.

Drive Select Cable ....................................................................................58

12.

General Diagnostic Table..........................................................................60

CS-2

CONTROL SYSTEMS

General Description

1. General Description

A: SPECIFICATION

Item

Specifications

Swing torque of rod against lever

N (kgf, lbf)

3.7 (0.38, 0.84) or less

CS-3

CONTROL SYSTEMS

General Description

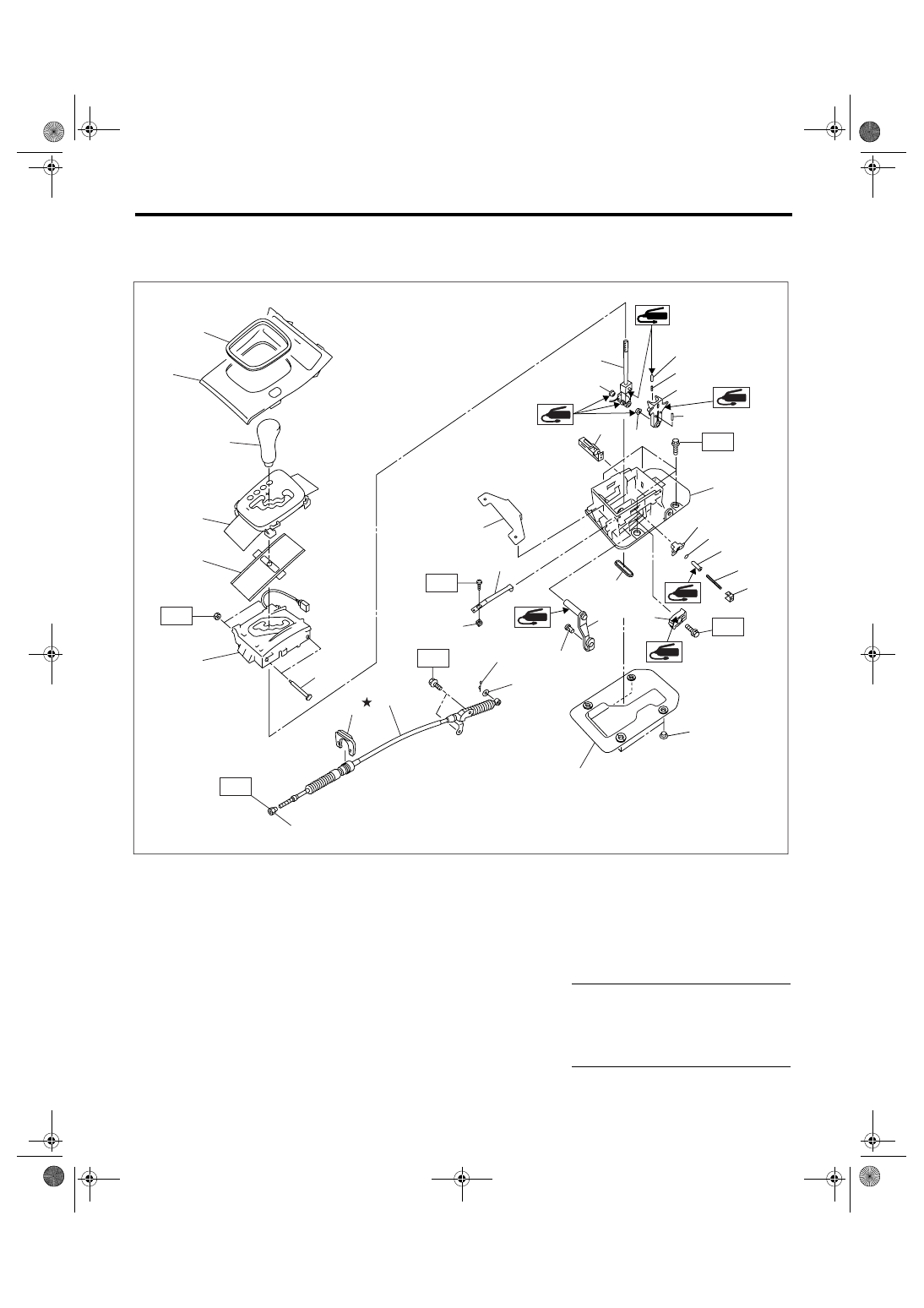

B: COMPONENT

1. AT SELECT LEVER

(1)

Ring indicator

(15)

Plate

(29)

Snap pin

(2)

Console front panel

(16)

Grommet

(30)

Washer

(3)

Grip

(17)

Plate nut

(31)

Select cable

(4)

Indicator cover ASSY

(18)

Detent spring

(32)

Adjusting nut A

(5)

Blind

(19)

Detent plate

(33)

Clamp

(6)

Guide plate

(20)

Bushing

(34)

Clamp

(7)

Pin

(21)

Cushion

(8)

Lever ASSY

(22)

Rod

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(9)

Bushing

(23)

Spring A

T1: 2.2 (0.22, 1.62)

(10)

Rod

(24)

Bracket

T2: 6 (0.6, 4.4)

(11)

Spring

(25)

Packing

T3: 7.5 (0.76, 5.5)

(12)

Arm

(26)

Spacer

T4: 18 (1.8, 13.3)

(13)

Spring pin

(27)

Arm ASSY

(14)

Shift lock solenoid unit

(28)

Connector pin

T4

T4

T1

T3

(29)

(30)

(32)

(31)

(33)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

(9)

(10)

(11)

(12)

(13)

(14)

(24)

(17)

(18)

(15)

(20)

(21)

(22)

(23)

(34)

(26)

(16)

(19)

(25)

T1

T2

(1)

(2)

P

R

N

D

(27)

(28)

CS-00555

CS-4

CONTROL SYSTEMS

General Description

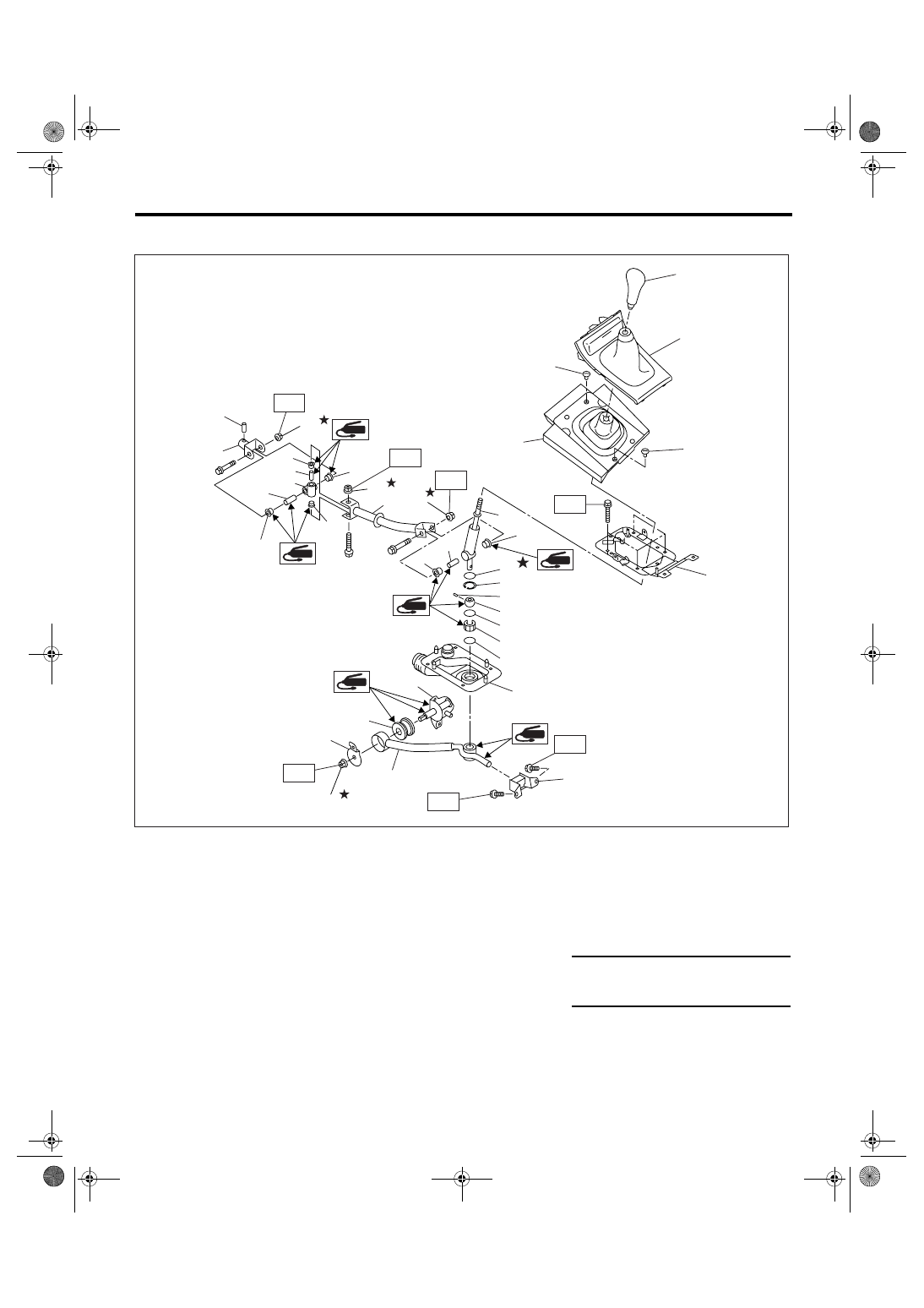

2. 5MT GEAR SHIFT LEVER
