EXTERIOR BODY PANELS

General Description

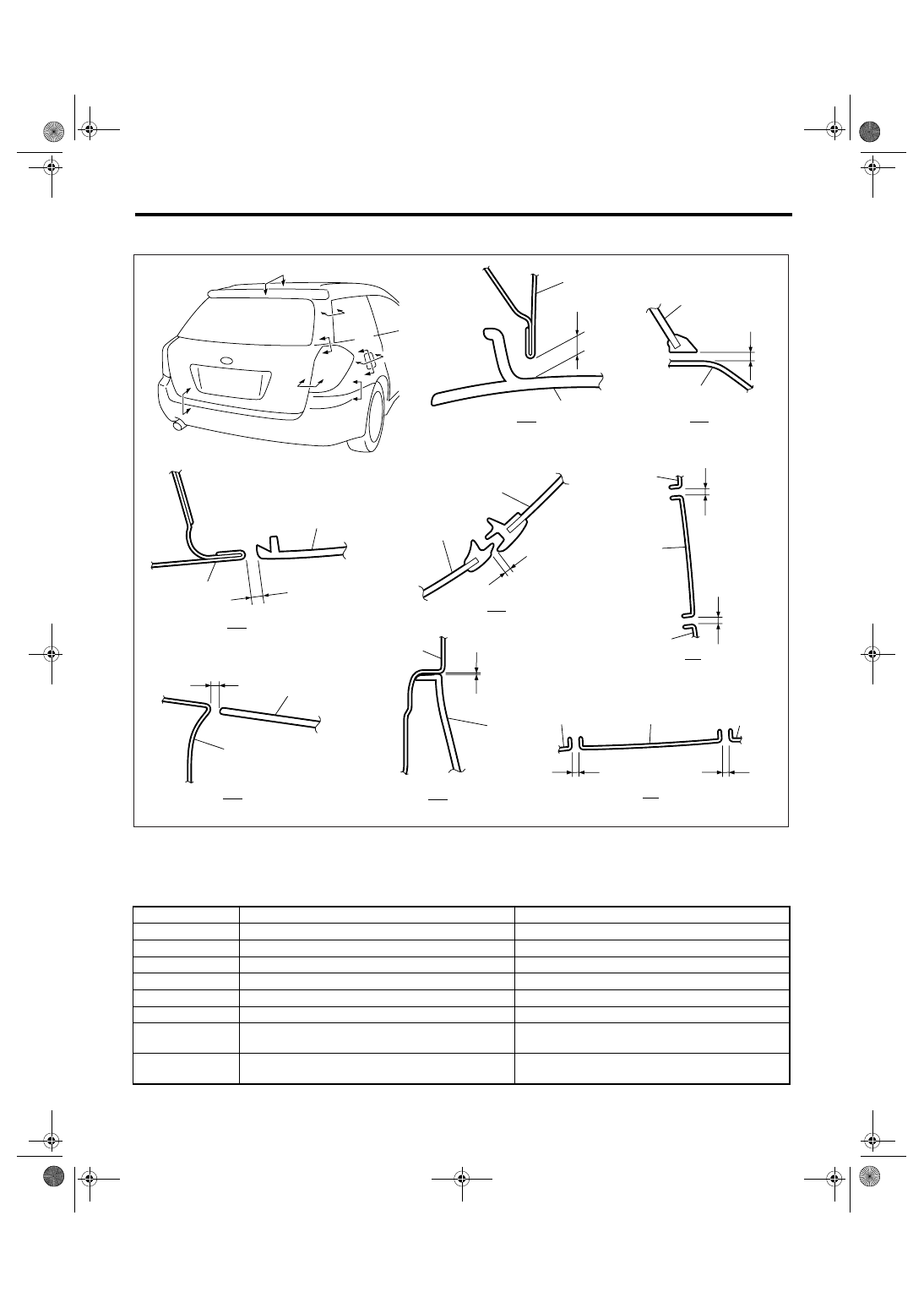

4. REAR (WAGON MODEL)

(1)

Rear gate panel

(4)

Roof panel

(7)

Rear fender panel

(2)

Rear bumper

(5)

Rear gate glass

(8)

Fuel filler flap lid

(3)

Rear combination light

(6)

Door quarter glass

(9)

Roof spoiler

Section

Part

Specification

(A)

Rear gate panel to Rear bumper

8.0

±1.0 mm (0.31±0.04 in)

(B)

Rear gate panel to Rear combination light

5.0

±1.0 mm (0.20±0.04 in)

(C)

Rear gate glass to Rear combination light

5.5

±1.0 mm (0.22±0.04 in)

(D)

Rear gate glass to Rear quarter glass

4.0

±1.5 mm (0.16±0.06 in)

(E)

Roof panel to Roof spoiler

5.5

±1.0 mm (0.22±0.04 in)

(F)

Rear fender panel to Rear bumper

1.0

±0.7 mm (0.04±0.03 in)

(G)

Rear fender panel to Fuel filler flap lid (Longitudinal
direction)

G1: 3.7

±0.5 mm (0.15±0.02 in)

G2: 3.4

±0.5 mm (0.13±0.02 in)

(H)

Rear fender panel to Fuel filler flap lid (Lateral direc-
tion)

H1, H2: 3.5

±0.5 mm (0.14±0.02 in)

EB-00179

H1

H2

(H)

(8)

(7)

(7)

(G)

(7)

(8)

G2

G1

(7)

(A)

(1)

(2)

(C)

(3)

(5)

(D)

(5)

(6)

(B)

(1)

(3)

(F)

(7)

(2)

(E)

(4)

(9)

(E)

(D)

(A)

(C)

(B)

(F)

(G)

(H)

EB-6

EXTERIOR BODY PANELS

General Description

B: COMPONENT

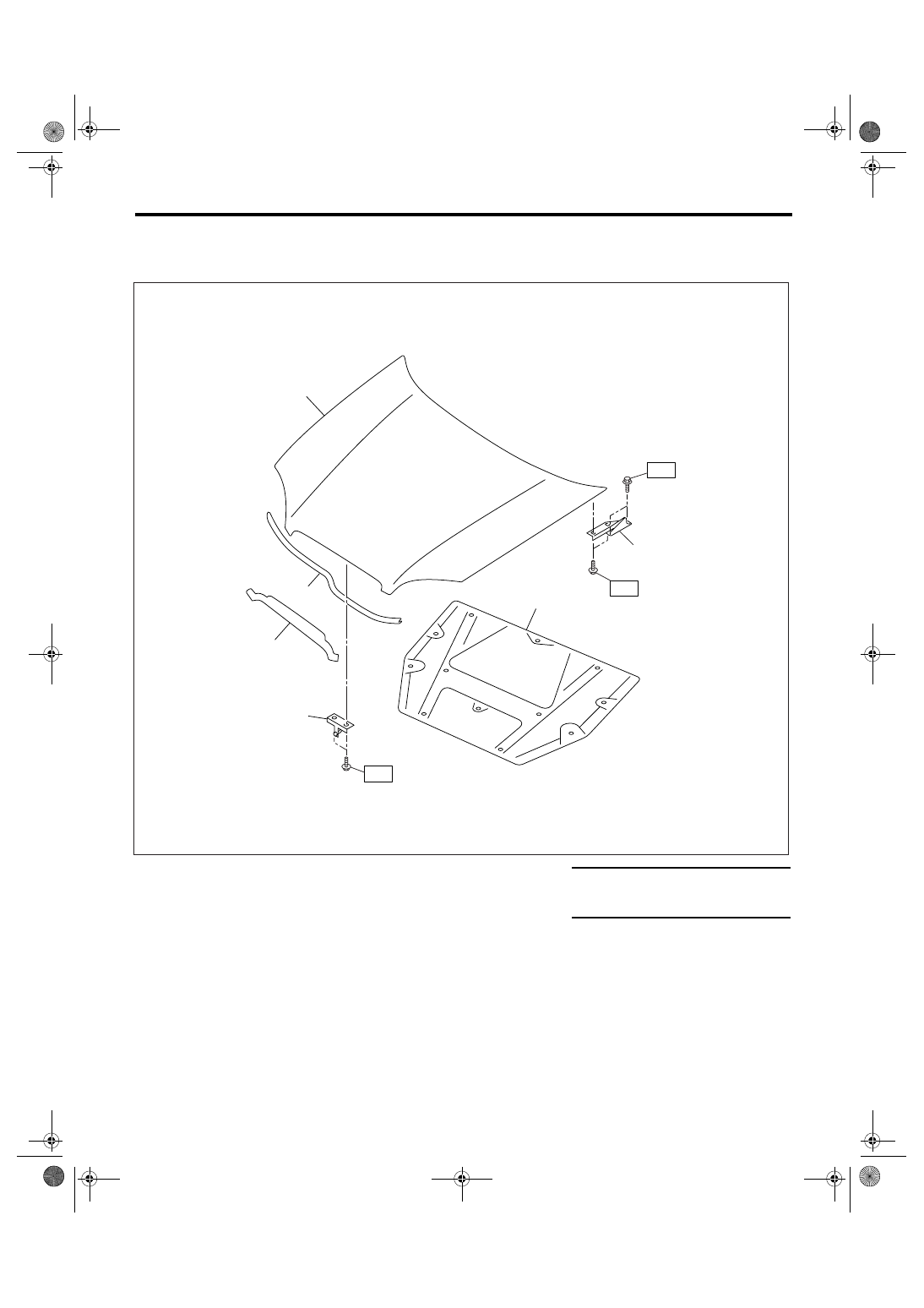

1. FRONT HOOD

(1)

Front hood panel

(4)

Intake duct weather strip

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Front hood insulator

(5)

Front hood weather strip

T1: 33 (3.4, 24.5)

(3)

Front hood hinge

(6)

Front hood striker

T2: 24.5 (2.5, 18.1)

EB-00148

T1

T2

T2

(6)

(5)

(4)

(2)

(3)

(1)

EB-7

EXTERIOR BODY PANELS

General Description

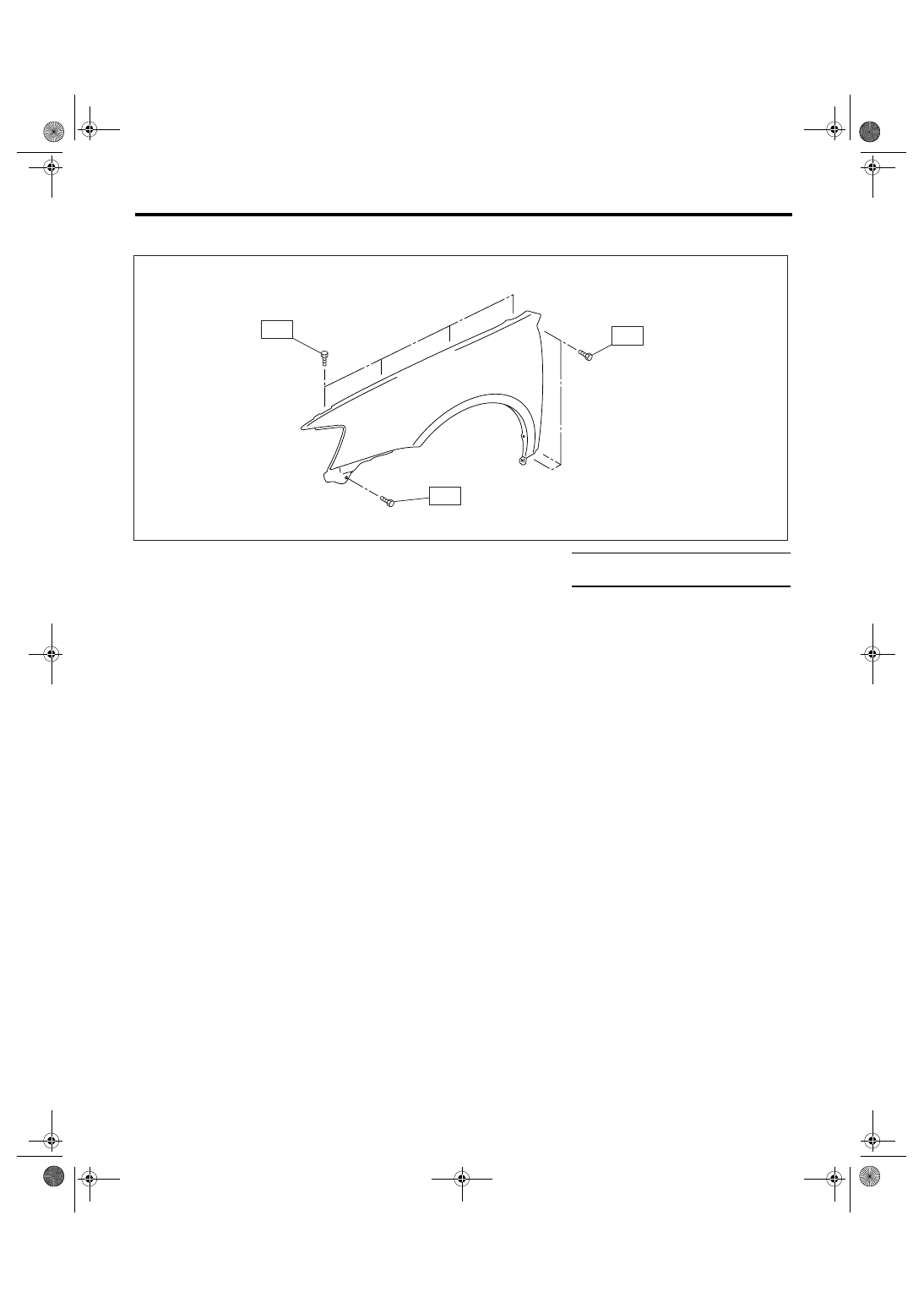

2. FRONT FENDER PANEL

Tightening torque: N

⋅

m (kgf-m, ft-lb)

T: 7.4 (0.75, 5.5)

EB-00145

T

T

T

EB-8

EXTERIOR BODY PANELS

General Description

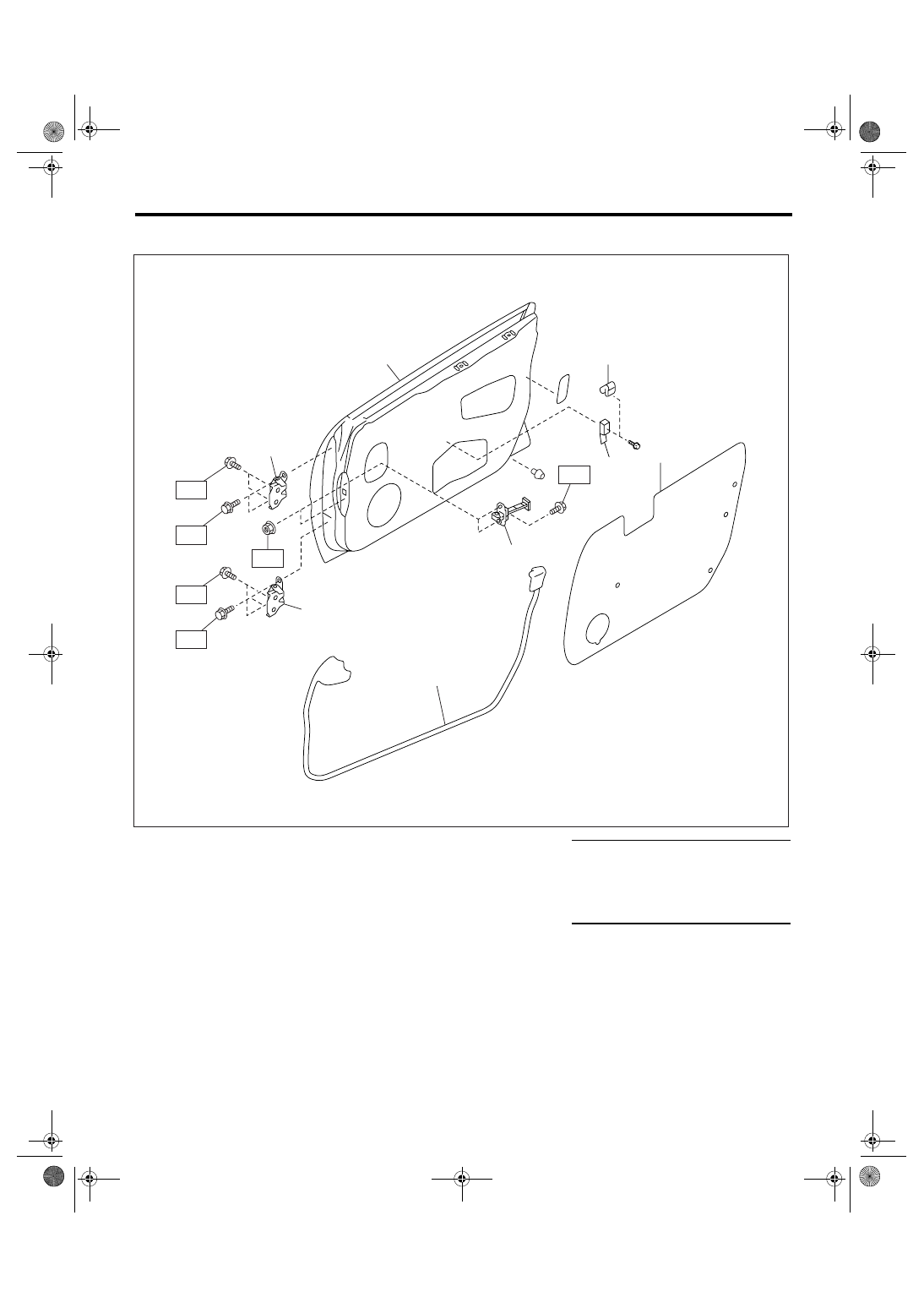

3. FRONT DOOR PANEL

(1)

Front door panel

(6)

Lower hinge

Tightening torque: N

⋅

m (kgf-m, ft-lb)

(2)

Sealing cover

(7)

Door trim bracket upper

T1: 7.4 (0.75, 5.5)

(3)

Front door weather strip

(8)

Door trim bracket lower

T2: 24.5 (2.5, 18.1)

(4)

Checker

T3: 29.4 (3.0, 21.7)

(5)

Upper hinge

T4: 32.3 (3.3, 23.8)

EB-00149

T4

T1

T3

T2

T3

T2

(6)

(3)

(5)

(1)

(7)

(8)

(2)

(4)
