Heat Shield Cover

37.Heat Shield Cover

A: REMOVAL

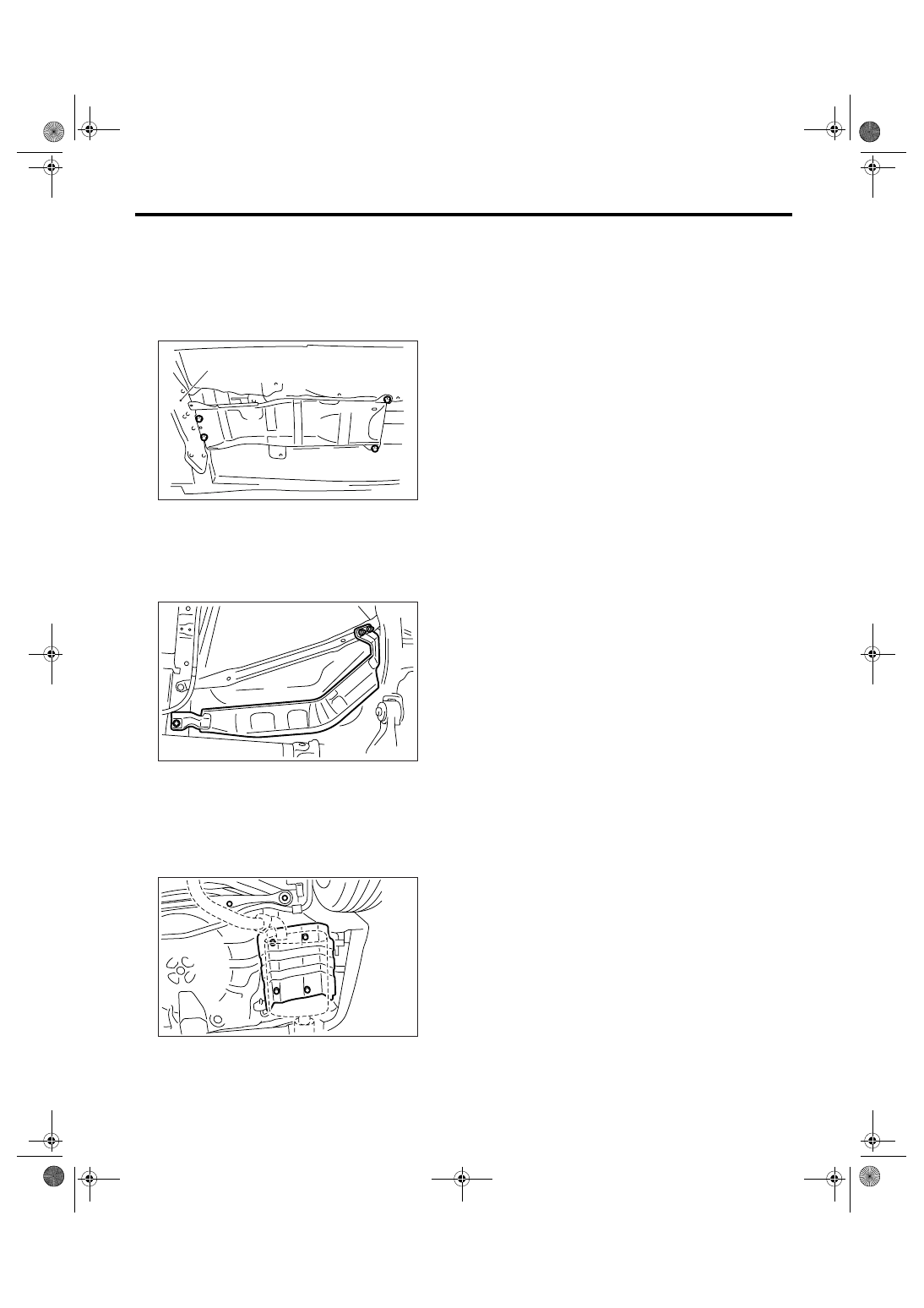

1. FRONT HEAT SHIELD COVER

Remove the four bolts to remove front heat shield
cover.

2. CENTER HEAT SHIELD COVER

Remove the nut and bolt to remove center heat
shield cover.

3. REAR HEAT SHIELD COVER

1) Remove the muffler. <Ref. to EX(H4SO 2.0)-12,
REMOVAL, Muffler.> <Ref. to EX(H4DOTC)-12,
REMOVAL, Muffler.>
2) Remove the four bolts to remove rear heat shield
cover.

B: INSTALLATION

Install in the reverse order of removal.

(A) Transmission mounting

DI-00211

(A)

EI-00679

EI-00680

EI-78

EXTERIOR/INTERIOR TRIM

Ornament

38.Ornament

A: INSTALLATION

1. LETTER MARK

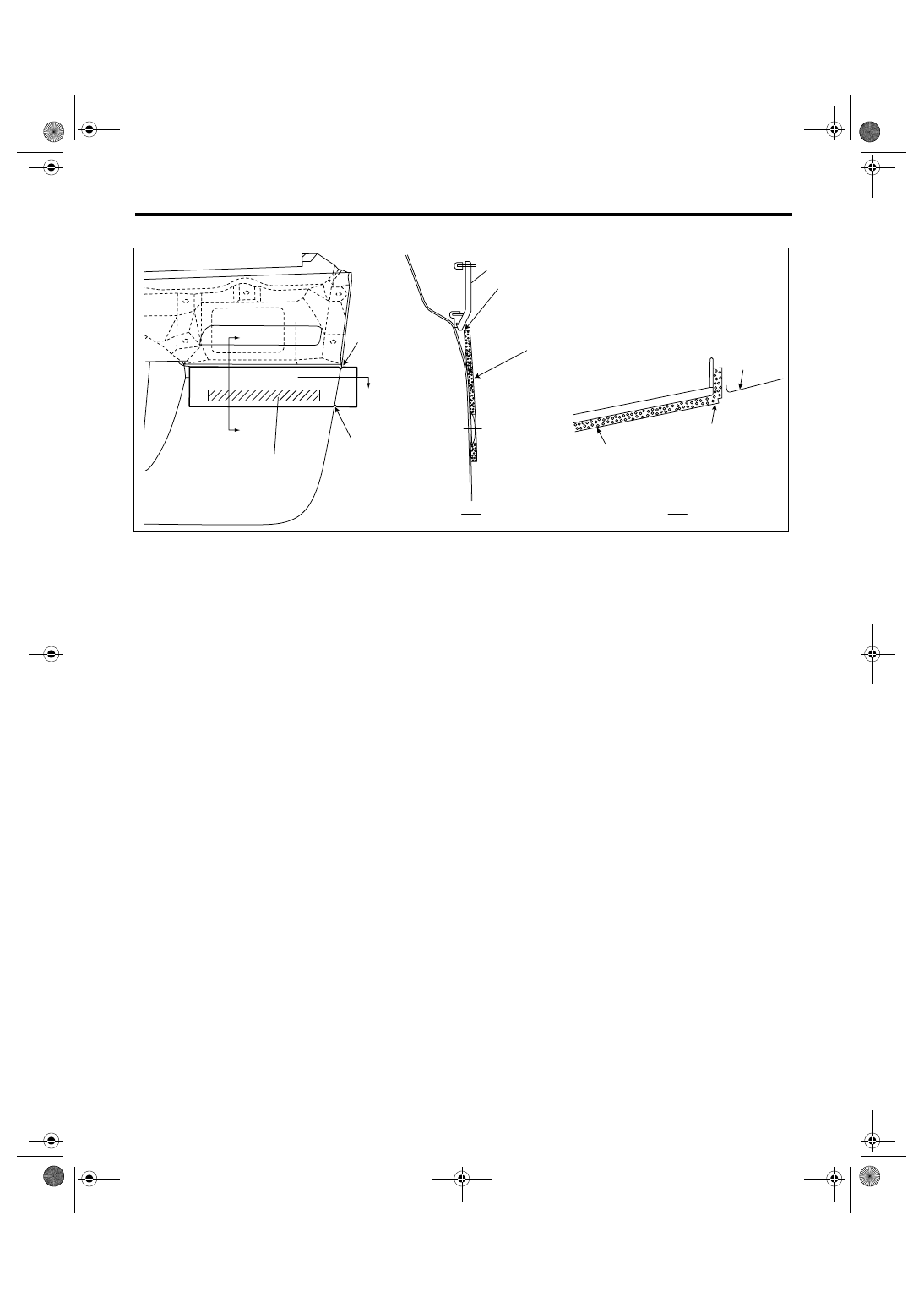

Adhere the letter mark with the following dimensions.
• Sedan model

(a)

Apply the apply tape with aligning
its cut out to the end of trunk lid
garnish.

(b)

Apply the apply tape with aligning
it to R stop on the top end of trunk
lid garnish.

(C)

Align the slit of apply tape to panel
end.

(1)

Letter mark

(2)

Apply tape

(3)

Rear combination light

EI-00815

(2)

(b)

(a)

(a)

A

B

A

A-A

B-B

(1)

(2)

(C)

(3)

EI-79

EXTERIOR/INTERIOR TRIM

Ornament

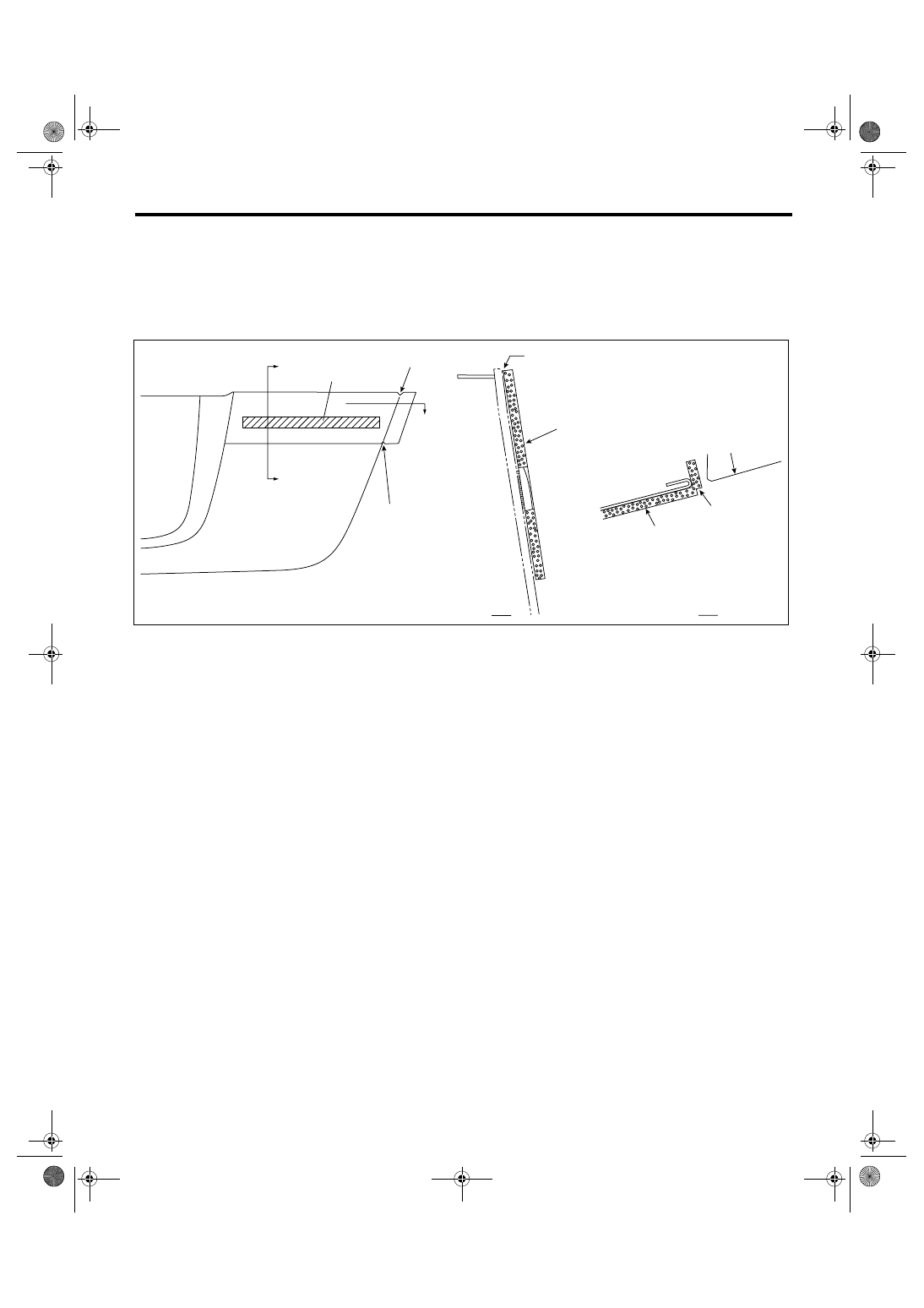

• Wagon model
