EI-73

EXTERIOR/INTERIOR TRIM

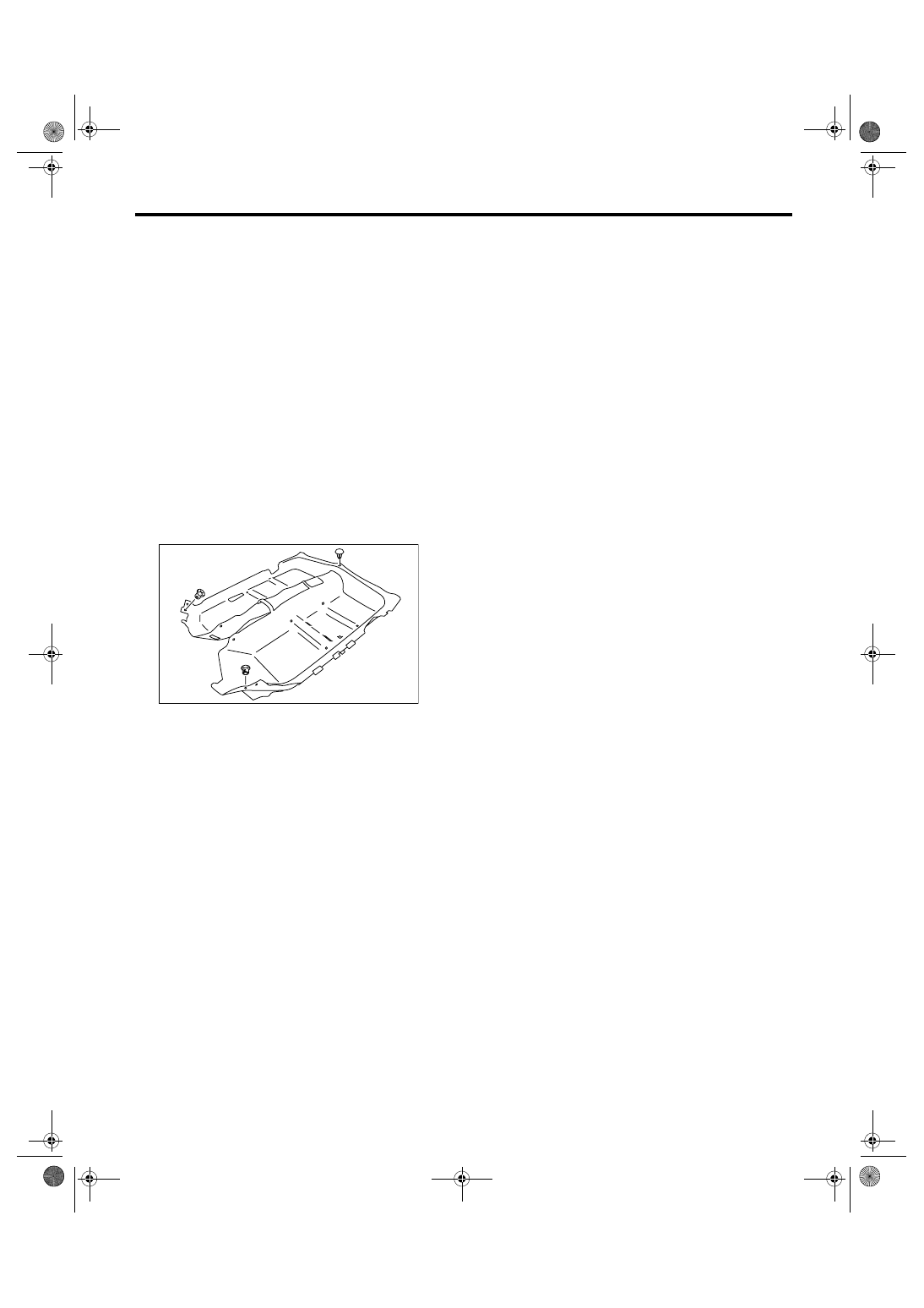

Floor Mat

33.Floor Mat

A: REMOVAL

1) Remove the front seats. <Ref. to SE-7, REMOV-
AL, Front Seat.>
2) Remove the rear seat cushion. <Ref. to SE-14,
REMOVAL, Rear Seat.>
3) Remove the console box. <Ref. to EI-53, Con-
sole Box.>
4) Remove the console side panel. <Ref. to EI-54,
REMOVAL, Center Console.>
5) Remove the lower inner trim. <Ref. to EI-60, RE-
MOVAL, Lower Inner Trim.>
6) Remove the footrest. (MT model)
7) Remove the clips from floor mat.
8) Remove the mat hook on both side.
9) Remove the mat from toe board area.
10) Remove the mat from rear heater duct.
11) Roll the mat, and then open the rear door to
take it out.

B: INSTALLATION

Install in the reverse order of removal.

NOTE:
• Secure the mat firmly with hook and clip.
• Insert the mat edge firmly into the groove of side
sill cover.

EI-00677

EI-74

EXTERIOR/INTERIOR TRIM

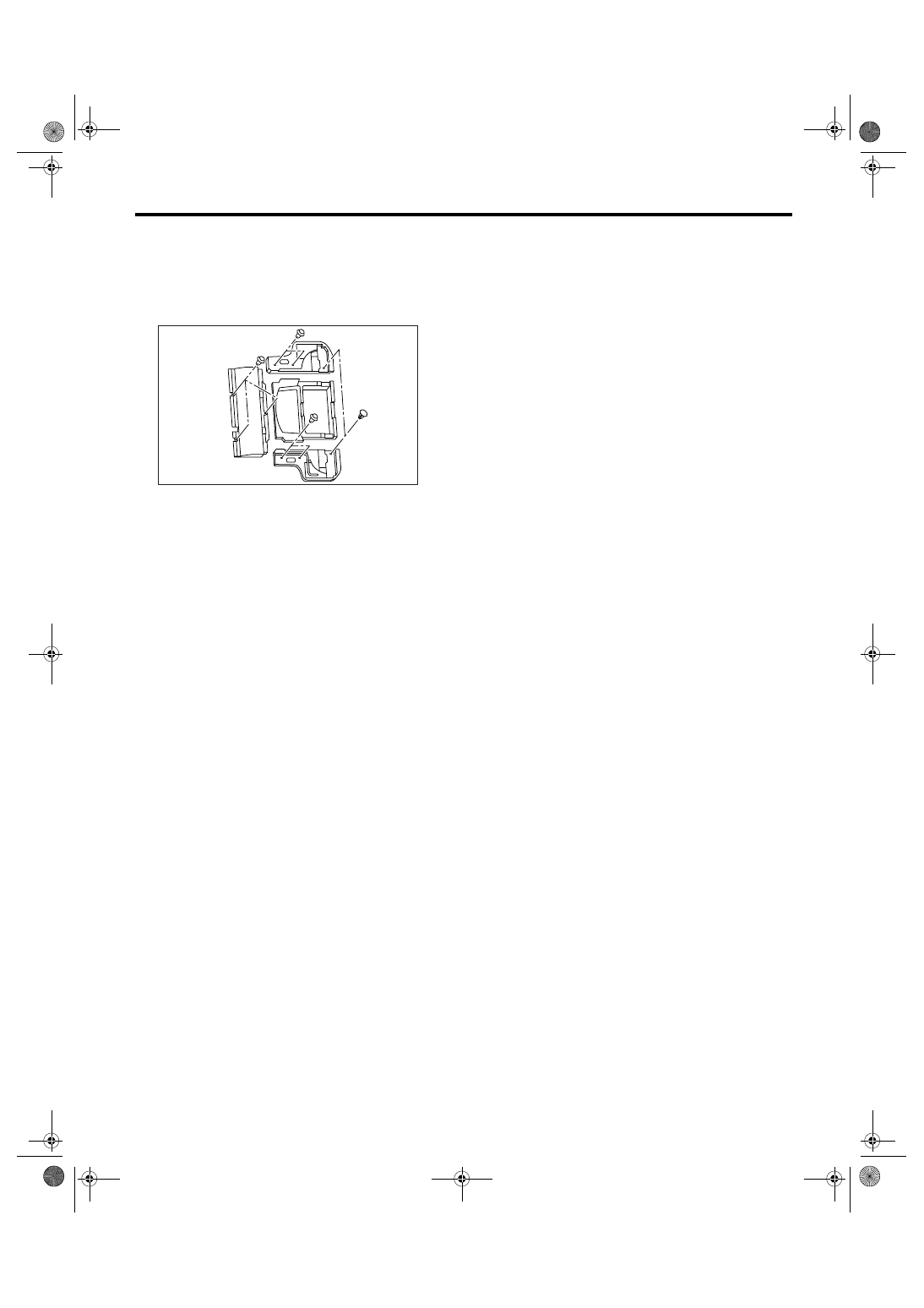

Luggage Floor Box

34.Luggage Floor Box

A: REMOVAL

1) Remove the luggage floor mat.
2) Remove the clips, and remove the luggage floor
box.

B: INSTALLATION

Install in the reverse order of removal.

EI-00678

EI-75

EXTERIOR/INTERIOR TRIM

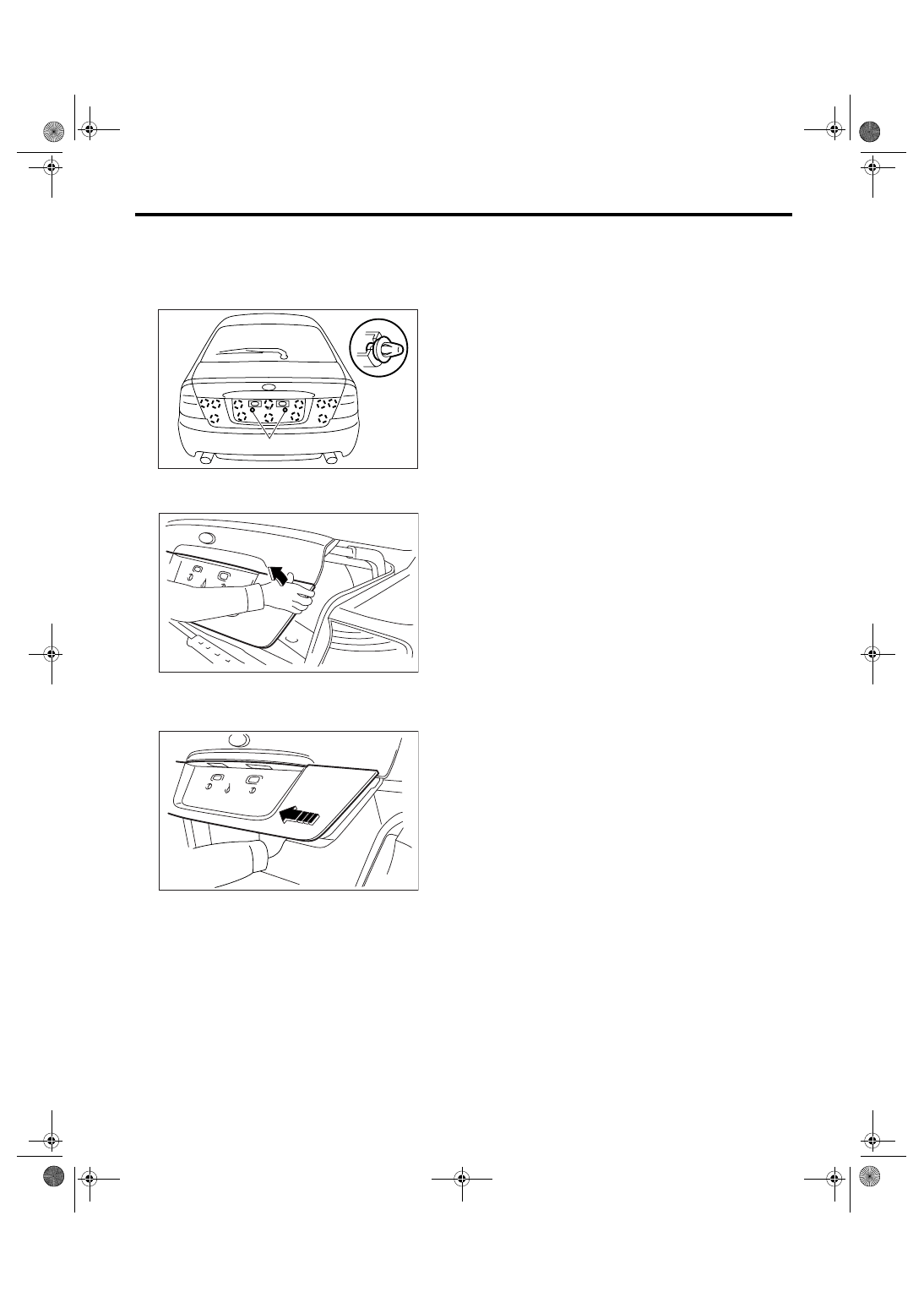

Trunk Lid Garnish

35.Trunk Lid Garnish

A: REMOVAL

1) Remove the license plate, and loosen the bolts
(A).

2) Remove the clip in the upper corner of trunk lid
garnish.

3) Remove the trunk lid garnish in the order from
the end of it, by accessing it through the gap be-
tween trunk lid garnish and trunk lid panel.

B: INSTALLATION

Install in the reverse order of removal.

Tightening torque:

7.5 N

⋅

m (0.77 kgf-m, 5.53 ft-lb)

EI-00568

(A)

EI-01031

EI-01032

EI-76

EXTERIOR/INTERIOR TRIM

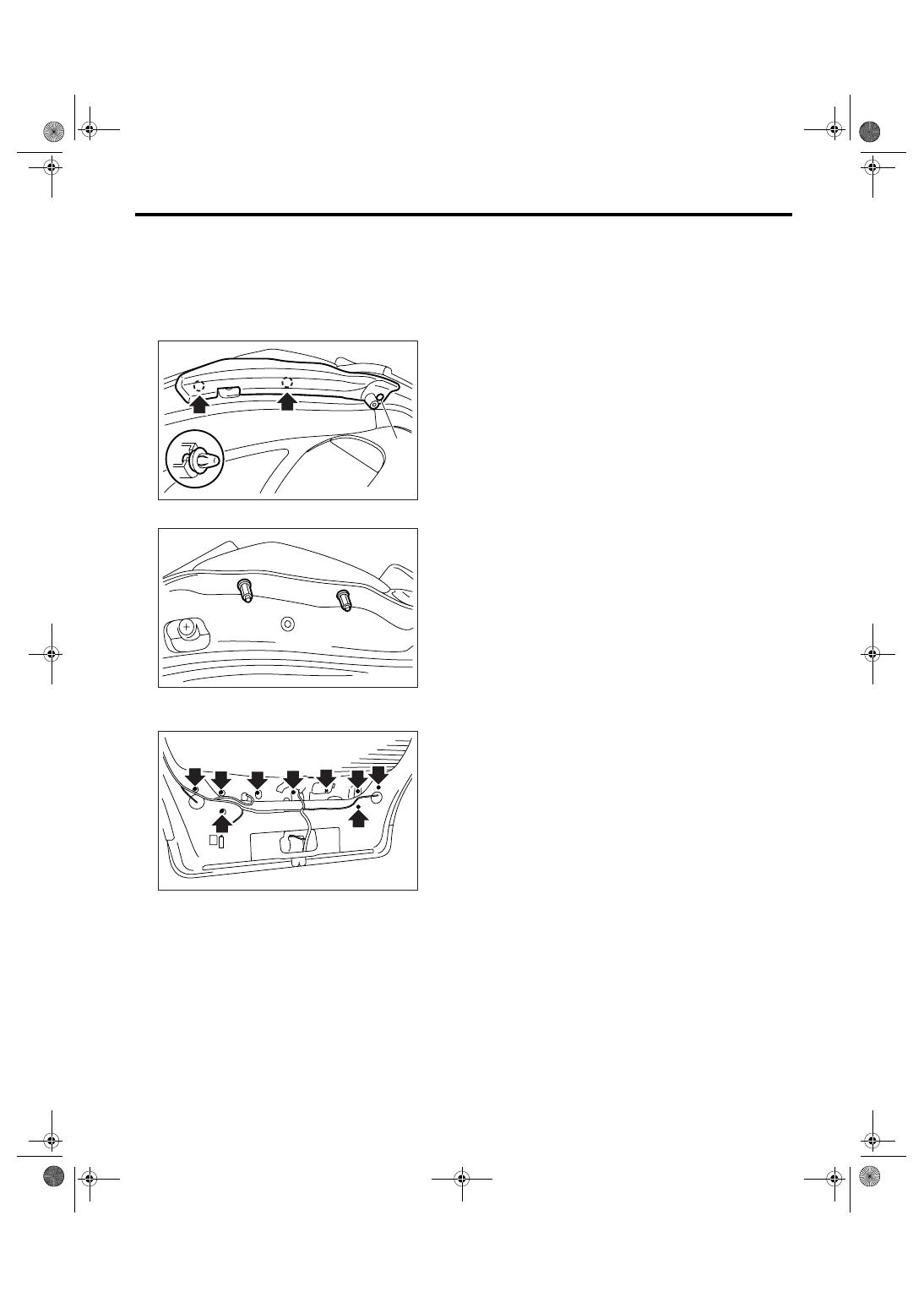

Rear Gate Garnish

36.Rear Gate Garnish

A: REMOVAL

1) Remove the rear gate trim. <Ref. to EI-69, RE-
MOVAL, Rear Gate Trim.>
2) Remove the clips (A), and remove the rear gate
panel side cover.

3) Remove the hexagon cap nuts.

4) Remove the nuts, disconnect each connector,
and remove the rear gate garnish.

B: INSTALLATION

Install in the reverse order of removal.

(A)

EI-00569

EI-00630

EI-00631
