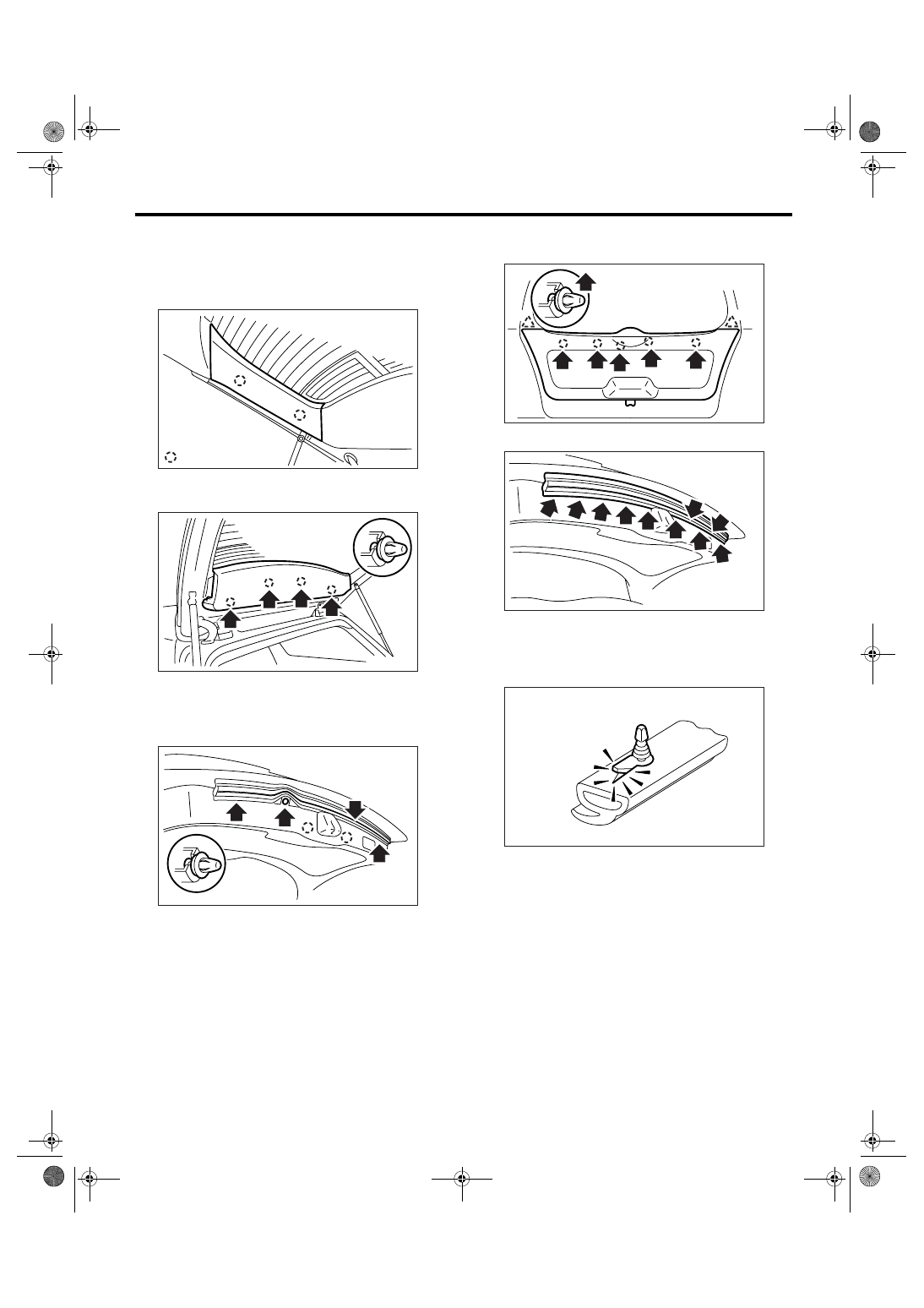

EI-69

EXTERIOR/INTERIOR TRIM

Rear Gate Trim

30.Rear Gate Trim

A: REMOVAL

1) Remove the clips (A), and remove the rear gate
pillar trim.

2) Remove the clips, and detach the rear gate up-
per trim.

3) Remove the cover in the inner handle, and loos-
en the inside screw.
4) Turn over the weather strip, and remove the
clips.

5) Remove the clips (A), and remove the rear gate
lower trim.

6) Remove the rear gate weather strip.

NOTE:
If the weather strip clip is removed with excessive
force, the weather strip may be damaged. Be sure
to use a clip remover to remove.

B: INSTALLATION

Install in the reverse order of removal.

EI-00670

:(A)

EI-00671

EI-00674

EI-01066

(A)

(A)

EI-00673

EB-00141

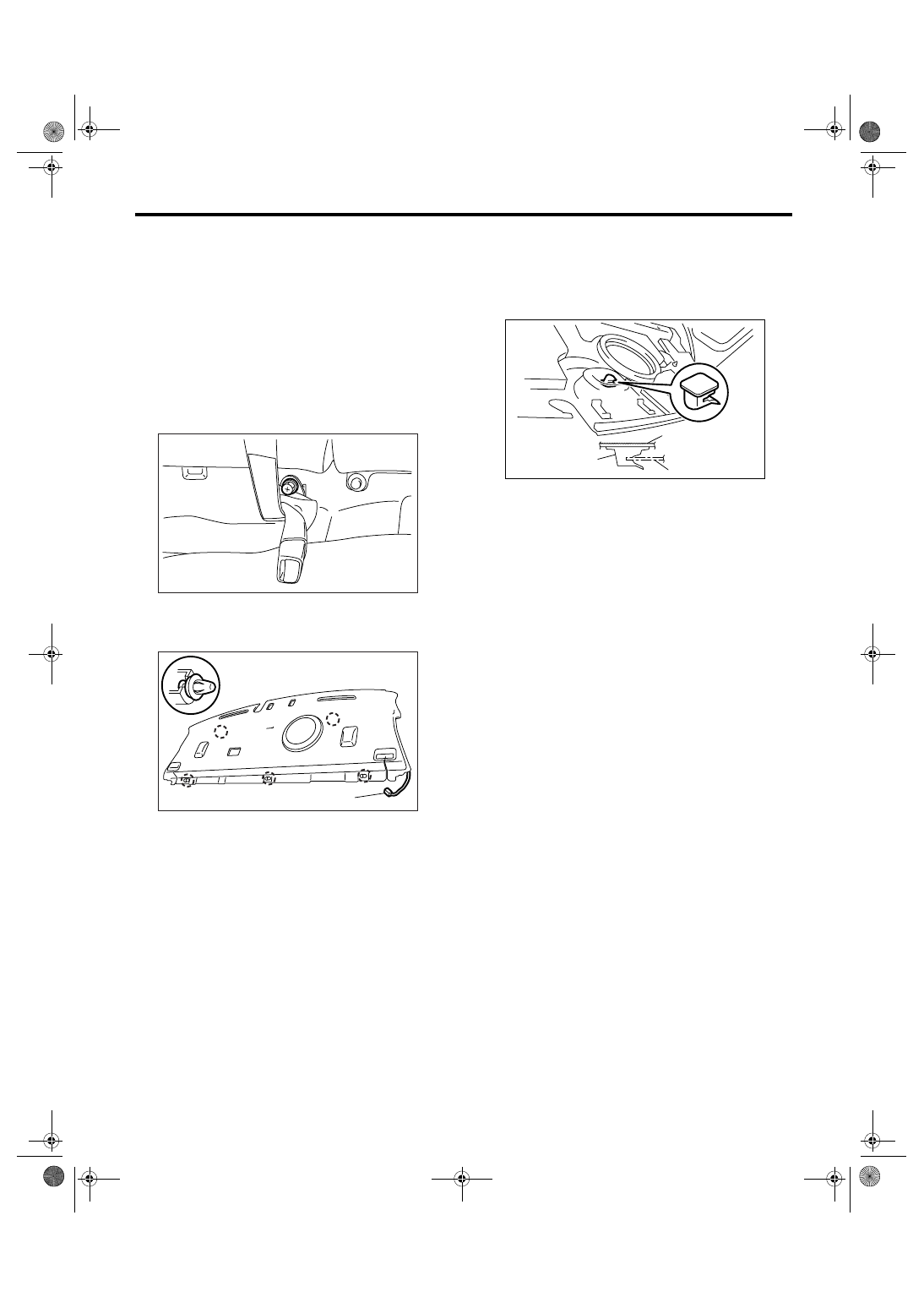

EI-70

EXTERIOR/INTERIOR TRIM

Rear Shelf Trim

31.Rear Shelf Trim

A: REMOVAL

1) Disconnect the ground cable from battery.
2) Remove the rear quarter trim. <Ref. to EI-63,
SEDAN MODEL (MODEL WITH CURTAIN AIR-
BAG), REMOVAL, Rear Quarter Trim.>
3) Remove the high-mounted stop light. <Ref. to LI-
33, REMOVAL, High-mounted Stop Light.>
4) Remove the rear seat cushion. <Ref. to SE-14,
WAGON MODEL, REMOVAL, Rear Seat.>
5) Remove the lower anchor bolt of rear center seat
belt.

6) Disconnect the high-mounted stop light harness
connector (A), remove the five clips, and then re-
move the rear shelf trim with pulling it frontward.

B: INSTALLATION

Install in the reverse order of removal.

NOTE:
Securely insert the vehicle body panel into the hook
of rear shelf trim center to install the rear shelf trim.

EI-00675

(A)

EI-00676

(1) Hook

(2) Rear shelf trim

(3) Vehicle body panel

(3)

(1)

EI-00739

(2)

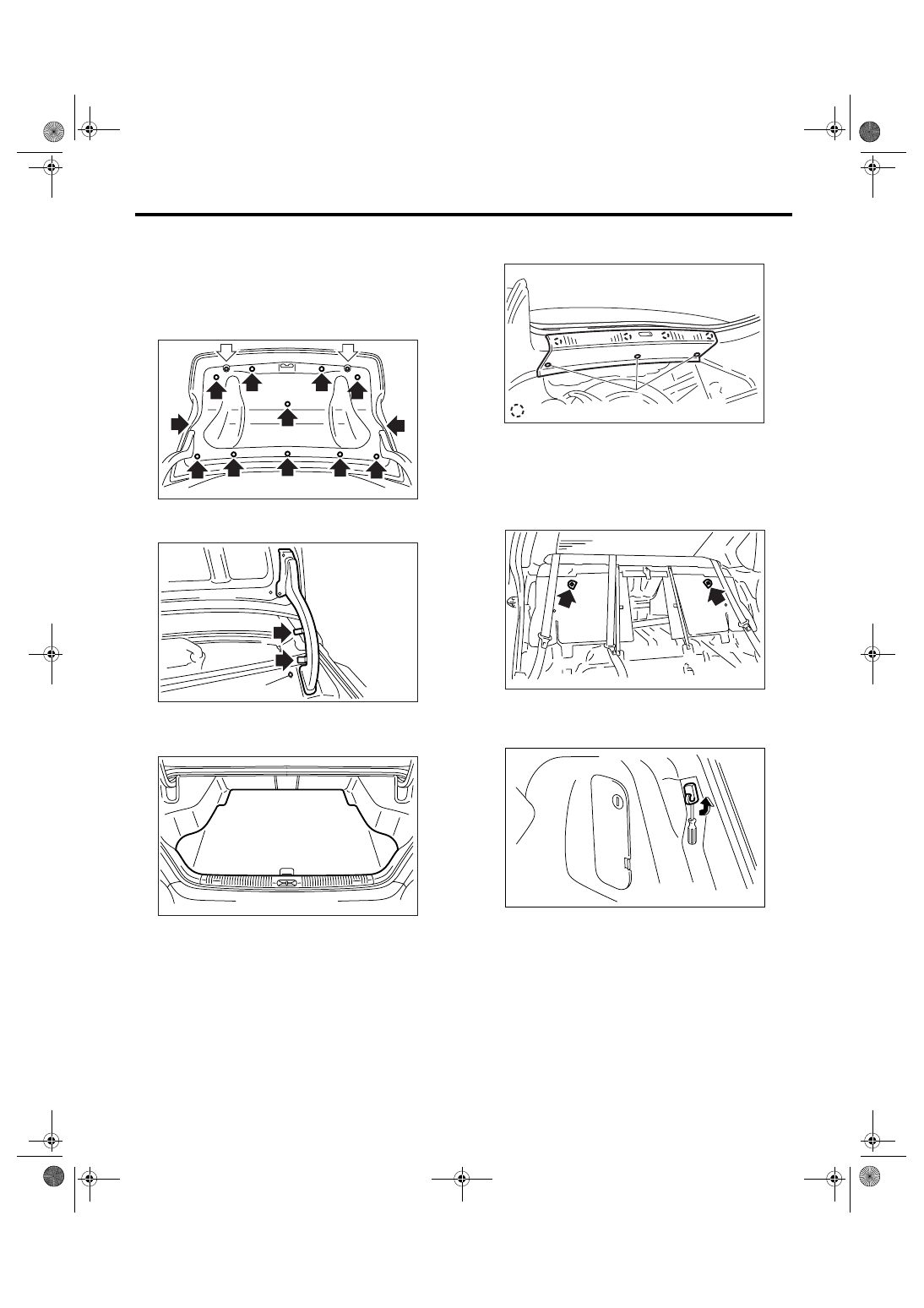

EI-71

EXTERIOR/INTERIOR TRIM

Trunk Room Trim

32.Trunk Room Trim

A: REMOVAL

1. TRUNK LID TRIM

1) Remove the trim clips and stopper rubbers, and
remove the trunk lid trim.

2) Remove the clip (A) of trunk side trim, and then
remove the trunk lid arm cover.

2. TRUNK ROOM TRIM

1) Remove the trunk room mat.

2) Remove the trim clips (A), and remove the trunk
room end cover.

3) Remove the rear seat backrest, and then re-
move the trim clips at the front side of trunk side
trim. <Ref. to SE-14, WAGON MODEL, REMOV-
AL, Rear Seat.>

4) Insert a flat tip screwdriver from the lower side of
trunk hook, and then remove the trunk hook with ro-
tating it 90

°.

EI-00628

EI-00629

(A)

EI-00623

(B) Clip

EI-00624

(A)

:(B)

EI-00625

EI-00841

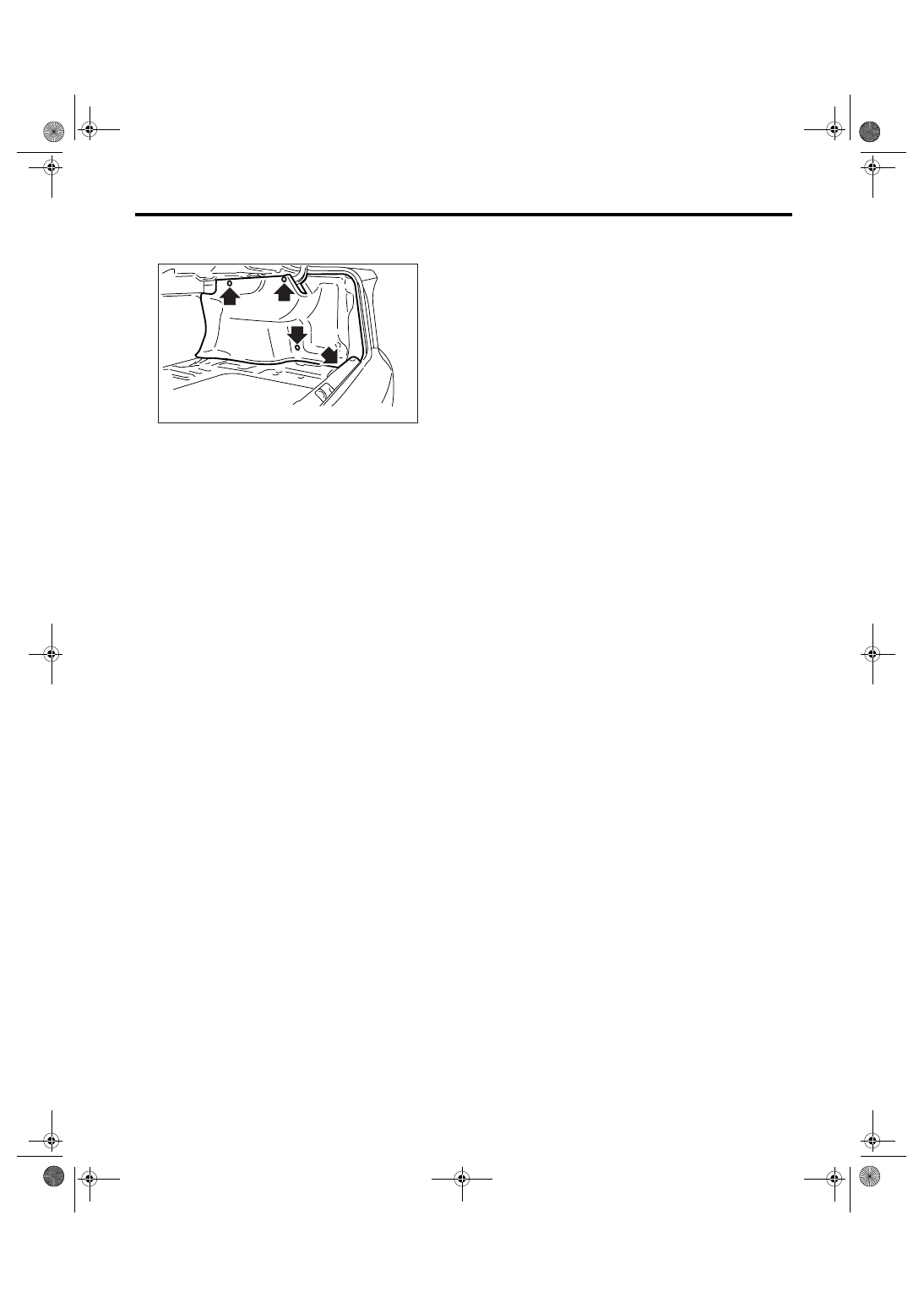

EI-72

EXTERIOR/INTERIOR TRIM

Trunk Room Trim

5) Remove the trim clips, and remove the trunk
side trim.

B: INSTALLATION

1. TRUNK LID TRIM

Install in the reverse order of removal.

2. TRUNK ROOM TRIM

Install in the reverse order of removal.

EI-00626
