EXTERIOR/INTERIOR TRIM

Lower Inner Trim

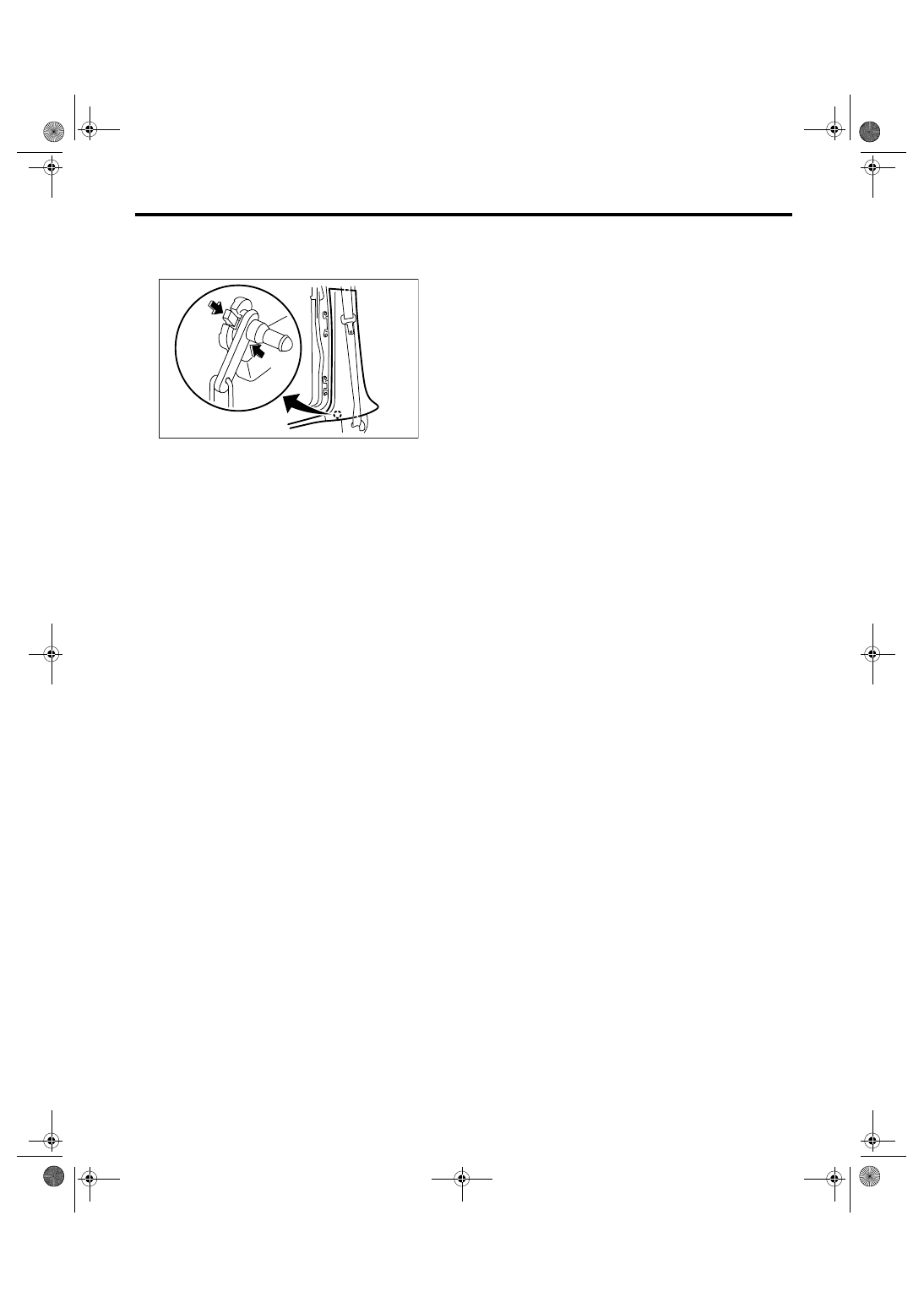

8) Remove the center pillar lower trim while push-
ing the pawl part on the upper and lower side of
dropout prevention clip.

B: INSTALLATION

Install in the reverse order of removal.

EI-00784

EI-62

EXTERIOR/INTERIOR TRIM

Upper Inner Trim

25.Upper Inner Trim

A: REMOVAL

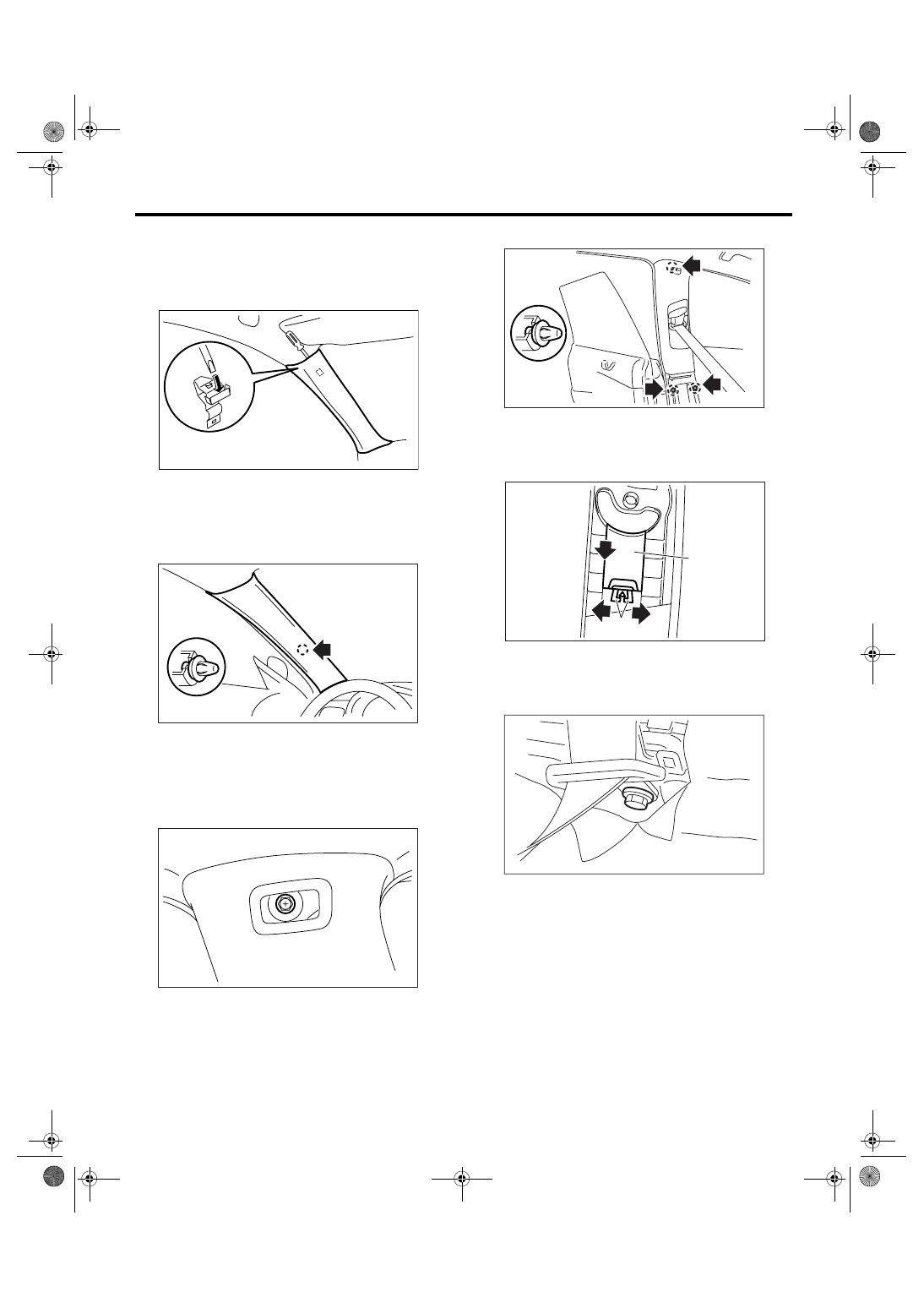

1) Remove the metal clip from the top side of trim,
using a flat tip screwdriver.

CAUTION:
When the metal clip has been removed or dam-
aged, replace both of the trim and metal clips
with new ones.
2) Remove the front pillar upper trim.

3) Remove the front inside scuff plate, rear inside
scuff plate and center pillar lower trim. <Ref. to EI-
60, REMOVAL, Lower Inner Trim.>
4) Remove the cap on the upper side of pillar trim,
and remove the bolt inside. (Model with curtain air-
bag)

5) Remove the center pillar upper trim.

6) For driver’s side, push the claw (A) in the back-
side of center pillar upper trim to both right and left
side, and lower the mini slider (B) into the direction
of arrow.

7) Remove the seat belt lower anchor bolt or lap
seat belt pretensioner (Model with lap seat belt pre-
tensioner), and pull out the seat belt from center pil-
lar upper trim.

B: INSTALLATION

Install in the reverse order of removal.

EI-00785

EI-00786

EI-00562

EI-00787

EI-01167

(B)

(A)

SB-00145

EI-63

EXTERIOR/INTERIOR TRIM

Rear Quarter Trim

26.Rear Quarter Trim

A: REMOVAL

1. SEDAN MODEL (MODEL WITHOUT
CURTAIN AIRBAG)

1) Remove the rear seat. <Ref. to SE-14, SEDAN
MODEL, REMOVAL, Rear Seat.>
2) Remove rear quarter trim.

2. SEDAN MODEL (MODEL WITH CURTAIN
AIRBAG)

1) Remove the rear seat. <Ref. to SE-14, SEDAN
MODEL, REMOVAL, Rear Seat.>

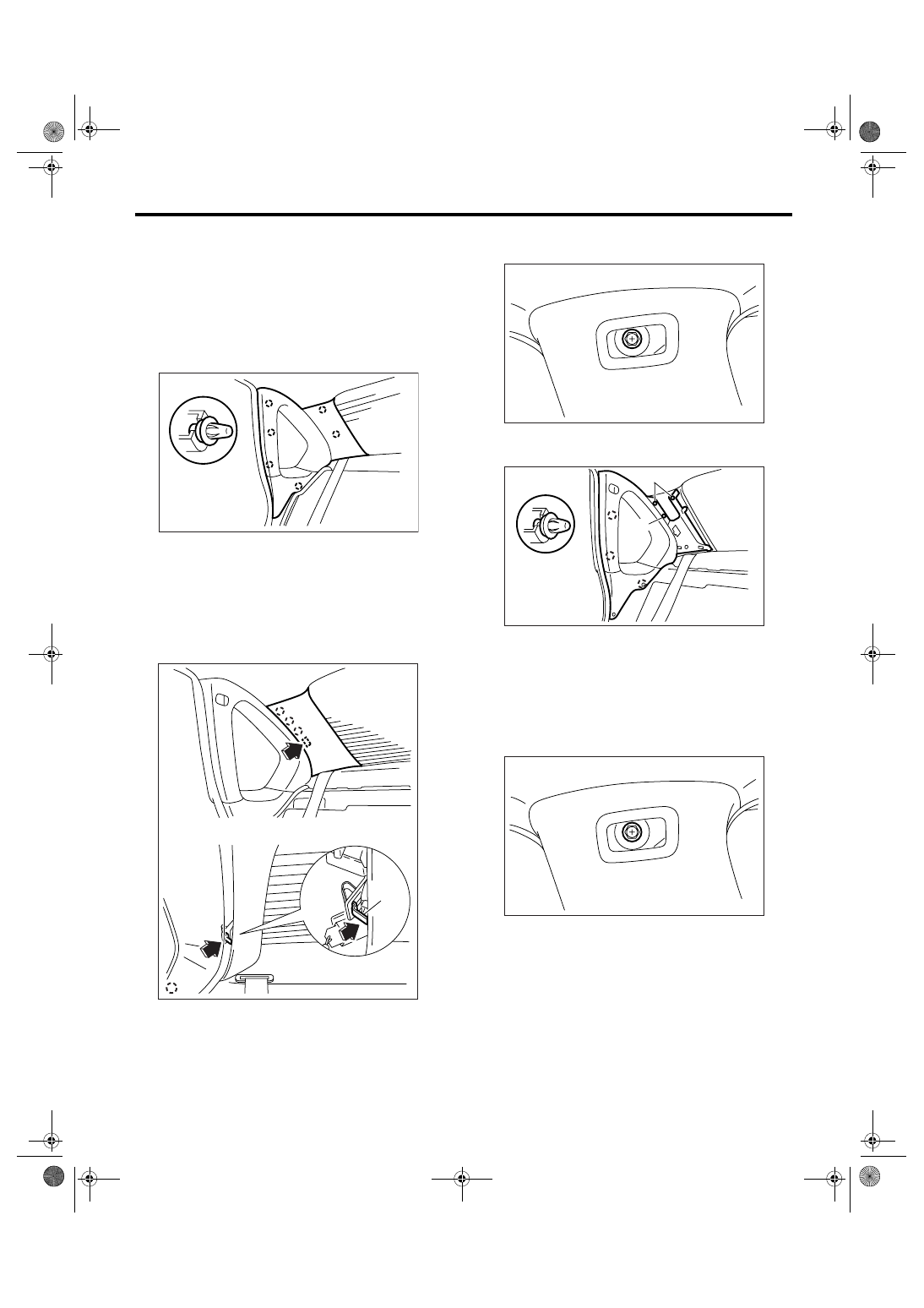

2) Turn over the trim, and remove the quarter trim
rear by pressing the claw (A) of metal clip using flat
tip screwdriver or the like.

CAUTION:
When the metal clip has been removed or dam-
aged, replace both of the trim and metal clips
with new ones.

3) Remove the cap on the upper side of trim, and
remove the bolt inside.

4) Remove the bolts (A), and remove the quarter
trim (front).

3. WAGON MODEL

1) Remove the rear seat cushion and backrest
shoulder. <Ref. to SE-14, WAGON MODEL, RE-
MOVAL, Rear Seat.>
2) Remove the cap on the upper side of pillar trim,
and remove the bolt inside. (Model with curtain air-
bag)

(B) Hook

EI-00838

EI-00682

(A)

:(B)

EI-00562

EI-00839

(A)

(A)

EI-00562

EI-64

EXTERIOR/INTERIOR TRIM

Rear Quarter Trim

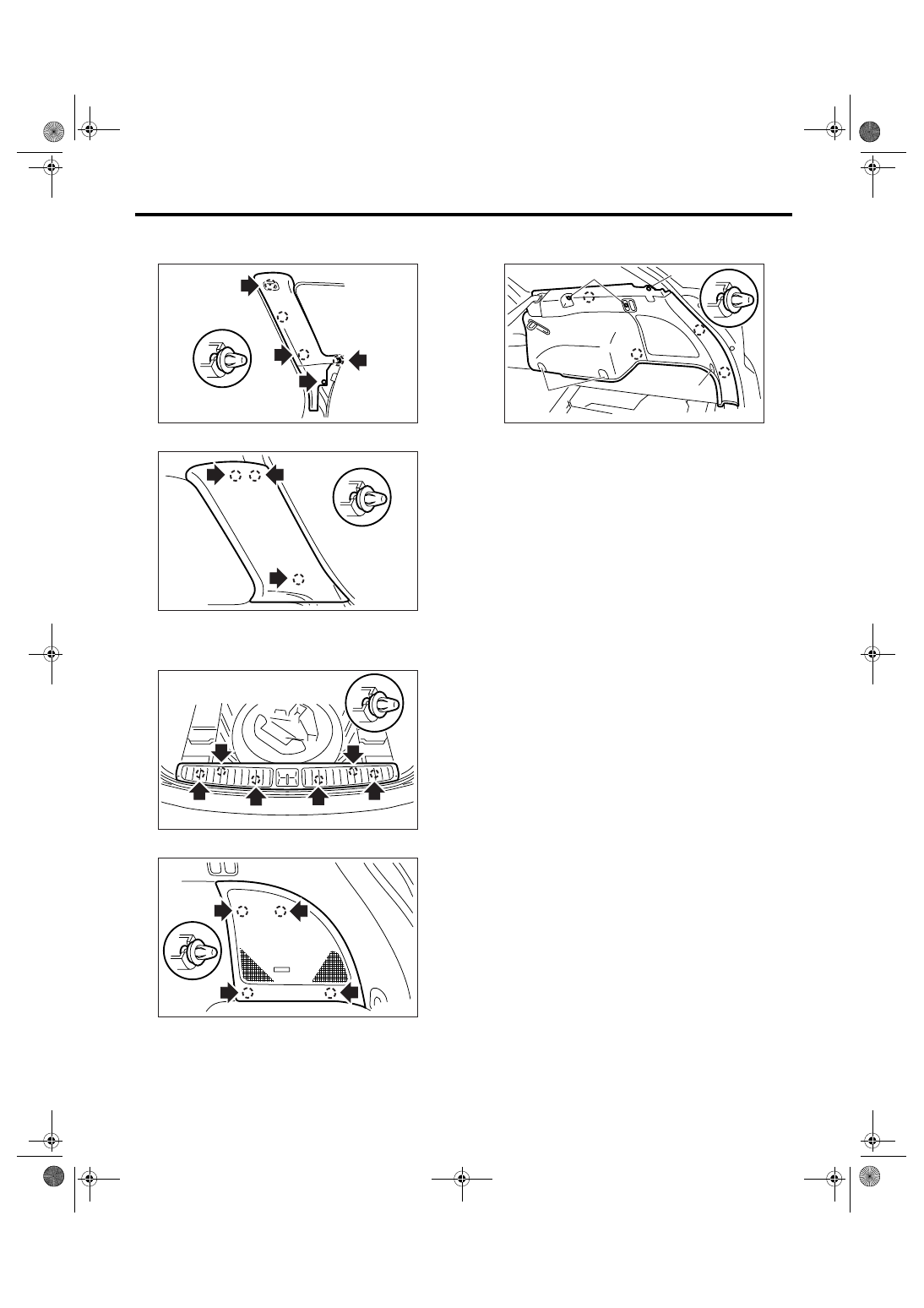

3) Remove the clip, and remove the quarter front
pillar trim.

4) Remove the quarter rear pillar trim.

5) Remove the luggage floor box. <Ref. to EI-74,
REMOVAL, Luggage Floor Box.>
6) Remove the luggage floor end cover.

7) Remove the woofer cover. (Model with woofer)

8) Remove the screws (A) and bolts (B), and re-
move the quarter lower trim.

NOTE:
• Remove the screw cover on the tonneau cover
installing part.
• Pull out the shopping bag hook, and remove the
screw on the back.

B: INSTALLATION

1. SEDAN MODEL

Install in the reverse order of removal.

2. WAGON MODEL

Install in the reverse order of removal.

EI-00840

EI-00564

EI-00570

EI-00622

EI-00567

(B)

(A)

(B)
