EXTERIOR BODY PANELS

EB

Page

1.

General Description ....................................................................................2

2.

Front Hood ................................................................................................13

3.

Front Fender .............................................................................................16

4.

Front Door .................................................................................................17

5.

Front Sealing Cover ..................................................................................20

6.

Rear Door..................................................................................................21

7.

Rear Sealing Cover...................................................................................24

8.

Trunk Lid ...................................................................................................25

9.

Rear Gate..................................................................................................27

EB-2

EXTERIOR BODY PANELS

General Description

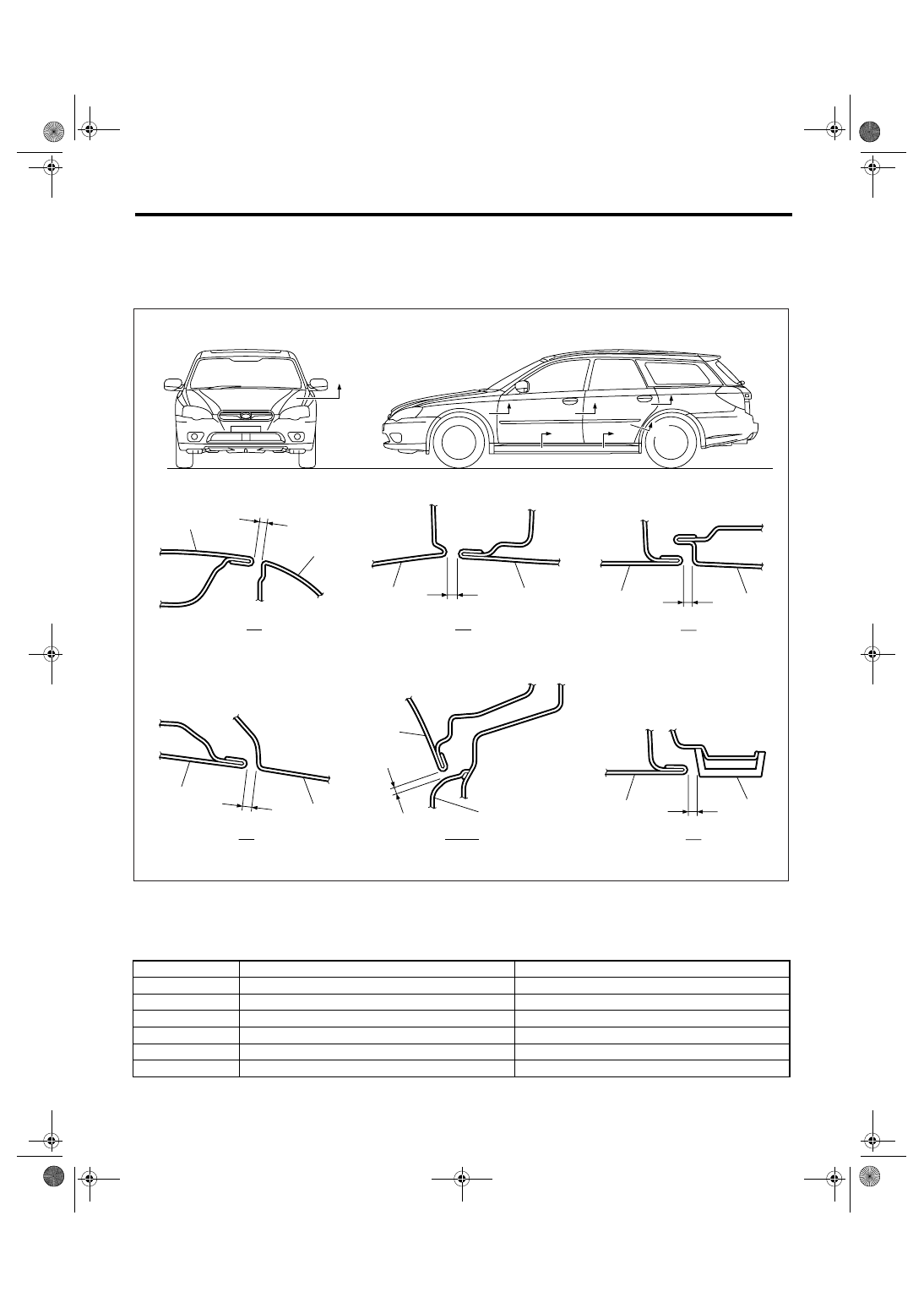

1. General Description

A: SPECIFICATION

1. SIDE

(1)

Front hood panel

(4)

Rear door panel

(7)

Side sill

(2)

Front fender panel

(5)

Rear quarter panel

(8)

Rear quarter lower protector

(3)

Front door panel

(6)

Door panel

Section

Part

Specification

(A)

Front hood panel to Front fender panel

3.5

±1.0 mm (0.14±0.04 in)

(B)

Front fender panel to Front door panel

4.65

±1.0 mm (0.18±0.04 in)

(C)

Front door panel to Rear door panel

5.1

±1.0 mm (0.20±0.04 in)

(D)

Rear door panel to Rear quarter panel

4.6

±1.0 mm (0.18±0.04 in)

(E), (F)

Door panel to Side sill

6.0

±1.0 mm (0.24±0.04 in)

(G)

Rear door panel to Rear quarter lower protector

5.0

±1.0 mm (0.20±0.04 in)

EB-00176

(A)

(B)

(C)

(D)

(E)

(F)

(G)

(1)

(2)

(A)

(2)

(3)

(B)

(3)

(4)

(C)

(4)

(5)

(D)

(7)

(6)

(E),(F)

(4)

(G)

(8)

EB-3

EXTERIOR BODY PANELS

General Description

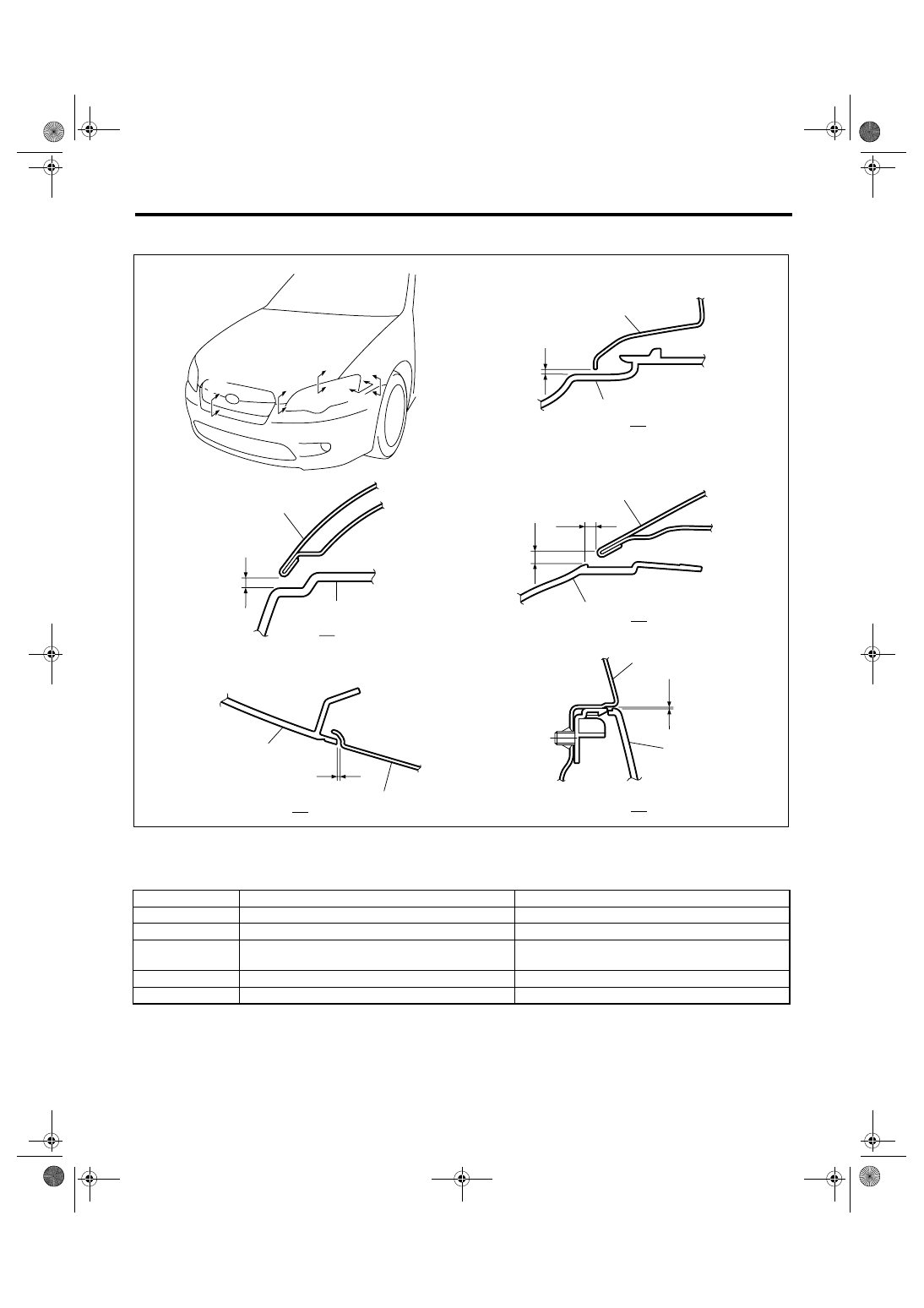

2. FRONT

(1)

Front bumper

(3)

Front hood panel

(5)

Front fender panel

(2)

Front grille

(4)

Headlight

Section

Part

Specification

(A)

Front bumper to Front grille (Longitudinal direction)

1.0

±0.7 mm (0.04±0.03 in)

(B)

Front hood panel to Front bumper

4.0 — 6.0 mm (0.16 — 0.24 in)

(C)

Front hood panel to Headlight

C1: 6.0

±1.0 mm (0.24±0.04 in)

C2: 5.0

±1.0 mm (0.20±0.04 in)

(D)

Front fender panel to Headlight

1.0

±1.0 mm (0.04±0.04 in)

(E)

Front fender panel to Front bumper

1.0

±0.7 mm (0.04±0.03 in)

EB-00234

(3)

(1)

(B)

(4)

(3)

C2

C1

(C)

(1)

(2)

(A)

(5)

(4)

(D)

(5)

(1)

(E)

(A)

(B)

(C)

(D)

(E)

EB-4

EXTERIOR BODY PANELS

General Description

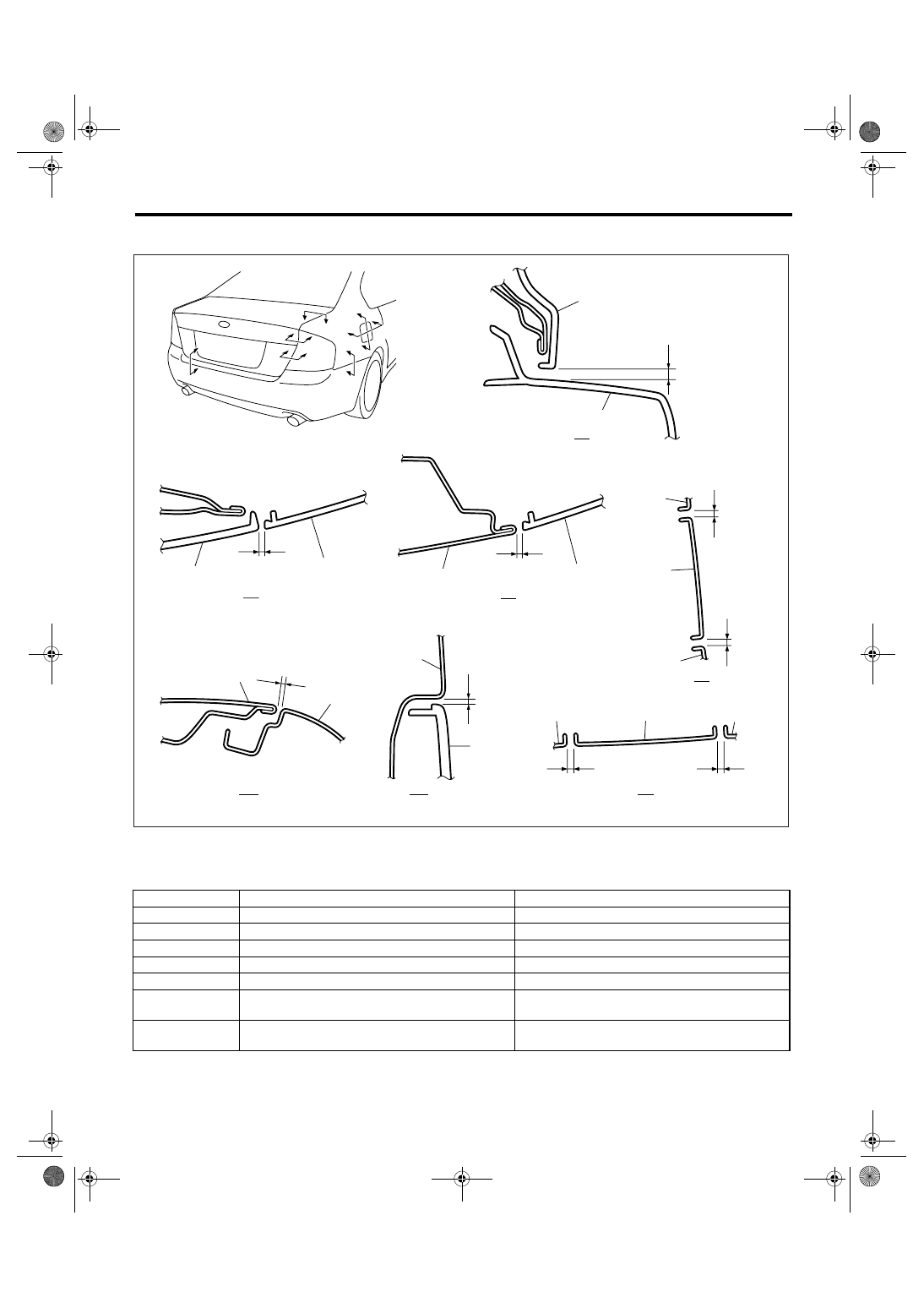

3. REAR (SEDAN MODEL)

(1)

Trunk lid panel

(3)

Rear bumper

(5)

Fuel filler flap lid

(2)

Rear combination light

(4)

Rear fender panel

(6)

Trunk lid garnish

Section

Part

Specification

(A)

Trunk lid garnish to Rear bumper

7.0

±1.0 mm (0.28±0.04 in)

(B)

Trunk lid garnish to Rear combination light

4.0

±1.0 mm (0.16±0.04 in)

(C)

Trunk lid panel to Rear combination light

3.5

±1.0 mm (0.14±0.04 in)

(D)

Trunk lid panel to Rear fender panel

3.5

±1.0 mm (0.14±0.04 in)

(E)

Rear fender panel to Rear bumper

1.0

±0.7 mm (0.04±0.03 in)

(F)

Rear fender panel to Fuel filler flap lid (Longitudinal
direction)

F1: 3.7

±0.5 mm (0.15±0.02 in)

F2: 3.4

±0.5 mm (0.13±0.02 in)

(G)

Rear fender panel to Fuel filler flap lid (Lateral direc-
tion)

G1, G2: 3.5

±0.5 mm (0.14±0.02 in)

EB-00178

(6)

(2)

(B)

(D)

(1)

(4)

(E)

(4)

(3)

(C)

(1)

(2)

(A)

(6)

(3)

G1

G2

(G)

(5)

(4)

(4)

(F)

(4)

(5)

F2

F1

(4)

(A)

(E)

(F)

(D)

(C)

(B)

(G)
