ELECTRICAL WIRING DIAGRAMS  5-69

SSANGYONG  REXTON XDi (LHD)

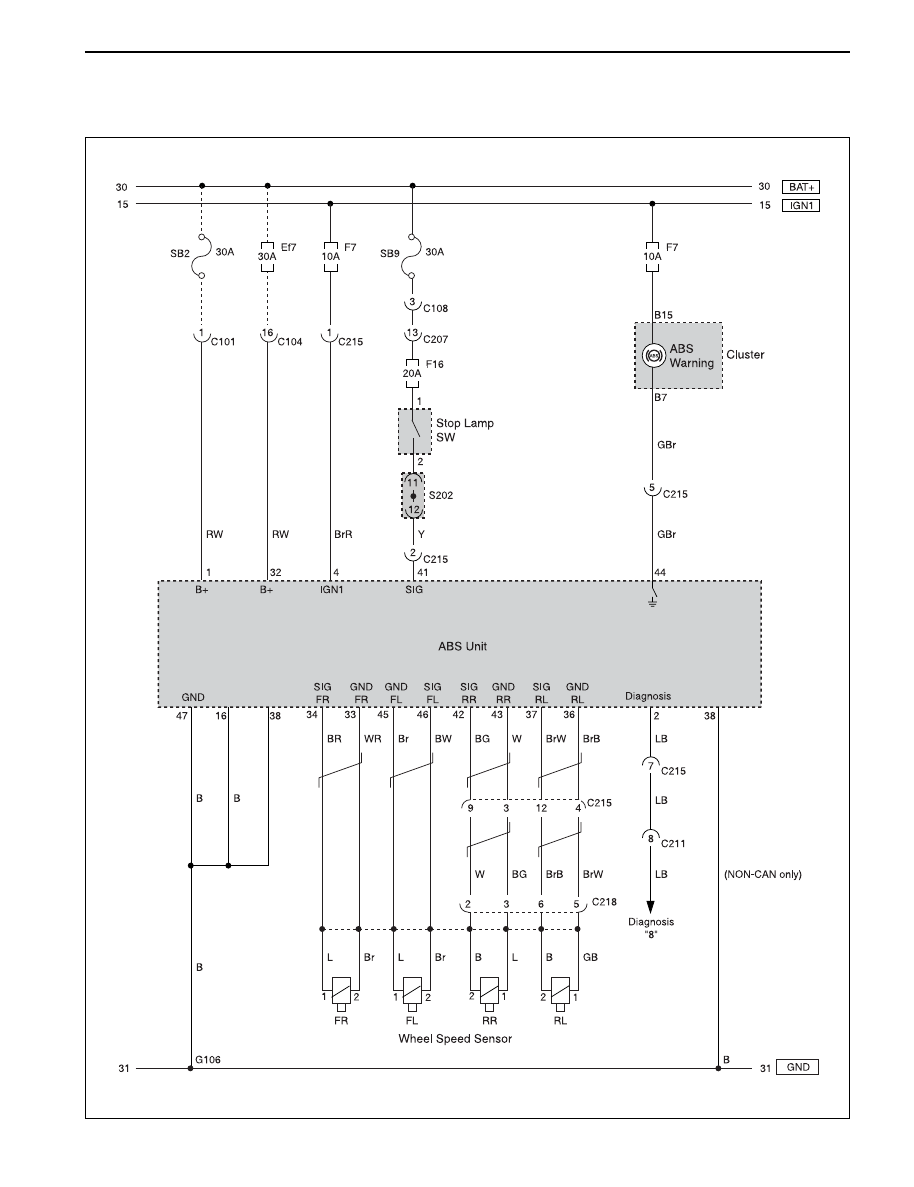

2) ABS(TEVES)

SSANGYONG  REXTON XDi (LHD)

5-70  ELECTRICAL WIRING DIAGRAMS

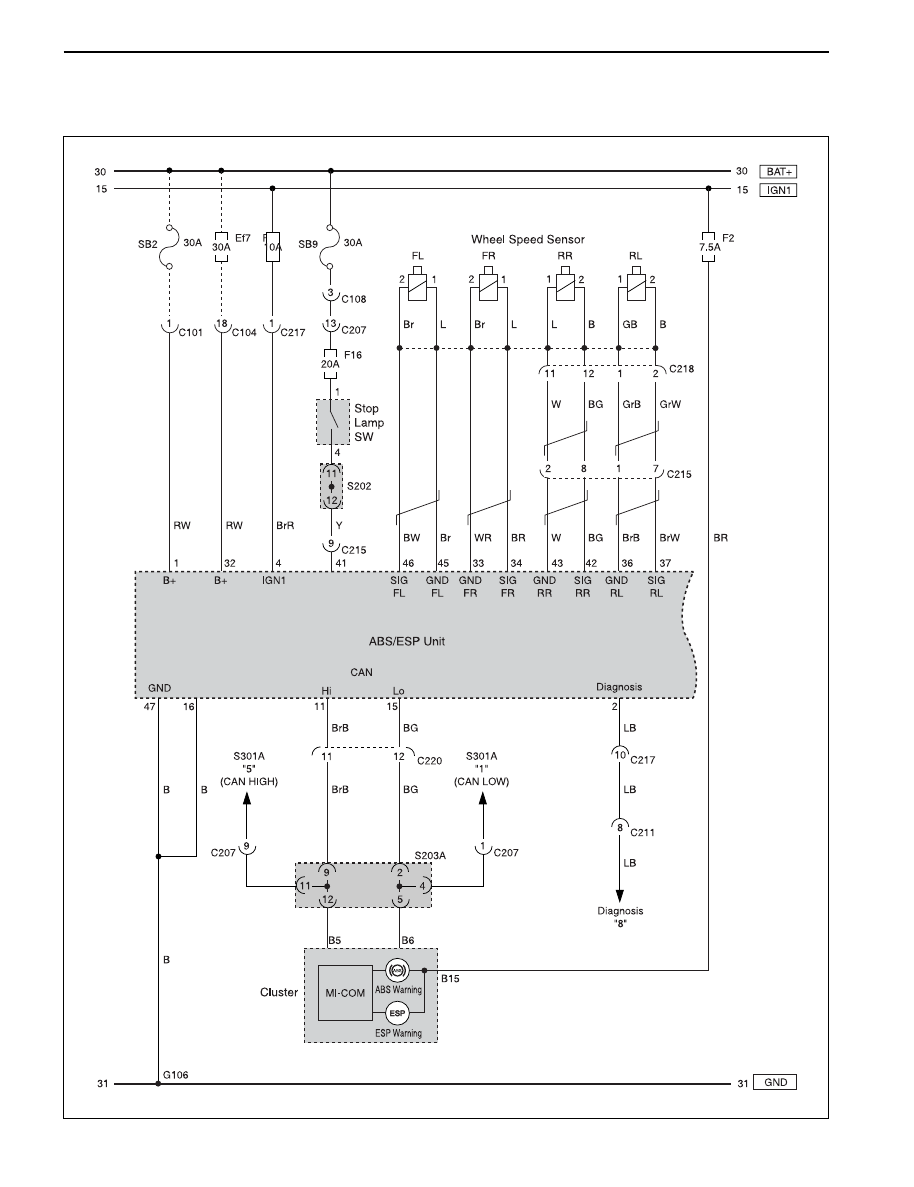

3) ABS/ESP(TEVES)

(1) WHEEL SPEED SENSOR, STOP LAMP SW, DIAGNOSIS, WARNING LAMP

ELECTRICAL WIRING DIAGRAMS  5-71

SSANGYONG  REXTON XDi (LHD)

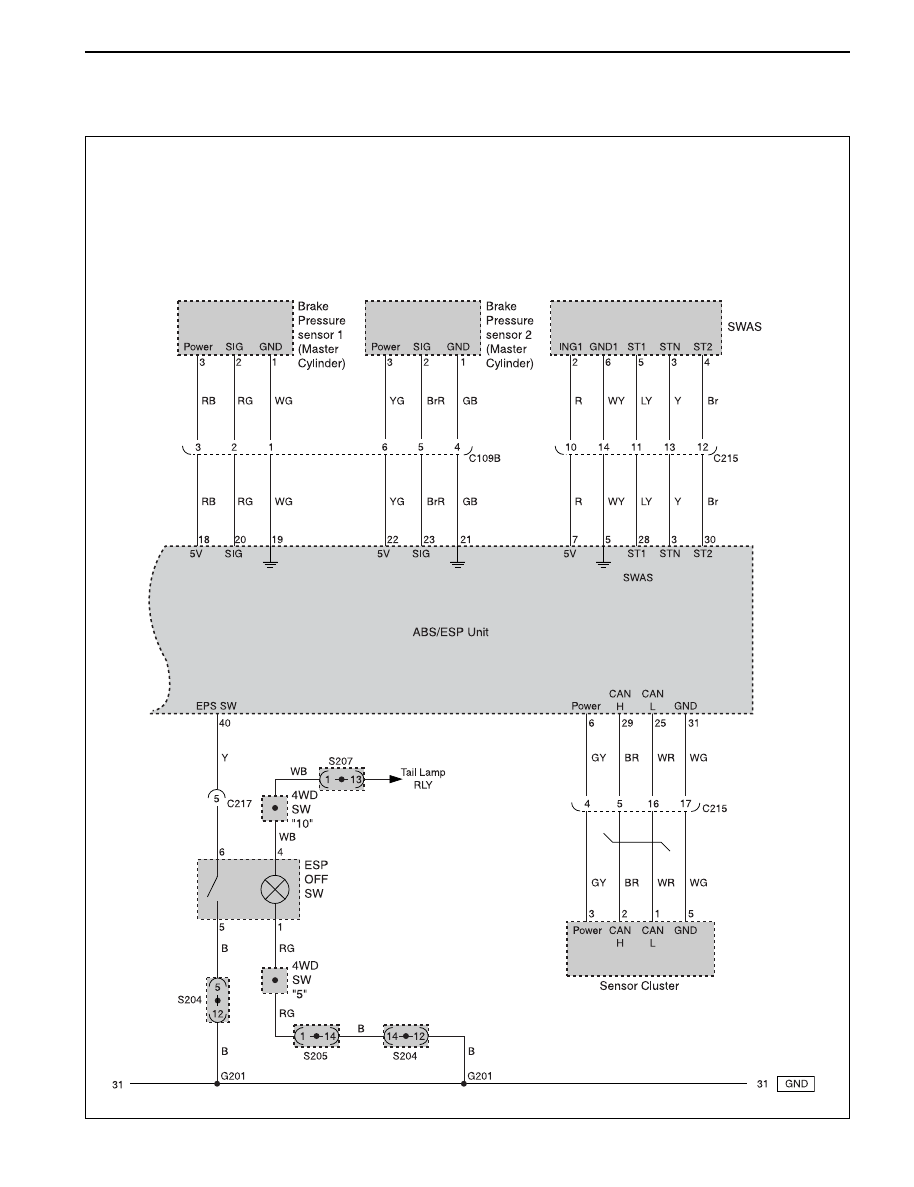

(2) BRAKE PRESSURE SENSOR, SWAS, SENSOR CLUSTER, ESP OFF SW

SSANGYONG  REXTON XDi (LHD)

5-72  ELECTRICAL WIRING DIAGRAMS

A. CONNECTOR INFORMATION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box (A) - Engine

Engine Room Fuse Box (D) - Engine

Engine Room Fuse Box (E) - Engine

Engine Room Fuse Box (K) - Engine

Engine - ABS/ESP Pressure Sensor

Main - Floor (LH)

Main - Diagnosis Connector

Engine - Main (RH)

Main - Floor (RH)

Engine - Main (RH)

Main - Floor (RH)

Engine - Main (RH)

W/H Main

W/H Main

W/H Main

W/H Engine

W/H Engine

C101 (2Pin, Colorless)

C104 (20Pin, White)

C105 (22Pin, White)

C108 (4Pin, Colorless)

C109B (6Pin, Black)

C207 (15Pin, Blue)

C211 (14Pin, White)

C215 (14Pin, White)

C216 (18Pin, White)

C217 (20Pin, Black)

C218 (22Pin, Yellow)

C220 (15Pin, Blue)

S202 (14Pin, Black)

S204 (14Pin, Black)

S205 (14Pin, Black)

G103

G106

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Inside Driver Side Cowl PNL

Upper the Diagnosis

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Upper the I/P Relay Box

Behind the Left FATC

Behind the Left FATC

Behind the Left Head Lamp

Beside the Engine Coolant Reserve Tank

XDi

ABS, ABD

XDi

GND

GND

ABS, ABD

Remark

Connector Position
