ELECTRICAL WIRING DIAGRAMS  5-73

SSANGYONG  REXTON XDi (LHD)

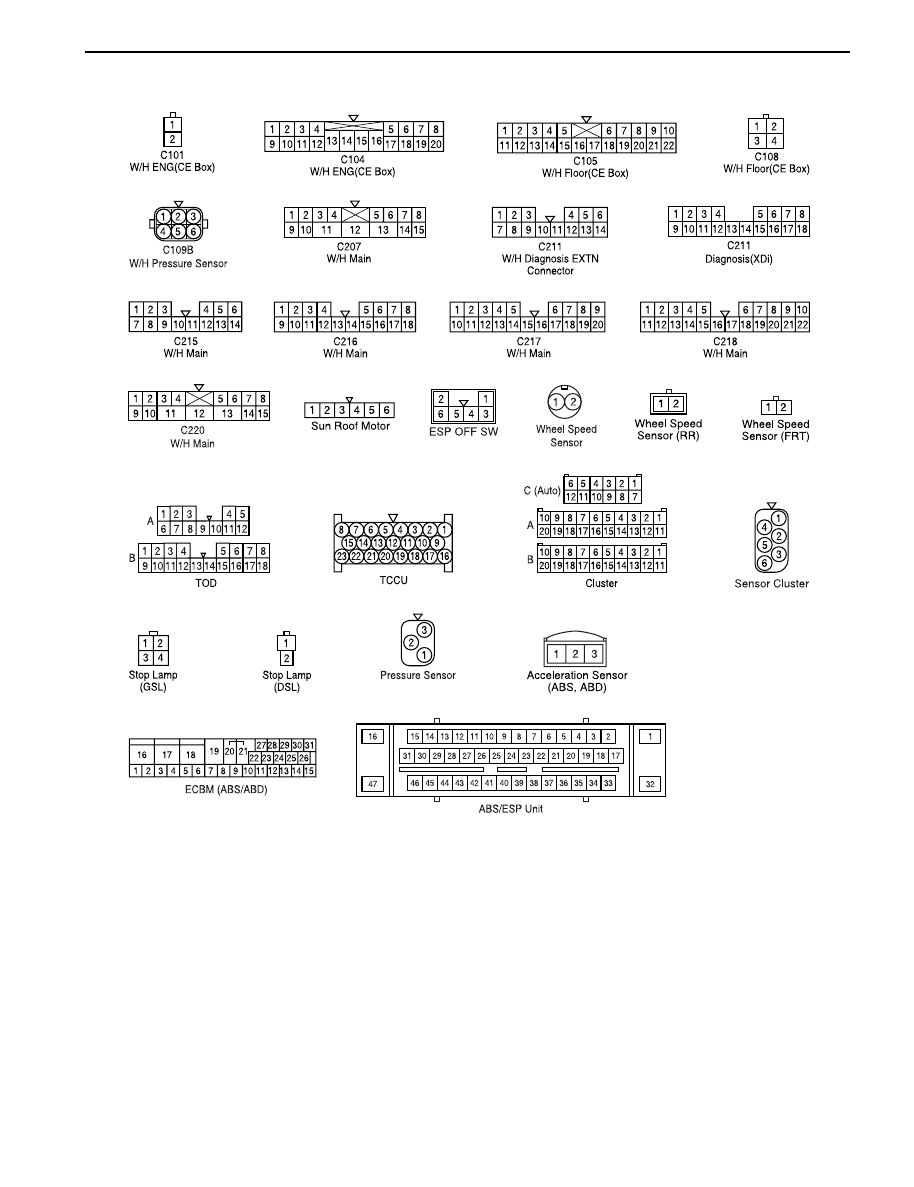

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

SSANGYONG  REXTON XDi (LHD)

5-74  ELECTRICAL WIRING DIAGRAMS

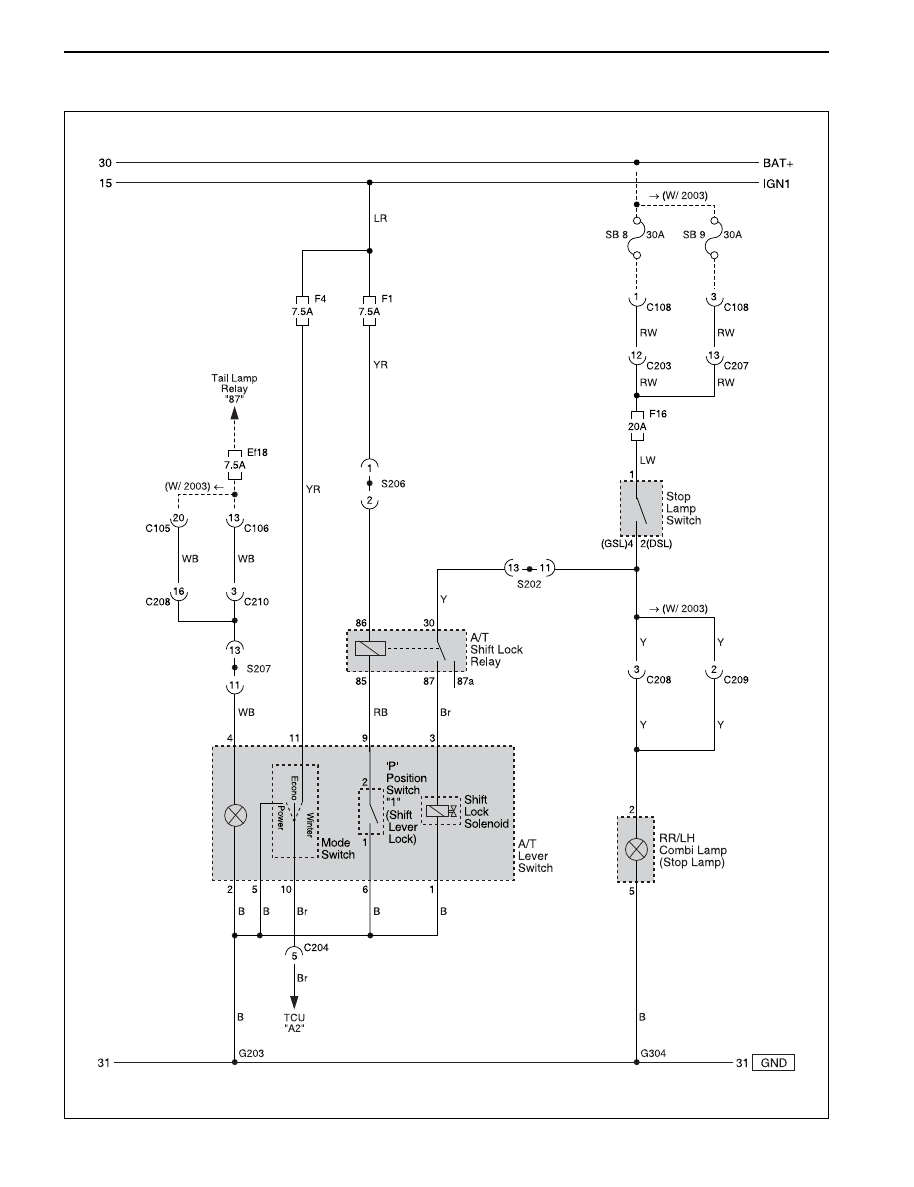

13. A/T SHIFT LOCK CIRCUIT

ELECTRICAL WIRING DIAGRAMS  5-75

SSANGYONG  REXTON XDi (LHD)

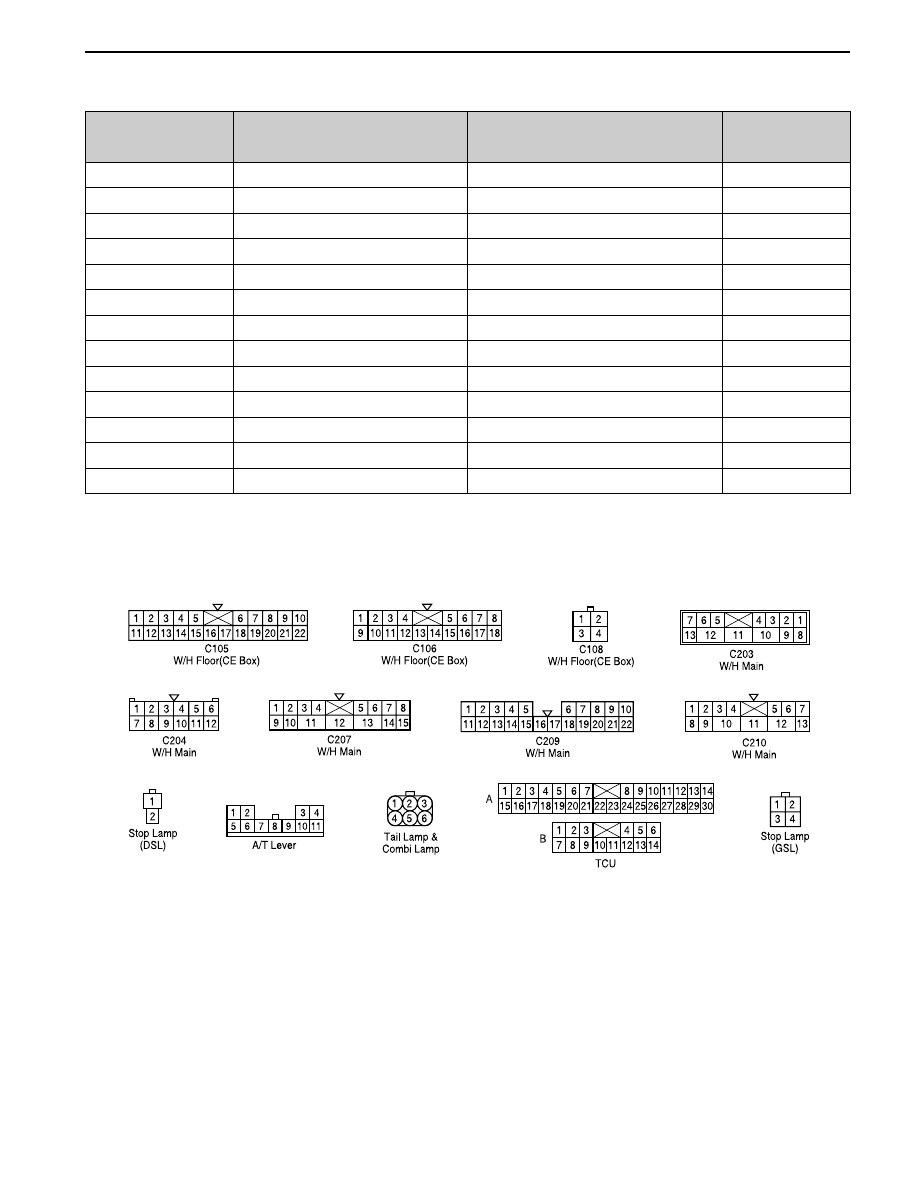

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box (E) - Engine

Engine Room Fuse Box (F) - Engine

Engine Room Fuse Box (K) - Engine

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

W/H Main

W/H Main

W/H Main

W/H Floor

C105 (22Pin, White)

C106 (18Pin, White)

C108 (4Pin, Colorless)

C203 (13Pin, Green)

C204 (12Pin, Black)

C207 (15Pin, Blue)

C208 (20Pin, Black)

C209 (22Pin, Yellow)

C210 (13Pin, Green)

S202 (14Pin, Black)

S206 (14Pin, Black)

G203

G304

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Under the I/P Fuse Box

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Upper the I/P Relay Box

Behind the Left the FATC

Upper the Seat Heating SW

Behind the Quarter Grass #1

A/T

W/H Air Bag

Remark

Connector Position

SSANGYONG  REXTON XDi (LHD)

5-76  ELECTRICAL WIRING DIAGRAMS

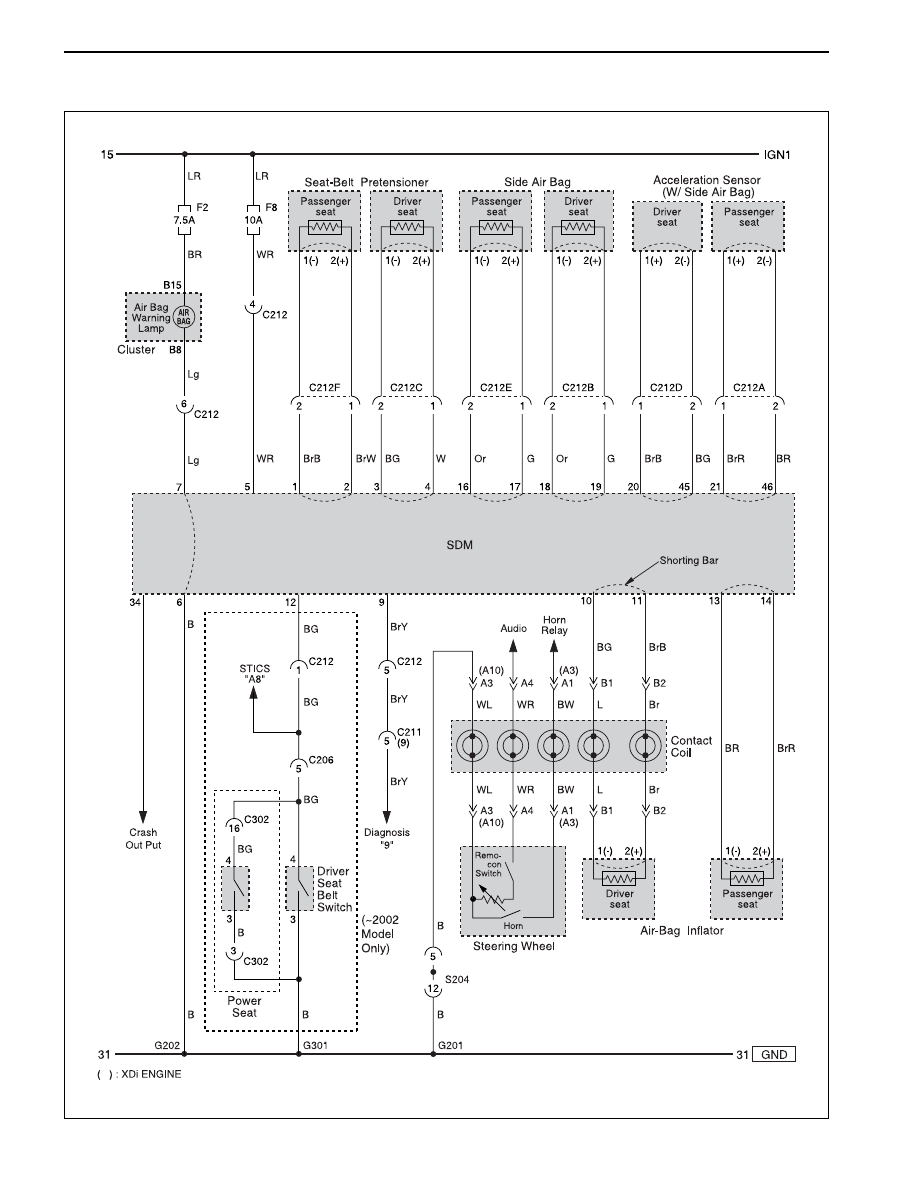

14. AIR BAG & SIDE AIR-BAG CIRCUIT
