SsangYong Rexton. Manual - part 258

ELECTRICAL WIRING DIAGRAMS  5-65

SSANGYONG  REXTON XDi (LHD)

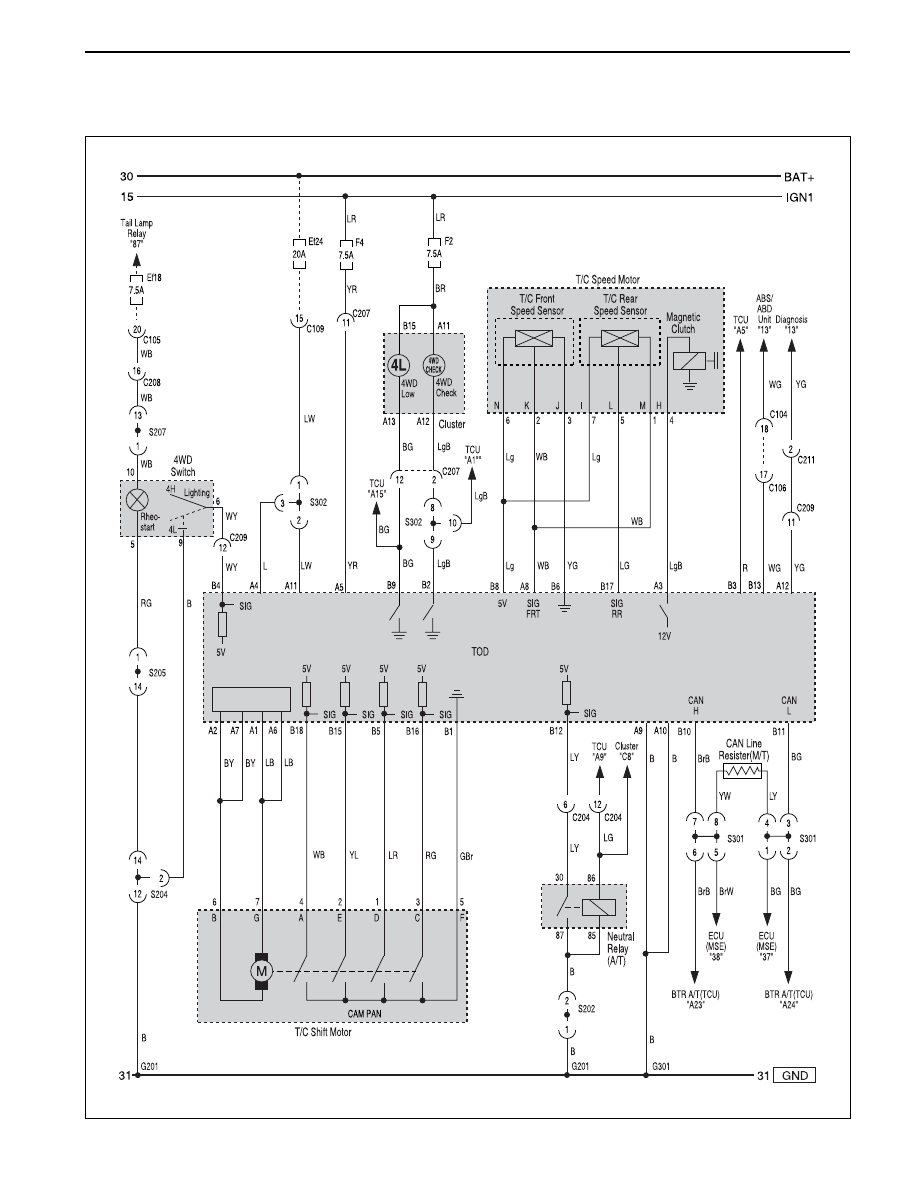

2) 2003 MODEL ~

SSANGYONG  REXTON XDi (LHD)

5-66  ELECTRICAL WIRING DIAGRAMS

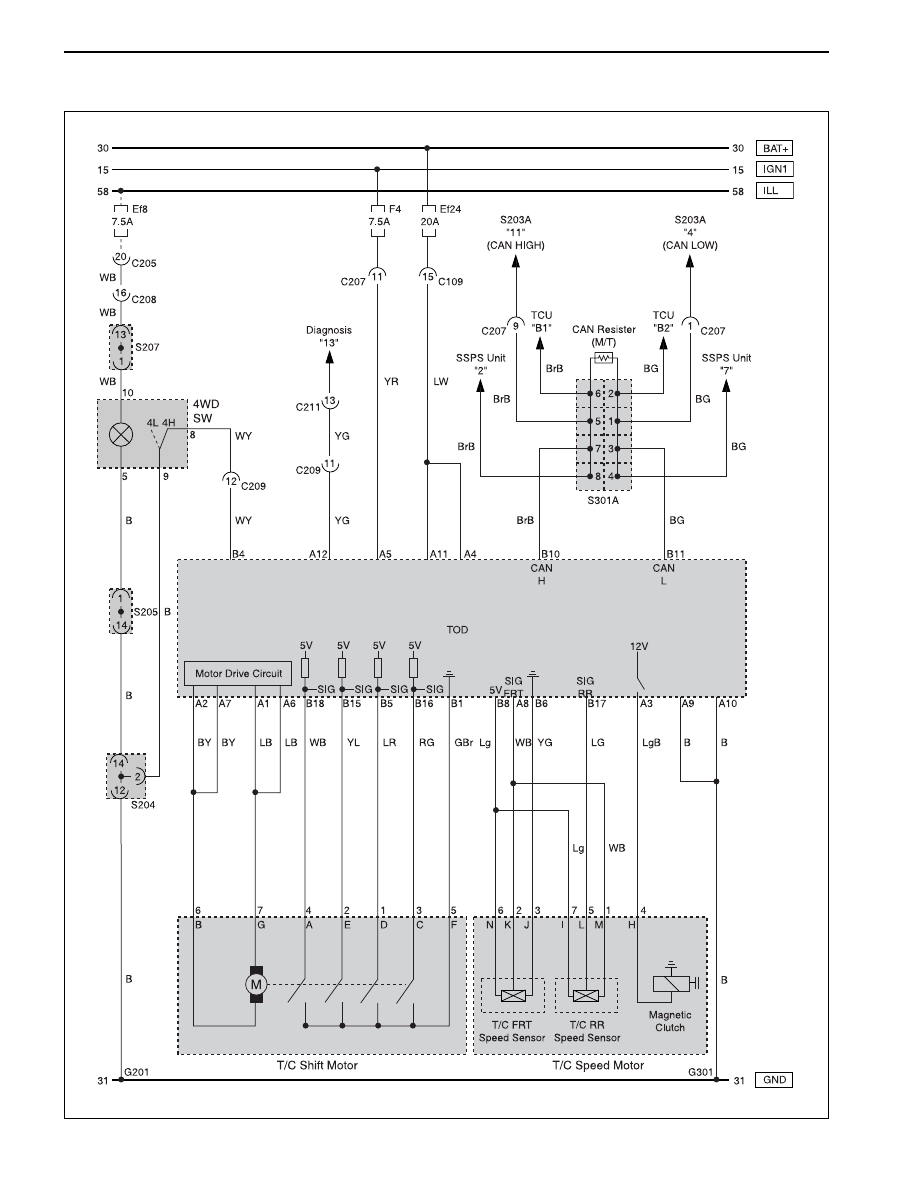

3) XDi

ELECTRICAL WIRING DIAGRAMS  5-67

SSANGYONG  REXTON XDi (LHD)

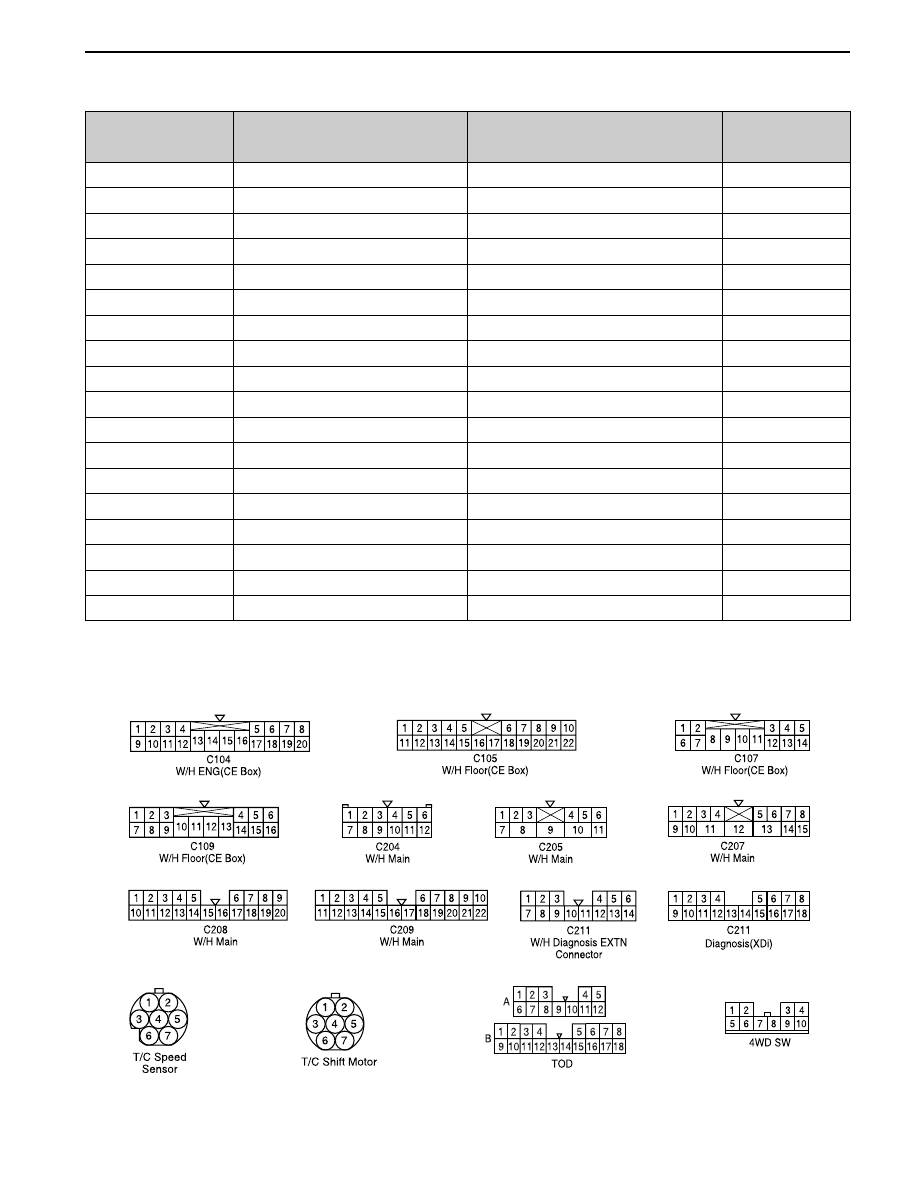

A. CONNECTOR INFORMATION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box (D) - Engine

Engine Room Fuse Box (E) - Engine

Engine Room Fuse Box (J) - Engine

Engine Room Fuse Box (M) - Engine

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Main - Diagnosis Connector

Main - Diagnosis Connector

W/H Main

W/H Main

W/H Main

W/H Main

W/H Floor

W/H Main

W/H Floor

C104 (20Pin, White)

C105 (22Pin, White)

C107 (14Pin, White)

C109 (16Pin, White)

C204 (12Pin, Black)

C205 (11Pin, White)

C207 (15Pin, Blue)

C208 (20Pin, Black)

C209 (22Pin, Yellow)

C211 (14Pin, White)

C211 (18Pin, White)

S202 (14Pin, Black)

S204 (14Pin, Black)

S205 (14Pin, Black)

S207 (14Pin, Black)

S301 (8Pin, Black)

G201

G301

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Upper the Diagnosis

Upper the Diagnosis

Upper the I/P Relay Box

Behind the Left the FATC

Behind the Left the FATC

Behind the Right the FATC

Under Driver Seat

Inside Driver Side Cowl PNL

Under Driver Seat

A/T

XDi

GND

GND

Tail Lamp

CAN (GSL)

ECU GND

Remark

Connector Position

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

SSANGYONG  REXTON XDi (LHD)

5-68  ELECTRICAL WIRING DIAGRAMS

12. BRAKE SYSTEM

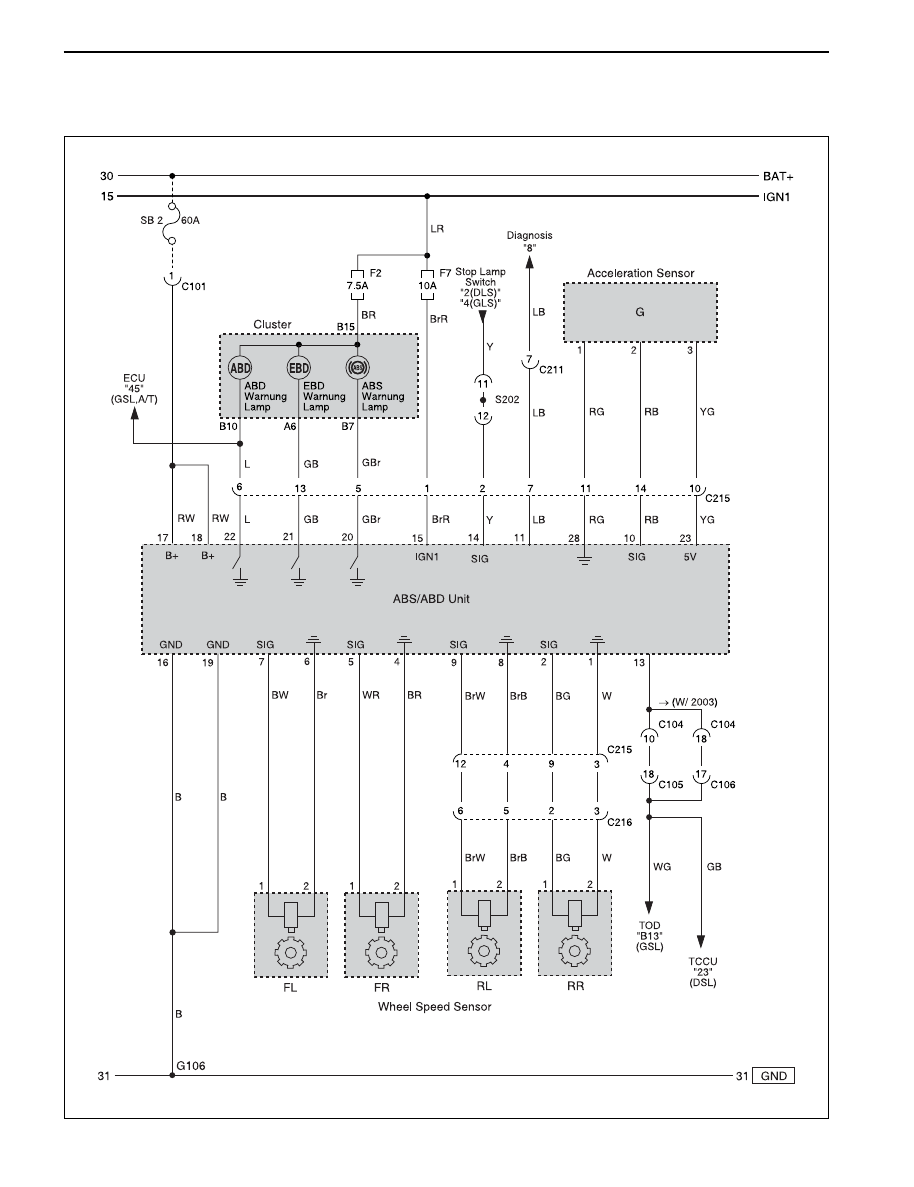

1) ABS & ABS/ABD 5.3 II
