ELECTRICAL WIRING DIAGRAMS  5-61

SSANGYONG  REXTON XDi (LHD)

4) XDi

SSANGYONG  REXTON XDi (LHD)

5-62  ELECTRICAL WIRING DIAGRAMS

A. CONNECTOR INFORMATION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box (D) - Engine

Engine Room Fuse Box (E) - Engine

Engine Room Fuse Box (F) - Engine

Engine Room Fuse Box (J) - Engine

Engine Room Fuse Box (M) - Engine

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Engine - Main (RH)

Main - Diagnosis Connector

Main - Diagnosis Connector

W/H Main

W/H Main

W/H Main

W/H Main

W/H Engine

W/H Main

W/H Main

W/H Floor

C104 (20Pin, White)

C105 (22Pin, White)

C106 (18Pin, White)

C107 (14Pin, White)

C109 (16Pin, White)

C204 (12Pin, Black)

C205 (11Pin, White)

C207 (15Pin, Blue)

C208 (20Pin, Black)

C209 (22Pin, Yellow)

C210 (13Pin, Green)

C211 (14Pin, White)

C211 (18Pin, White)

S202 (14Pin, Black)

S204 (14Pin, Black)

S205 (14Pin, Black)

S207 (14Pin, Black)

G102

G201

G203

G301

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Upper the Diagnosis

Upper the Diagnosis

Upper the I/P Relay Box

Behind the Left the FATC

Behind the Left the FATC

Behind the Right the FATC

Center BATT

Inside Driver Side Cowl PNL

Under the Seat Heating SW

Under Driver Seat

A/T

XDi

GND

GND

Tail Lamp

W/H Air Bag

ECU GND

Remark

Connector Position

ELECTRICAL WIRING DIAGRAMS  5-63

SSANGYONG  REXTON XDi (LHD)

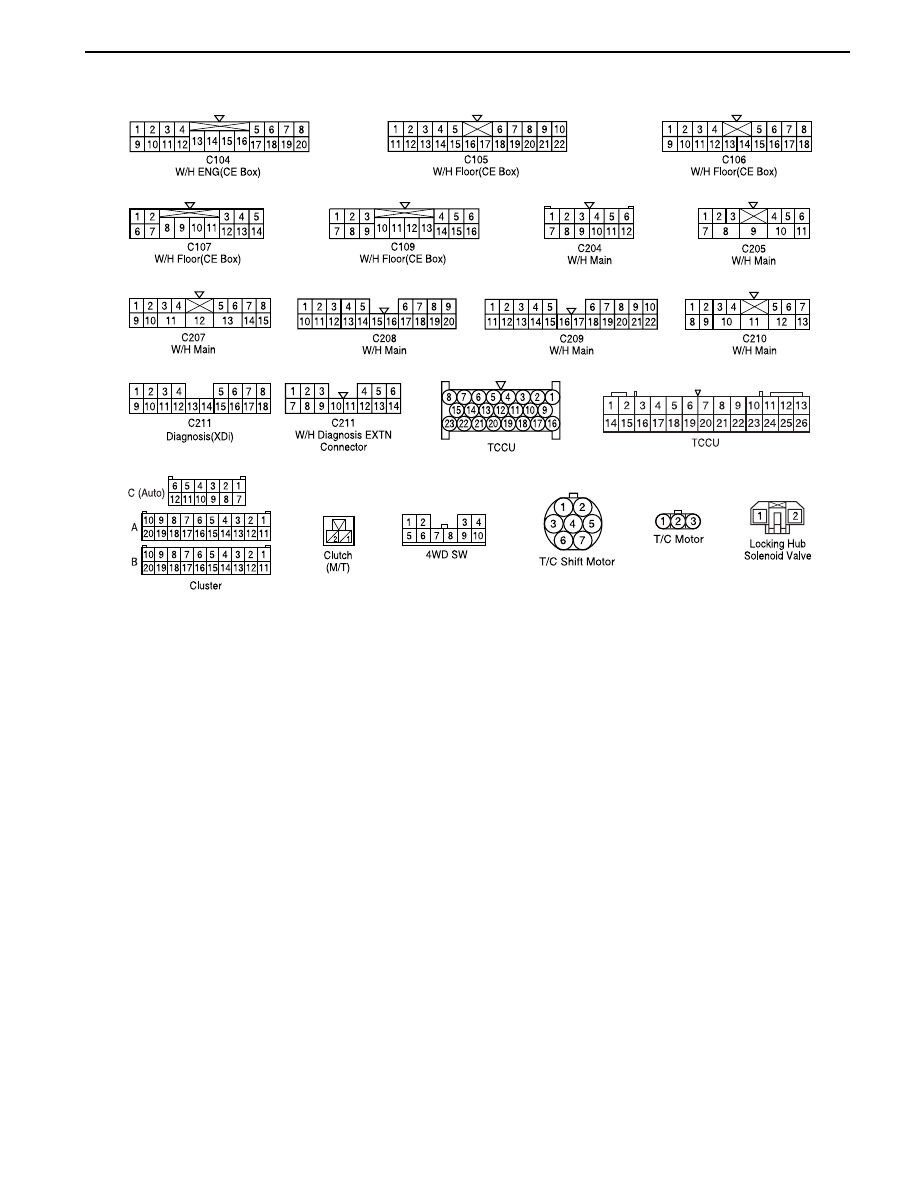

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

SSANGYONG  REXTON XDi (LHD)

5-64  ELECTRICAL WIRING DIAGRAMS

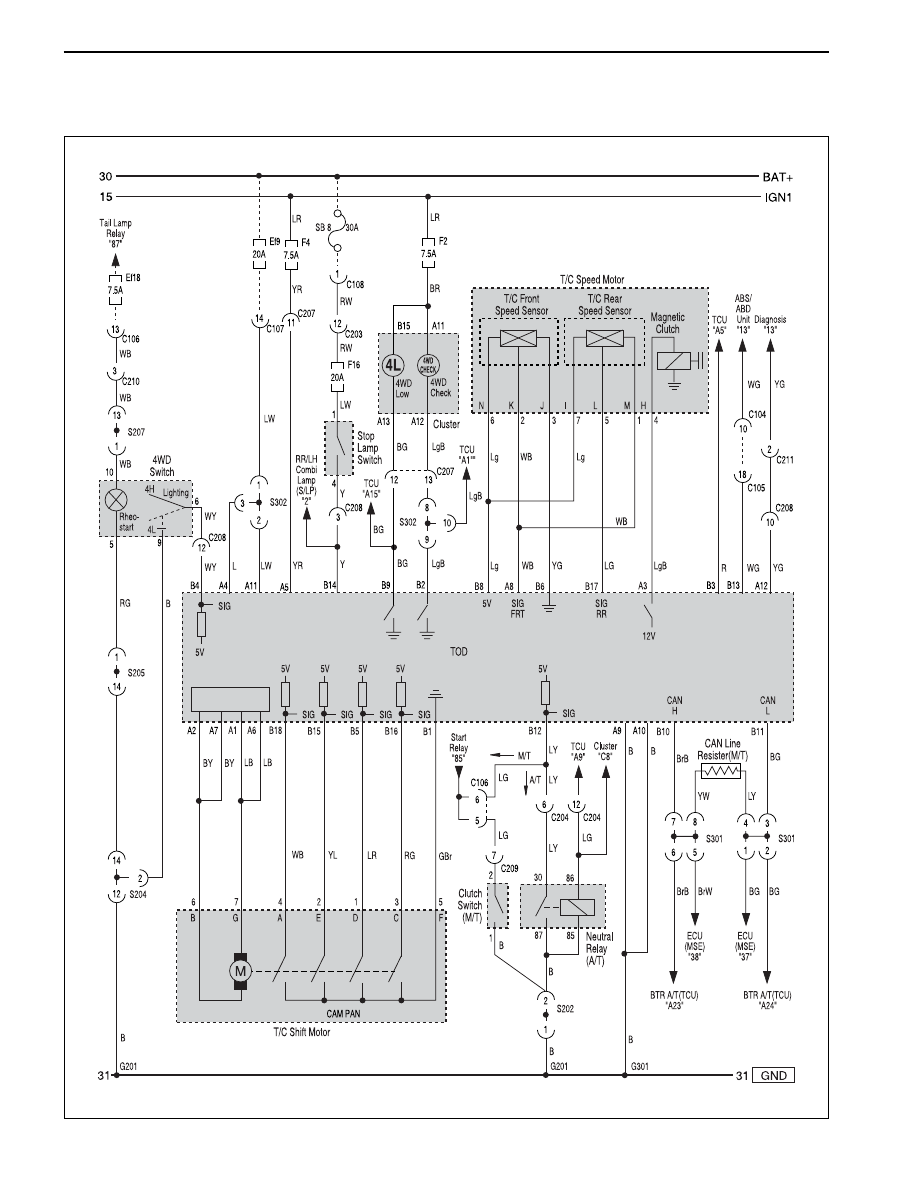

11. TOD(TORQUE ON DEMAND)

1)  ~ 2002 MODEL
