Components - Rear Spoiler

Preceding Work: Disassembly of rear spoiler

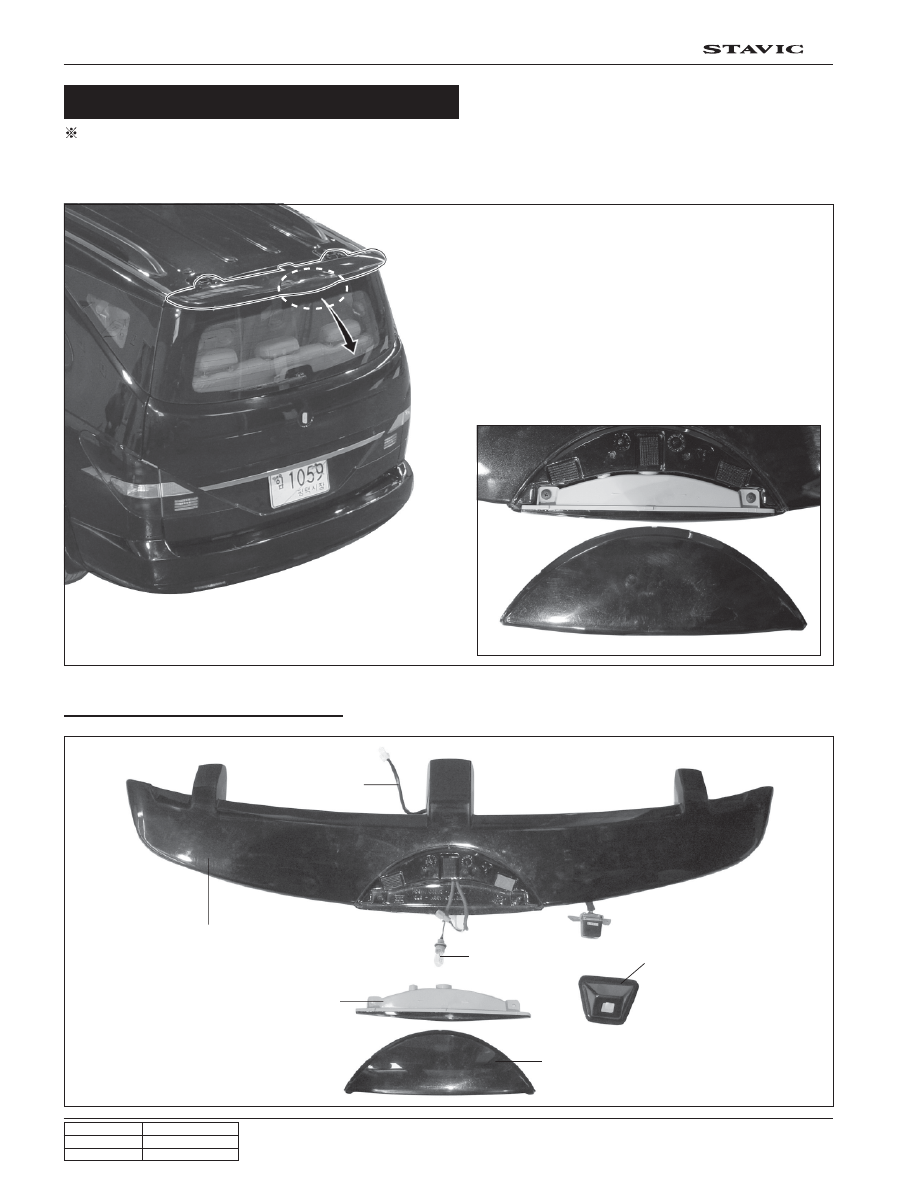

1. Disassembly HMSL cover carefully with slip driver (-).

2. Unscrew two bolts to disassemble HMSL.

Rear spoiler

Connector

Bulb

HMSL

HMSL cover

Rear view carmera

HMSL (High Mounted Stop Lamp)

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

39

5B

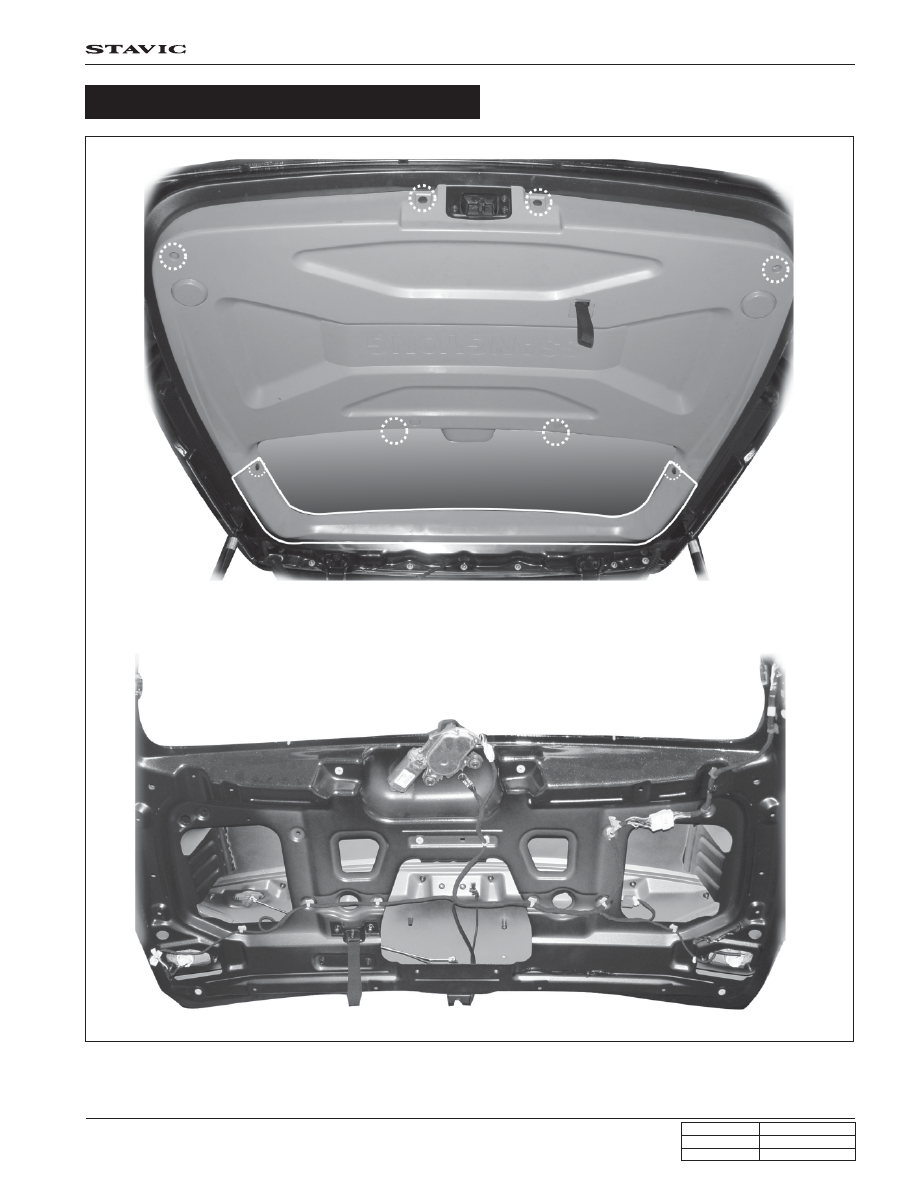

1. Unscrew two bolts to remove upper trim - tailgate.

2. Unscrew 6 screws to remove lower trim - tailgate.

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

○

* Inner side view

Tailgate Trim

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

40

5B

Preceding Work: Removal of tailgate trim

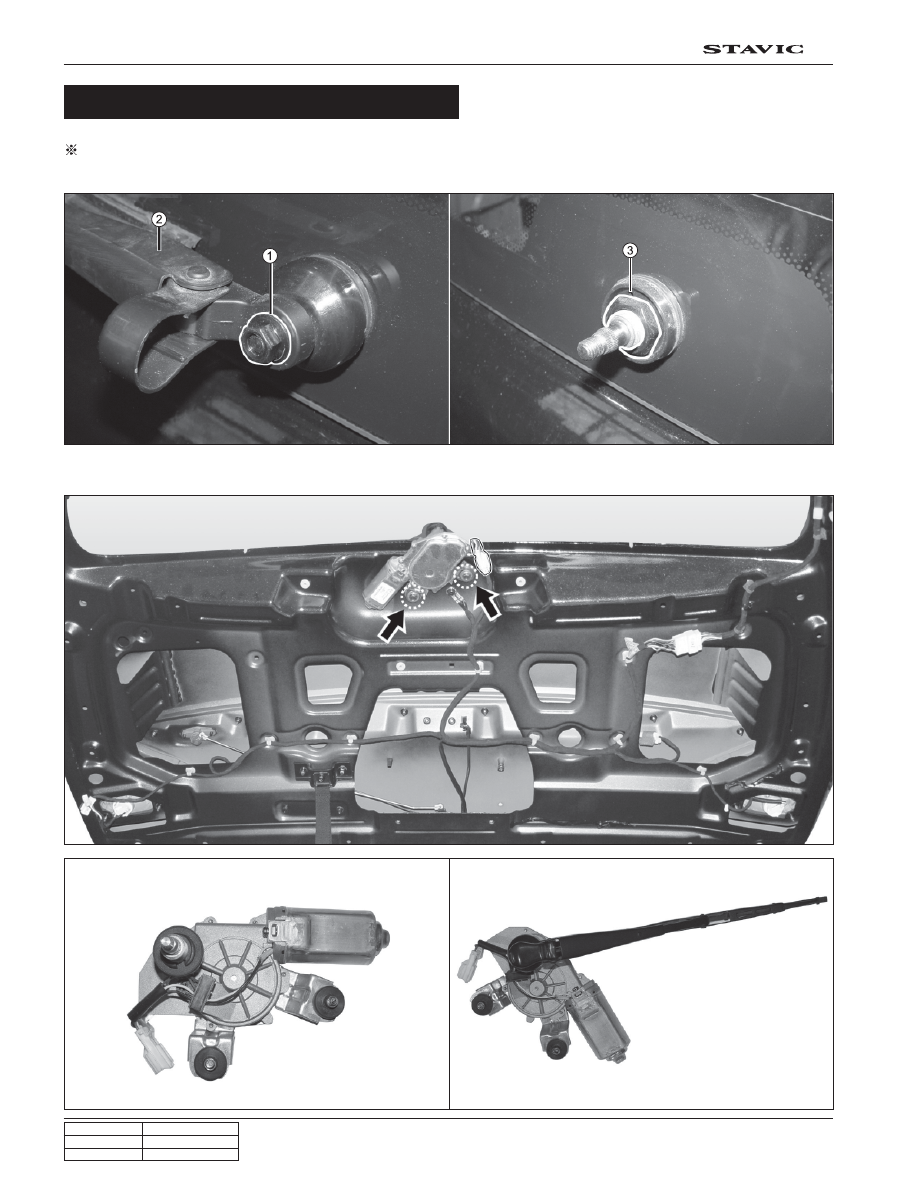

1. Unscrew one nut (1) to remove wiper assembly (2) and unwind one mounting nut (3).

2. Disconnect motor connector and disassemble wiper motor assembly with two bolts.

Wiper & Wiper Motor

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

41

5B

Latch and Acuator - Tailgate

• Latch - Tailgate

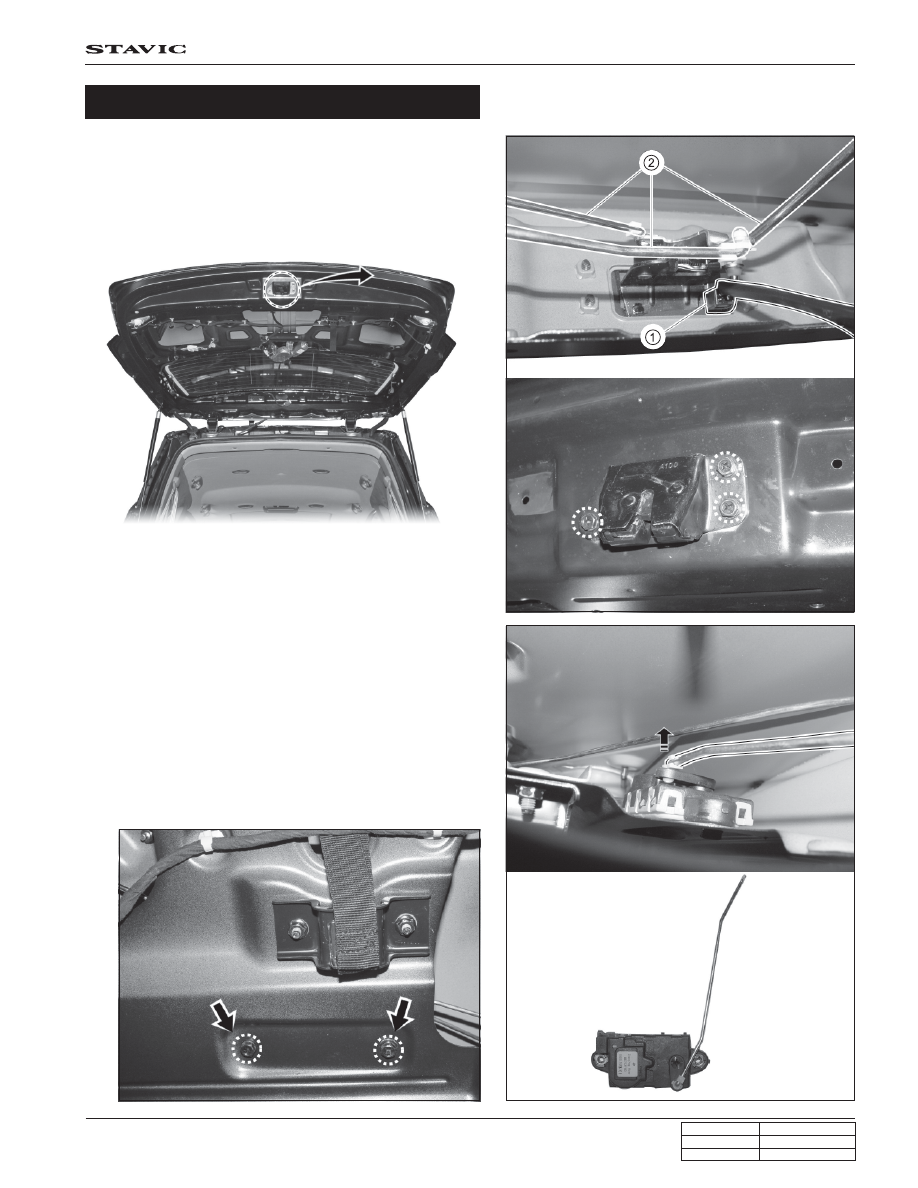

1. Disconnect latch wiring connector (1) and connecting rod

(2) at the inside of the door.

2. Unscrew latch mounting nut (6 mm - 3 EA).

• Actuator - Tailgate

1. Disconnect connecting rod at the inside of the tailgate.

2. Unscrew mounting nut (6 mm -2 EA).

Latch and Acuator - Tailgate
