SsangYong Stavic / SsangYong Rodius (2005 year). Manual - part 450

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

34

5B

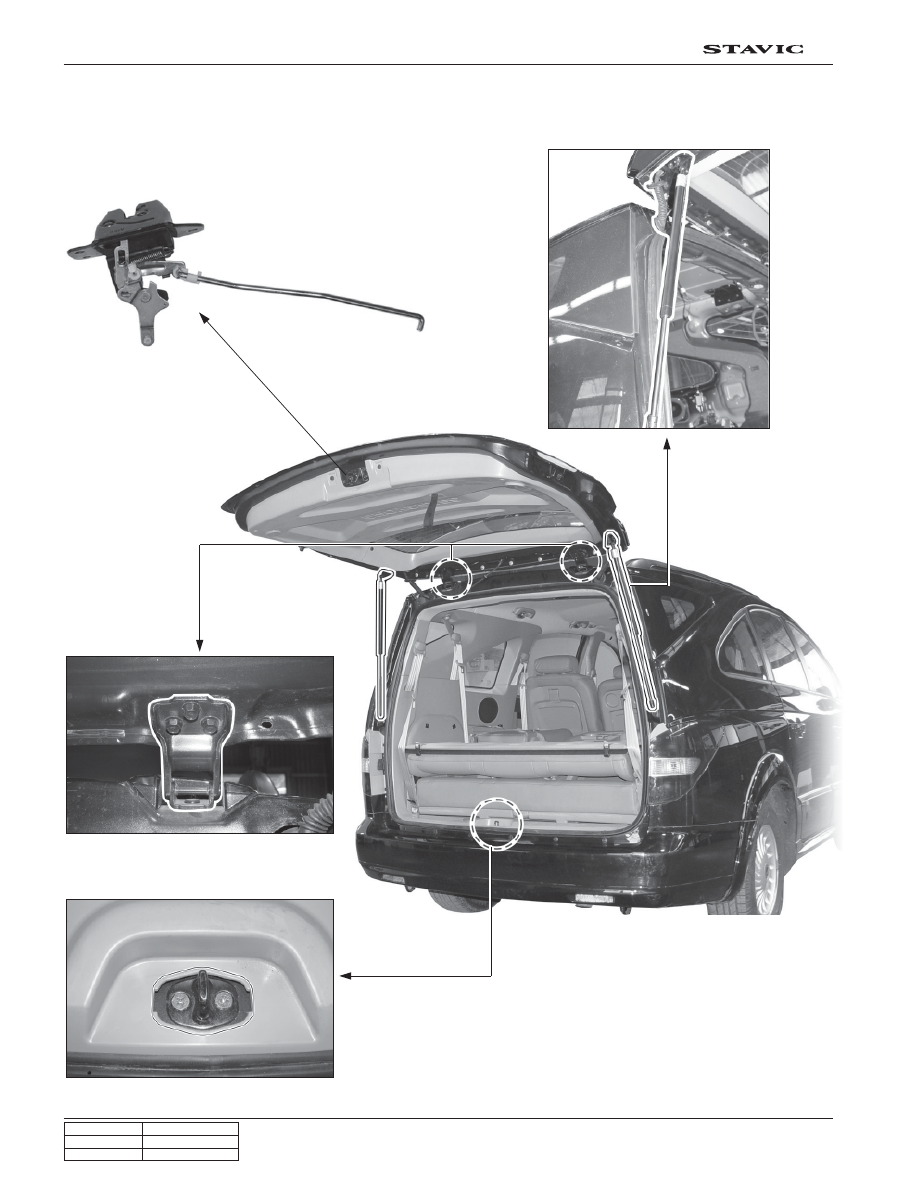

Door latch

Shock absorber

Door hinge

Door striker

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

35

5B

2. Disconnect tailgate wiring & connector.

Removal and Installation

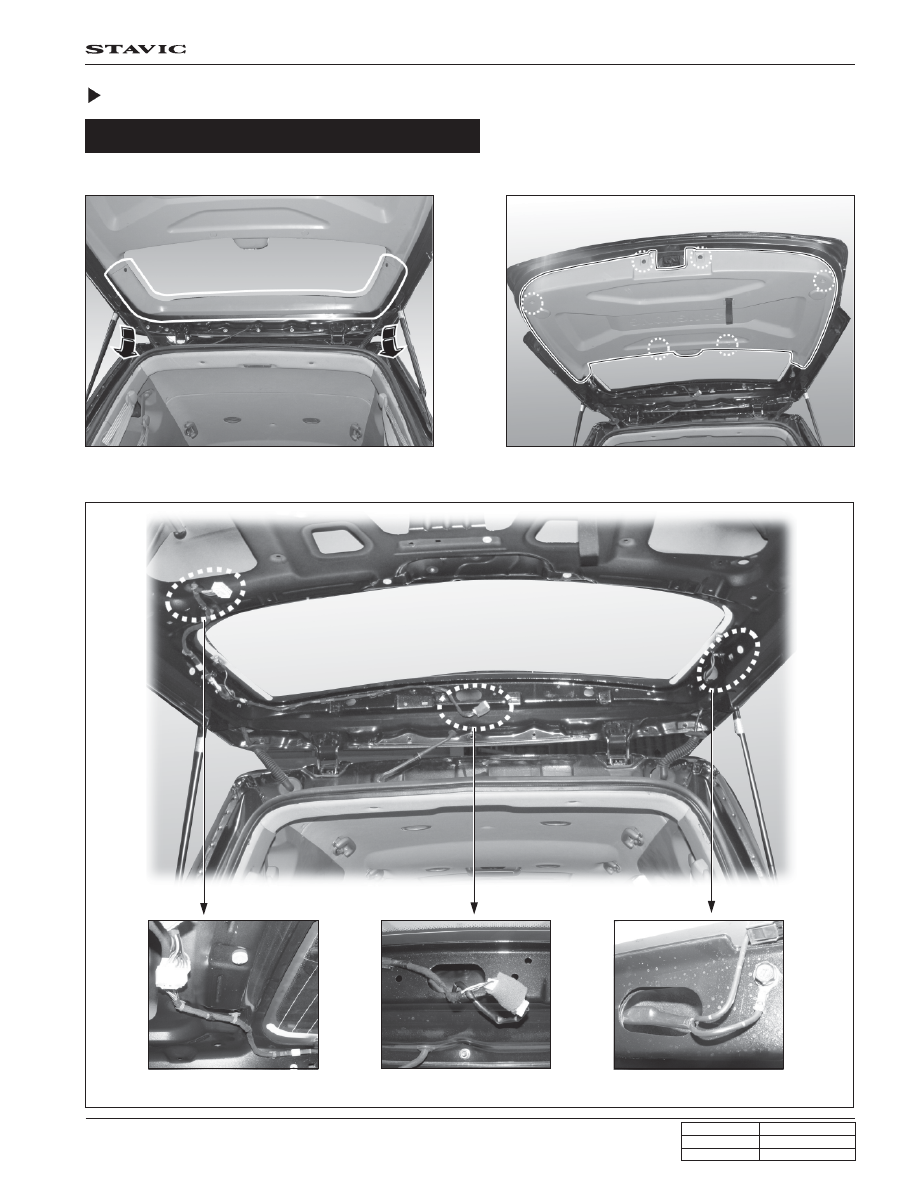

Tailgate main wiring

Rear view camera / HMSL

Heating wire & Ground

1. Remove tailgate upper & lower trim

Tailgate Assembly

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

36

5B

3. Disconnect tailgate washer hose.

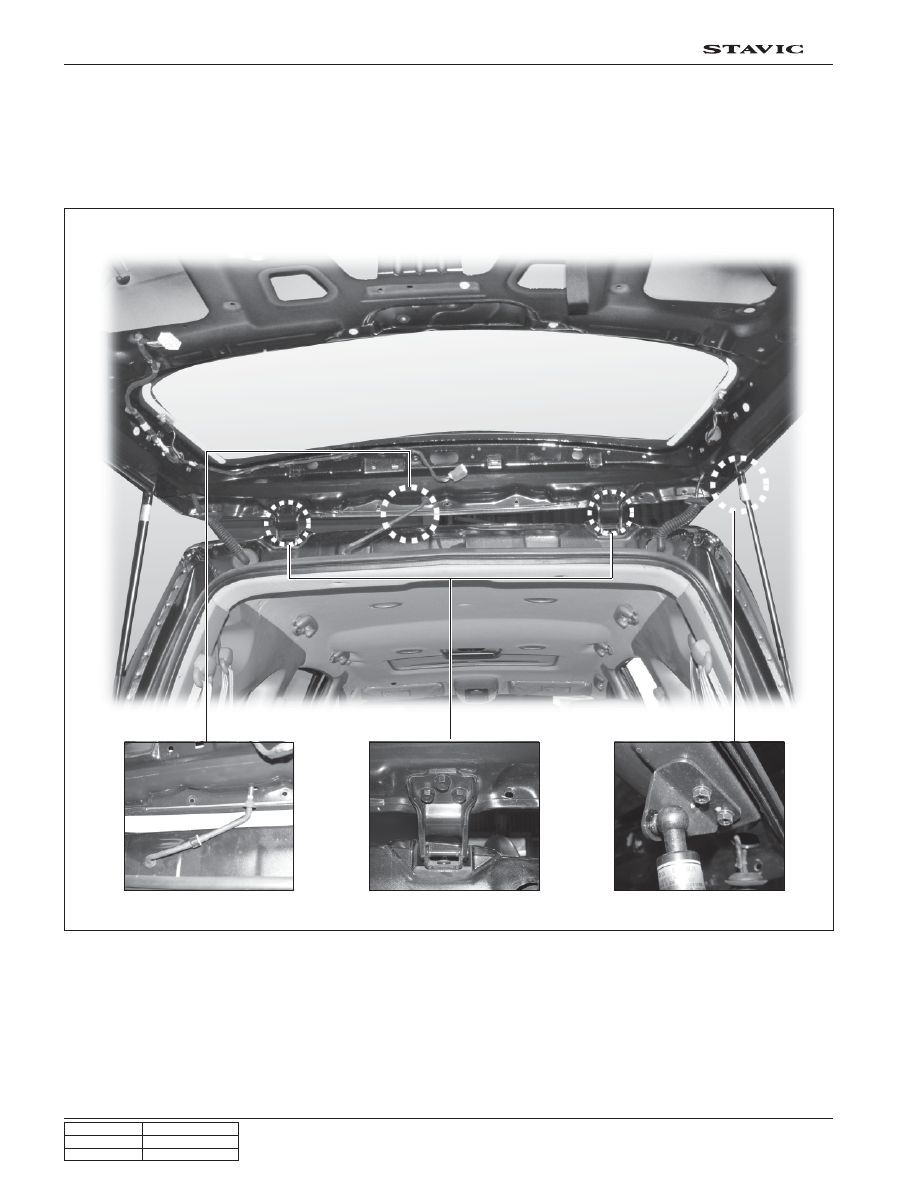

4. Disassemble tailgate assembly after remove shock absorber bolts & hinge.

5. Remove hinge cover mounting nut (M6).

6. Remove tailgate hinge mounting nut (M8) frominside.

7. Disassemble tailgate assembly.

CHANGED BY

EFFECTIVE DATE

AFFECTED VIN

BODY EXTERIOR

STAVIC - 2004.09

37

5B

○

○

○○○○○○○○○○○○○○○○○○○

3. "A"

2. "B"

1.

4. Disasemble rear spoiler.

1. Remove upper trim - tailgate.

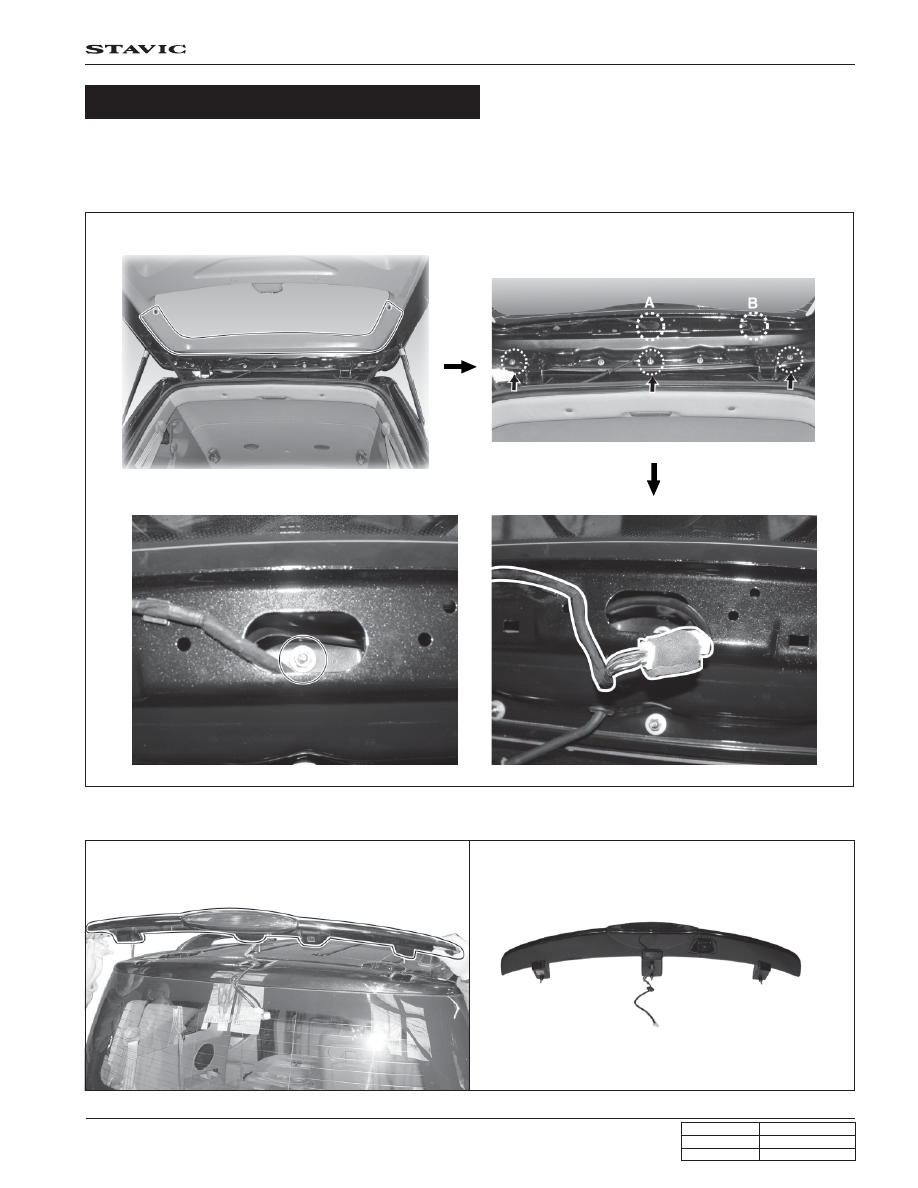

2. Disconnect rear view camera & HMSL (High Mounted Stop Lamp) connector (B).

3. Unscrew spoiler mounting nut (4EA).

Rear Spoiler
